For M5Stack DTU LoRaWAN Base LoRaWAN Programmable Data Transmission Unit - EU868 STM32WLE5CC

For M5Stack DTU LoRaWAN Base LoRaWAN Programmable Data Transmission Unit - EU868 STM32WLE5CC Beskrivelse

This is a LoRaWAN programmable data transmission unit (DTU) for 868MHz frequency.
EU868 frequency band (868-870 MHz).
Long distance and low power consumption.
Multi-mode support.
Industrial interface.

Scope of Application:
Industrial Monitoring
Environmental Monitoring Node Deployment
Agriculture

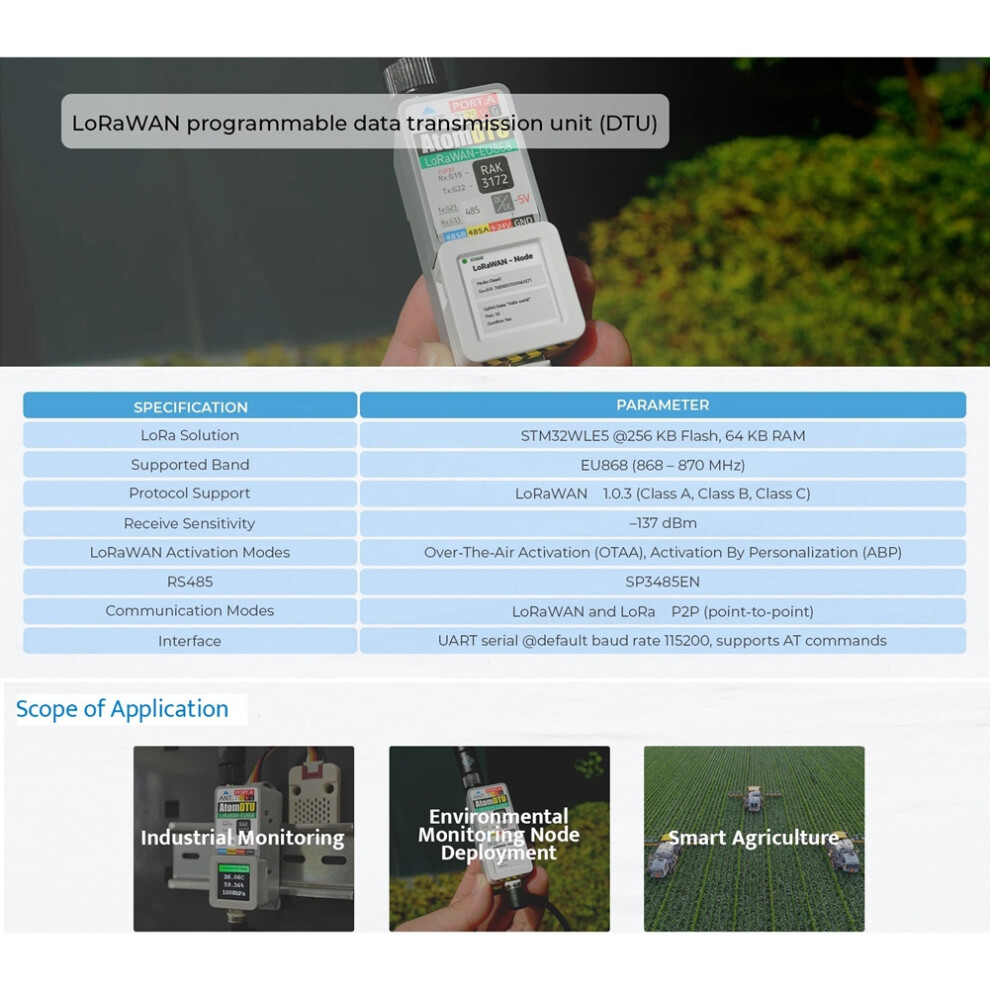

Specifcations:
LoRa Solution: STM32WLE5 @256 KB Flash, 64 KB RAM
Supported Band: EU868 (868-870 MHz)
Protocol Support: LoRaWAN 1.0.3 (Class A, Class B, Class C)
Receive Sensitivity: -137 dBm
LoRaWAN Activation Modes: Over-The-Air Activation (OTAA), Activation By Personalization (ABP)
RS485: SP3485EN
Communication Modes: LoRaWAN and LoRa P2P (point-to-point)
Interface: UART serial @default baud rate 115200, supports AT commands
Note:due to different production batches, there are differences in printing screen printing, which does not affect the use.
Color:Grey
Material:plastic

Package Contents:
1 * DTU LoRaWAN Base
1 * Antenna
