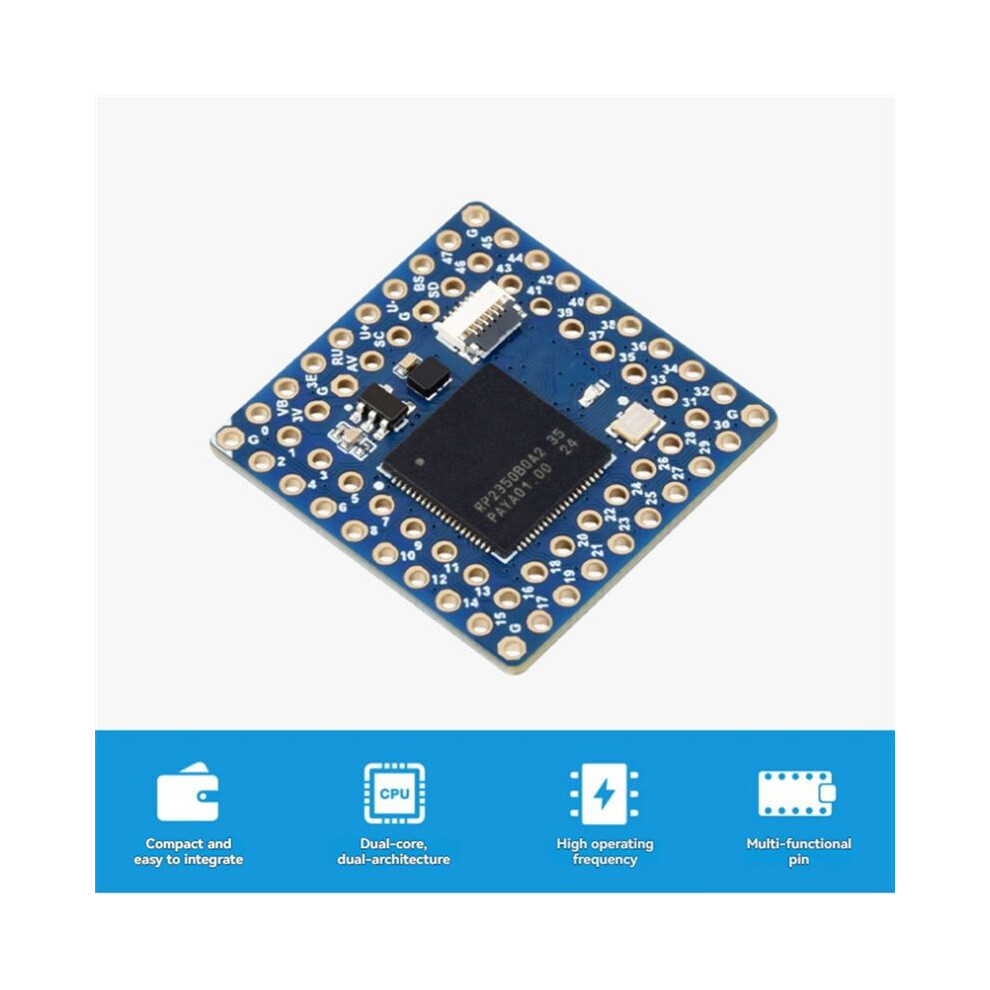

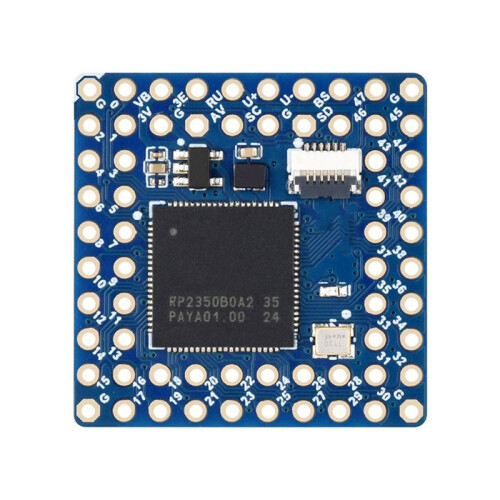

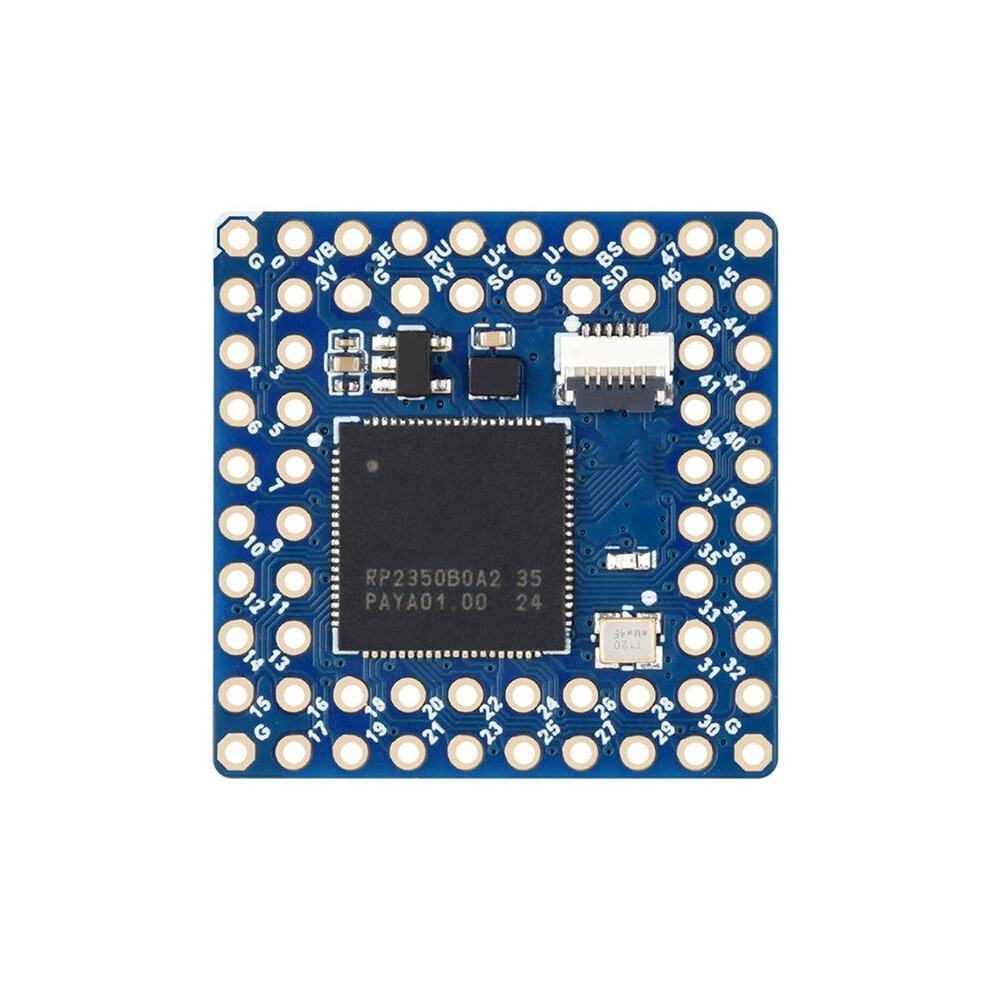

For Raspberry Pi RP2350 Core2350B Core Board Dual-Core Dual Architecture 150MHz with 8MB PSRAM
Brand Brecantia
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 137,000 anmeldelser med vurderingen “Fremragende”
230,76 kr.
248,12 kr.
Spar 7%!
Gratis levering
1%
Tjen 2,31 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Prioritet (Gratis) | man. 2. - ons. 4. nov.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Beskrivelse og detaljer
Oversigt

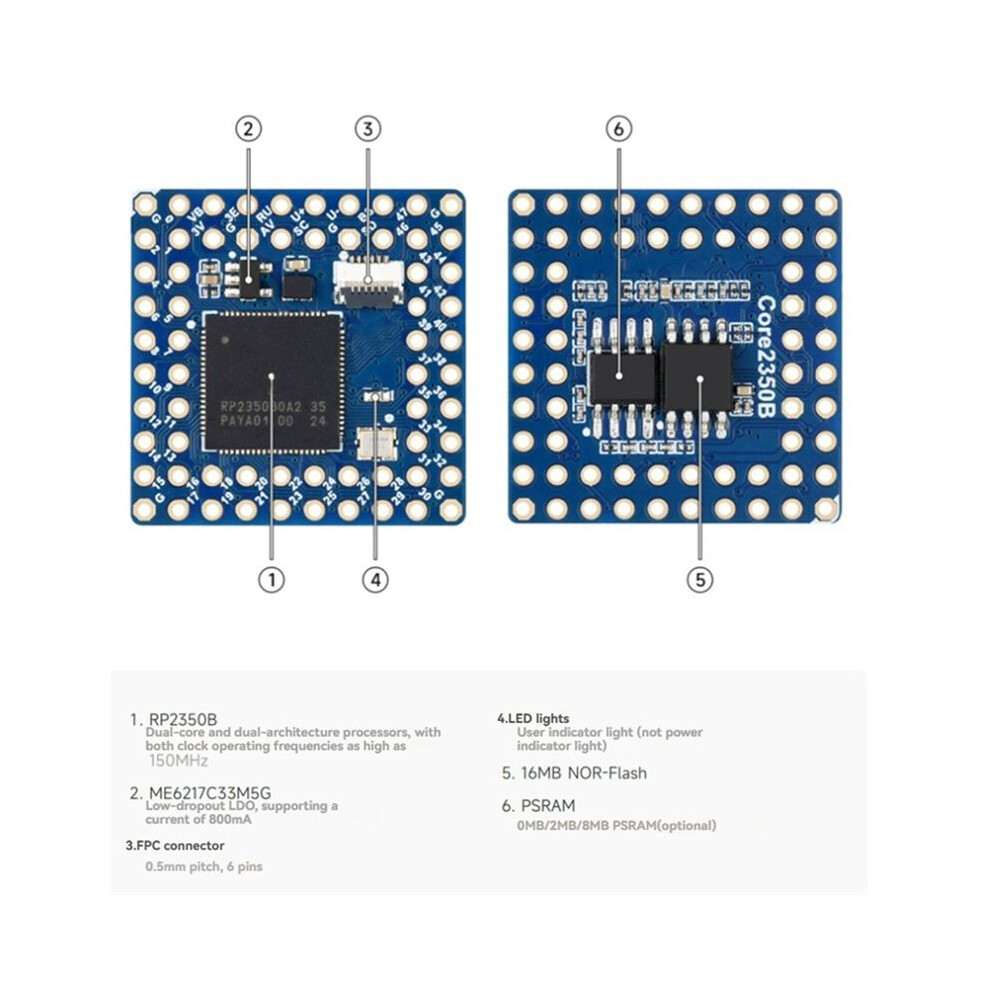

- RP2350B microcontroller chip designed with for Raspberry Pi
- Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock running frequency up to 150MHz, supporting users to switch flexibly between the two architectures
- PSRAM: 8MB, built-in 520KB SRAM and 16MB on-chip Flash
- Onboard FPC6PIN interface, USB Type-C interface can be brought out through the adapter board
- 64 pins, arranged with a standard pitch of 2.54mm, easy to integrate into the user's self-developed substrate
For Raspberry Pi RP2350 Core2350B Core Board Dual-Core Dual Architecture 150MHz with 8MB PSRAM Beskrivelse
RP2350B microcontroller chip designed with for Raspberry Pi
Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock running frequency to 150MHz, supporting users to flexibly between the two architectures
PSRAM: 8MB, built-in 520KB and 16MB -chip Flash
Onboard FPC6PIN interface, USB Type-C interface can be brought out through the adapter board
64 pins, arranged with a standard pitch of 2.54mm, easy to integrate into the user's self-developed substrate
USB1.1 host and slave device support
Support low-power sleep and hibernation modes
Can be identified as a large-capacity storage through USB for drag-and-drop download of programs

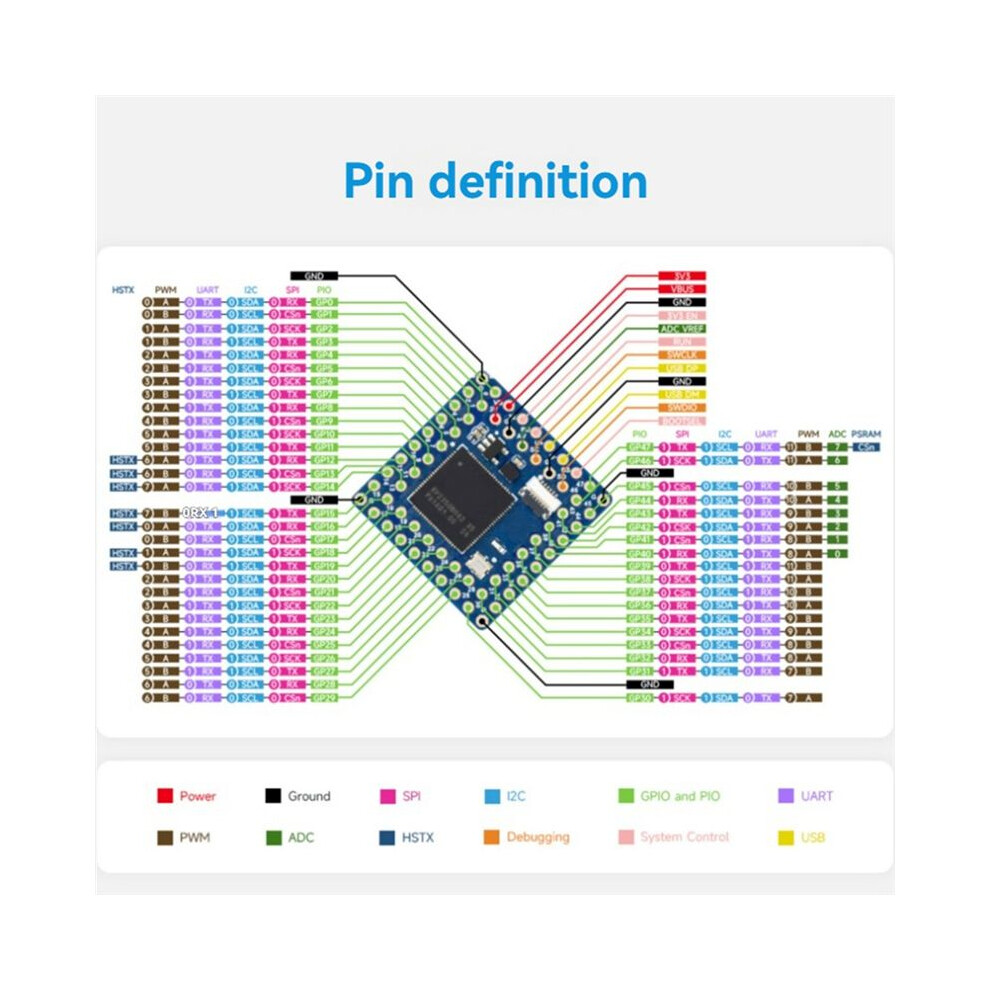

Bring out 48 multi-function GPIO pins 2 I2C, 2 UART, 8 12-bit ADC and 24 controllable PWM channels
Accurate -chip clock and timer
Temperature sensor
12 programmable I/O (PIO) state machines for custom peripheral support
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: PCB
Package Contents:
1 x Core Board
Detaljer
| OPC | PYDHV7Y |
|---|---|
| Mærke | Brecantia |
| Koder | 4711158247174 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 11cm |
| Weight | 0.0115kg |
| Colour | As Shown |
| Material | PCB |
