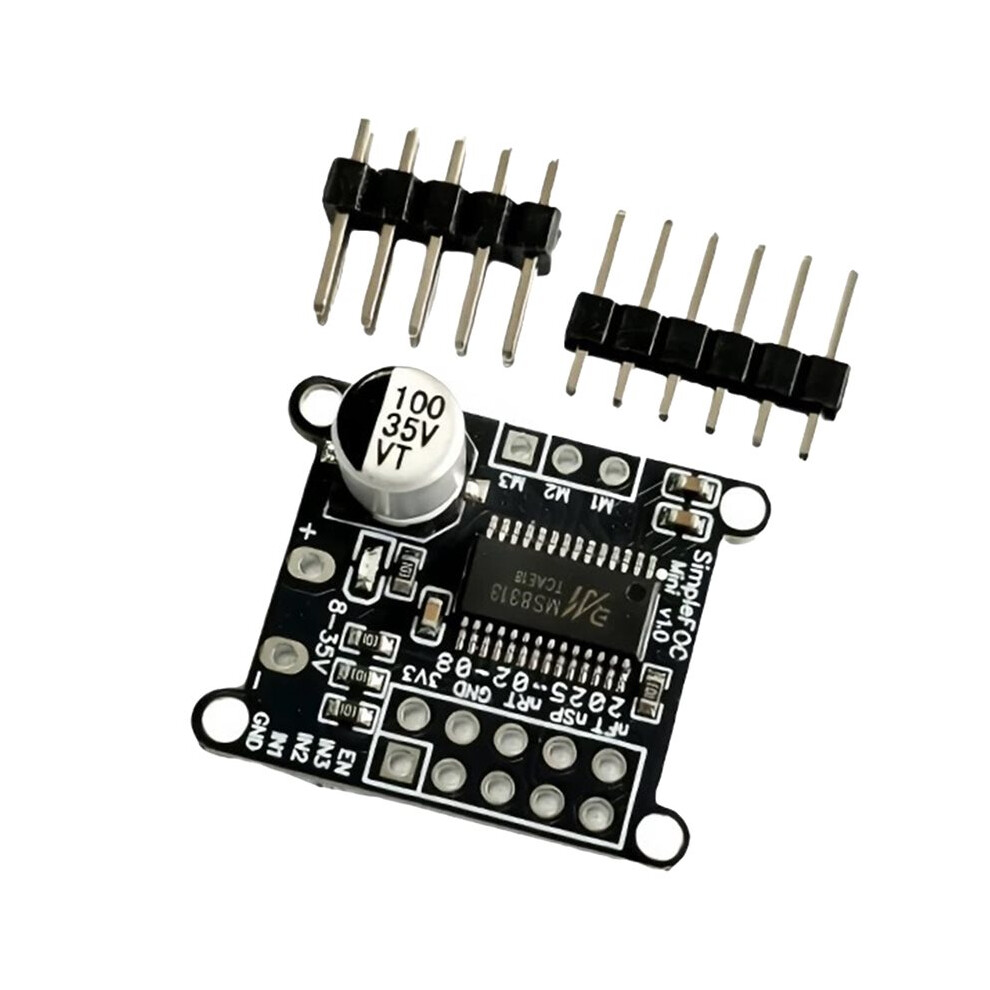

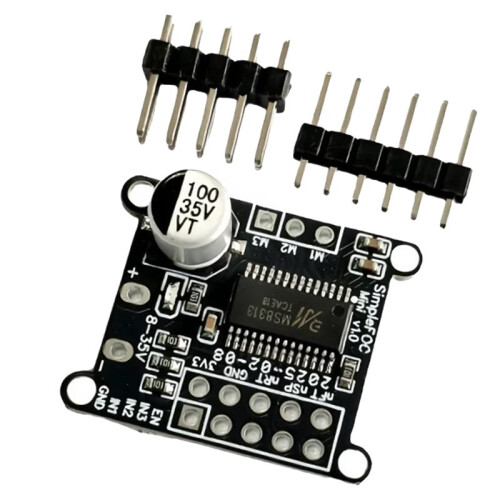

For Simple FOC Brushless Motor Controller with DRV8313 Chip and SPWM Control

For Simple FOC Brushless Motor Controller with DRV8313 Chip and SPWM Control Beskrivelse

This motor controller operates an input supply voltage range of 8 to 30V, ensuring versatility across various power setups. It supports a maximum output current of 2.5A per channel, making it suitable for a range of small to medium-sized brushless motors.
Equipped with a 3.3V LDO output, this board can deliver to 10mA, ideal for low-power auxiliary components. The input control signal is compatible with both 3.3V and 5V systems, allowing for integration with a variety of microcontrollers and logic systems.
The board utilizes advanced SPWM and SVPWM control algorithms for efficient and precise motor control, enhancing the performance of your brushless motor. These methods allow for smoother and more efficient motor operation compared to traditional techniques.
Built around the robust DRV8313 chip, this controller includes three independently controllable half-H-bridge drivers. This setup simplifies the connection process, requiring only the control signal and the motor's UVW three-phase to manage motor rotation.
Leverage the power of an extensive open-source library that provides quick and easy implementation, reducing development and complexity. This feature is perfect for hobbyists and professionals alike looking to expedite their project deployment.

Color: As Shown
Material: PCB

Package Contents:
1*FOC Control Driver
