For Sipeed NanoKVM IP-KVM Remote Operation and Maintenance Server PiKVM Remote Desktop Server UART

For Sipeed NanoKVM IP-KVM Remote Operation and Maintenance Server PiKVM Remote Desktop Server UART Beskrivelse

Lichee NanoKVM is an IP-KVM product based LicheeRV , inheriting the size and powerful functions of LicheeRV
NanoKVM Full is a complete version with exquisite shell and complete accessories, built-in system image card for booting, recommended for individual users
NanoKVM includes an -compatible input interface, which can be recognized by the computer as a display to capture the computer screen; a USB2.0 interface connected to the computer host, which can be recognized as a HID device such as a keyboard, mouse, touchpad, etc., and uses the extra storage space of the TF card to mount it as a U disk device; the whole system is equipped with a 100M network port for network transmission of video and control signals
With an ATX power control interface (USB-C form) to facilitate remote control and viewing the host power and off status
There is also an OLED display under the shell to display the local IP and KVM related status

Name: NanoKVM (Full)
Computing unit: LicheeRV (RISCV)
Resolution: 1080P @ 60fps
Video encoding: MJPEG, H264 (developing)
Video delay: 90- 230ms
UEFI/BIOS: YES
Emulate USB keyboard and mouse: YES
Emulate USB storage: YES
IPMI: YES
Wake-- LAN: YES
ATX power control: USB interface IO control board
OLED display: 128x64 0.96 inch white
External serial interface: 2-way, ready to use
TF card: Yes
Expansion accessories: WiFi or PoE
Power consumption: 0.2A@ 5V
Power input: PC USB can be powered, also supports additional auxiliary power supply
Cooling: Silent fanless
Colour:Random Color, don't accept the specified color
Material:Photosensitive resin
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

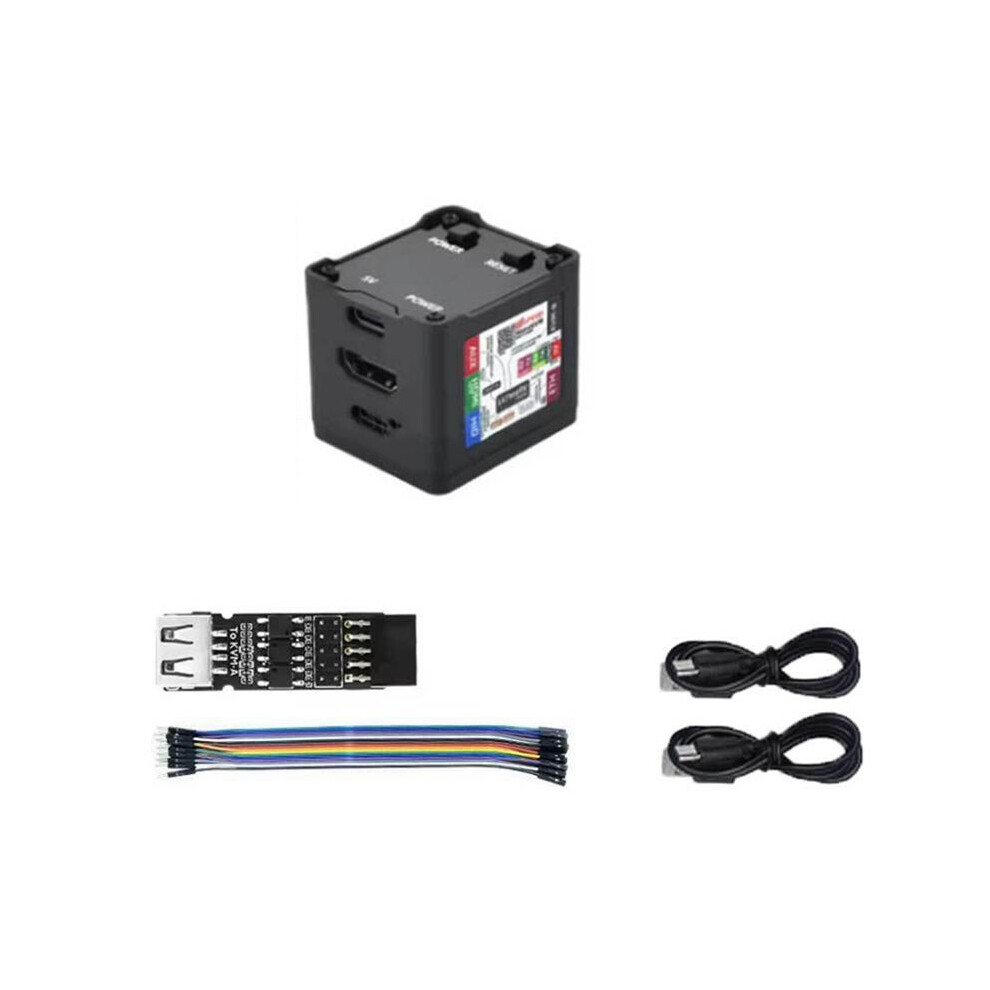

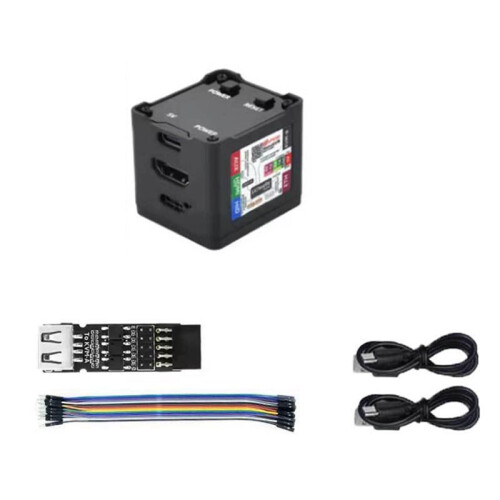

Package Contents:
1 * Operatio
