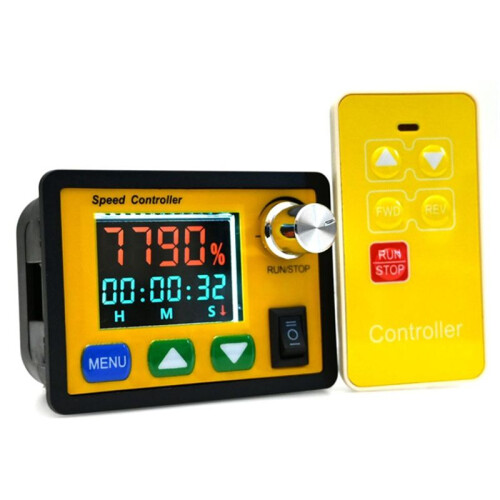

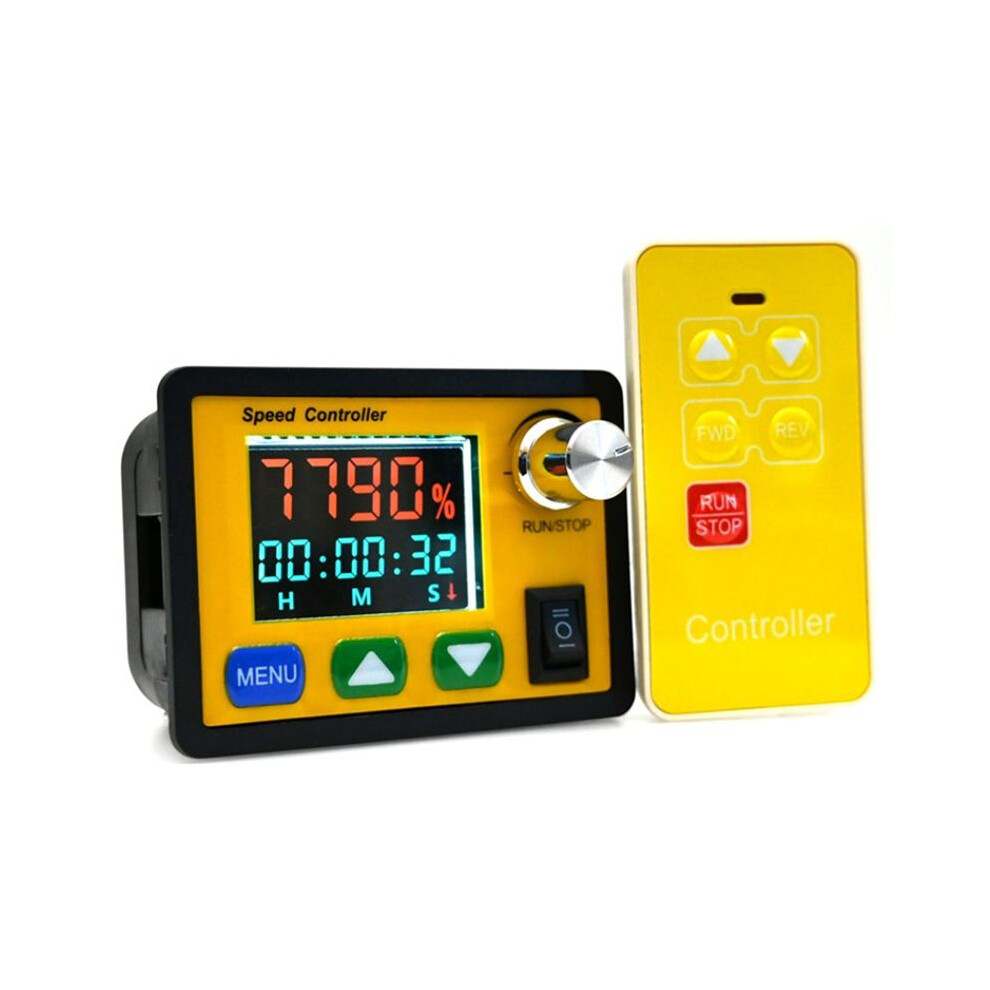

Forward Reverse 0- Adjustable 6-55V 20A Motor Speed Controller PWM 12V 24V 48V Remote Control

Forward Reverse 0- Adjustable 6-55V 20A Motor Speed Controller PWM 12V 24V 48V Remote Control Beskrivelse

12 Function Introduction: Function 1- Soft start setting: 000-100 (0-10 seconds) Soft start adjustable, default to 1 second; Function 2- Soft stop setting: 000-100 (0-10 seconds) Soft stop adjustable, default to 1 second; Function 3, Function 4, Function 5: If there are more than 999 bits in the setting interface, they will not be displayed, and thousands of bits will flash.
Function 3- Maximum Speed Scale Setting: 000-9990 (0-9990) Default 100; Function 4- Speed lower limit setting: 000-9980 (0-9980) adjustable, default 0; Function 5- Speed upper limit setting: 000-9980 (0-9980) adjustable, default 100. Function 6- Speed increase/decrease value setting: 001 002 005 010 015 020 025 050 100 Each press of the increase/decrease button changes the corresponding speed value
Function 7- Power start mode: Mode 1: Power motor does not start, Mode 2: Power start, default mode 1; Function 8- Total running setting: 0~99:59:59 can be set. When all are 0, it means there is no timing, and the default is 0;
Function 9, Function 0, Function A, hour, minute, second switching, long press and hold the setting button for 2 seconds to between hours, minutes, and seconds. Function 9- Forward rotation setting: 0~99:59:59 can be set, default 10 seconds
Function 0- Stop setting: 0~99:59:59 can be set, default 10 seconds; Function A - Reverse setting: 0~99:59:59 can be set, default 10 seconds; Function E - Manual automatic mode selection: Mode 1 is manual mode (function 8-9-0-A fails), Mode 2 is automatic mode (function 8-9-0-A takes effect)

Parameter
Input voltage: 6-55V
Maximum current: 20A
Display method: LCD color screen
Forward and reverse: bidirectional
Speed regulation method: button and knob
Wireless remote control: Yes
Supported load: brushless motor
Installation method: embedded
Wiring
