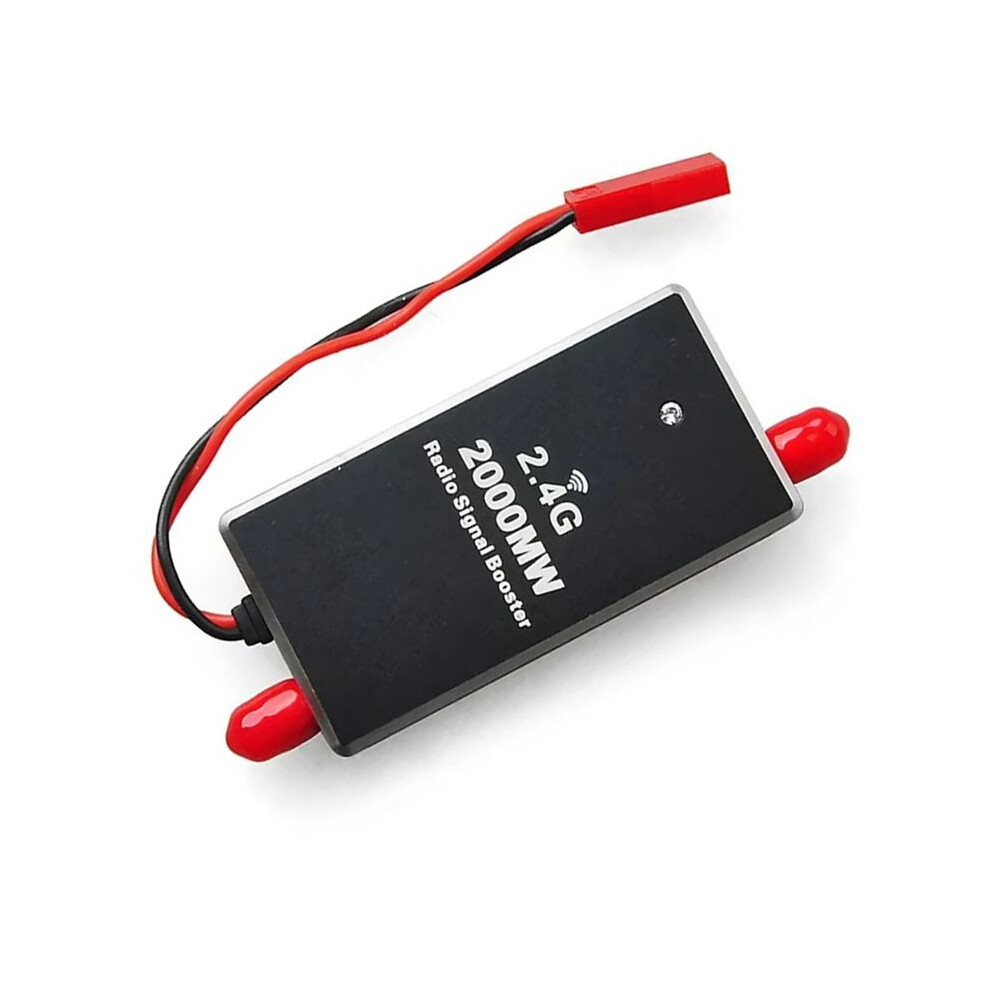

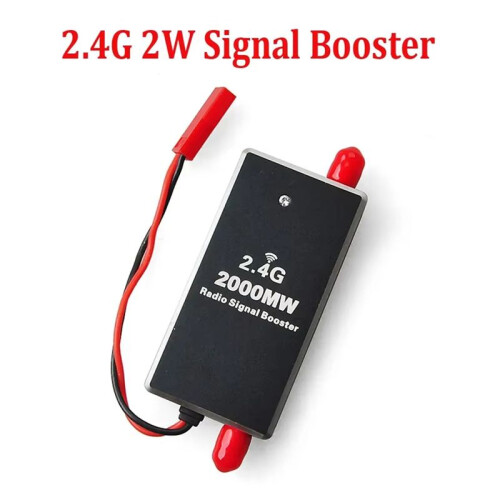

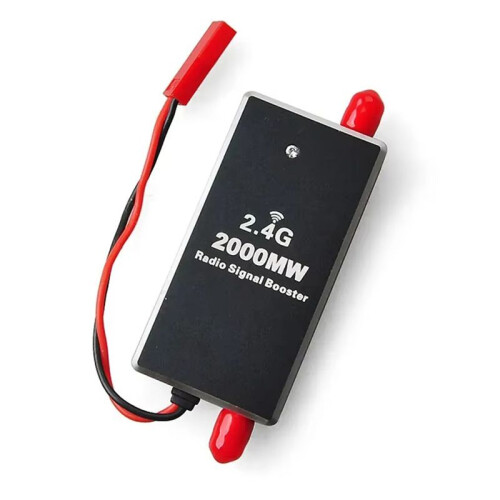

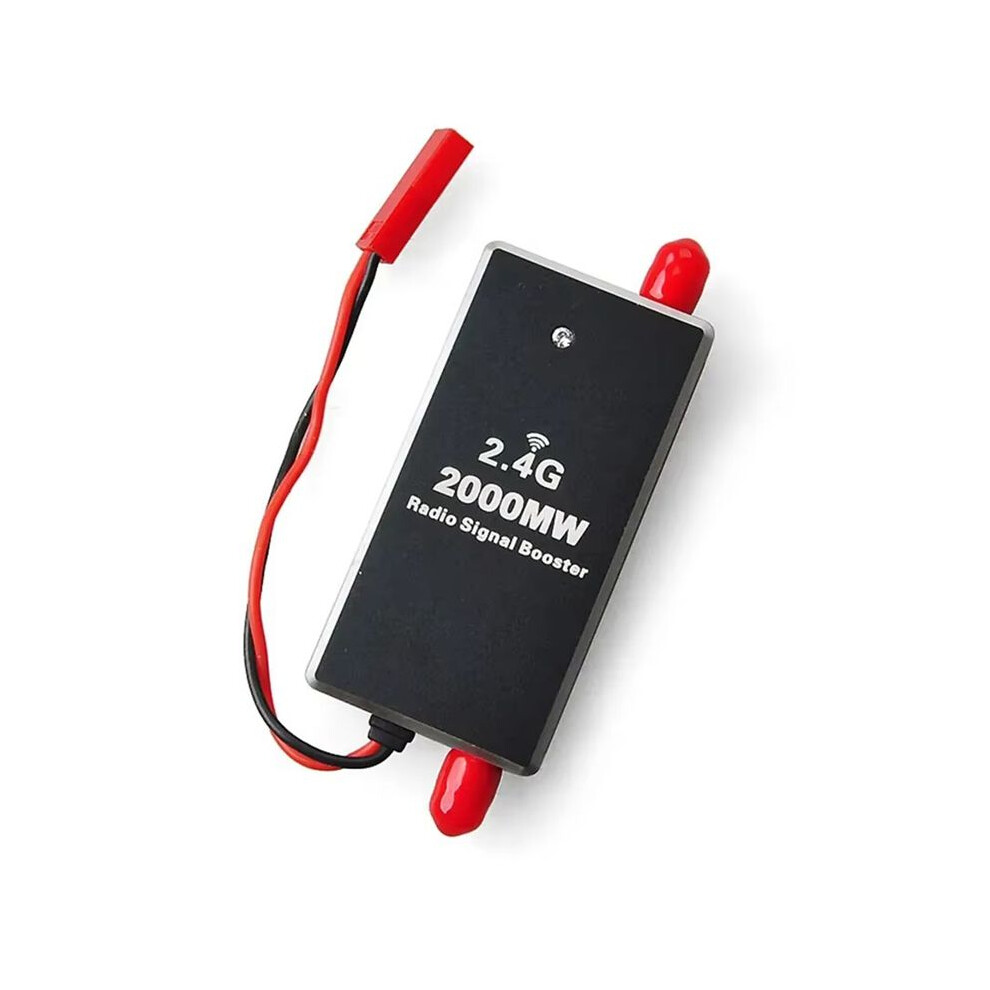

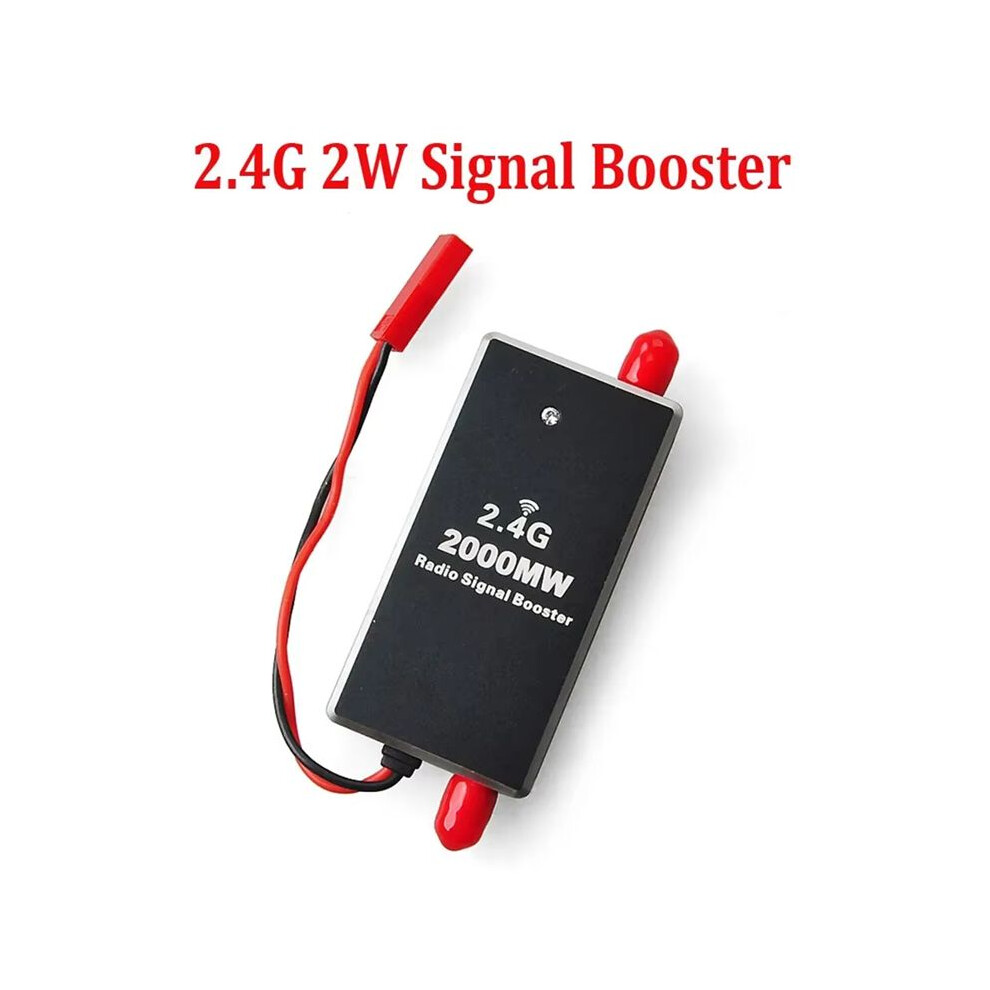

FPV 2.4G 2W 2000mW Radio Signal Booster Amplifier Module for Phantom RC Transmitter FPV Extend Range Drone

FPV 2.4G 2W 2000mW Radio Signal Booster Amplifier Module for Phantom RC Transmitter FPV Extend Range Drone Beskrivelse

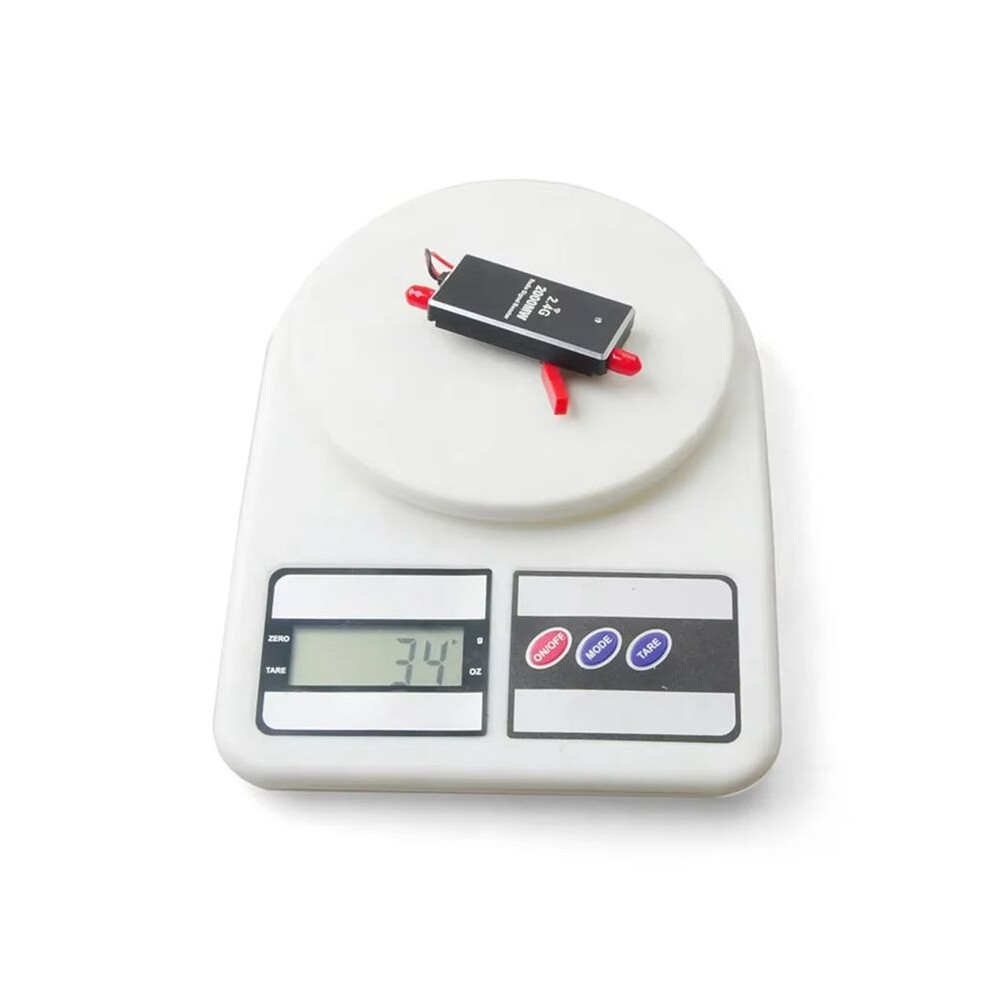

Designed for FPV, small size, light weight and good heat dissipation.
Adopts wide voltage input design, 5V-15V input is available.
Users can use either an external power supply or the power supply that comes with the transmitter.
The shell is made of aluminum alloy CNC, which has good heat dissipation effect and excellent shielding effect.
Reduce interference

Product name: 2.4G 2W signal booster
Input voltage: 5V-15V
Transmitter gain: 11dB 1.5dB
Noise figure: less than equal 3.0dB
Input power range: 4dBm-20dBm
Maximum output power: 33dBm(2W)
Working voltage: 5V-15V
Working current: less than equal 400ma
Working indicator:
Input connector: RP-SMA female (external thread-internal hole)
Output connector: SMA female (external thread-internal needle)
Note:It is normal to generate heat during operation, so users do not need to worry.

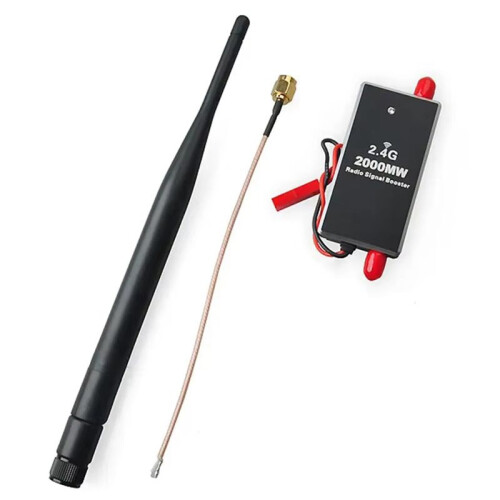

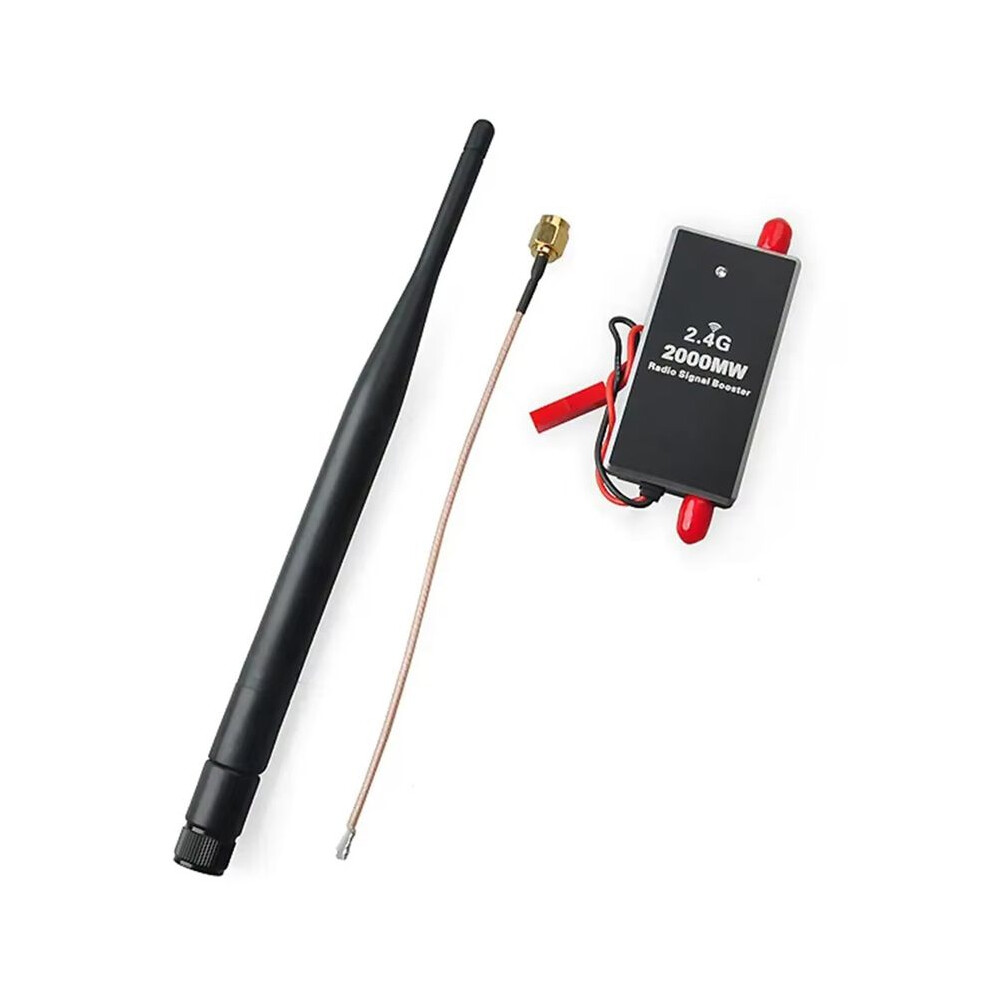

Please assemble the antenna before powering .
Users may need to solder the signal booster to the your transmitter module.
This product requires DIY modification skills and relevant knowledge, please confirm before purchase.
The LED will only light after the remote control is connected.
Instructions for use:The amplifier input is connected to the remote control high-frequency output connector or the internal welding wire of the remote control through the SMA high-frequency , with the high-frequency signal in the middle and the negative pole around.
The amplifier output is connected to the antenna, and then to the power input.
Colour:Black
Material:ABS

Package Contents:
1set x 2.4G 2W Signal Booster
