Frequency Meter Module PLJ-8LED-R Frequency Display Measurement 0.1MHz-2400MHz Frequency Display Component Module,B

Frequency Meter Module PLJ-8LED-R Frequency Display Measurement 0.1MHz-2400MHz Frequency Display Component Module,B Beskrivelse

2.4 Ghz Frequency Meter With Microchip Pic16f648a As The Core. The Frequency Reference Uses A Temperature Compensated Voltage Controlled Crystal Oscillator (2.5 Ppm Vc-Tcxo).
Adopt A Unique Gate Control Method And Precise Algorithm (Non-Timed Interruption Method). The Gate (Display Refresh) Is Optional From 0.01 Second/0.1 Second/1.0 Second, And The Frequency Value Is Displayed In Real .
Single-Ended Input Design, Three Channels Of Frequency Measurement (Low Channel/High Channel/Auto Channel) Are Optional. Dual If Design, If Value And /Minus Mode Can Be Preset Independently.
Adopts Eight-Digit 0.56-Inch High-Brightness Digital Tube Display With Eight-Level Brightness Adjustable. Invalid Zeros Are Automatically Blanked, Invalid Frequency Value Display Filtering Is Optional, And Last Bit Blanking Is Optional.
Simple Circuit, Reasonable Structure, Double Button Control, Simple Operation.

Working Voltage:
Input: 9v-15v (With Power Polarity Reverse Protection)
Working Current:
Maximum 160 Ma (Test Conditions: ① Dc12v Power Supply; ② Red Digital Tube; ③ Eight Levels Of Brightness)
Display Digits:
Eight-Digit Led Display, To Eight Digits Can Be Displayed.
Display Brightness:
Eight Levels Of Led Brightness Are Adjustable, And The Factory Setting Is The Highest Brightness.
Onboard Interface:
In (Power Interface):Hx2.54-2p Socket
Rf In (Signal Input):Hx2.54-2p Socket
Icsp (Programming Interface):2.54-6p Pin
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use

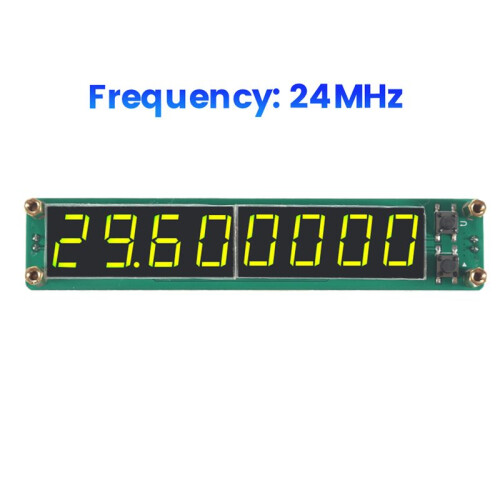

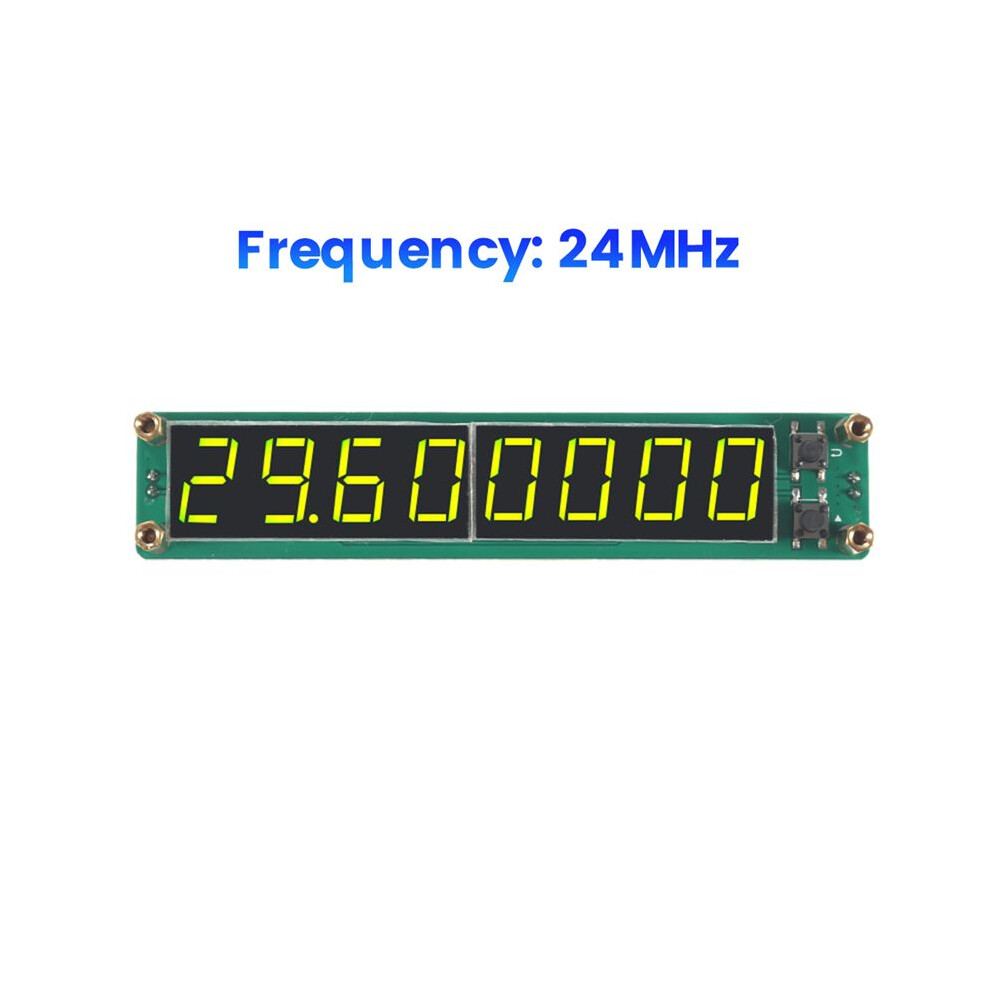

Frequency:24MHz
Type:B:Yellow Light
Colour:As Shown
Material:PCB

Package Contents:

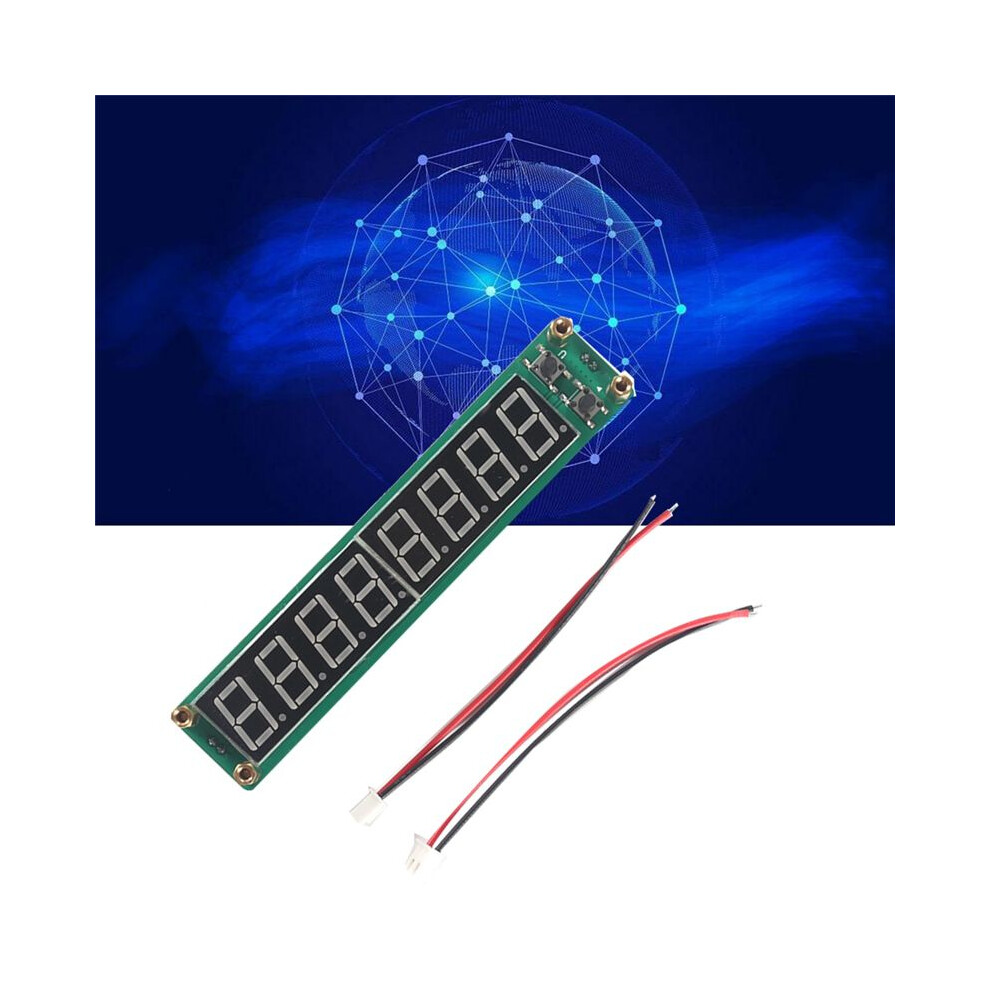

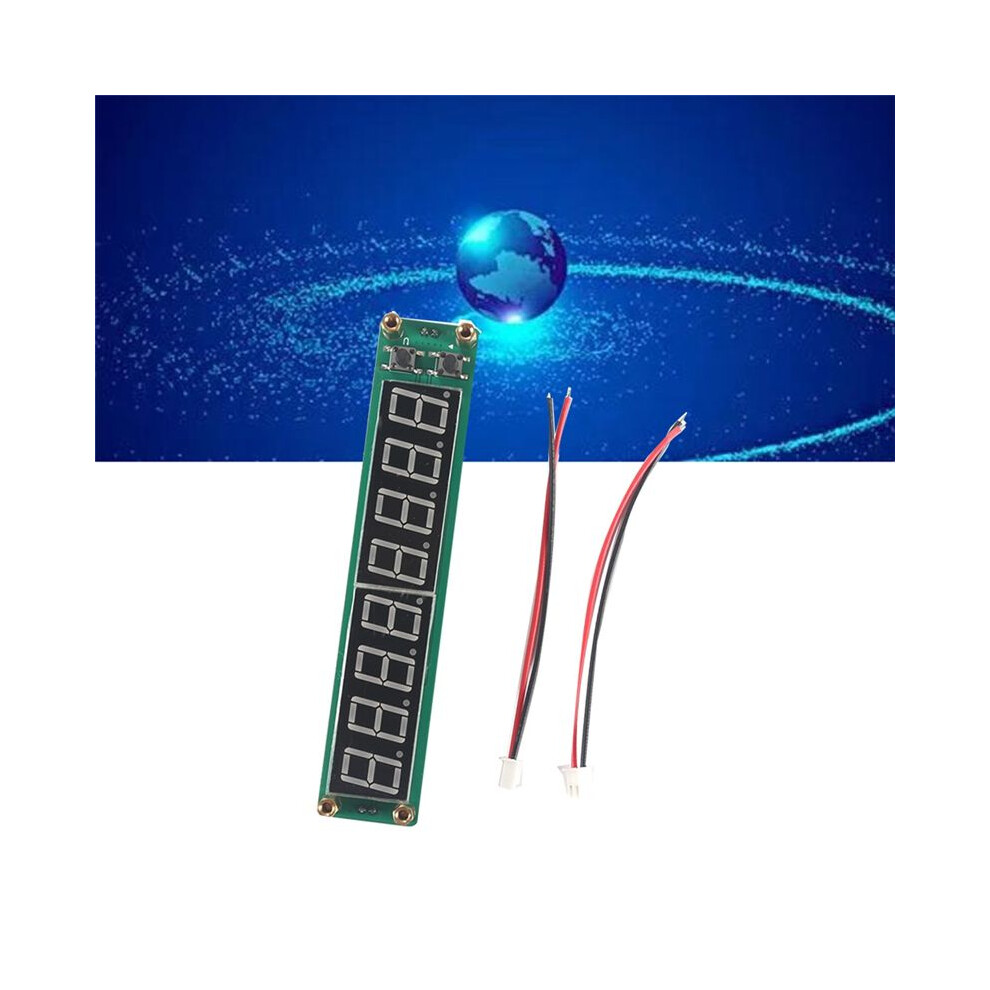

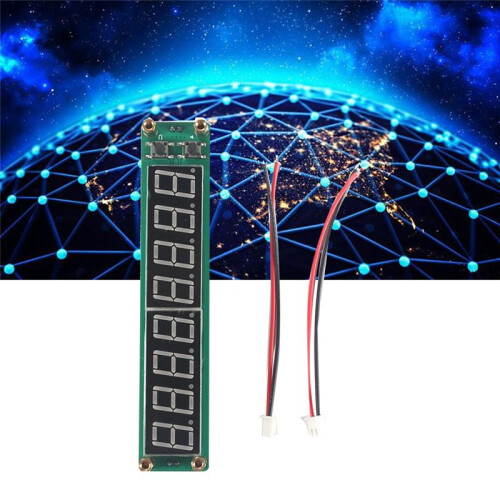

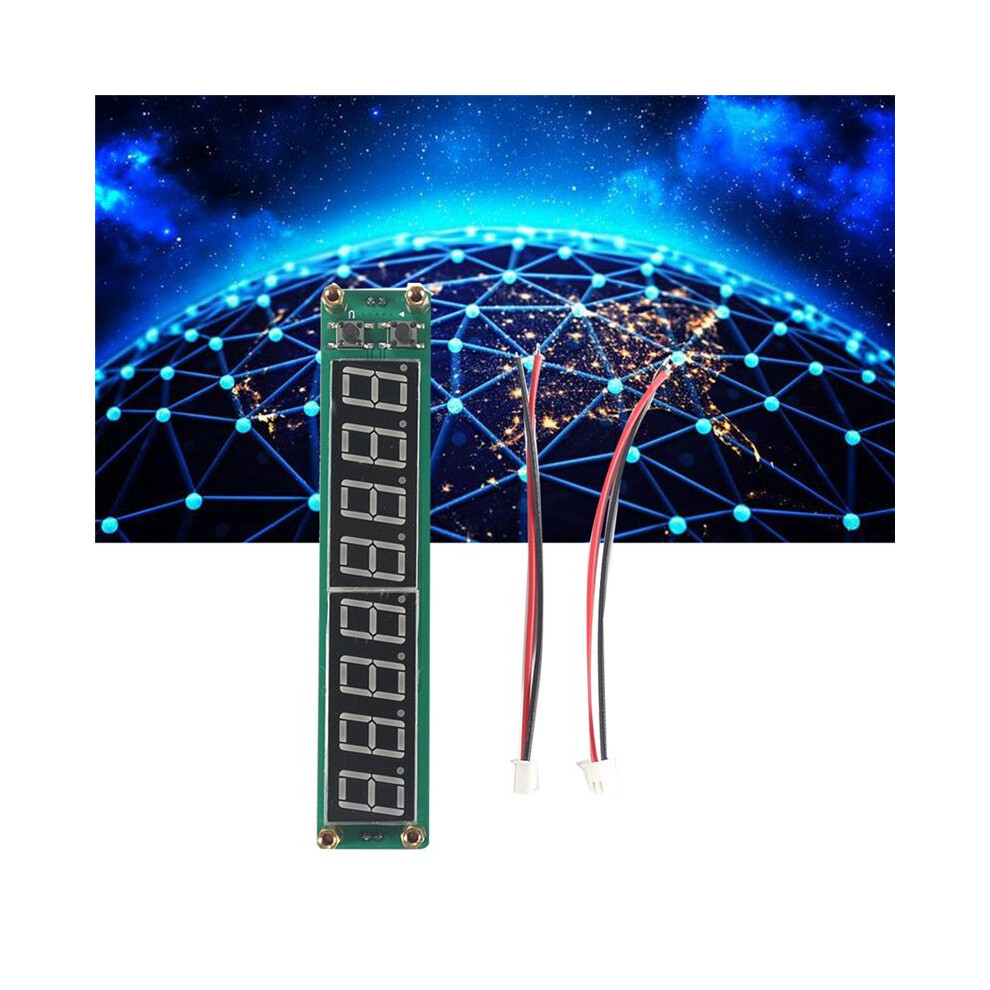

1 * Frequency Meter Module
2 Sets * Wiring Harnesses
