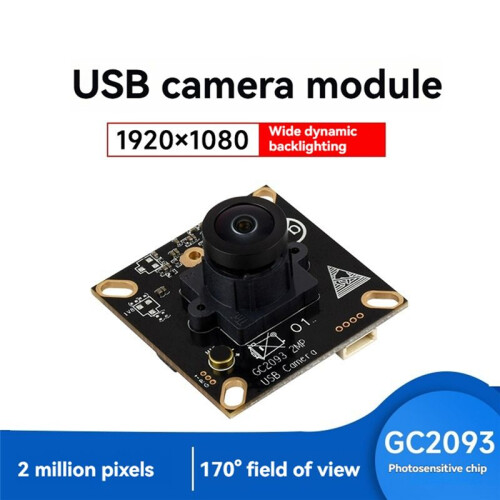

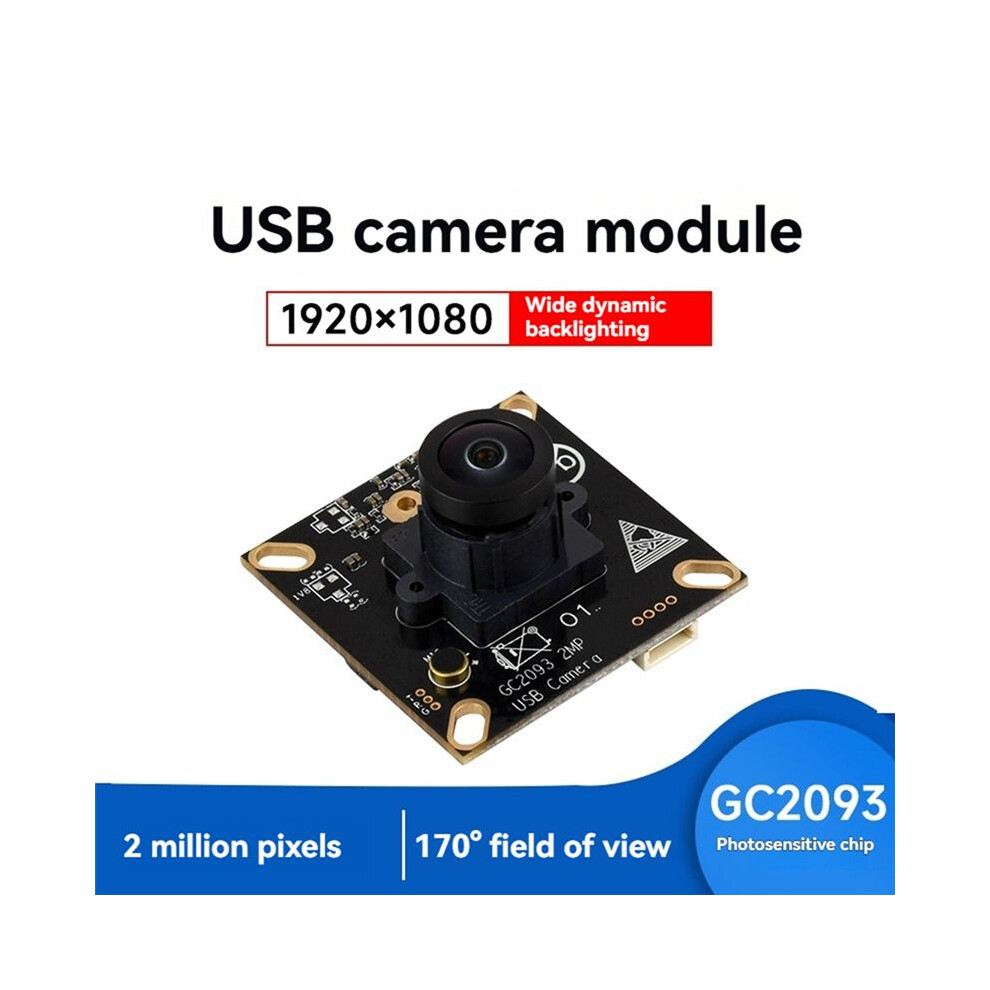

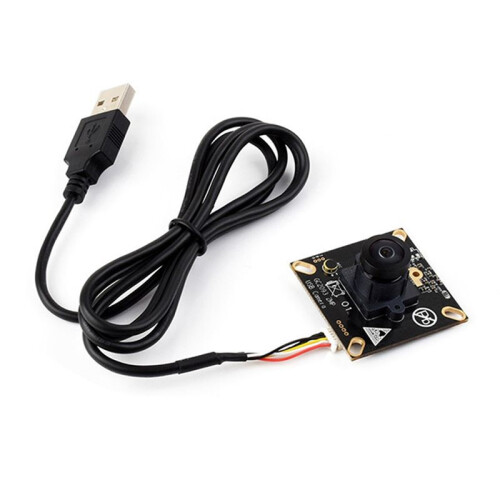

GC2093 2MP USB Camera Module USB2.0 Output Fixed Focus 81dB Linear Mode 105dB HDR Mode Onboard Microphone

GC2093 2MP USB Camera Module USB2.0 Output Fixed Focus 81dB Linear Mode 105dB HDR Mode Onboard Microphone Beskrivelse

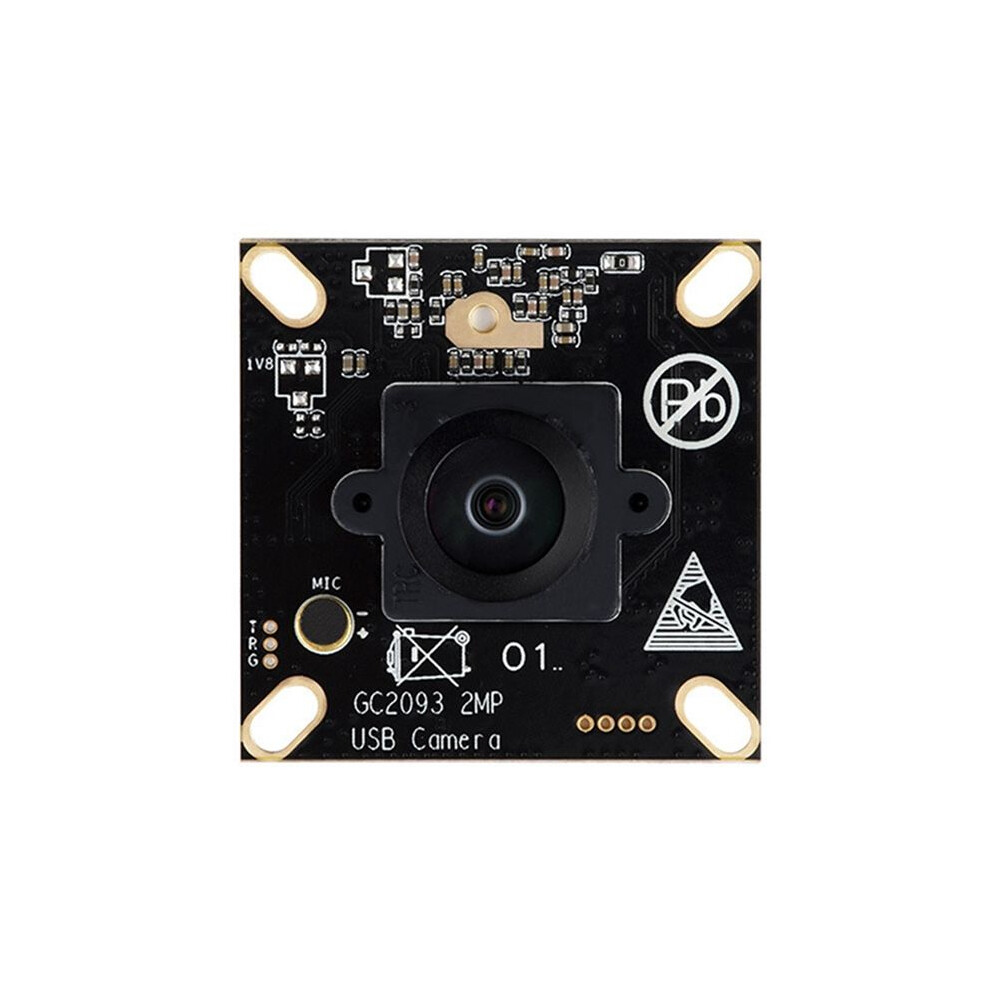

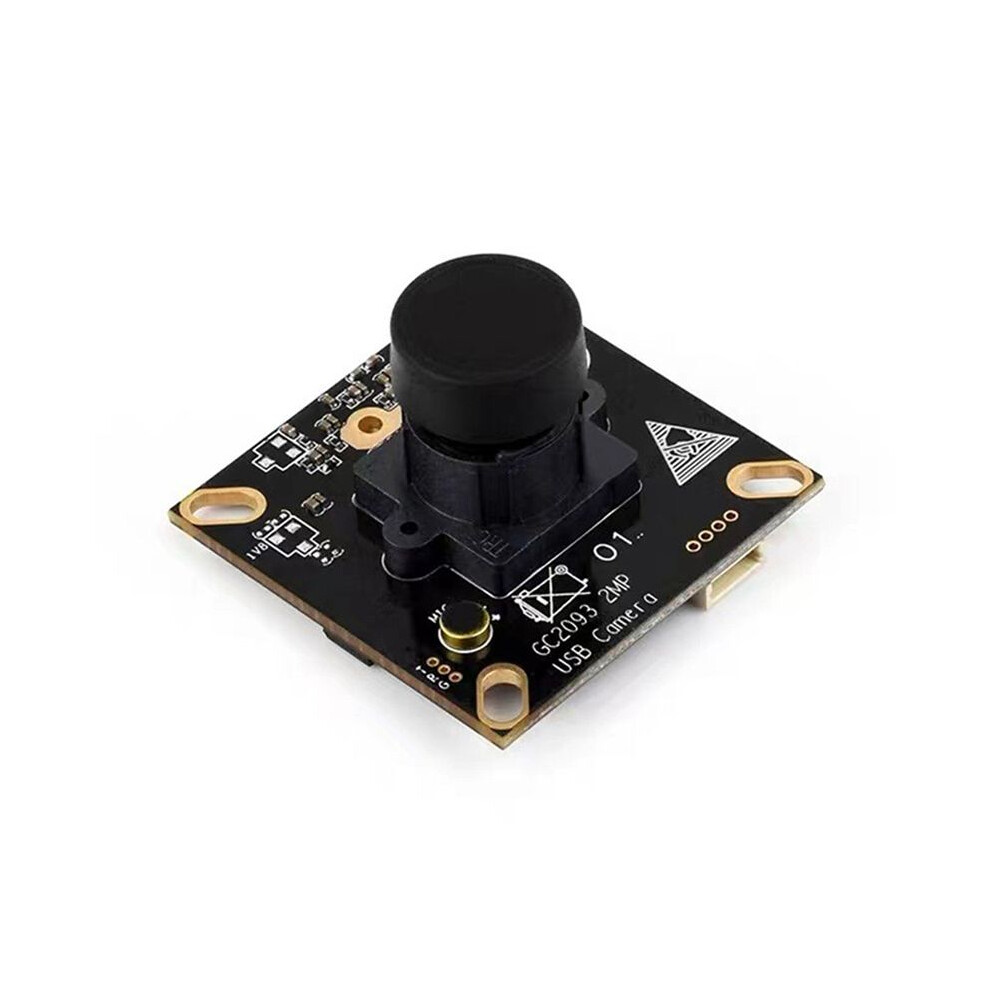

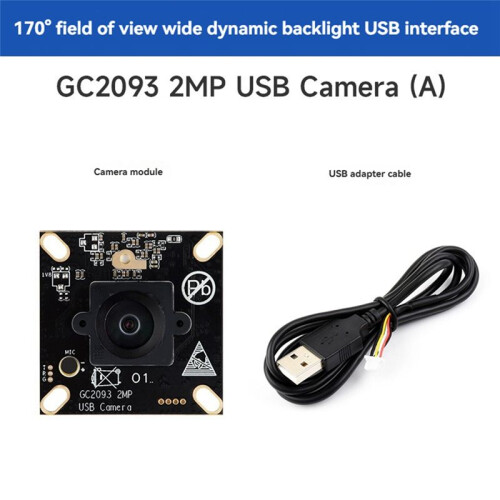

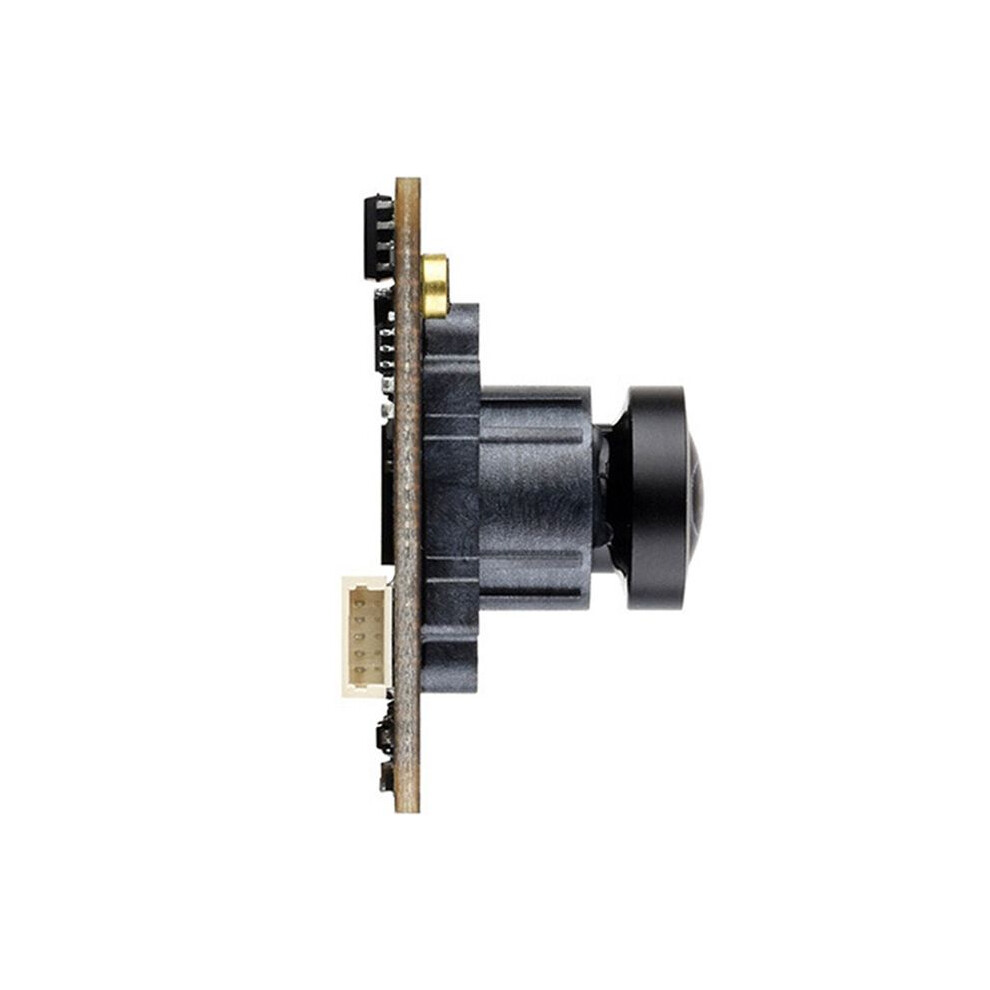

2 million pixel M12 camera module, using GC2093 photosensitive chip, USB 2.0 interface, wide dynamic backlight.
Excellent wide dynamic backlight adaptation: with 81dB Linear mode and 105dB HDR mode high dynamic range, combined with the characteristics of GC2093, it performs amazingly in backlight environment. Whether it is strong direct sunlight or scenes with strong contrast between light and dark, it can balance the brightness of the picture, clearly present the details of the bright and dark parts, so that backlight is no longer an obstacle to shooting.
Plug and , convenient connection: using USB 2.0 interface, no driver installation required. It is easy and convenient to connect to various USB hosts, whether it is a computer, device or other terminal that supports USB interface. It can be put into use quickly with simple plug and unplug, saving installation and effort.

Pixels: 2 million
Photosensitive chip: GC2093
DSP: automatic gain/exposure/white balance
Camera:
CCD size: 1/2.9inch
Aperture (F): 2.2
length (EFL): 2.28mm
Field of view (FOV): 170.2(D) 144(H) 77.6(V)
Distortion: Less than -27%
Focus mode: fixed focus
Interface type: USB2.0
Dynamic range: 81dB Linear mode, 105dB HDR mode
IR filter: 650nm filter
Image:
Supported image formats: MJPG, YUY2
Still picture resolution: 1920 x 1080
Video recording support (MJPG):
30 FPS 1920 x 1080
30 FPS 1280 x 720
30 FPS 640 x 480
30FPS 1024x576
30FPS 640x480
30FPS 640x360
Video recording support (YUY2):
15 FPS 1920 x 1080
20 FPS 1280 x 720
25FPS 640x480
25FPS 640x360
Audio: Onboard microphone
Operating voltage: 5V 5%
Operating current: 180mA
Operating temperature: 0C - 50C
Supported systems: for Windows, Linux, for
