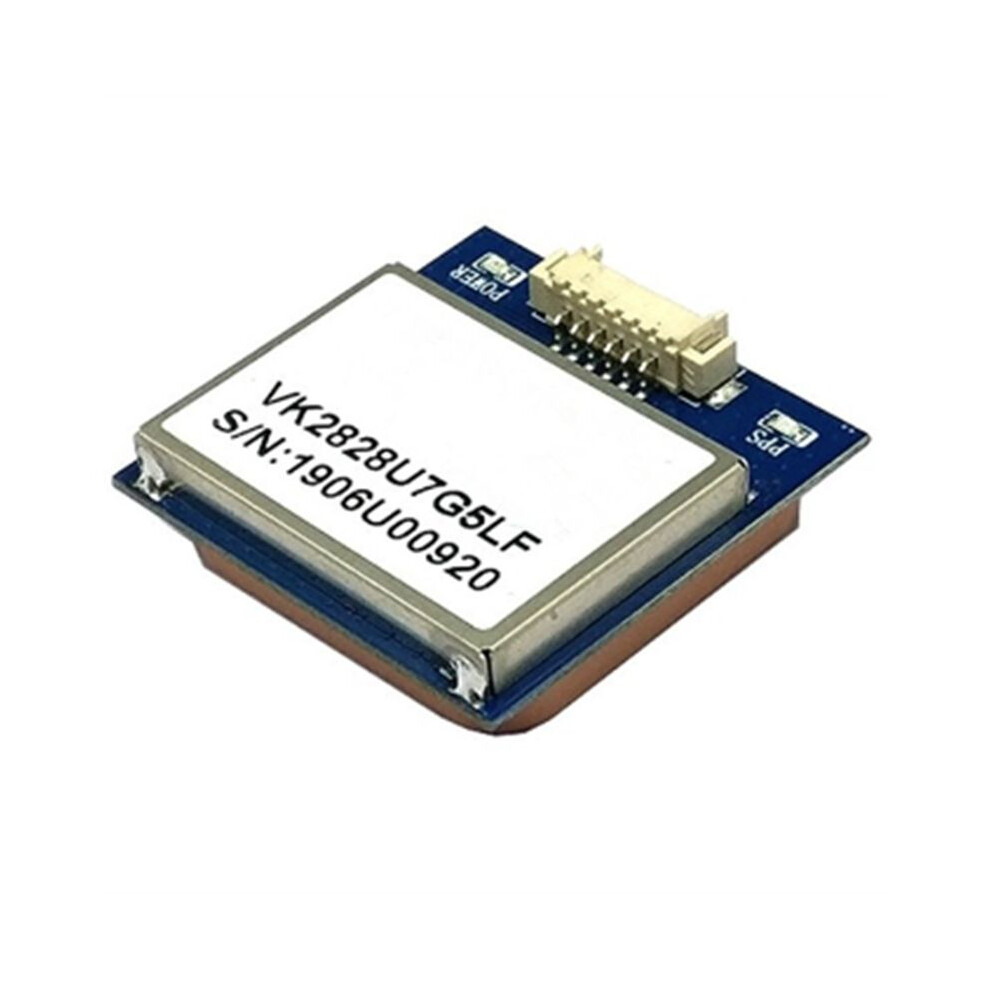

GPS Module with Antenna TTL 1-10Hz with FLASH Flight Control Model Aircraft(VK2828U8G5LF)

GPS Module with Antenna TTL 1-10Hz with FLASH Flight Control Model Aircraft(VK2828U8G5LF) Beskrivelse

Standard 25 x 25 x 4MM high sensitivity GPS antenna
TTL interface
Adopt KDS 0.5 PPM High Precision TCXO
Built-in SQI Flash
Built-in RTC crystal and Picofarads capacitance.faster hot root

Built-in LNA,Low-noise amplifier
1-10Hz
Support AssistNow Online and AssistNow Offline
GPS,GLONASS,GALILEO,SBAS(WAAS,EGNOS,MSAS,GAGAN) Hybrid Engine

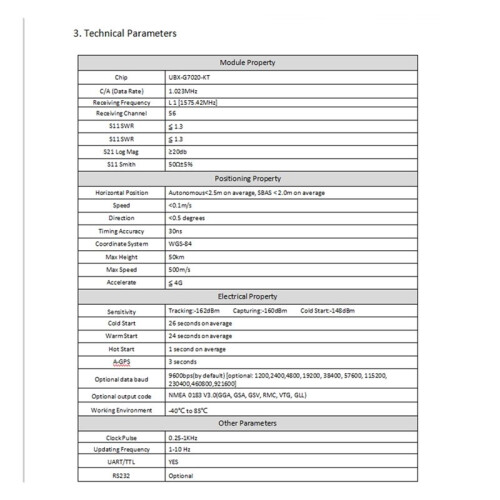

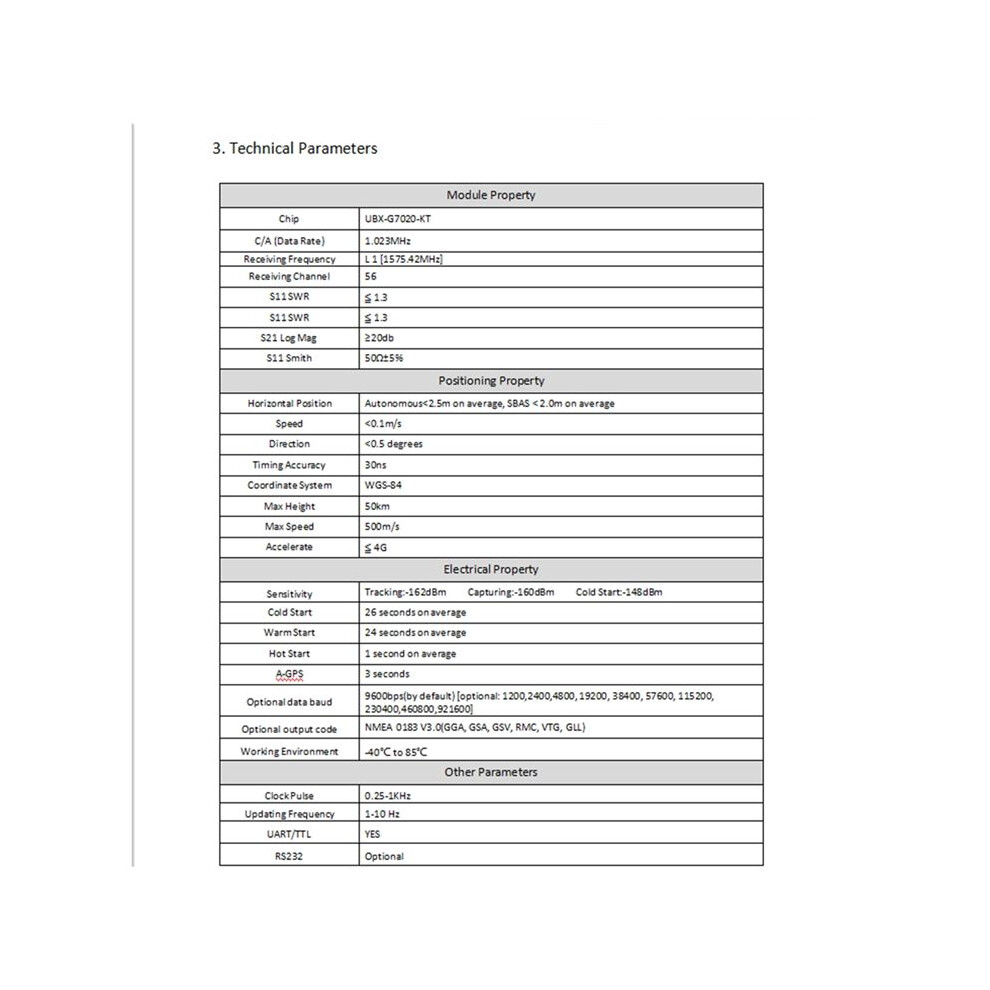

Features:
Chip:UBX-G7020-KT
C/A code,1.023MHz Stream
receive frequency:L1 [1575.42MHz]
receive channel:56CH
S11 SWR:1.3
S11 :50Ohm+(-)5%
S21 Log Mag:20.0dB
S22 SWR:1.3
Location Performance:
Less than 2.5m[Autonomous][50%]
Less than 2m[SBAS]
rate:Less than 0.1m/s
direction:Less than 0.5 Degrees
Timing accuracy:30ns
Reference coordinate system:WGS-84
Maximum altitude:50,000 m
Acceleration:Less than 4g
Tracking sensitivity:-162dBm
catch sensitivity:-160dBm
root :29s (in average)
warm root :28s(in average)
hot root :1s(in average)
AGPS:3s
Condition: New
color:
Material:PC+metal

Package Contents:

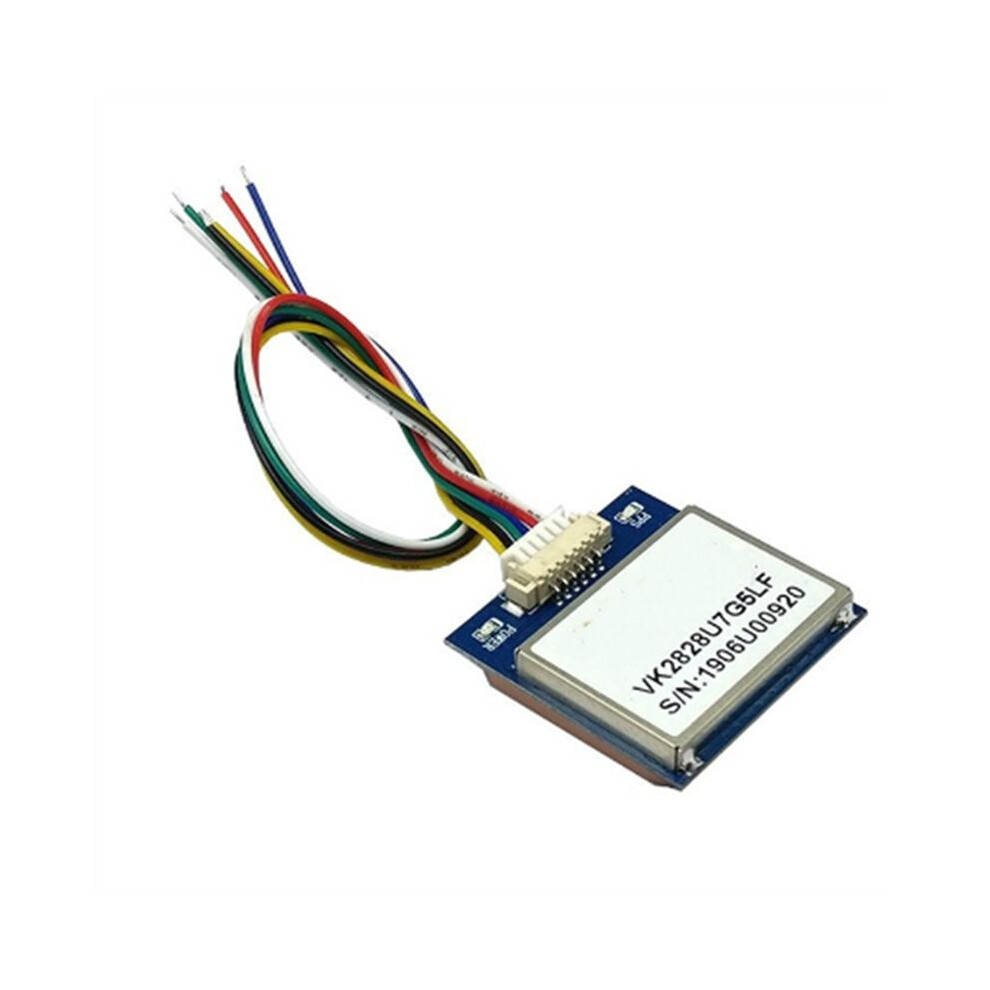

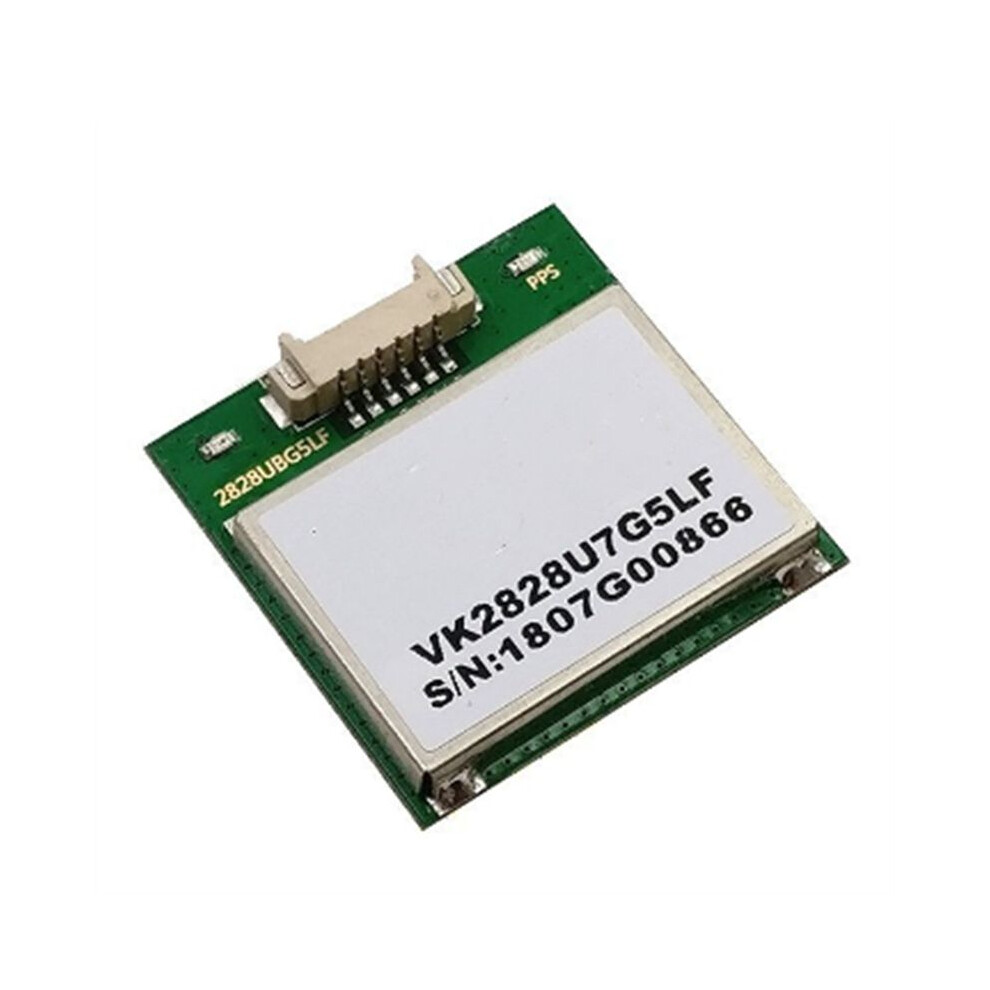

1 x GPS Module(VK2828U8G5LF)
