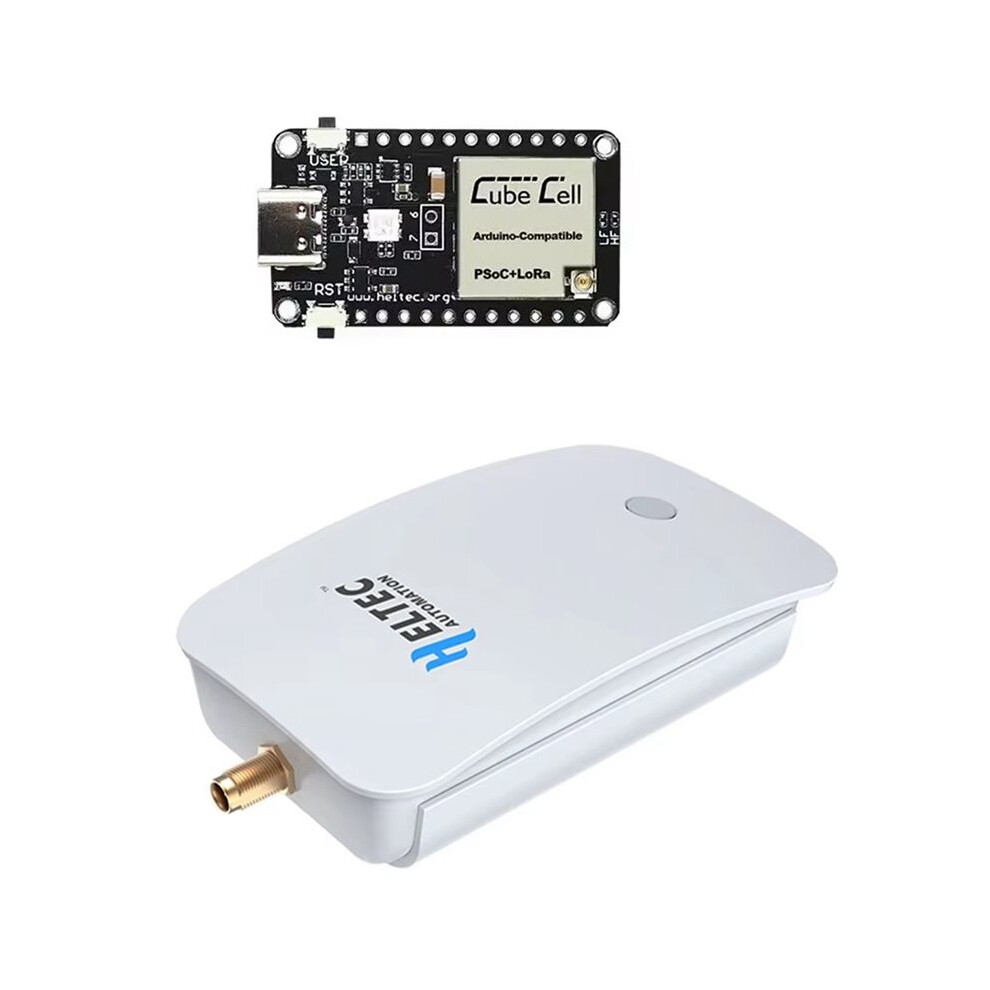

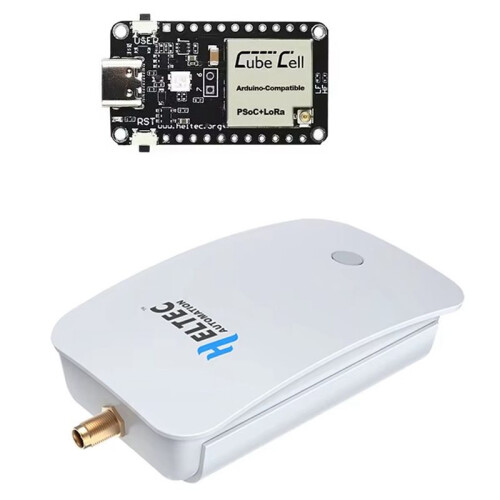

H ELTEC AUTOMATION HT-M7603 LoRaWAN Router Ethernet WiFi Gateway LoRa Kit Devboard AB01 V2 CubeCell IoT 868MHz EU PLUG

H ELTEC AUTOMATION HT-M7603 LoRaWAN Router Ethernet WiFi Gateway LoRa Kit Devboard AB01 V2 CubeCell IoT 868MHz EU PLUG Beskrivelse

HT-M7603 is a high cost-effective indoor standard LoRaWAN gateway, which can be used independently or as a blind filling gateway. With simple configuration, it allows you to bridge LoRa wireless networks to IP networks and different network servers via Wi-Fi or Ethernet.This gateway has a sleek, contemporary design.
HT-M7603: It is wall-mounted, can be easily placed anywhere indoor to ensure that it provides adequate signal coverage.
HT-M7603: Supports standards LoRaWAN and custom MQTT: By selecting Gateway Mode, the M7603 can working modes, supporting bothLoRaWAN and custom MQTT.
HTCC-AB01 (V2) mainly for LoRa/LoRaWAN node applications.
HTCC-AB01 (V2) is based ASR6052, the chip is already integrated with the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support , can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels.

HT-M7603 Gateway Main Features
MT7628 MCU, SX1303 + SX1250 Chip
Wi-Fi and Ethernet supported
Maximum output: 27 2dBm
The power supply voltage:5V
Support LoRaWAN Class A, Class C, custom MQTT protocols

HTCC-AB01 (V2) Main Features
Perfect -Compatible!
Based ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262;
LoRaWAN 1.0.2 support;
Ultra low power design, 3.5uA in deep sleep;
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
Good impendence matching and long communication distance.
Onboard solar management system, can directly connect with a 5.5~7V solar panel;
Micro USB interfac
