1. Input voltage: 3-35V DC (Note: if the input voltage is less than 4V, the onboard voltage meter will fail)
2. Input current: 9A (max)
3. Output voltage: 3.5-35V DC (this board is a boost board, the output voltage must be greater than equal input voltage)
4. Output current: 6A (max)
5. Output power: 75W, (when both input and output voltages are greater than 20V, it can reach 128W)

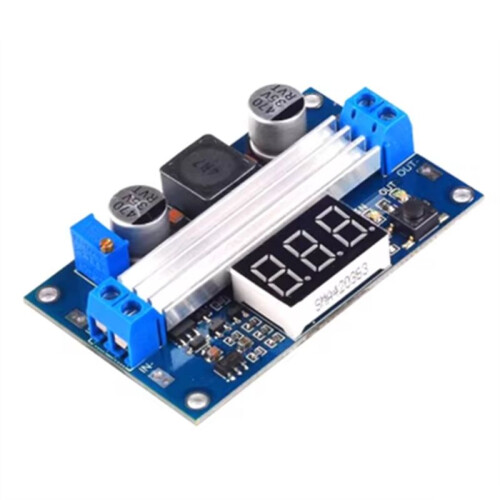

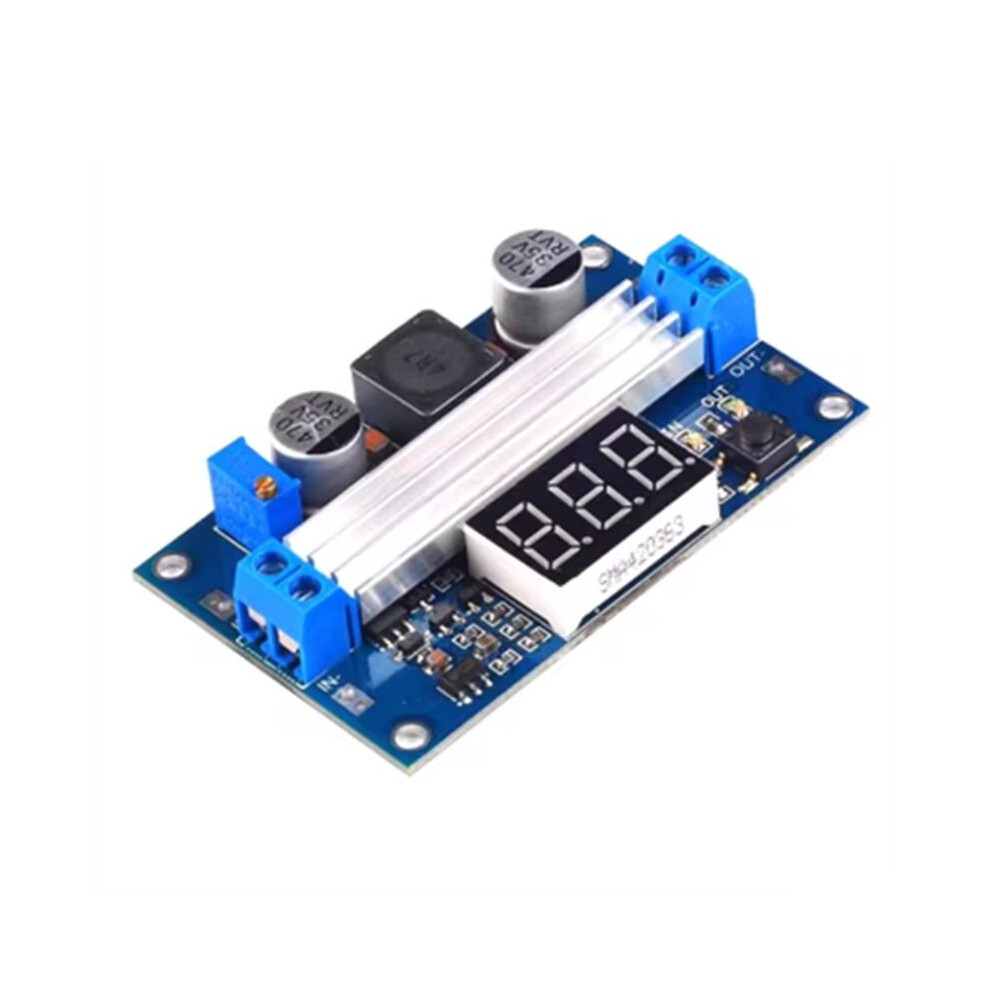

- High Power Adjustable Boost Module 3.0-35V to 3.5-35V 100W with Digital Display Voltmeter Beskrivelse

1. Input voltage: 3-35V (Note: if the input voltage is less than 4V, the onboard voltage meter will fail)
2. Input current: 9A (max)
3. Output voltage: 3.5-35V (this board is a boost board, the output voltage must be greater than equal input voltage)
4. Output current: 6A (max)
5. Output power: 75W, (when both input and output voltages are greater than 20V, it can reach 128W)

Conversion efficiency: 96.7%
Output ripple: 24mV (TYP)
Onboard voltage meter range: 4-40V, error +-0.1V
Short circuit protection: Yes (limited current 14A).
Warm reminder: When connecting to a high-power load, the current will be limited and self-locked due to the large impact current at the beginning of the startup. It is recommended to start the machine first and then connect the load.
Color:
Material: plastic

Package Contents:
1 x - 100W boost module

Detaljer

OPC	PV9YGVP
Koder	6031871863948 (EAN)

Produktdata

Height	1cm
Width	4cm
Length	7cm
Weight	0.034kg
Colour	Blue
Material	Plastic
