High Pressure Voltage Pulse Igniter, 15KV Ignitor Transformer, Ceramic Needle, 2PCS 100CM Cables

High Pressure Voltage Pulse Igniter, 15KV Ignitor Transformer, Ceramic Needle, 2PCS 100CM Cables Beskrivelse

High Voltage Igniter System designed for robust industrial heating applications.
Compatible with various oils including , heavy oil, waste oil, animal and vegetable oils, and alcohol-based fuels.
Essential component for combustion engines used in boiler burning, bread baking, and other industrial heating needs.
Nozzle Orifice Diameter ranges from 0.3mm to 4.0mm.
Ignition Transformer Output of 15KV Ampl. 40mA rms, with additional specifications combined.
Introducing the High Voltage Igniter System, featuring a Brass Burner Oil Nozzle, Flame Ring, and Electrode Ignitor, designed for robust industrial heating applications. This system is ideal for the combustion of various oils including , heavy oil, waste oil, as well as animal and vegetable oils, and other alcohol-based fuels. It is an essential component in combustion engines used in applications such as boiler burning, bread baking, and other industrial heating needs.

Specifications:
Nozzle Orifice Diameter: Range from 0.3mm to 4.0mm
Nozzle Oil Inlet Thread Size: 1/8"
Nozzle Air Inlet Thread Size: 1/4"
Nozzle Thread Size: 9/16"
Connector Diameter: 8mm (option for 6mm available)
Ignition Transformer Input: 230V~0.25A 50HZ
Ignition Transformer Output: 15KV Ampl. 40mA rms
Ignition Electrode Dimensions: Length 4.5cm, Width 3.5cm
High Voltage Cable Length: 1 meter, Outer Diameter: 6.5mm
Flame Retention Outer Diameter: 73mm
Color: As Shown
Material: plastic

Package Contents:

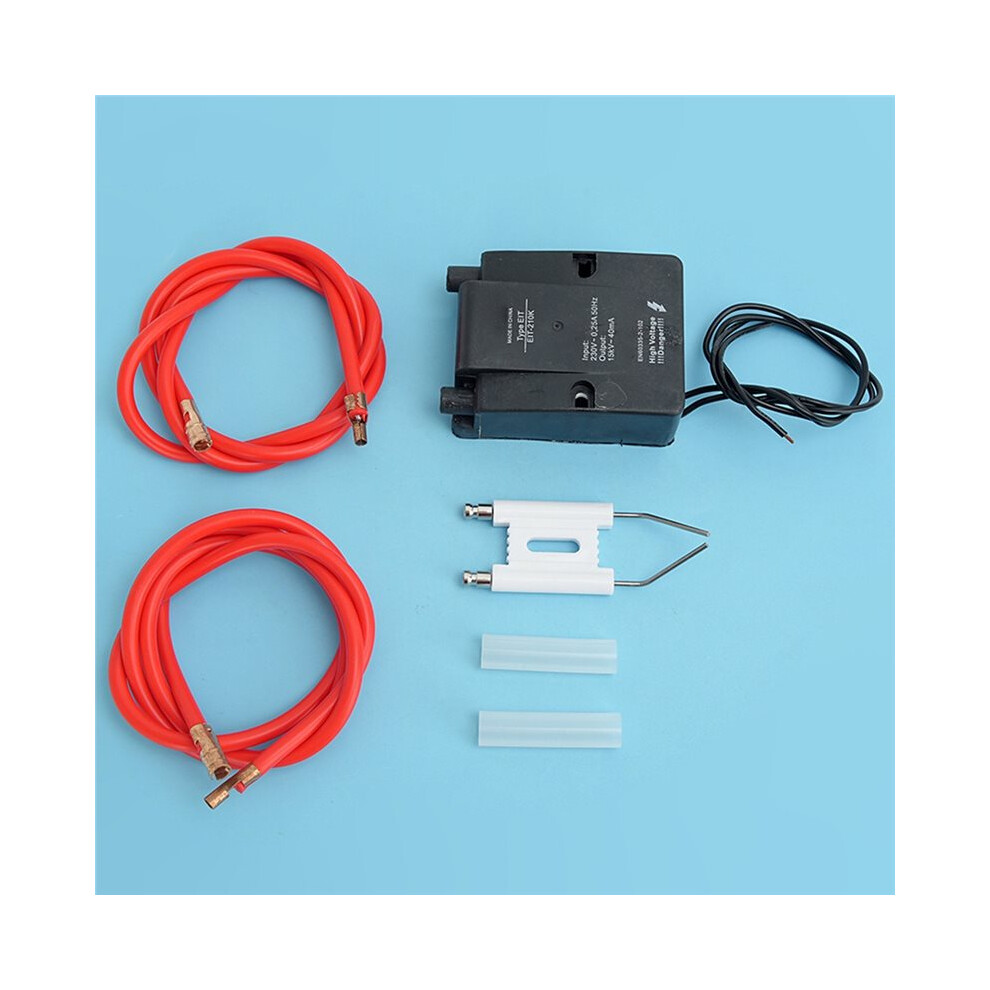

1x high voltage package 15KV ignition package
