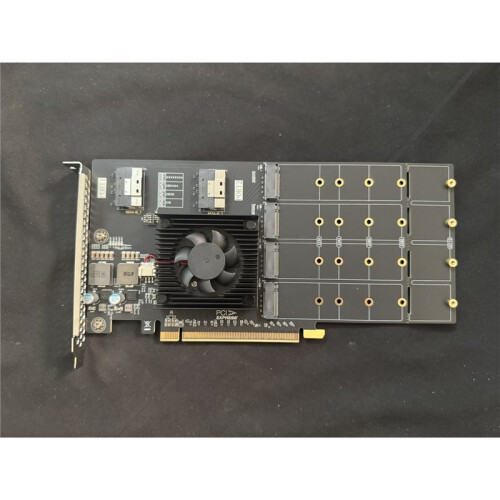

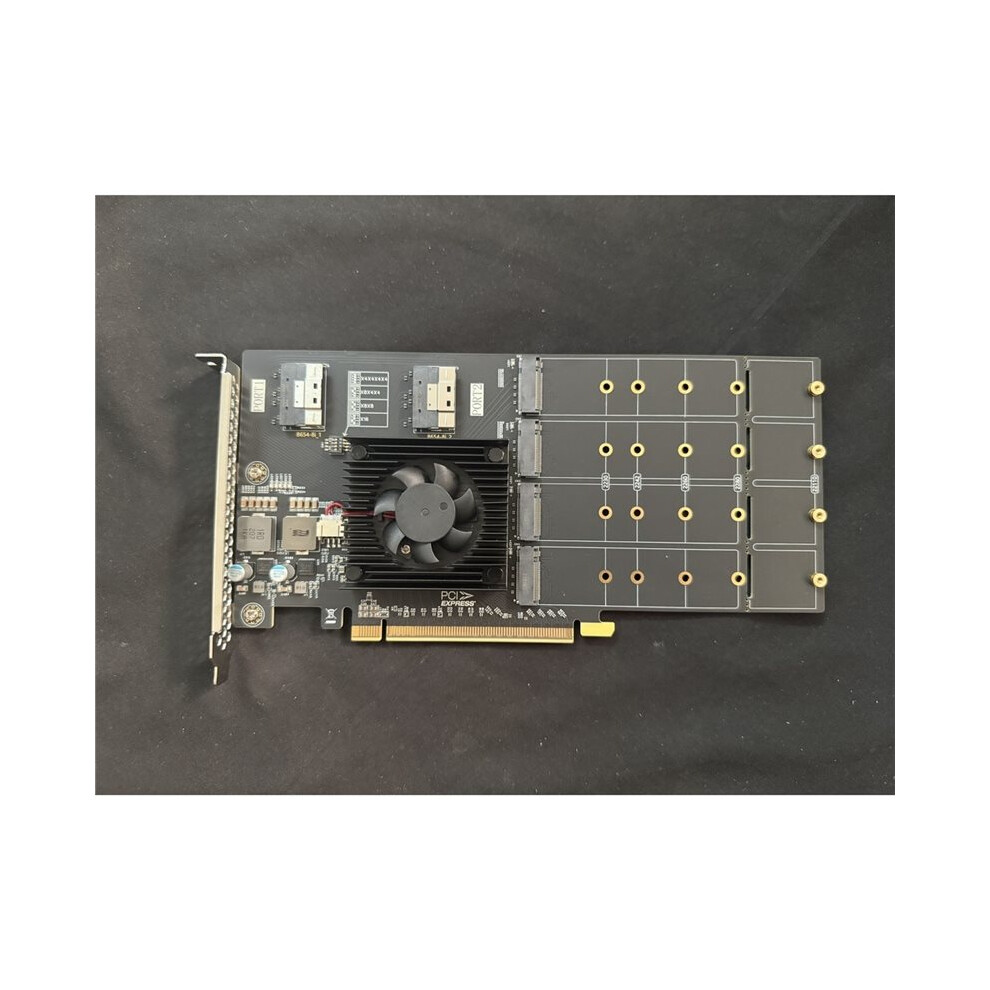

High Speed PCIe Extension Card Adapter PLX8749 Non-Split Converter, PC U.2 SSD & Hardware Expansion Module

High Speed PCIe Extension Card Adapter PLX8749 Non-Split Converter, PC U.2 SSD & Hardware Expansion Module Beskrivelse

PLX8749 chip; expands to 8x M.2 NVMe SSDs; PCIe 3.0 x16 interface; no bifurcation required; driverless.
Supports PCIe 5.0, 4.0, and 3.0 drives without requiring motherboard bifurcation.
Operates without auxiliary power (though external power is recommended when using all 8 drives; 4 drives can run without it).
Usable even motherboards that do not support bifurcation (Pass-through mode).
Dynamic PCIe allocation allows simultaneous use of all interfaces.

Supports ESXi.
Supports Xpenology (unofficial Synology DSM).
Compatible with slots connected via the PCH (Southbridge).
Supports use in x4 slots via expansion.
Compatible with PCIe x1, x4, x8, and x16 bandwidths.
No motherboard PCIe bifurcation required (plug-and- in PCIe
Specifications
Main Control Chip: PEX8748
Bus Interface: PCIe 3.0 x16
Speed: 4GB/s per drive
Channels: x32 bus lanes (4 M.2 interfaces) [2x SFF-8654 8i]
Connector Type: SFF-8654 x8
Bracket Height: Low-profile / Full-height
Indicator Lights: None
Memory: None
Expansion Memory: None
PCB Version: REV:A
Applications: Servers, data centers, cloud computing
Operating Environment: 0C to +55C, 85% humidity
Storage Environment: -20C to +65C, 85% humidity
Supported Operating Systems: All systems supporting NVMe
Color: Black
Material: PCB+Metal

Package Contents:
1 * PCIe Extension Adapter
