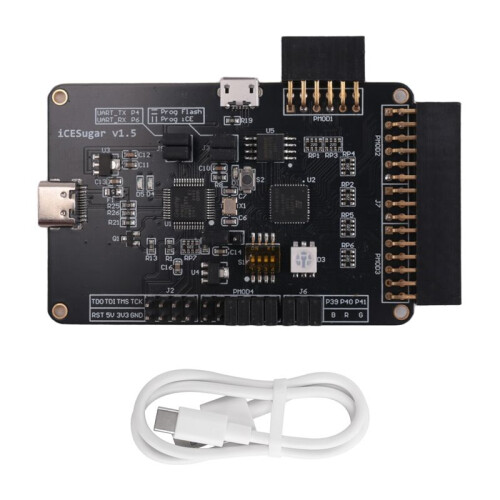

ICESugar FPGA Development Board Open Source RISC-V Based ICE40UP5k USB-C Interface for IoT/ AI Projects
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
426,38 kr.
484,58 kr.
Spar 12%!
+1,00 kr. levering
1%
Tjen 4,26 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (1,00 kr.) | tor. 11. - lør. 13. jun.
Solgt af: YPDblue
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Dockingstationer til computere
Beskrivelse og detaljer
Oversigt
- Features
- iCE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI/I2C/DSP/PWM
- On-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG
- Lead out all the IO with standard PMOD connector and can connect with other PMOD devices
- Totally use open source tool chain to develop
ICESugar FPGA Development Board Open Source RISC-V Based ICE40UP5k USB-C Interface for IoT/ AI Projects Beskrivelse
Features
iCE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI/I2C/DSP/PWM
-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG
Lead out all the IO with standard PMOD connector and can connect with other PMOD devices
Totally use open source tool chain to develop

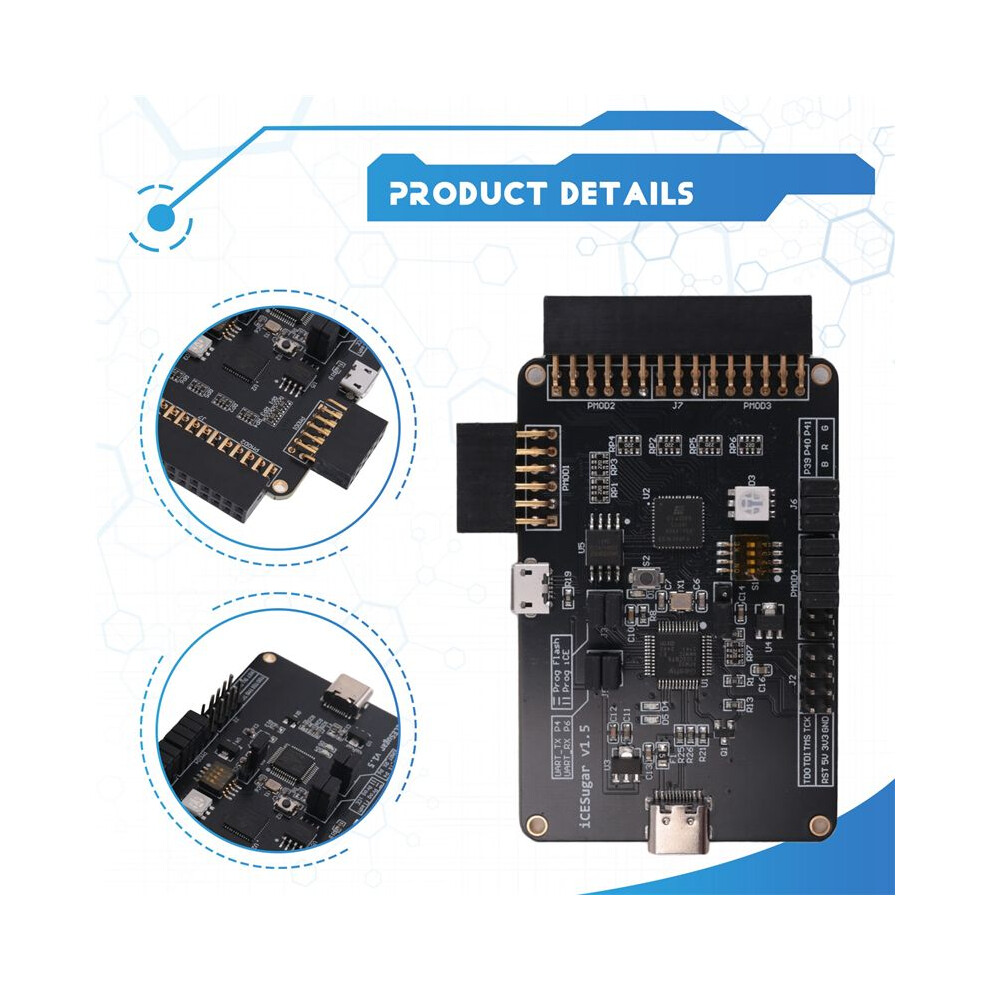

iCESugar is a open source FPGA development board based Lattice iCE40UP5k.
Though it's small and exquisite, it contains rich peripheral resources board including RGB LED,,TYPE-C-USB, Micro-USB.

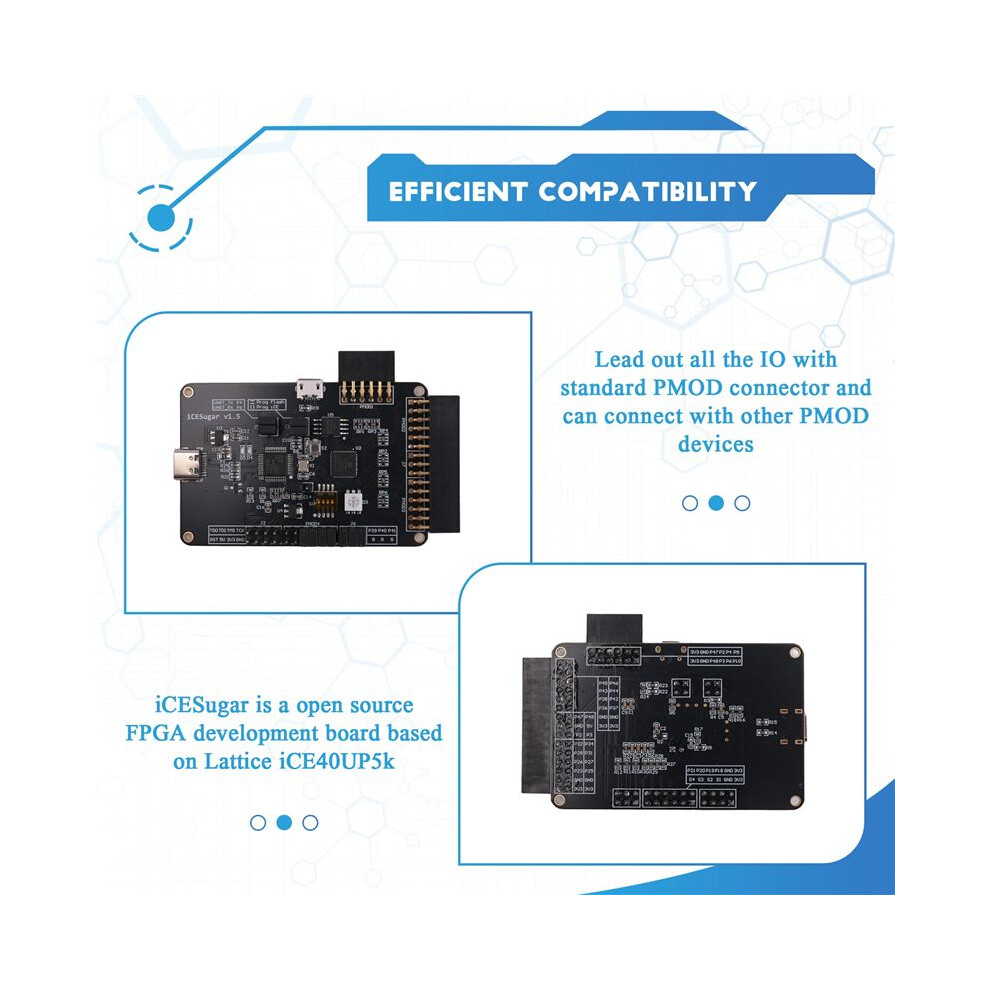

Most of the IO are led out by standard PMOD connector and can connect with other PMOD device.
Also, it has a -board debugger called iCELink which is based ARM Mbed DAPLink. You can just drag the FPGA bitstream into the virtual disk to program with a convenience, since the iCELink supports drag-and-drop programming, USB CDC serial port and JTAG.
Built-in 8MB SPI-Flash and support DUAL/QUAD SPI& QPI
Color: Black
Material: PCB

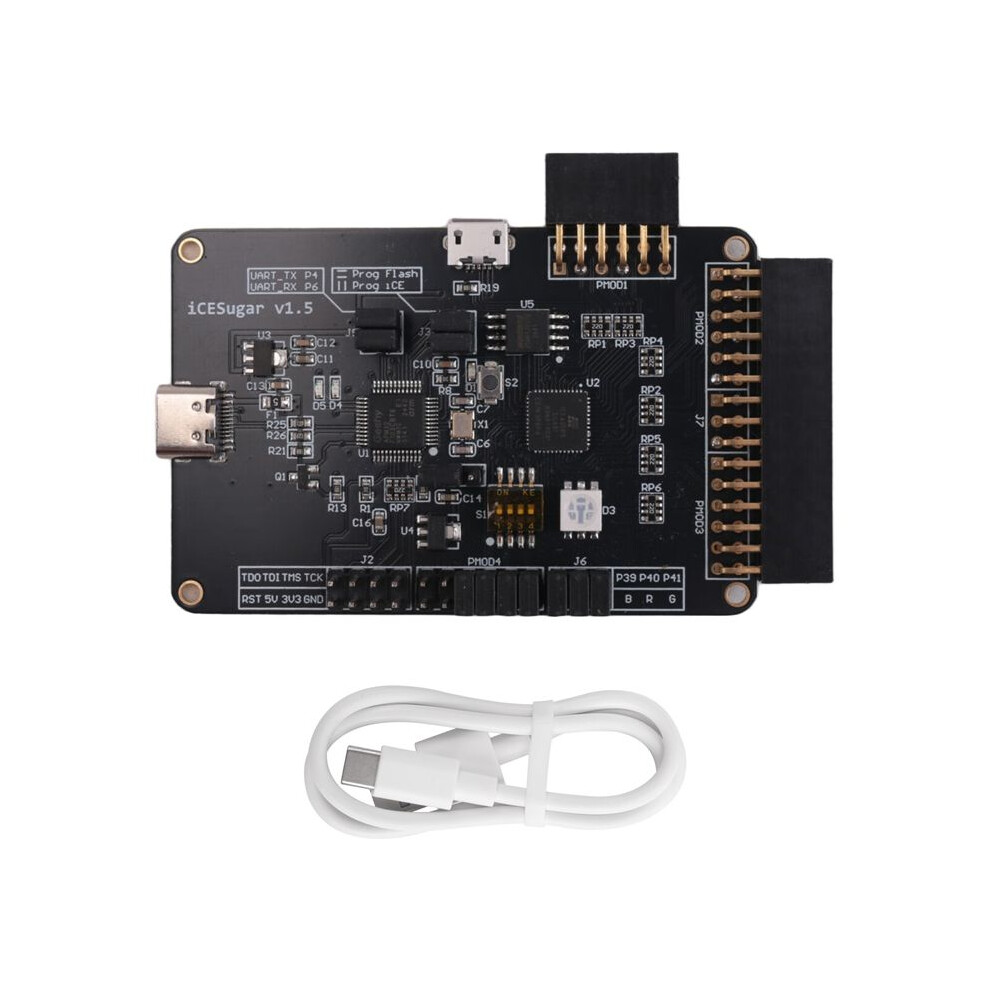

Package Contents:
1 x iCESugar FPGA Development Board
1 x TPYE-C Cable
Detaljer
| OPC | PTCM88J |
|---|---|
| Koder | 4711711567367 (EAN) |
Produktdata
| Height | 1cm |
|---|---|
| Width | 12cm |
| Length | 14cm |
| Weight | 0.0425kg |
| Colour | Black |
| Material | PCB |
