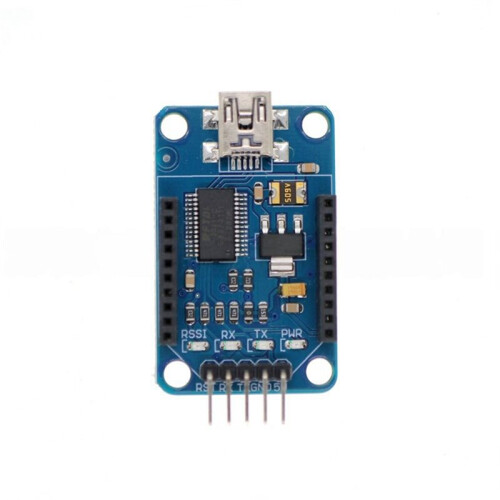

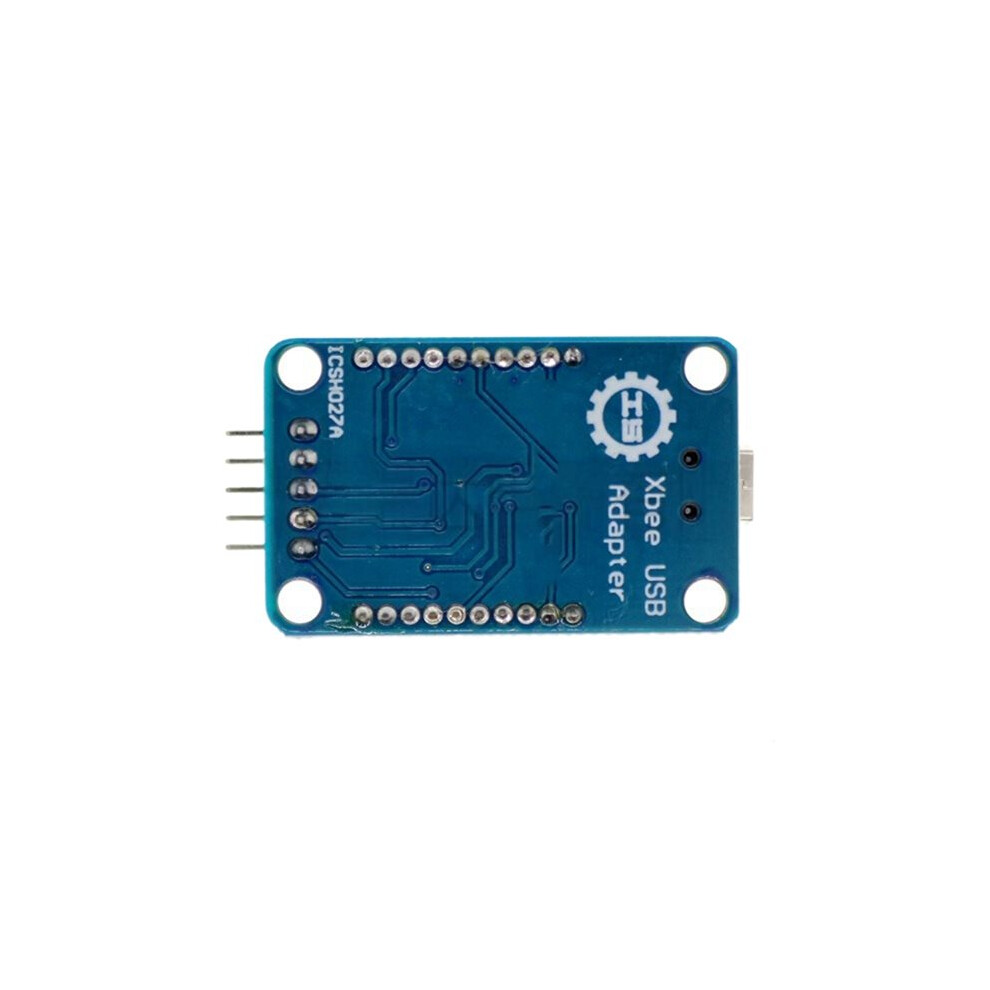

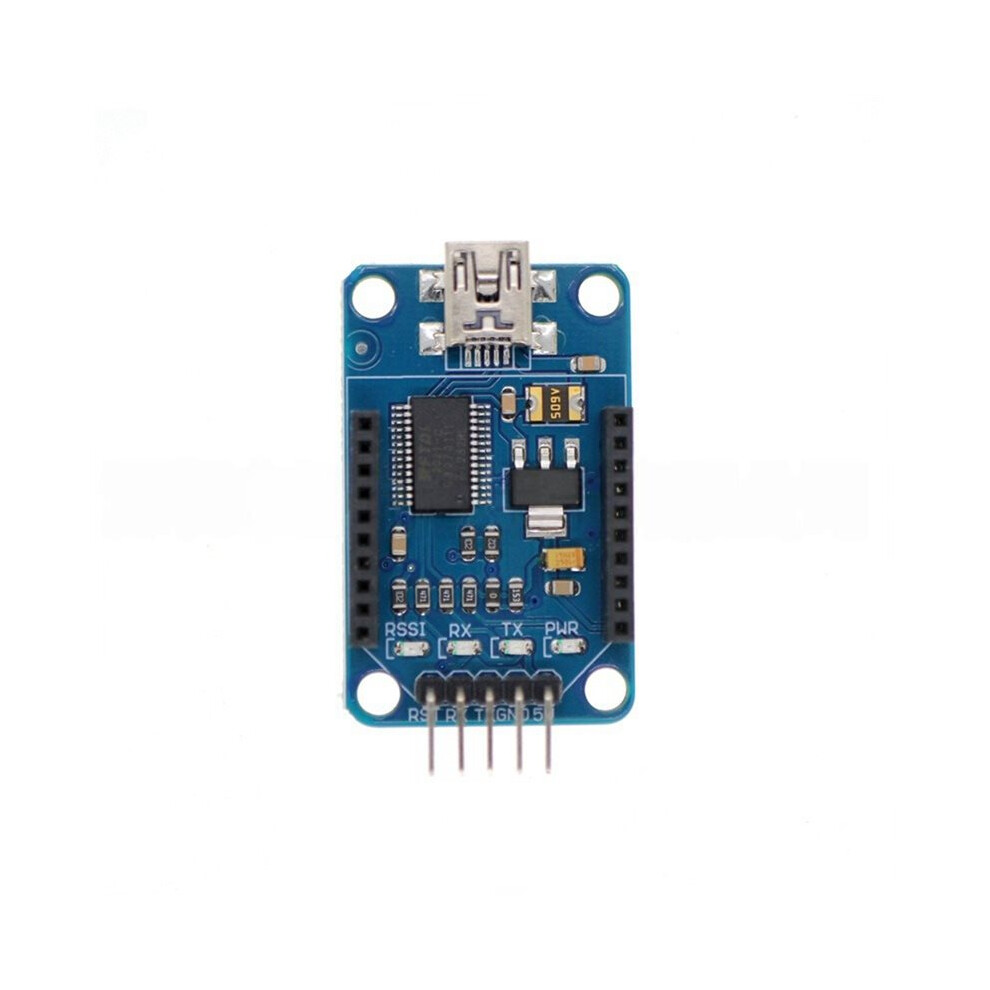

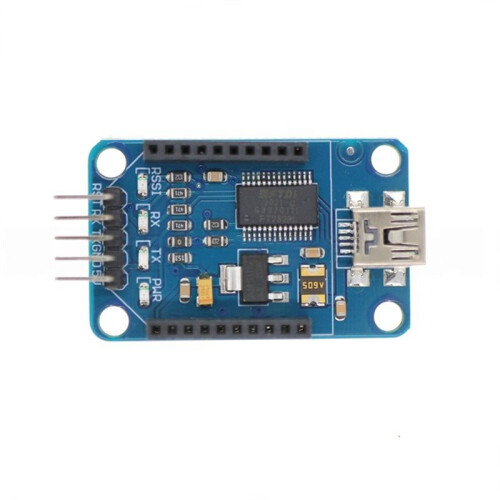

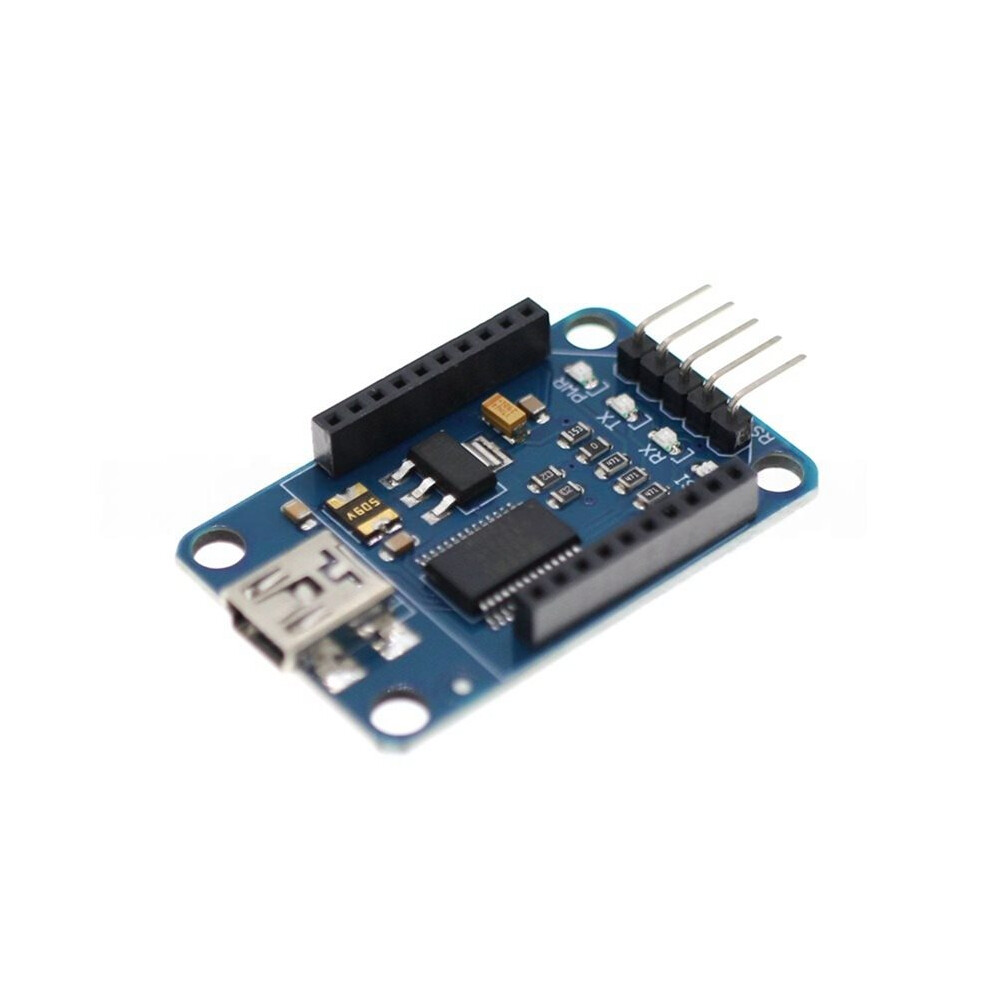

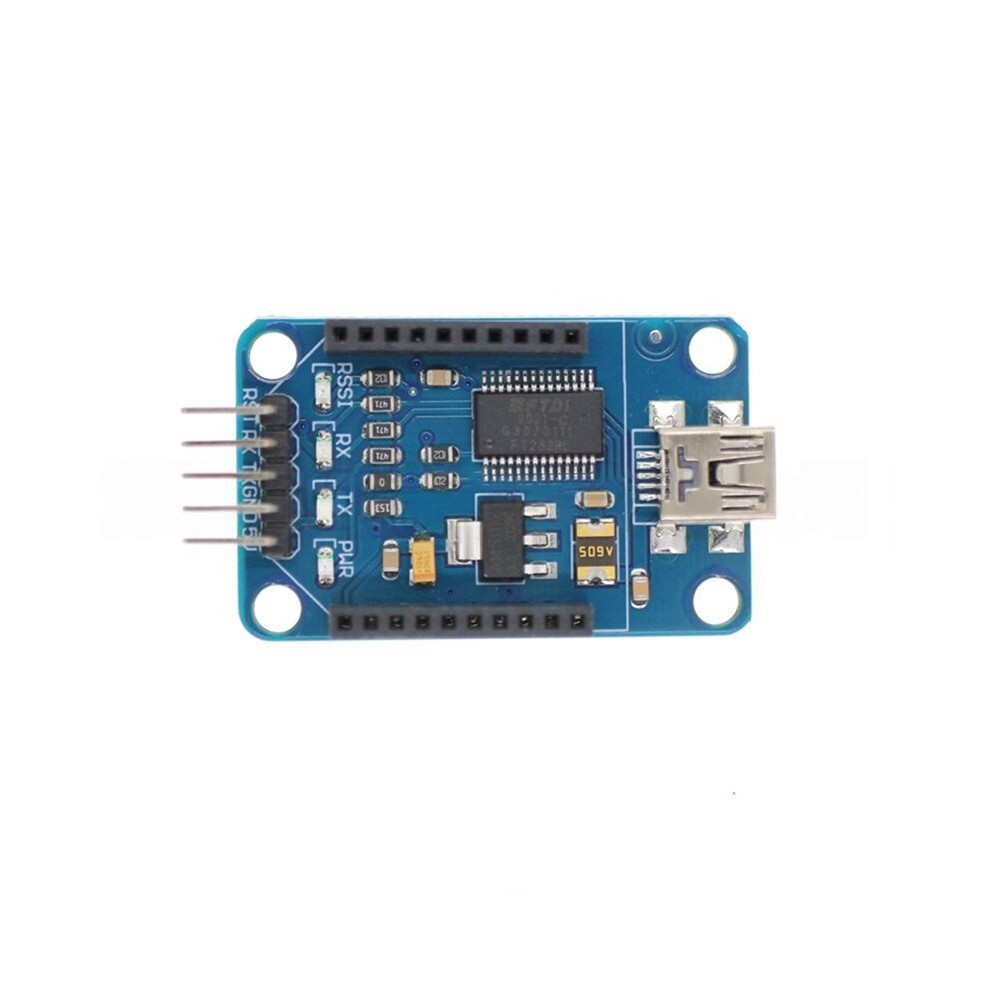

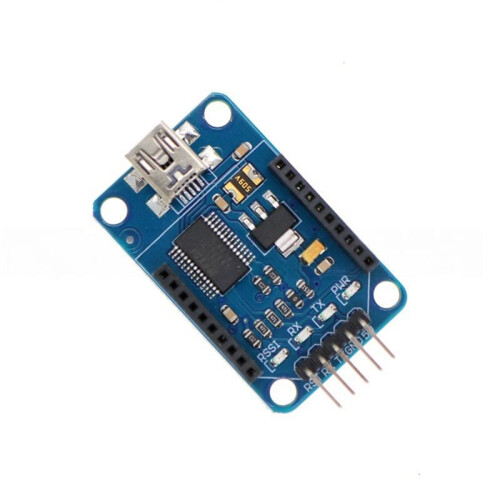

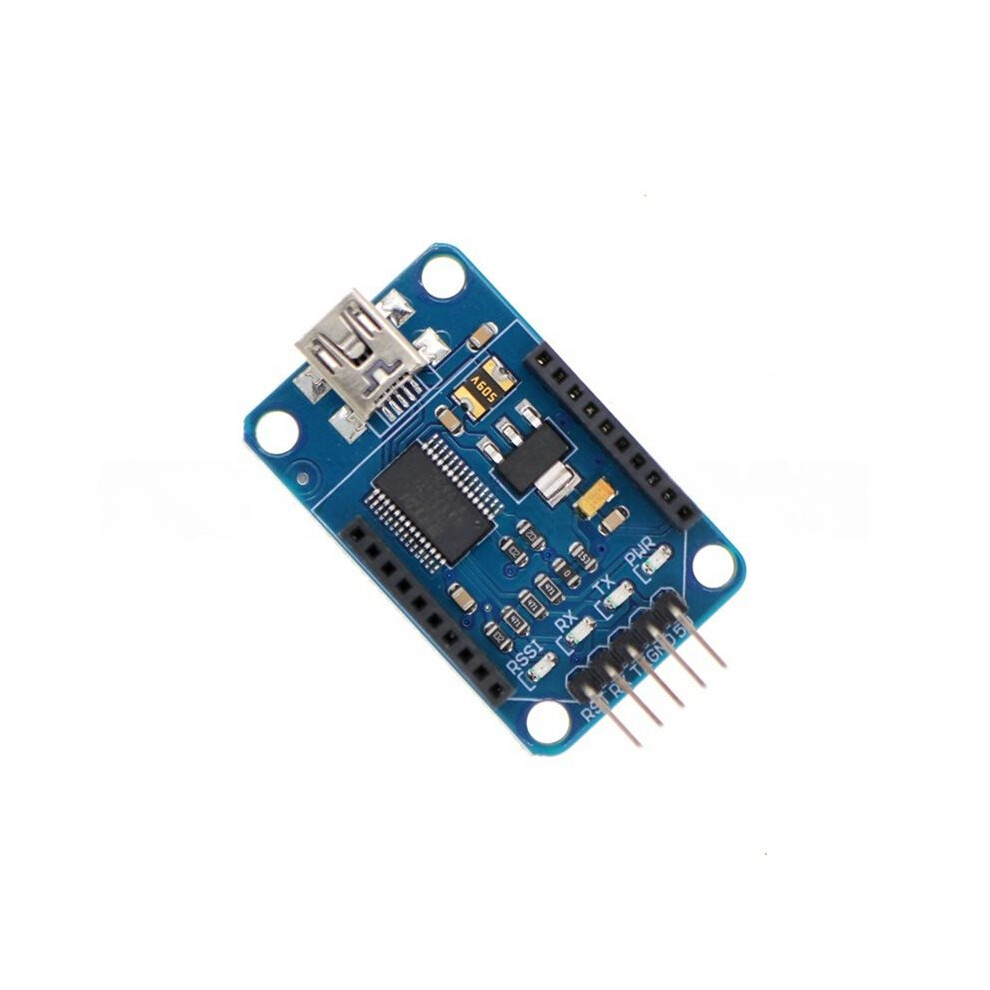

ICHS027A XBee/ Bee USB Adapter FT232RL USB to UART Serial Port Module for IDE

ICHS027A XBee/ Bee USB Adapter FT232RL USB to UART Serial Port Module for IDE Beskrivelse

Dedicated Programming and Communication Base: Provides a three-in-one function of power supply, program download, and serial port debugging for wireless modules such as XBee and Bee.
USB to Serial Port Transparent Transmission: Converts the USB interface to a standard UART serial port, enabling transparent data transmission between the computer and the wireless module.
Plug and : No external power supply is required; power and communication are provided via the Micro-USB interface.
Professional Adaptation: Pin definitions are perfectly matched with the XBee/Bee series, eliminating the need for jumper wires and preventing poor contact.
One-Click Download: Integrated automatic download circuit (controlling DTR/RTS), allowing for one-click programming when used with software such as IDE.

Power Supply Voltage: 5V (USB bus powered)
Serial Port Chip: FT232RL
Supported Modules:
XBee series: S1/S2/S2C/S3B, etc. (pin compatible)
Bee series: Master/slave integrated serial module
Other compatible packages: 20-pin 2.0mm pitch wireless modules
Interface:
Host side: USB (Micro-USB)
Module side: 20-pin spring loaded connector (compatible with castellated holes and pin header modules)
Indicators: Power (PWR), Transmit (TX), Receive (RX)
Main Uses:
Wireless module firmware programming: For programming/updating firmware or configuring parameters of XBee and modules
Wireless communication debugging: Used as a USB-to-serial tool to monitor the transmission and reception data of wireless modules in real
Prototype development and testing: Conveniently connect wireless modules to a computer for functional verification in the early stages of a project
Device configuration: Configure modules using AT commands via a serial terminal (such
