Ideal Diode Rectifier Bridge LT4320+NCEP023N10LL 6-48V ( 9-72V) AC Input Voltage -60/600Hz AC Input Frequency
Brand ISTOVO
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 130,000 anmeldelser med vurderingen “Fremragende”
575,83 kr.
693,77 kr.
Spar 17%!
+31,63 kr. levering
1%
Tjen 5,76 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (31,63 kr.) | tor. 13. - tir. 18. aug.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Beskrivelse og detaljer
Oversigt

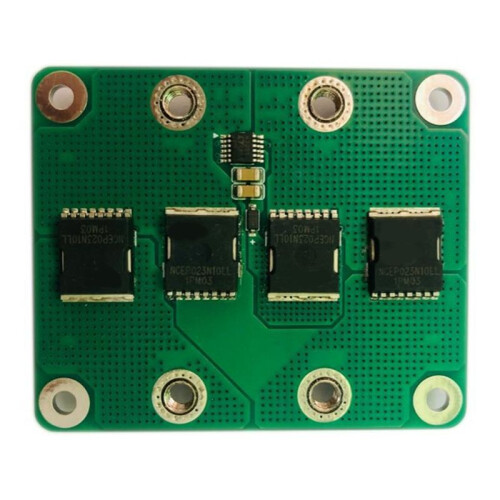

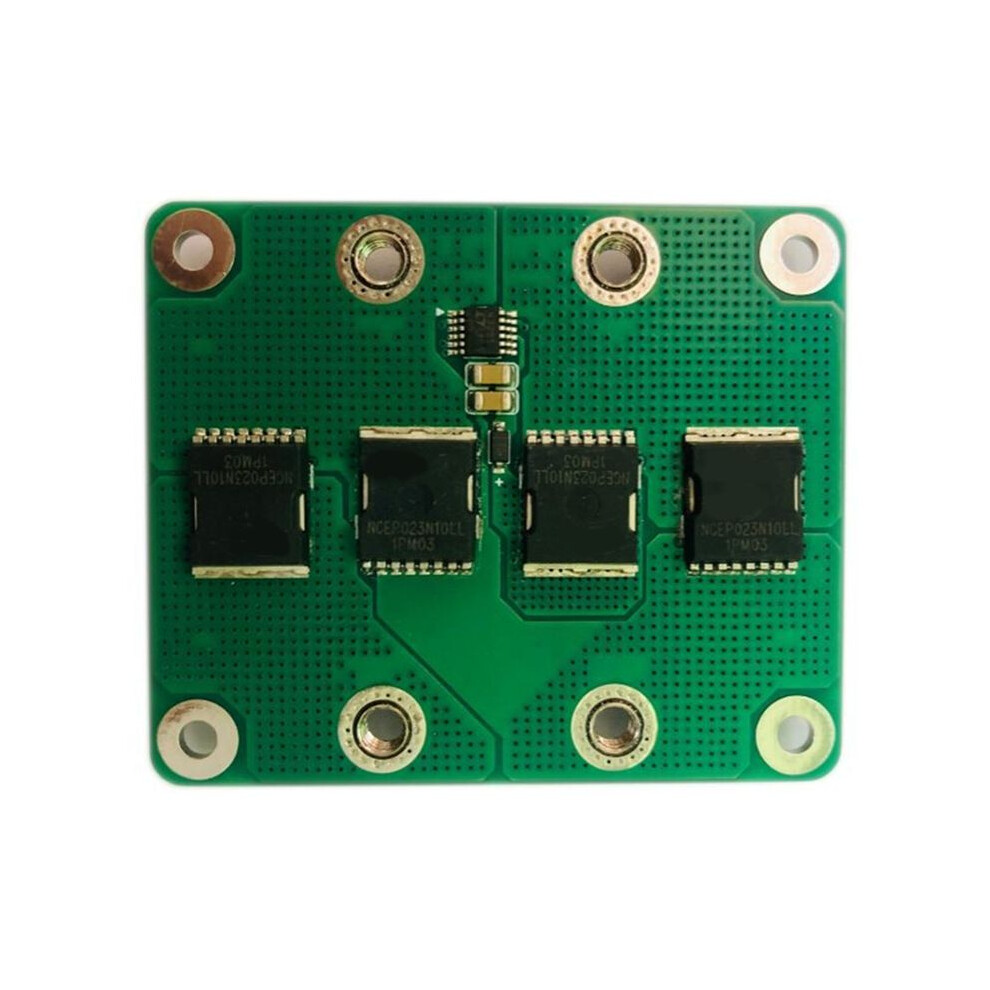

- This module uses the LT4320 chip to control four high-power MOS transistors NCEP023N10LL (100V 300A 2.3m Ω) to conduct in a time-sharing manner, thereby converting AC power to DC power.
- This module uses industrial grade double-sided 2OZ copper thick PCB to enhance conductivity and heat dissipation capabilities. The use of surface mount heat sinks can effectively reduce the temperature of PCBs.
- The connection between PCB and wires uses M4 patch nuts, and wires can also be directly soldered for convenience and speed.
- Diode Rectifier Bridge Accessories
- Rectifier Bridge Parts
Ideal Diode Rectifier Bridge LT4320+NCEP023N10LL 6-48V ( 9-72V) AC Input Voltage -60/600Hz AC Input Frequency Beskrivelse
This module uses the LT4320 chip to control four high-power MOS transistors NCEP023N10LL (100V 300A 2. Ω) to conduct in a -sharing manner, thereby converting AC power to power.
This module uses industrial grade double-sided 2OZ copper thick PCB to enhance conductivity and heat dissipation capabilities. The use of surface mount heat sinks can effectively reduce the temperature of PCBs.

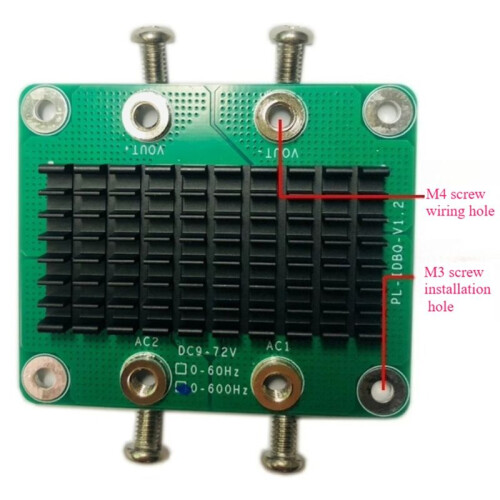

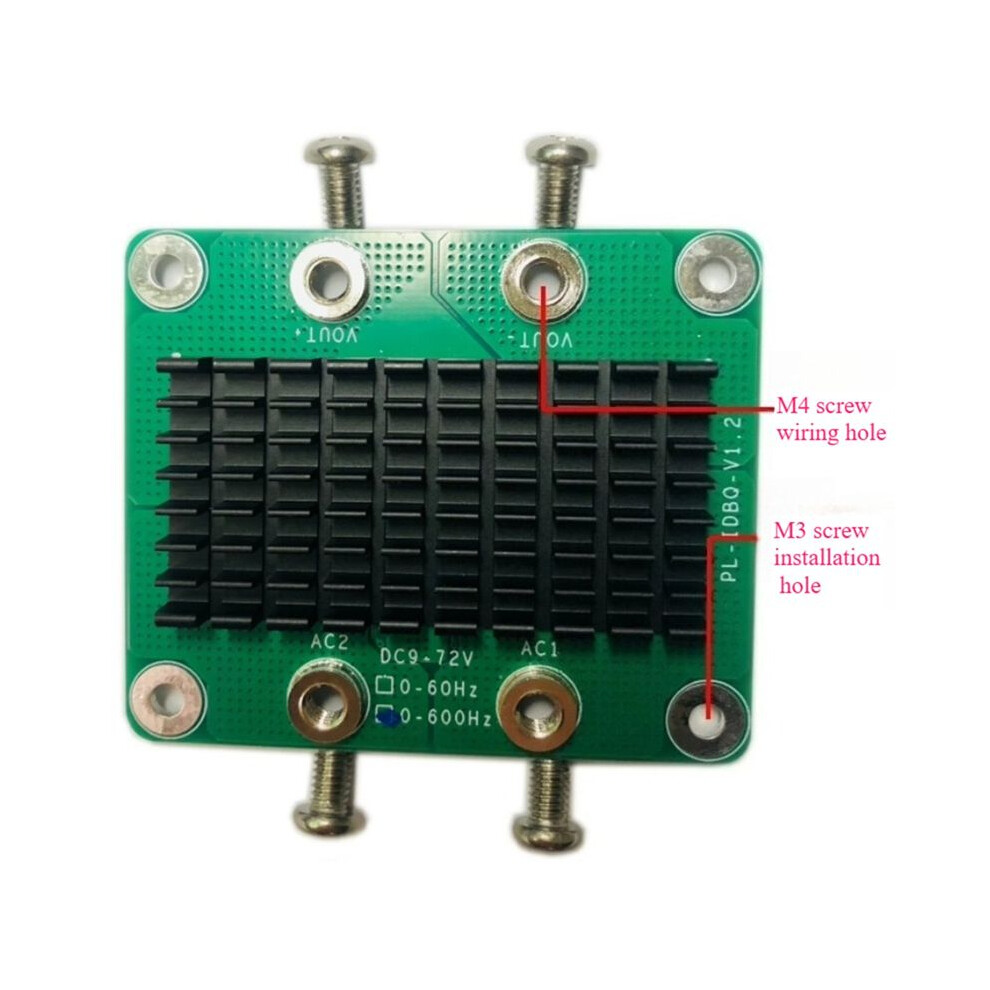

The connection between PCB and wires uses M4 patch nuts, and wires can also be directly soldered for convenience and speed.

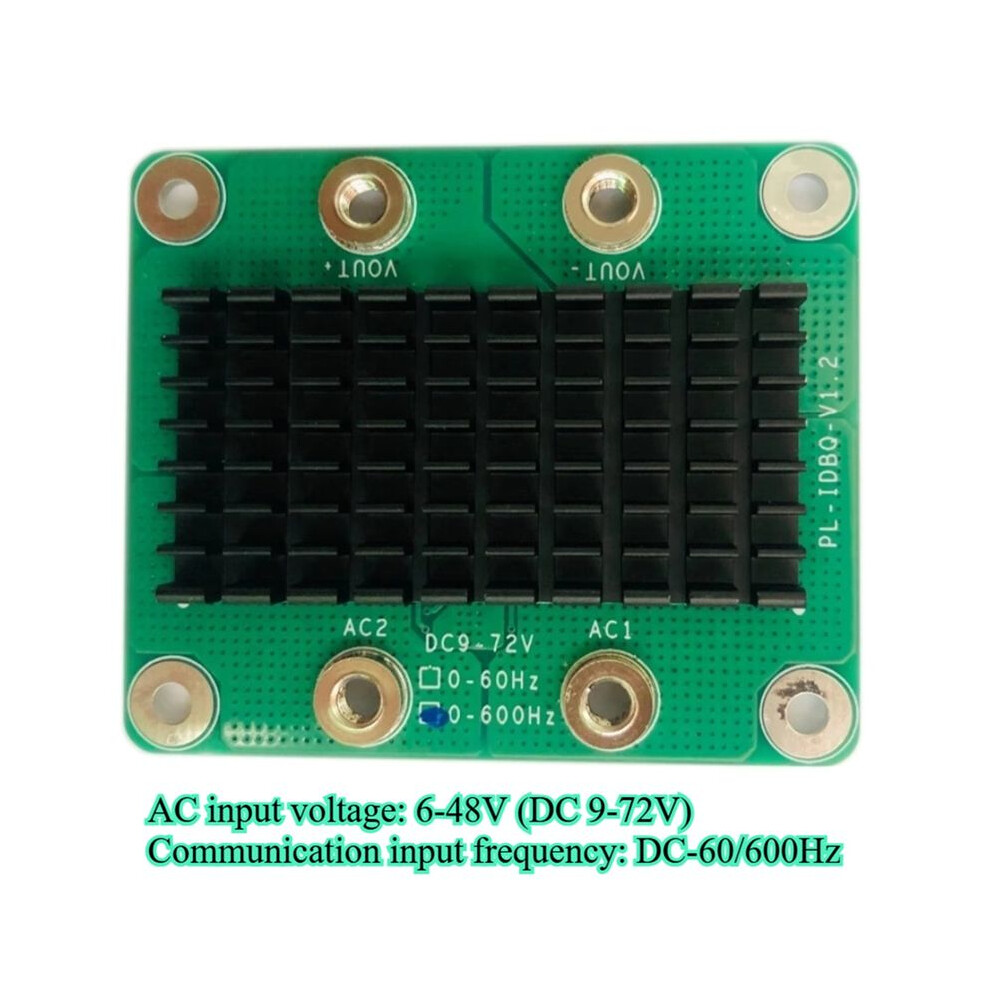

Working voltage range: 9-72V (not suitable for direct rectification of 220V mains power!)! )Communication: 7-48VAC
Input frequency range: --60Hz (default);
Output current range: 0-10A continuous current 25 ; 10-20A (requires enhanced heat dissipation)
Color: As Shown
Material: PCB
Package Contents:
1 x Ideal Diode Rectifier Bridge
Detaljer
| OPC | PPZH8DW |
|---|---|
| Mærke | ISTOVO |
| Koder | 6032427833316 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 5cm |
|---|---|
| Width | 7cm |
| Length | 7cm |
| Weight | 0.08kg |
| Colour | As Shown |
| Material | PCB |
