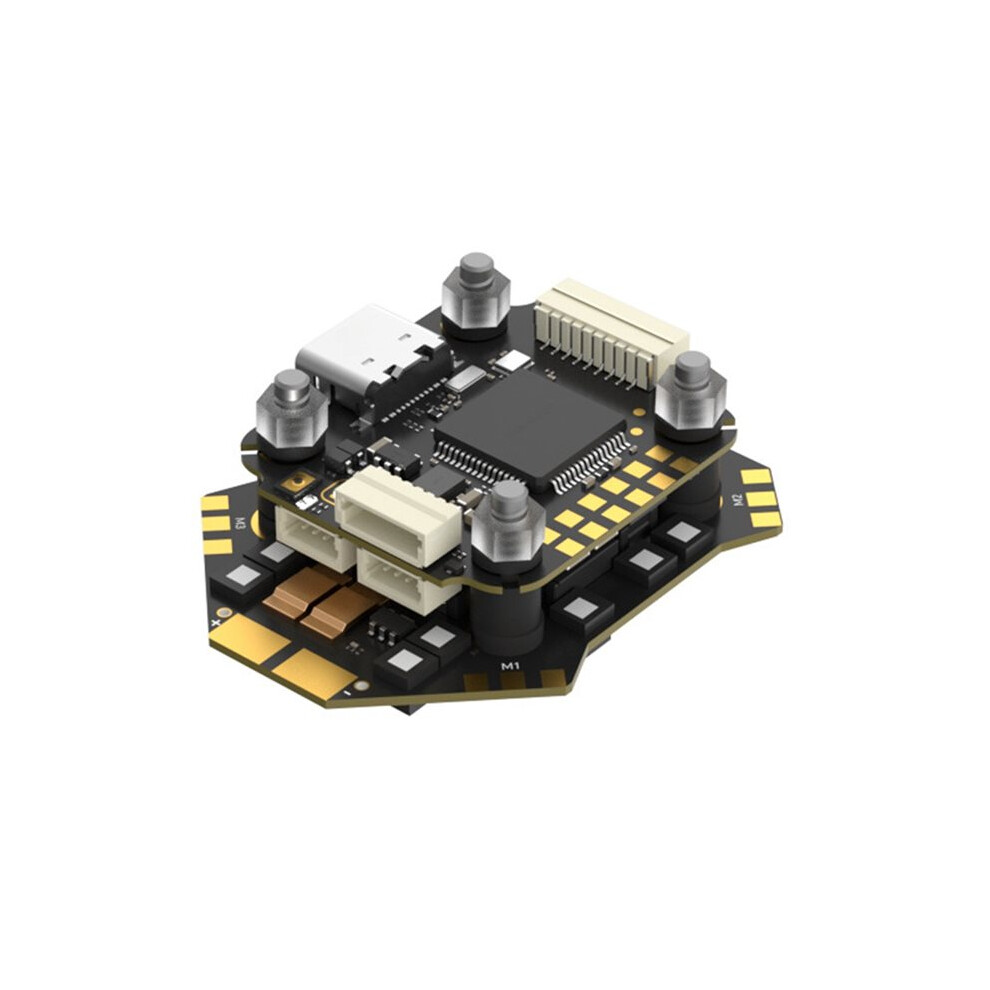

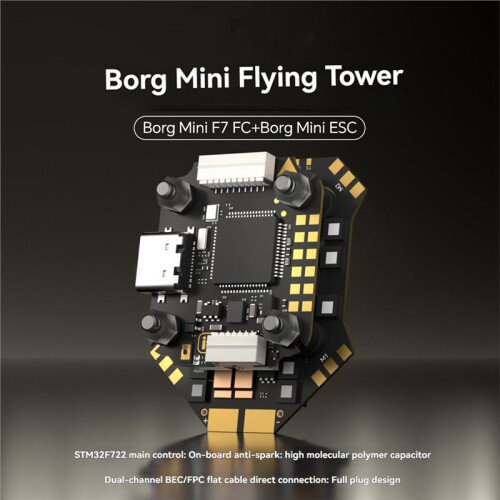

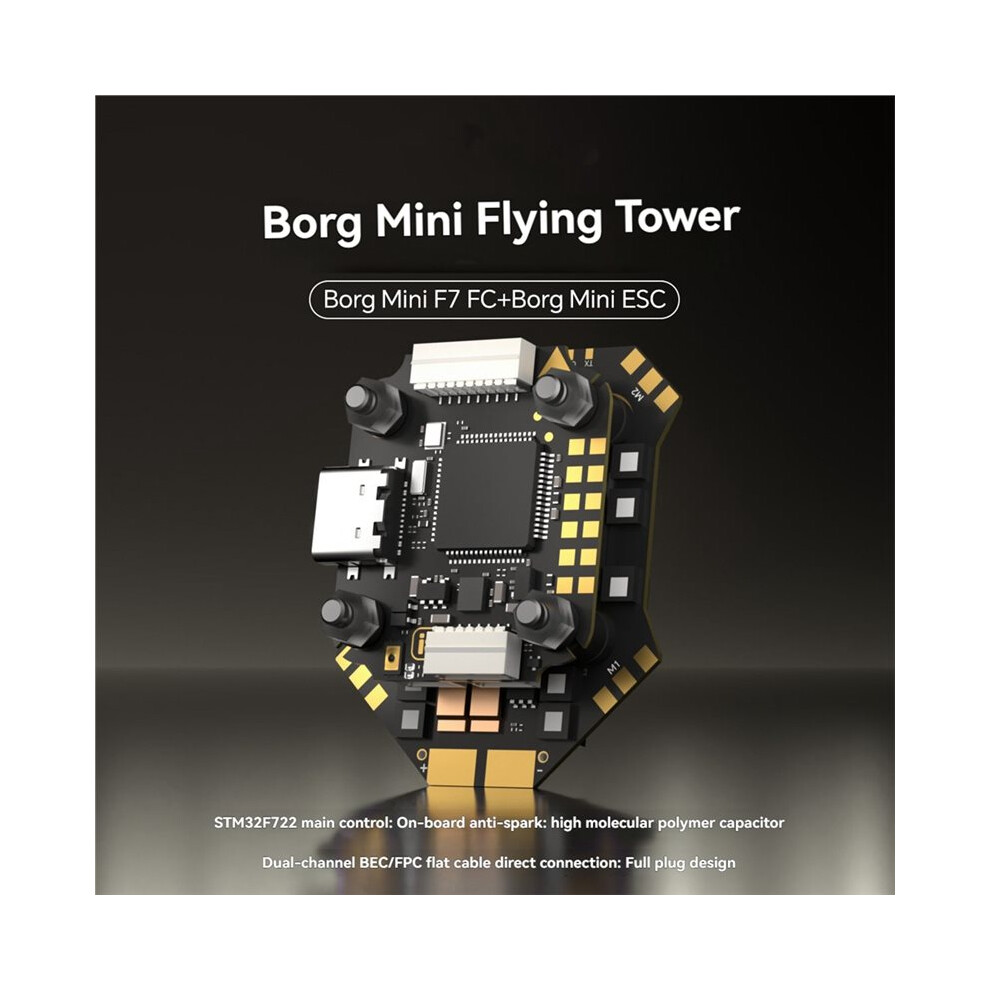

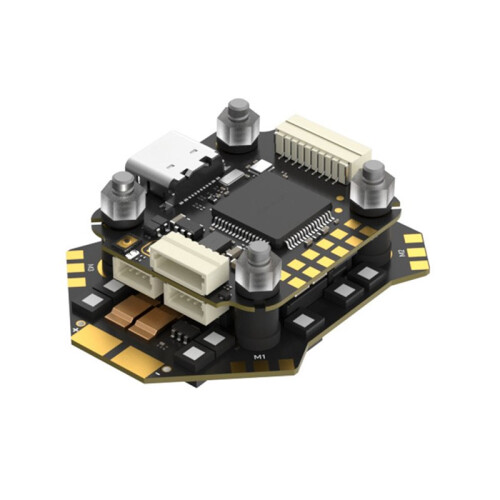

IFlight Borg F7 Stack F722 Flight Controller+60A 32bit ESC 2-6S for FPV Racing Parts
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 131,000 anmeldelser med vurderingen “Fremragende”
1.378,54 kr.
2.274,59 kr.
Spar 39%!
+32,99 kr. levering
1%
Tjen 13,79 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (32,99 kr.) | tir. 25. - man. 31. aug.
Solgt af: PPEART
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Beskrivelse og detaljer
Oversigt

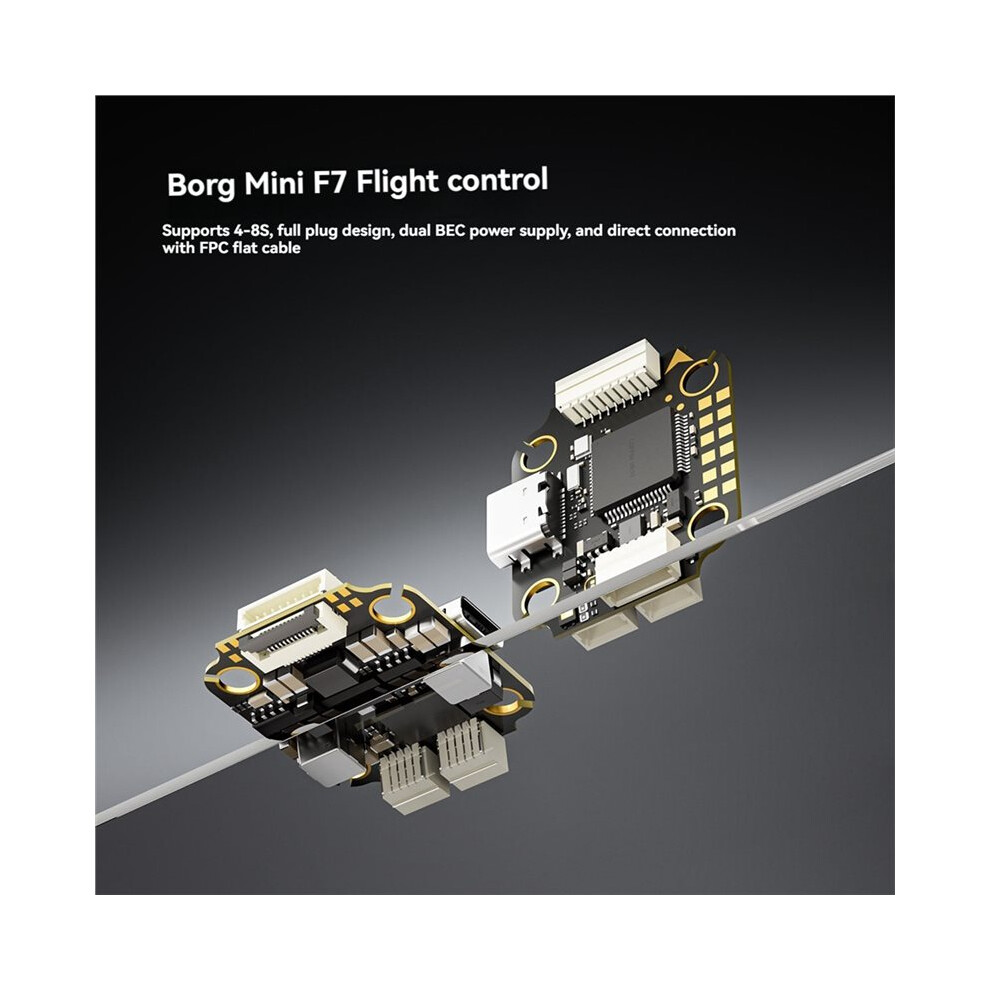

- 1. The flight controller supports 4-8S battery power; the flight controller has an onboard 12V BEC to provide stable power to the video transmitter and supports controlling the video transmitter switch via the remote control;
- 2. Onboard 32MB black box;

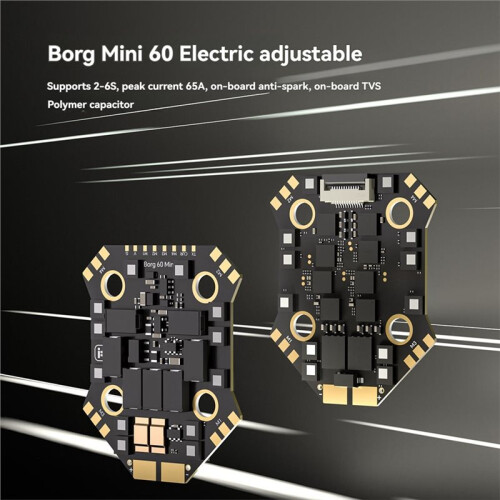

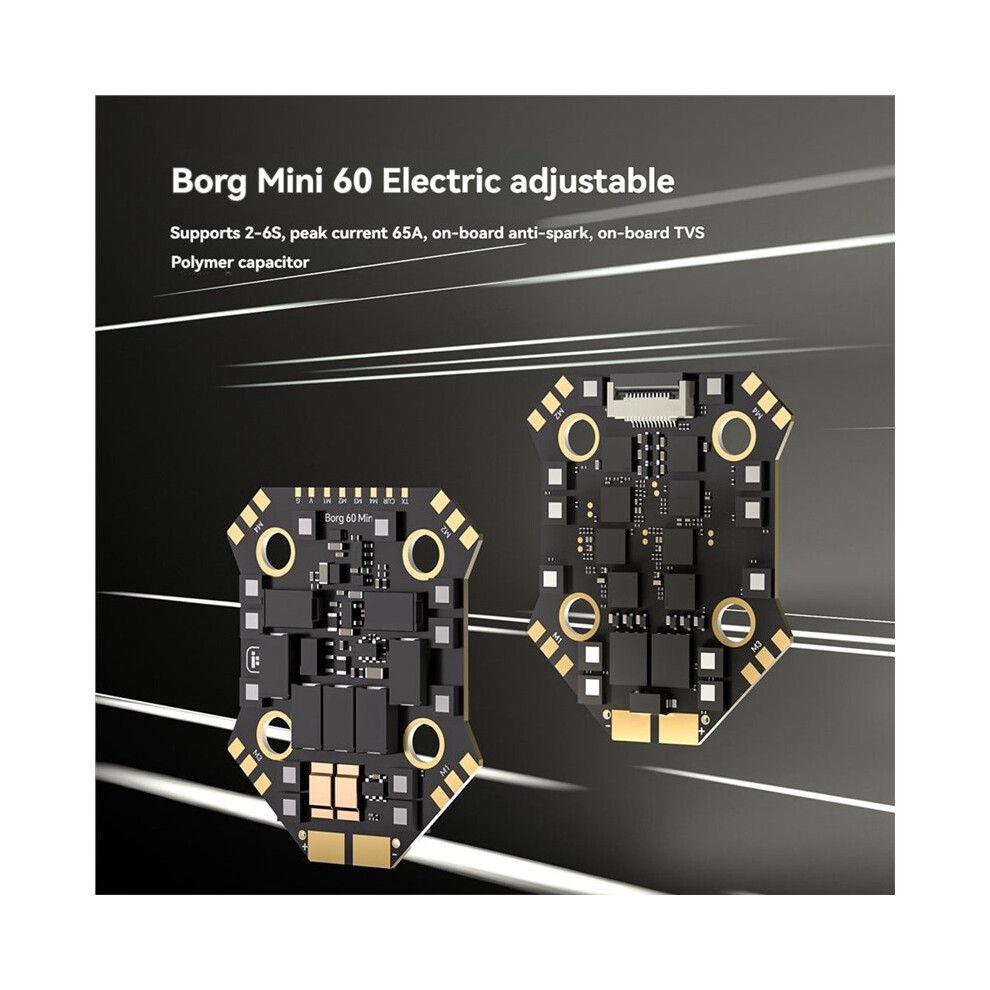

- 3. The ESC supports 2-6S input; it uses an 8-layer high-current PCB, with a continuous current rating of 60A and a peak current of 65A;
- 4. Onboard anti-spark circuit to prevent power-on voltage spikes from damaging the equipment;
- 5. The ESC has onboard polymer capacitors, eliminating the need for external capacitors on racing drones.
IFlight Borg F7 Stack F722 Flight Controller+60A 32bit ESC 2-6S for FPV Racing Parts Beskrivelse
1. The flight controller supports 4-8S battery power; the flight controller has an onboard 12V BEC to provide stable power to the video transmitter and supports controlling the video transmitter via the remote control;
2. Onboard 32MB black box;
3. The ESC supports 2-6S input; it uses an 8-layer high-current PCB, with a continuous current rating of 60A and a current of 65A;
4. Onboard anti-spark circuit to prevent power- voltage spikes from damaging the equipment;
5. The ESC has onboard polymer capacitors, eliminating the need for external capacitors racing drones.
Input Voltage: 4-8S (supports LIHV batteries)
Mounting Hole Size: 20*20mm (M4)

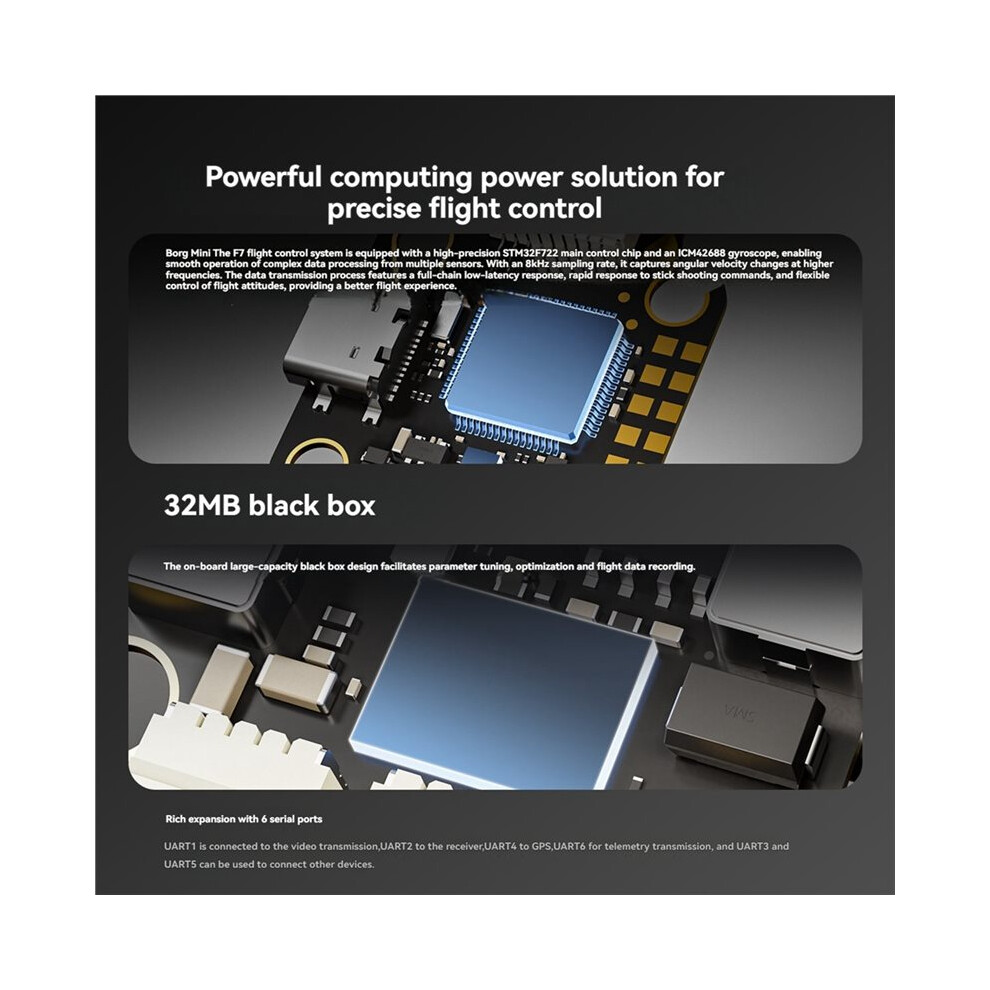

Main Controller: STM32F722RET6
Gyroscope: ICM42688
Barometer: SPA06-003
Analog OSD: AT7456E (LGA)
Black Box Capacity: 32MB
Motor Output: 4 motors
I2C: Supported

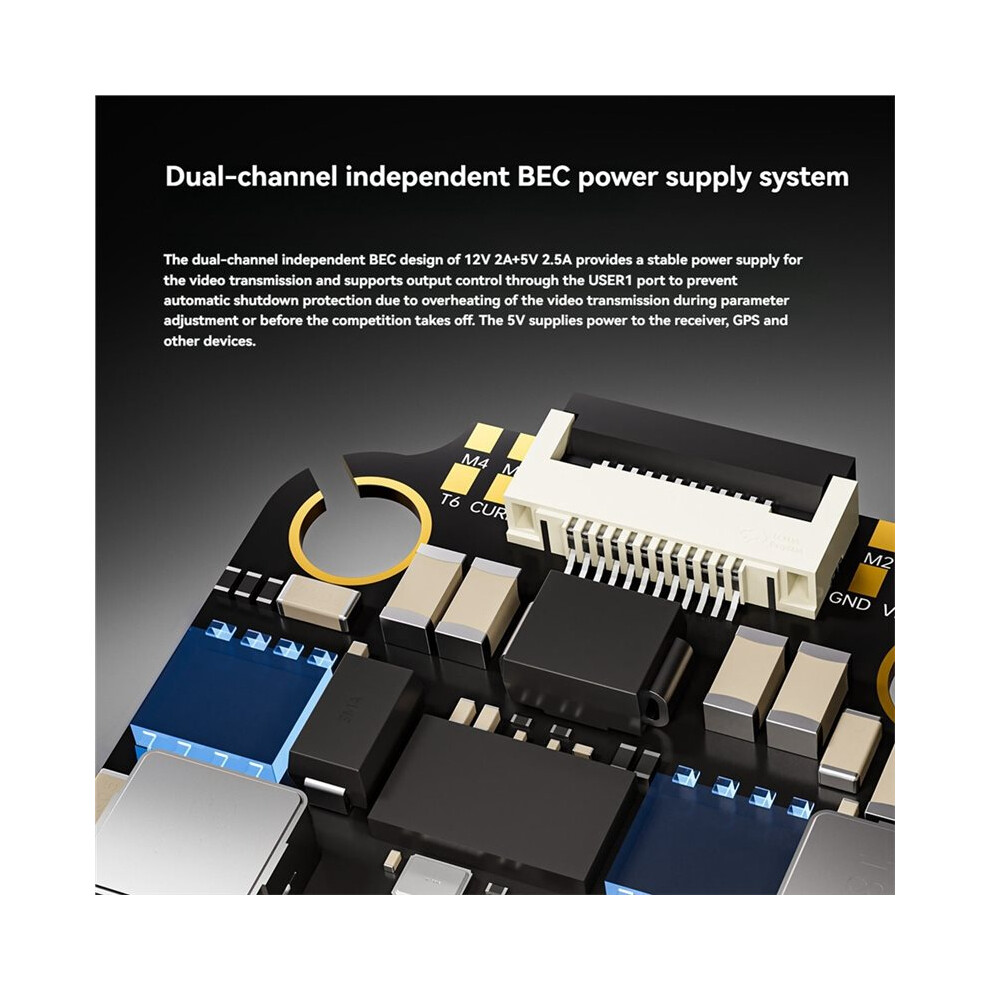

BEC: 5V 2.5A, 12V 2A (12V with VTX )
LED Strip: Supported
Buzzer: Supported
Video Transmission Protocol: Supports MSP/Smartaudio/IRCTramp/HDZero
Number of Serial : 6
UART: 6*UART (UART1, UART2, UART3, UART4, UART5, UART6)
Flight Controller Firmware: IFLIGHT_BLITZ_F722 (Betaflight)
INAV: IFLIGHT_BLITZ_F722
Video Transmitter Code:
resource PINIO 1 C0
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box user 1 name = VTX OFF
aux 0 40 8 900 2100 0 0
save
Borg 60 ESC
Mounting Hole Size: 20*20mm (Φ4)
Main Controller: STM32G071N
Driver: FD6288
Input Voltage: 2-6S (supports LIHV batteries)
Output Current: 60A, 65A (10 seconds)
ESC Firmware: IFLIGHT_BLITZ_G3 32.9
Current Sensor: Yes
BEC: None
ESC Telemetry: Supported
Bidirectional DSHOT: Supported
Drive Signal Support: DShot150/300/600, MultiShot, OneShot drive sign
Detaljer
| OPC | PRSYCG9 |
|---|---|
| Koder | 4711208202931 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 8cm |
| Length | 15cm |
| Weight | 0.1035kg |
| Colour | Black |
| Material | PCB |
