Fully comply with MBUS international standard EN1434-3 and Chinese national standard CJ/T188-2018; Ultra low static power consumption
Short circuit protection low power consumption; USB hot plug, safe and stable; USB-B interface is robust and plug resistant
Support all win systems including win11; Support MacOS system, Linux system and Android system; USB power supply, without any external power supply; Small shell size, convenient for on-site commissioning and carrying
Carry 15 standard MBUS slave devices on average according to the load size, and the maximum load quantity can reach 20
The module has no spontaneous self reception and bit error within the normal load range; The communication baud rate 300-9600 can adapt to 19200bps at most,Ultra long communication distance, distance 1KM, communication bit error rate lower than 1/10000 Connect the slave stations (user water meter, user heat meter, user gas meter, etc.) in parallel in turn to the MBUS interface; Connect the USB module to the USB port of the computer, and the USB status indicator lights up

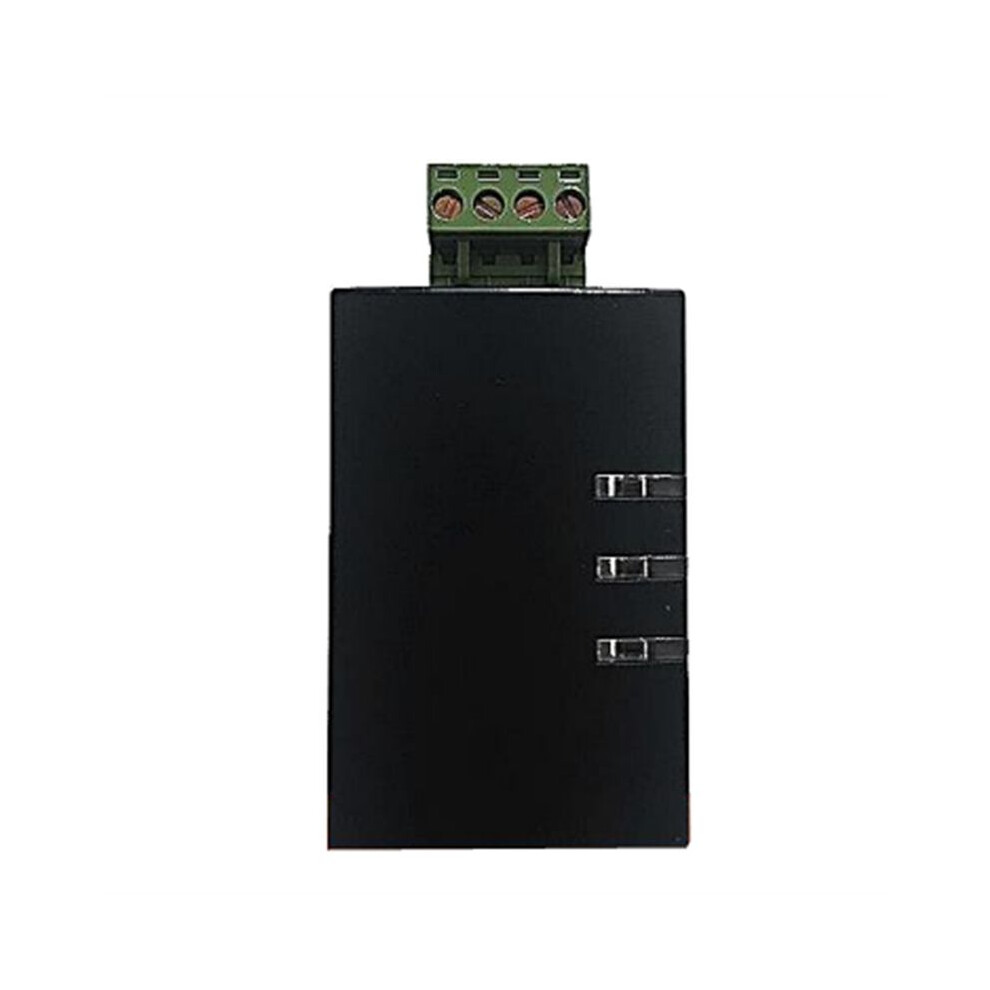

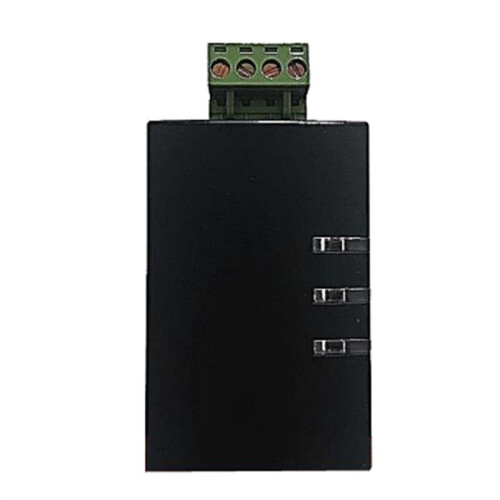

Isolated for MBUS to USB Master Converter M-BUS Data Field Debugging Test Communication for Electricity Meter Beskrivelse

Fully comply with MBUS international standard EN1434-3 and Chinese national standard CJ/T188-2018; Ultra low static power consumption
Short circuit protection low power consumption; USB hot plug, safe and stable; USB-B interface is robust and plug resistant
Support all win systems including win11; Support MacOS system, Linux system and Android system; USB power supply, without any external power supply; Small shell size, convenient for -site commissioning and carrying
Carry 15 standard MBUS slave devices average according to the load size, and the maximum load quantity can reach 20
The module has no spontaneous self reception and bit error within the normal load range; The communication baud rate 300-9600 can adapt to 19200bps at most,Ultra long communication distance, distance 1KM, communication bit error rate lower than 1/10000 Connect the slave stations (user water meter, user heat meter, user gas meter, etc.) in parallel in turn to the MBUS interface; Connect the USB module to the USB port of the computer, and the USB status indicator lights

Load capacity:
The maximum load current Ic of MBUS bus is 80mA, the static current of slave station is represented by IS, the dynamic current of slave station is represented by It, and the load quantity is represented by N. The load carrying quantity is calculated according to the maximum static current IS 5mA and the maximum dynamic current It20mA of the slave station
Loaded quantity N=(Ic It)/IS=(80-20)/5=12
The maximum load current Ic of MBUS bus is 80mA, the static current of slave station is represented by IS, the dynamic current of slave station is represented by It, and the load quantity is represented by N. The load carrying quantity is calculated according to the standard static current IS 3mA and the maximum dynamic current lt20mA of the slave station
Loaded

Detaljer

OPC	PVB6GTX
Koder	6033377208049 (EAN)

Produktdata

Height	3cm
Width	12cm
Length	14cm
Weight	0.12kg
Colour	Black
Material	plastic
