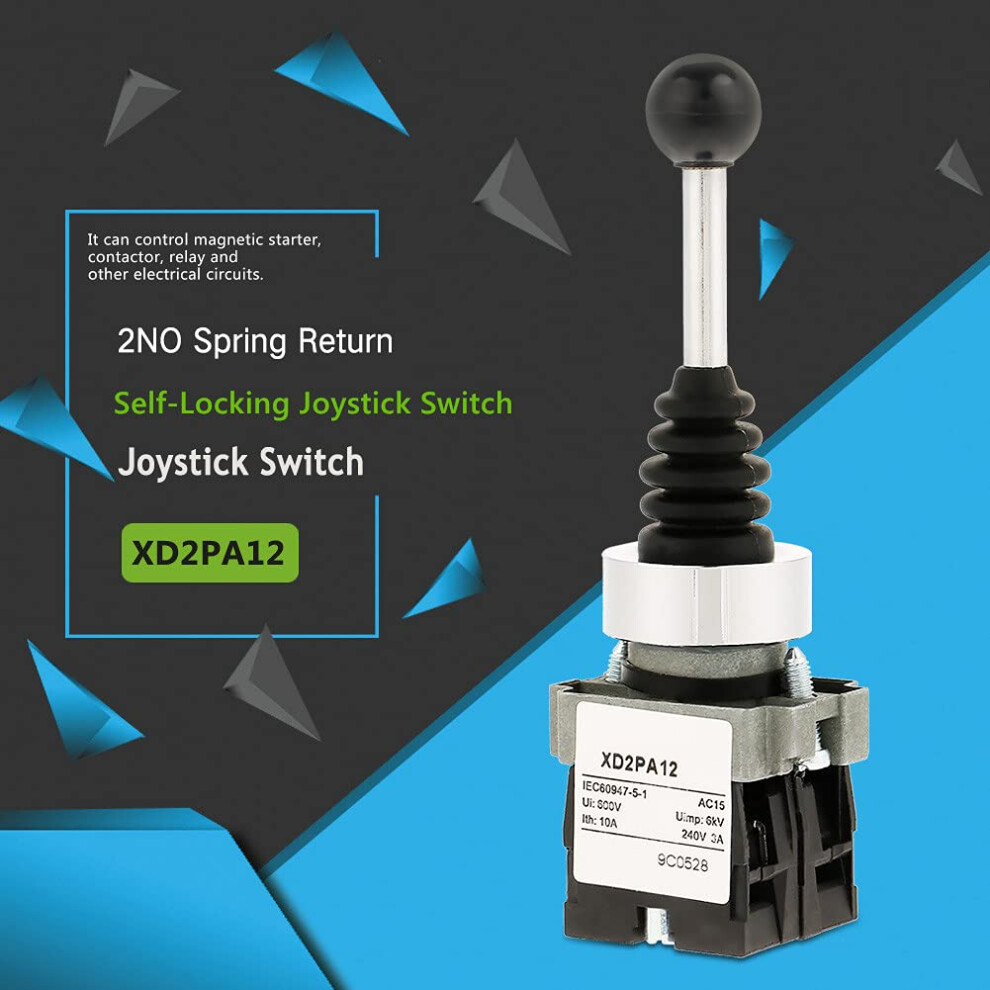

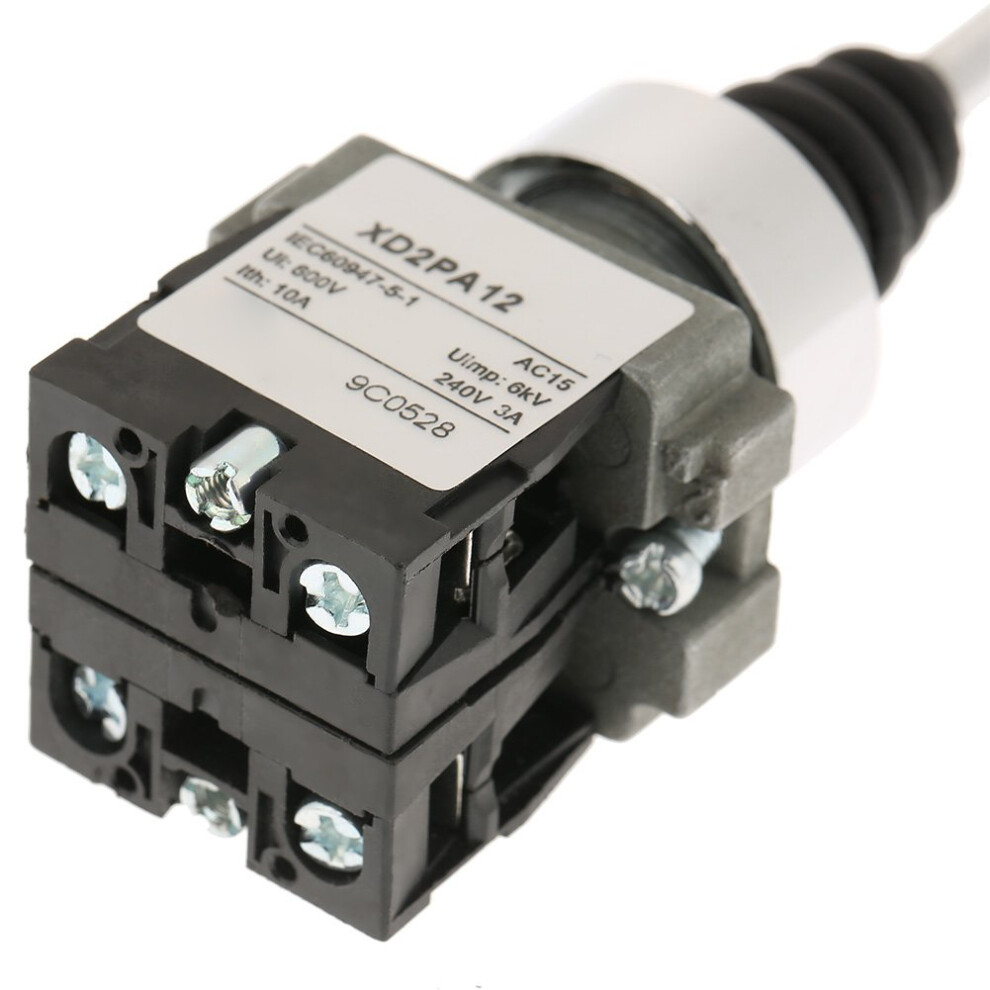

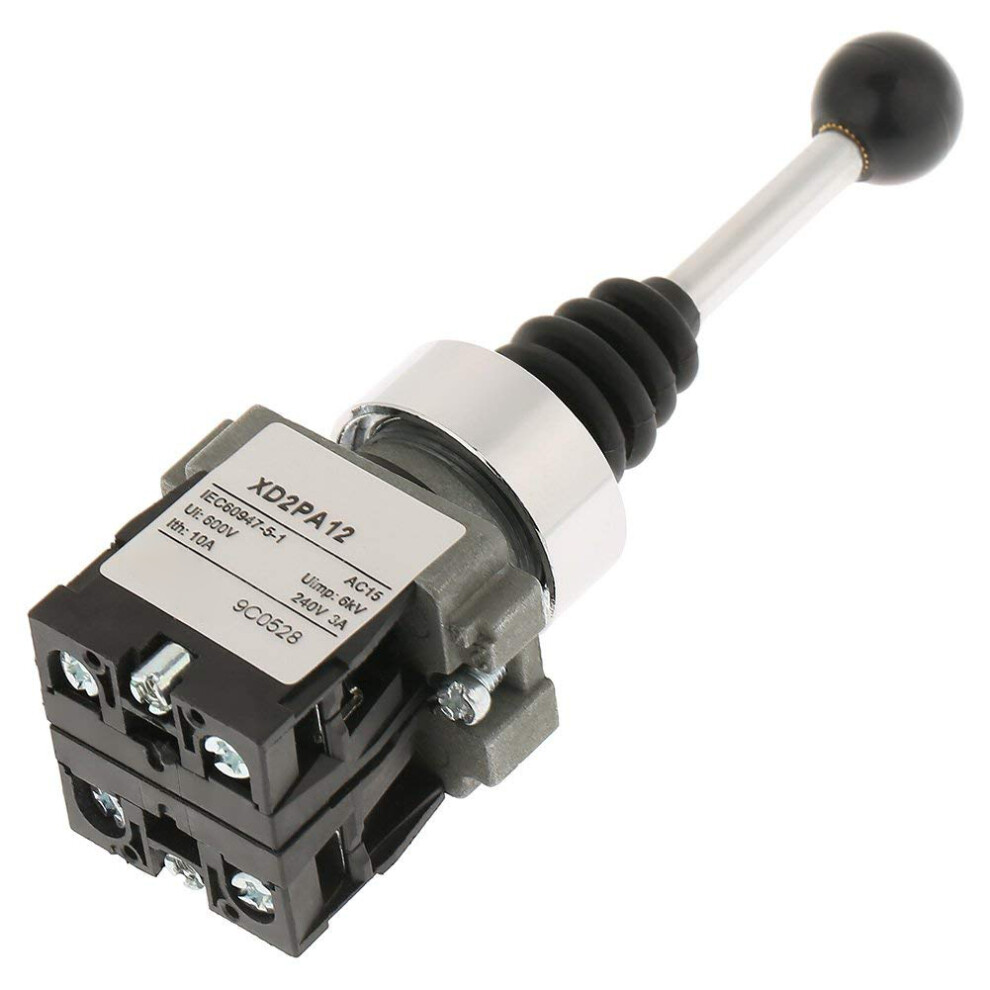

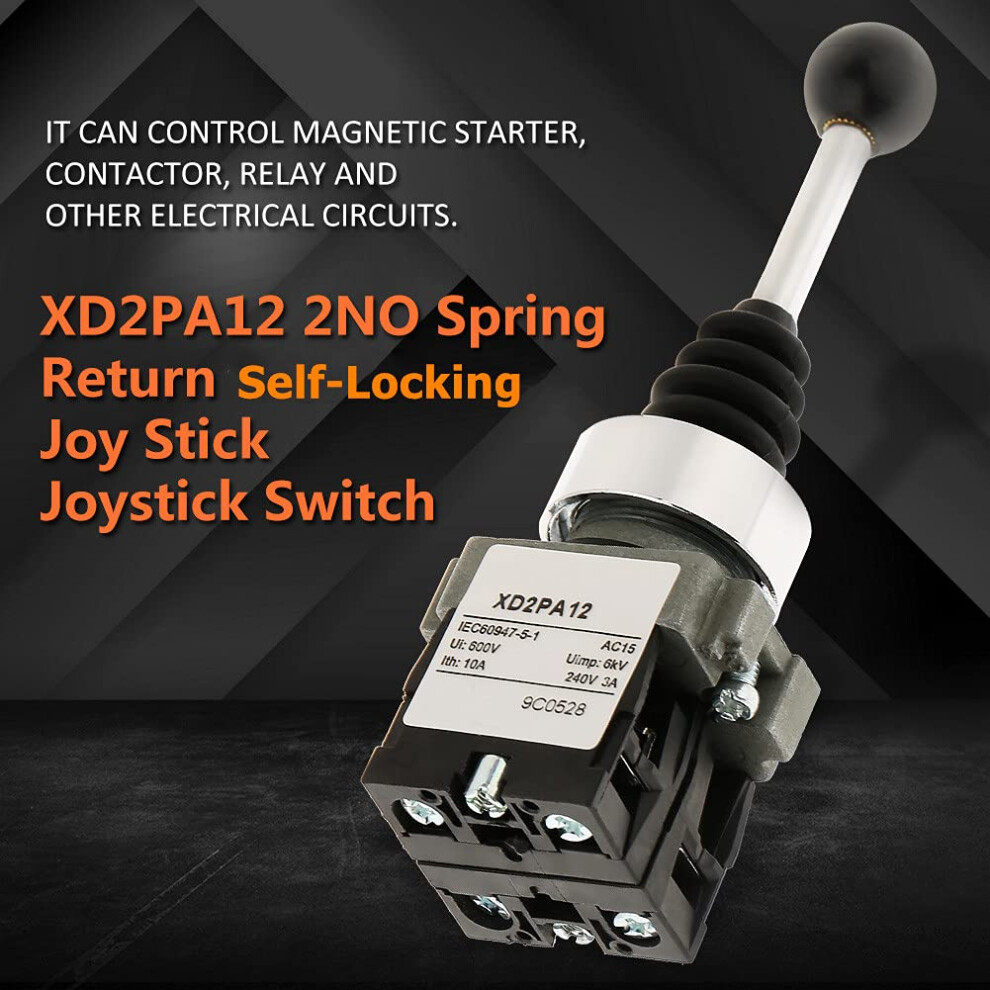

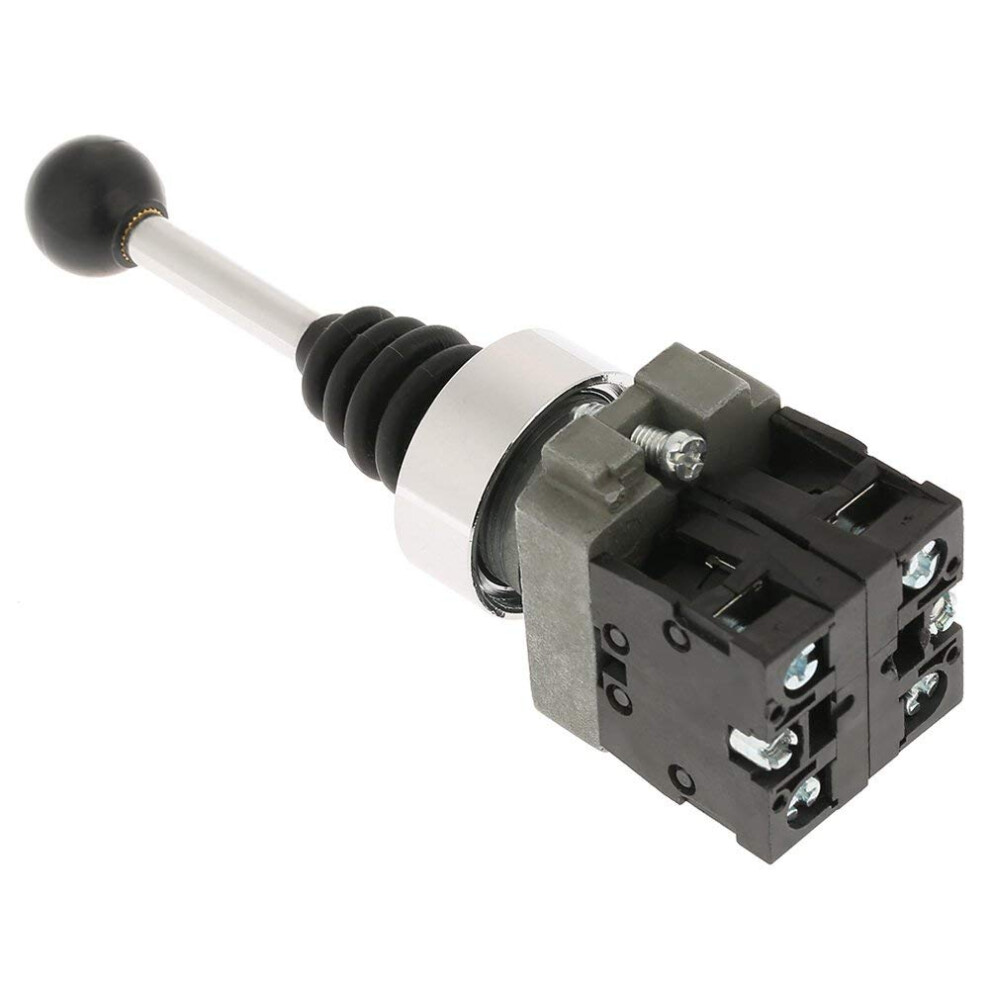

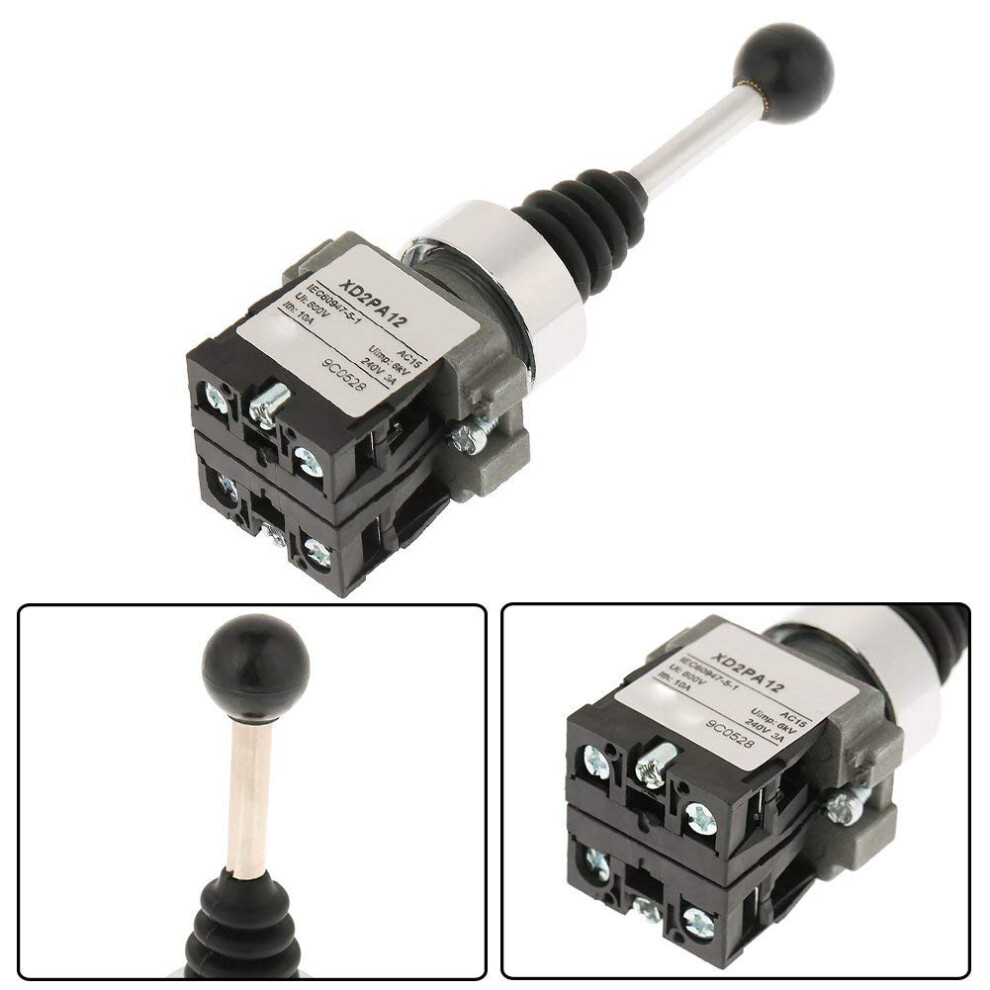

Joystick XD2PA12 AC3000V Double Self-Locking 2 Single Lever Switches
Brand Typecat
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 130,000 anmeldelser med vurderingen “Fremragende”
137,65 kr.
202,81 kr.
Spar 32%!
Gratis levering
1%
Tjen 1,38 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre. 14. - ons. 19. aug.
Solgt af: Papishop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Beskrivelse og detaljer
Oversigt
- This instant joystick switch is widely used in industrial control AC 50Hz and DC circuits. It can control magnetic starters, contactors, relays and other circuits. The rubber sleeve is waterproof, oil-proof and dust-proof. The joystick switch is a momentary switch, 2NO type, so there are 2 normally open contacts. The switch is easy to assemble and operate, and has a long service life.
- Model: XD2PA12
- Rated voltage: 220V/380V
- Nominal current: 5 A / 10 A
- Installation opening: 22mm in diameter
Joystick XD2PA12 AC3000V Double Self-Locking 2 Single Lever Switches Beskrivelse
This instant joystick is widely used in industrial control AC 50Hz and circuits. It can control magnetic starters, contactors, relays and other circuits. The rubber sleeve is waterproof, oil-proof and dust-proof. The joystick is a momentary , 2NO type, so there are 2 normally open contacts. The is easy to assemble and operate, and has a long service life.
Model: XD2PA12
Rated voltage: 220V/380V
Nominal current: 5 A / 10 A
Installation opening: 22mm in diameter
Electrical life: more than 500,000 times
Mechanical life: more than 500,000 times
Standard operating environment:
Ambient temperature: -25~+55 degrees Celsius (no ice)
Working humidity: 45~85%RH (non-condensing)
Contact resistance: less than or equal to 50 m ohm
Insulation resistance: greater or equal to 100 ohm
Maximum dielectric strength: 3000 volts, AC 50 Hz
Vibration: 50Hz, amplitude: about 1 mm
Impact resistance: more than 10 m/s2 (about 10 G)
Protection level: IP55

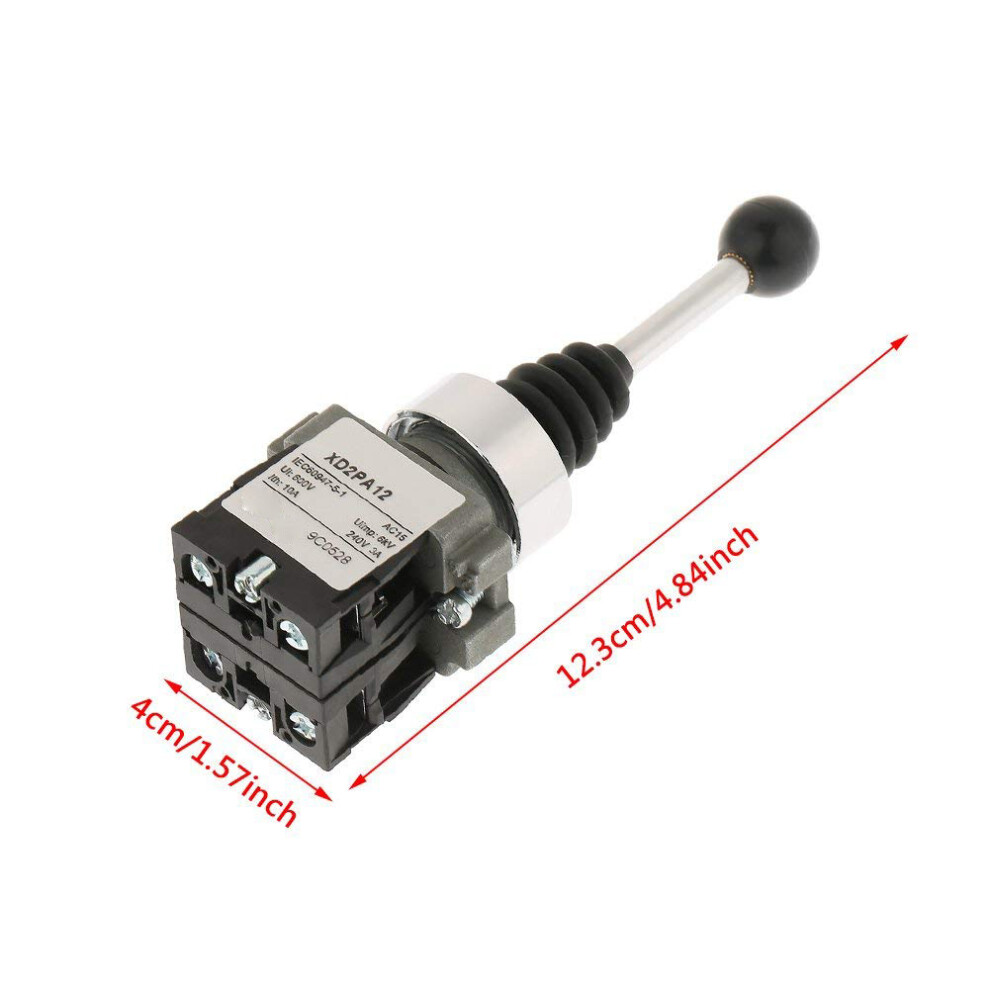

Overall dimensions: 12.3 x 4 cm
Weight: 124 grams
Colour: black
Material: metal
Package Contents:
1 * Self-locking joystick
Detaljer
| OPC | PPDHVBS |
|---|---|
| Mærke | Typecat |
| Koder | 6031050451485 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 4cm |
|---|---|
| Width | 5cm |
| Length | 13cm |
| Weight | 0.1195kg |
| Colour | black |
| Material | metal |
