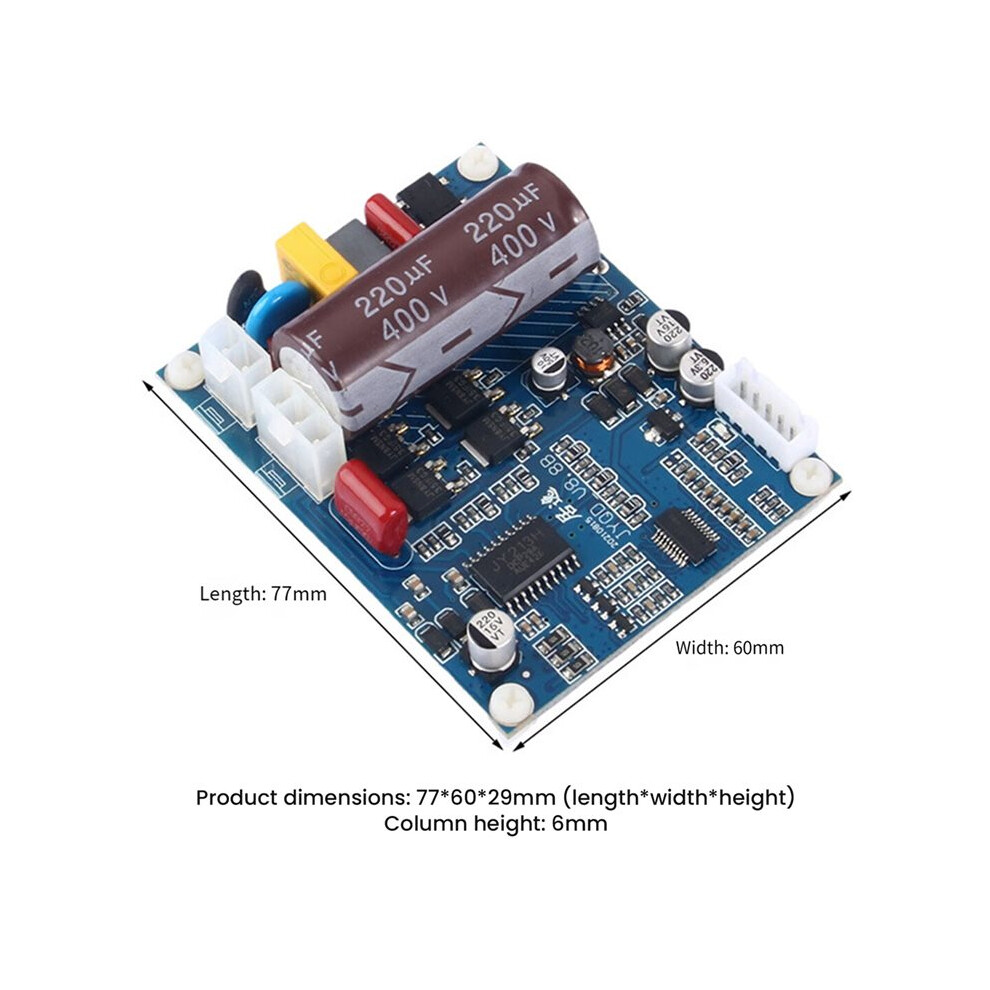

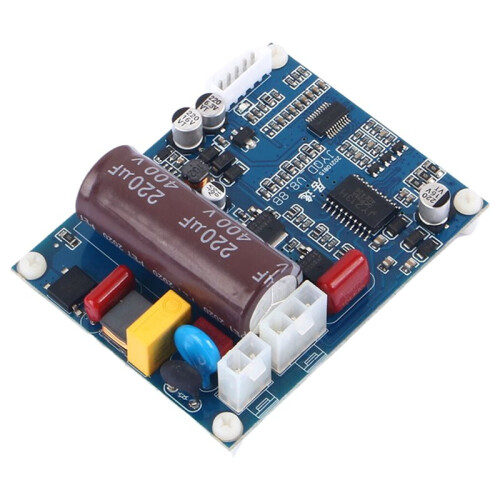

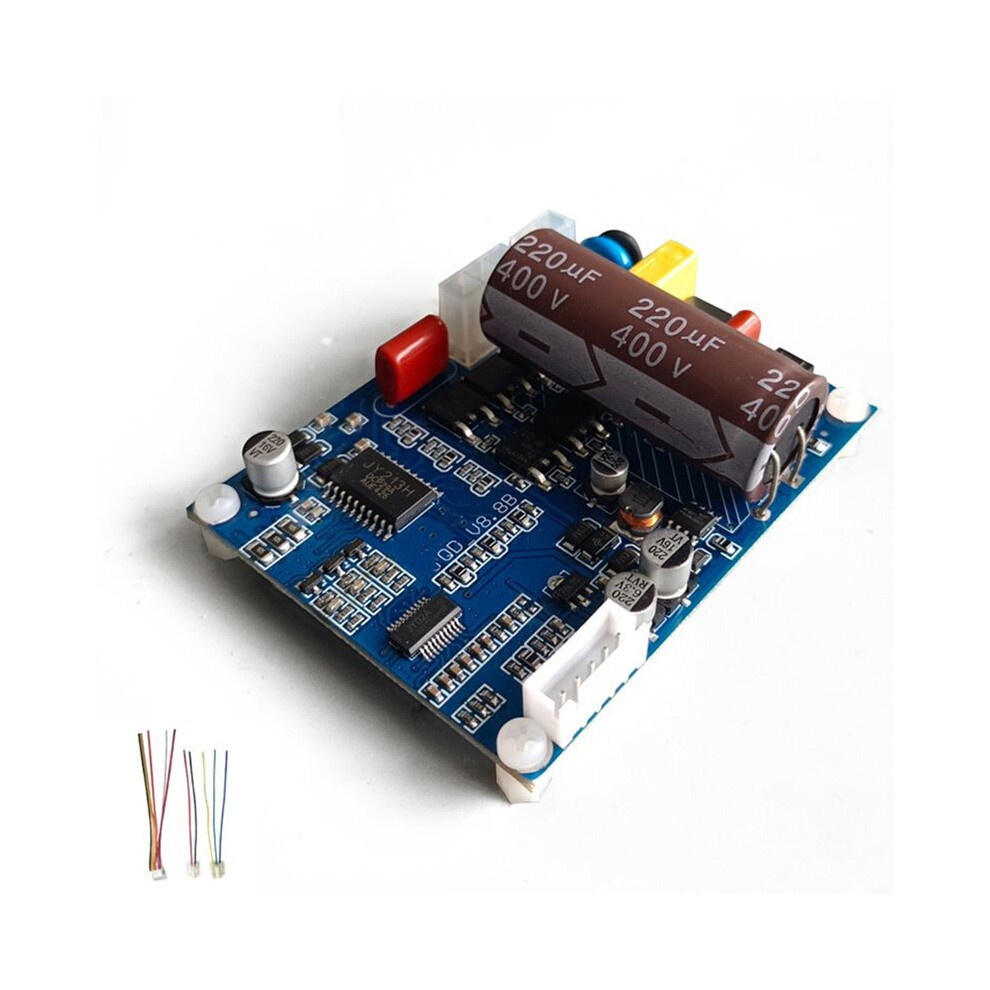

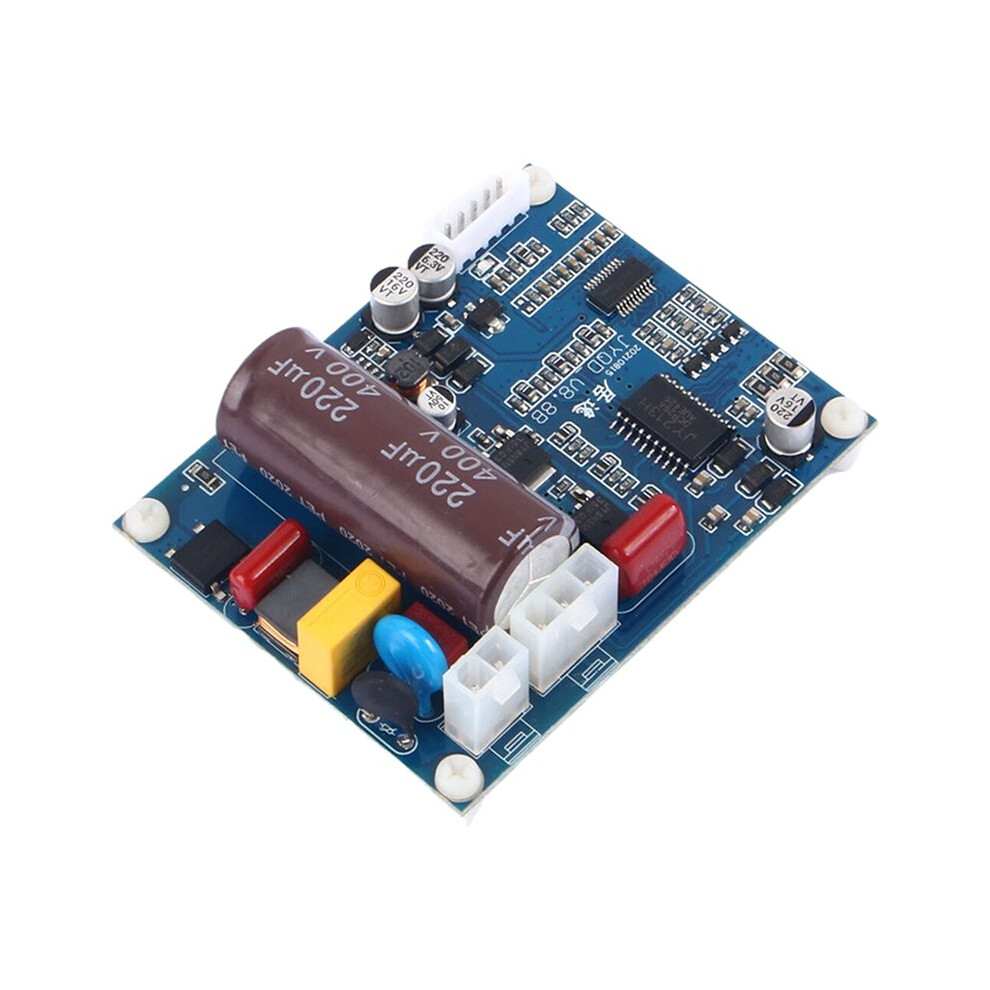

JYQD-V8.8B Bldc Driver Board Speed Controller AC110V/220V for Sensorless Brushless Motor, Motor Driver Board
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 130,000 anmeldelser med vurderingen “Fremragende”
265,48 kr.
418,43 kr.
Spar 37%!
+60,00 kr. levering
1%
Tjen 2,65 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (60,00 kr.) | man. 17. - lør. 22. aug.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Beskrivelse og detaljer
Oversigt

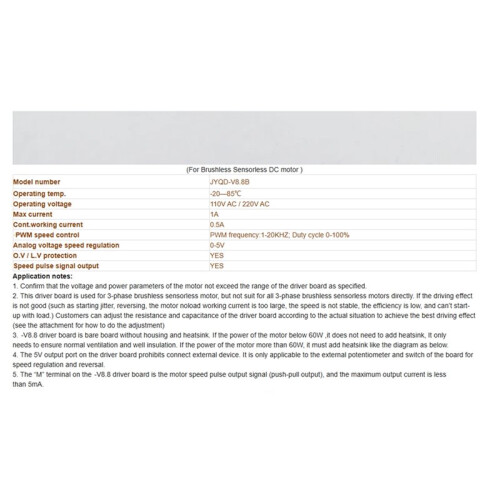

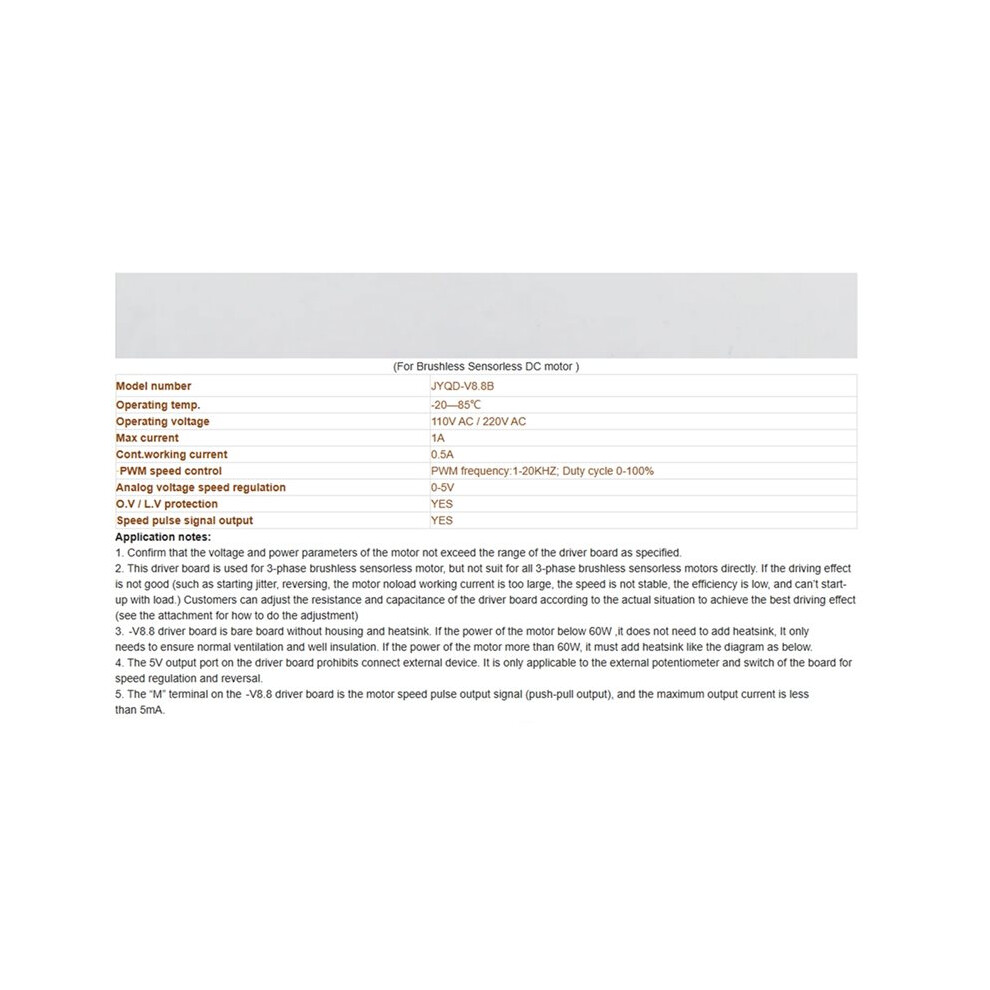

- 1. Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.
- 2. This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect
- 3. JYQD-V8.8 driver board is bare board without housing and heatsink. If the power of the motor below 60W ,it does not need to add heatsink, It only needs to ensure normal ventilation and well insulation. If the power of the motor more than 60W, it must add heatsink like the diagram as below.

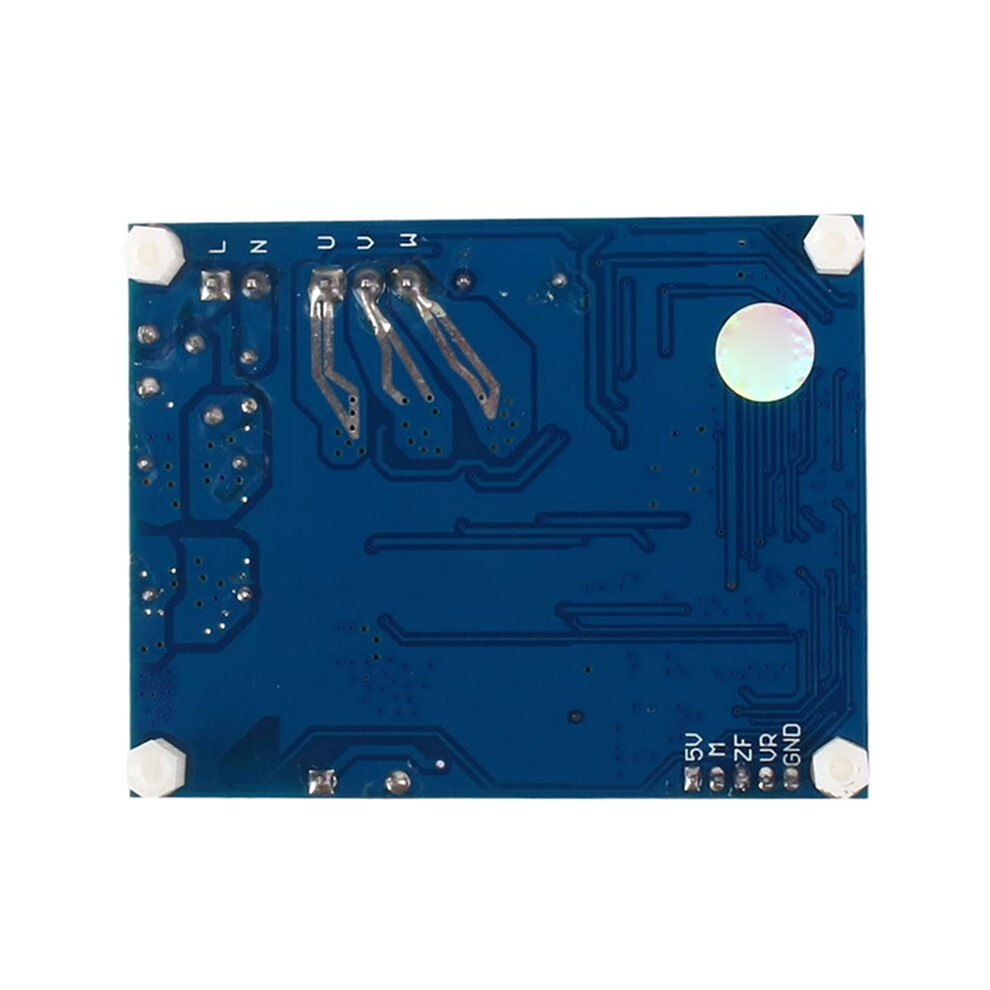

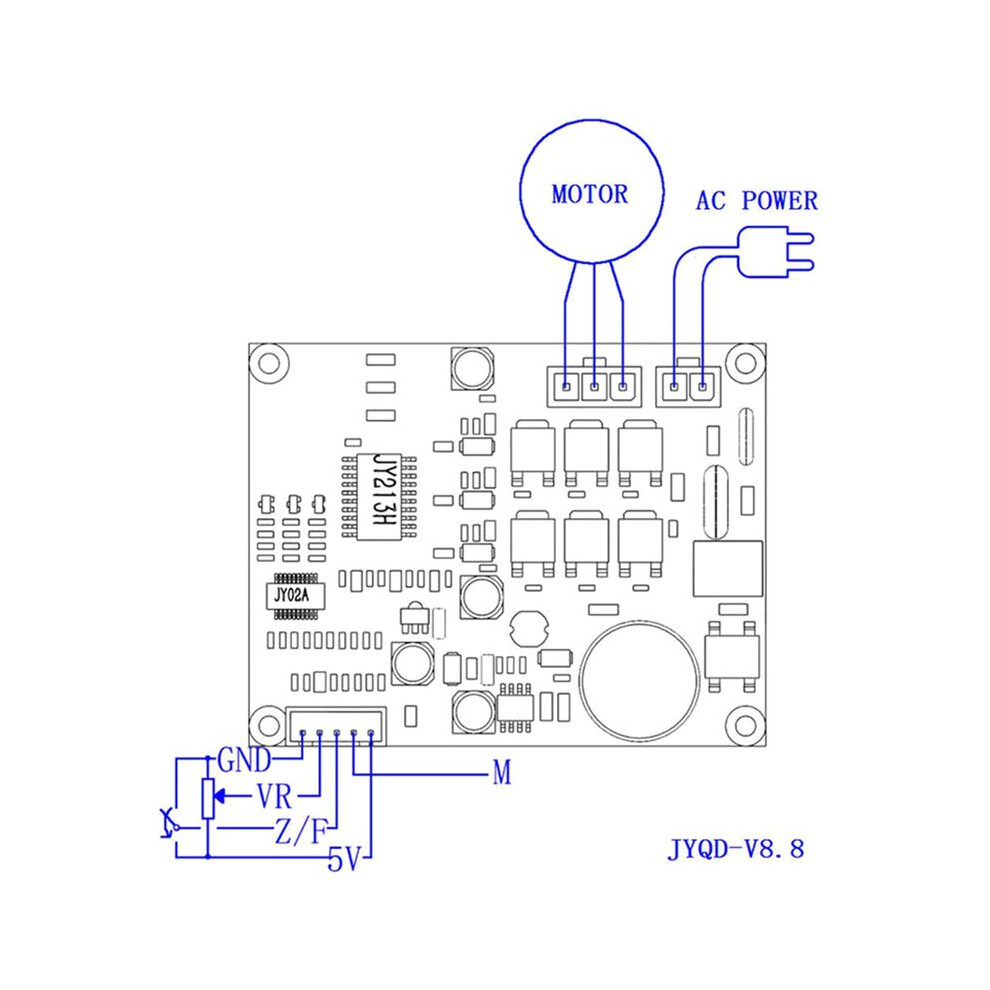

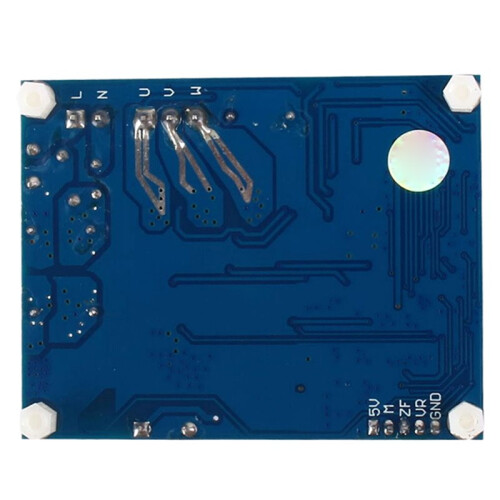

- 4. The 5V output port on the driver board prohibits connect external device. It is only applicable to the external potentiometer and switch of the board for speed regulation and reversal.
- 5. The "M" terminal on the JYQD-V8.8 driver board is the motor speed pulse output signal (push-pull output), and the maximum output current is less than 5mA.
JYQD-V8.8B Bldc Driver Board Speed Controller AC110V/220V for Sensorless Brushless Motor, Motor Driver Board Beskrivelse
1. Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.
2. This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect
3. JYQD-V8.8 driver board is bare board without housing and heatsink. If the power of the motor below 60W ,it does not need to add heatsink, It only needs to ensure normal ventilation and well insulation. If the power of the motor more than 60W, it must add heatsink like the diagram as below.
4. The 5V output port the driver board prohibits connect external device. It is only applicable to the external potentiometer and of the board for speed regulation and reversal.
5. The "M" terminal the JYQD-V8.8 driver board is the motor speed pulse output signal (push-pull output), and the maximum output current is less than 5mA.
Color:
Material: Metal+Plastic
Package Contents:
1* bldc driver board
Detaljer
| OPC | PWT6YHX |
|---|---|
| Koder | 6031186248782 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 4cm |
|---|---|
| Width | 6cm |
| Length | 11cm |
| Weight | 0.058kg |
| Colour | Blue |
| Material | Metal+Plastic |
