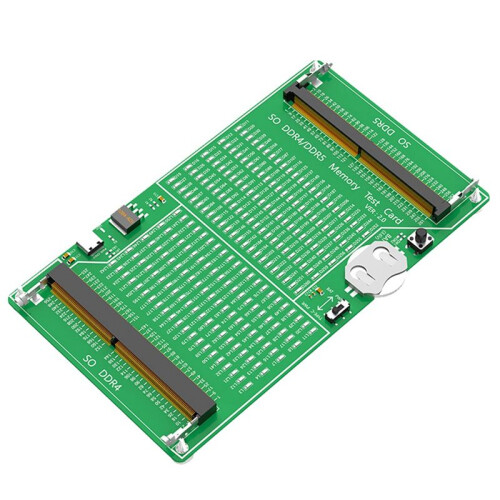

Laptop Memory Tester DDR4/DDR5 2-In-1 Memory Tester with Light Multifunctional Portable Memory Test Card

Laptop Memory Tester DDR4/DDR5 2-In-1 Memory Tester with Light Multifunctional Portable Memory Test Card Beskrivelse

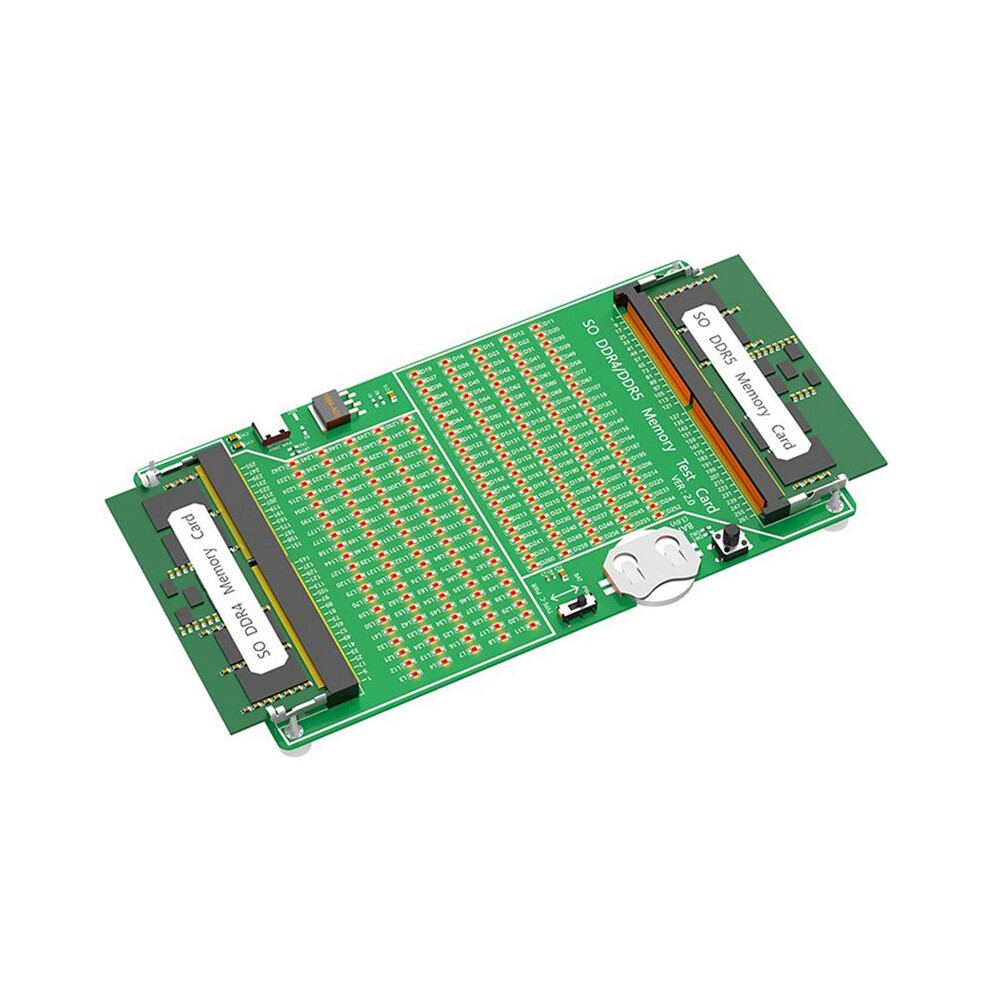

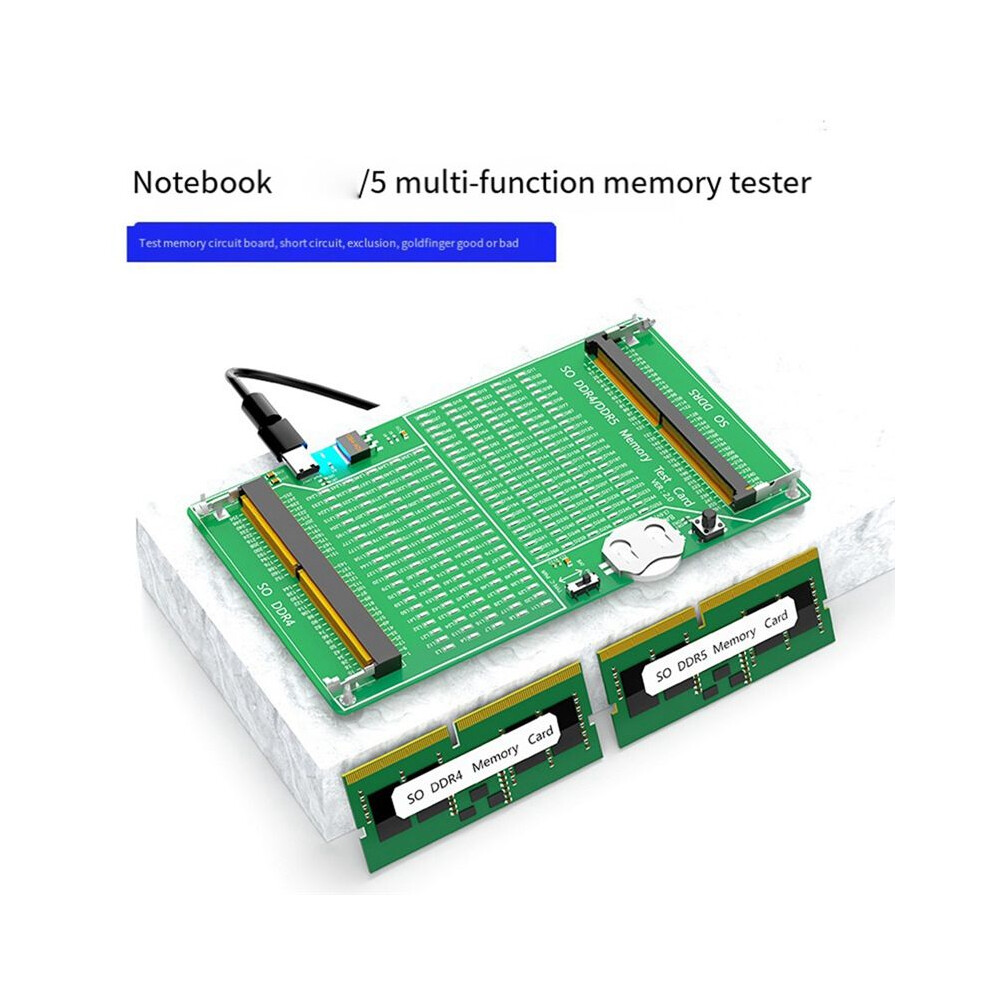

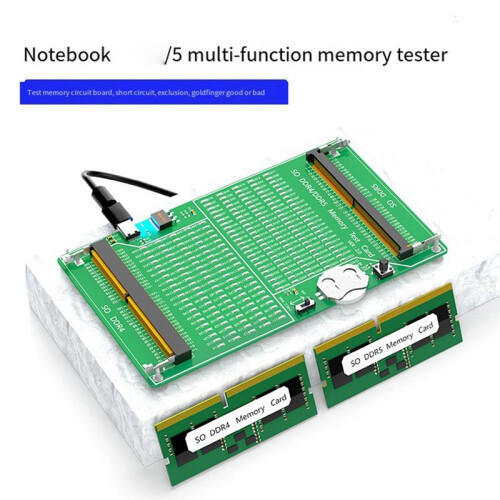

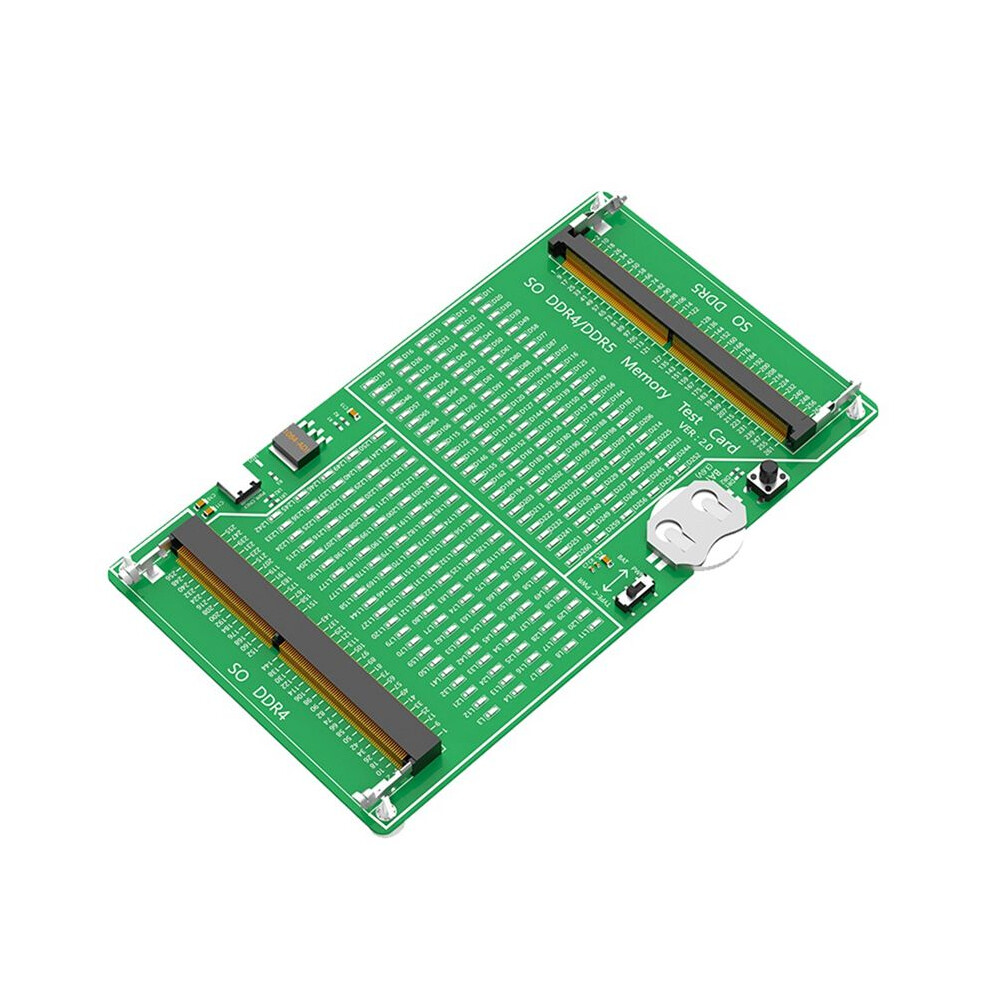

Laptop DDR4/5 Multi-Function Memory Tester, Test Memory Circuit Board, Short Circuit, Exclusion, Gold Finger Quality

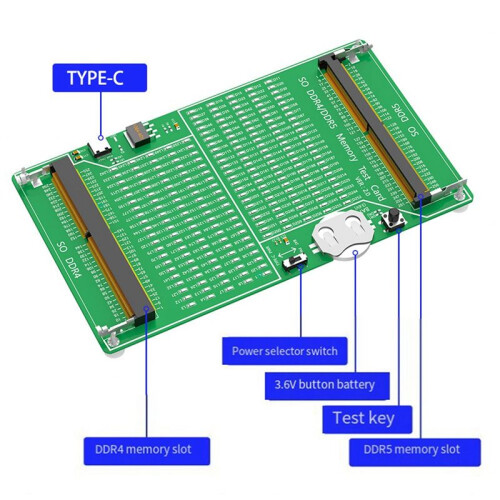

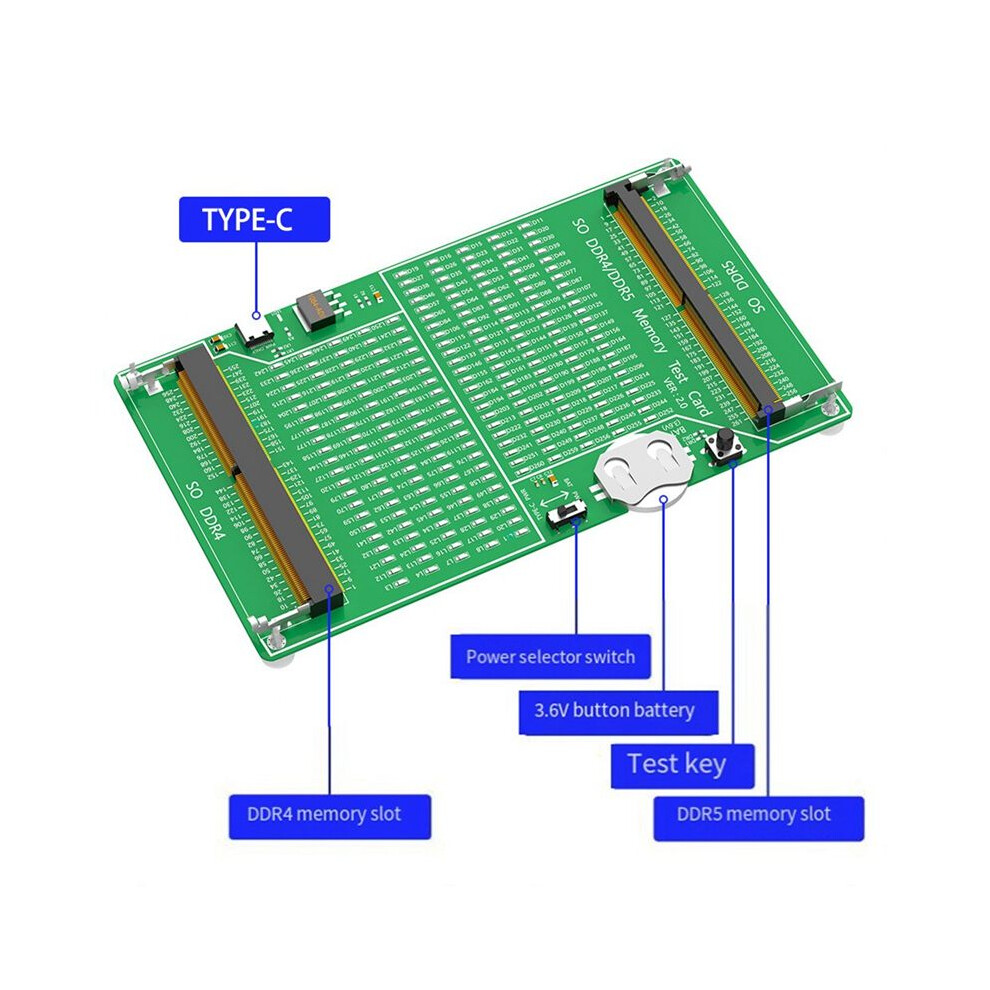

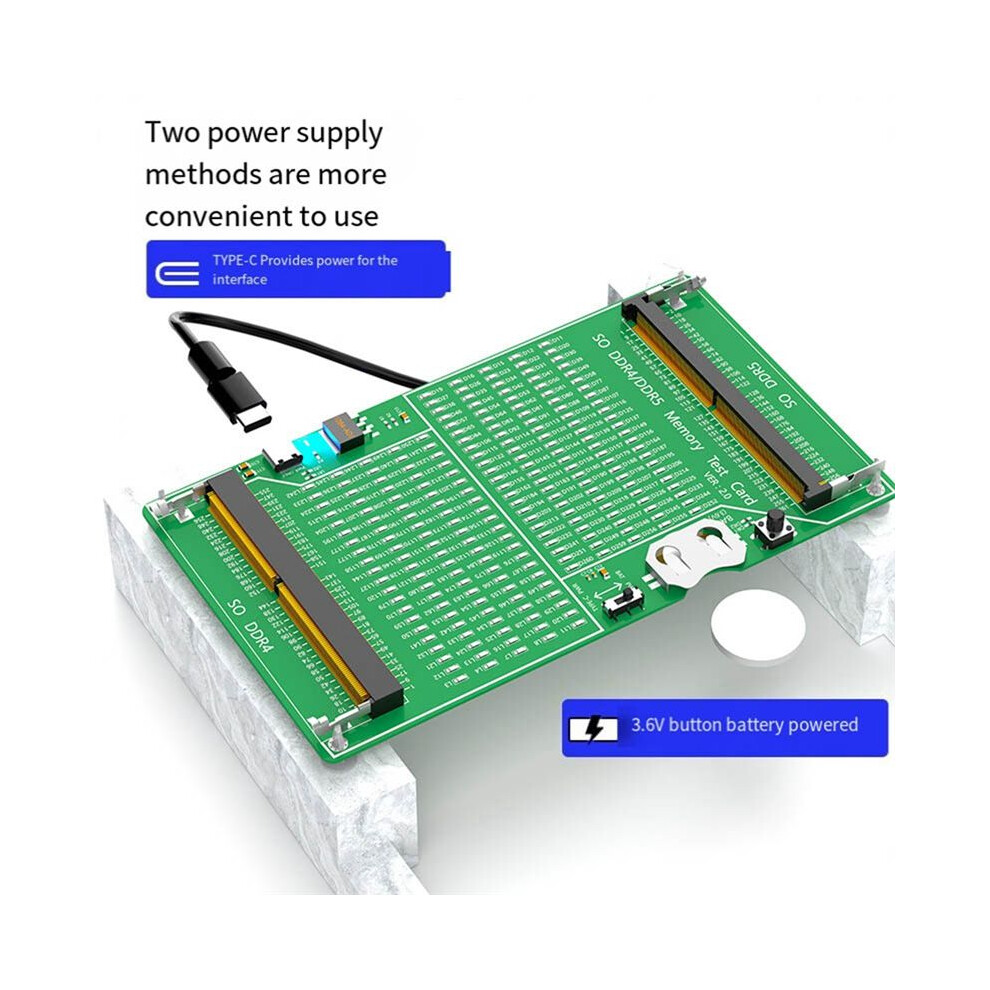

Two Power Supply Methods, More Convenient To Use, Type-C Interface Power Supply, 3.6V Button Battery Power Supply
For Troubleshooting, Press The Test . If All The Indicators Are And The Brightness Is Consistent, It Means There Is No Fault In The Hardware Of The Memory Module.
If The Indicator Light Flashes, It Means The Gold Finger Has Poor Contact. If The Indicator Light Does Not Light , It Means There Is An Open Circuit Fault. Check Whether The Gold Finger Is Dirty, The Resistor Is Damaged Or The Circuit Is Open. According To The Pin Number Of The Indicator Light, Use A Multimeter To Find The Fault Point.If One Or More Indicator Lights Are Particularly Bright, It Indicates A Short Circuit Fault.
Notebook Ddr4/Ddr5 Memory Test Steps:1. Take Out The Cr2032 Button Battery From The Accessory Bag And Install It Horizontally The Button Battery Holder Of The Test Card. Pay Attention To The Silk Screen Side Of The Battery Facing (Must Not Install It Backwards)

2. According To The Specifications And Models Of The Memory Module (The Position Of The U-Shaped In The Middle Of The Gold Finger Of Ddr4/Ddr5 Is Different), Insert The Memory Module At An Angle Of 45 Degrees Into The Black Slot, Insert It All The Way And Press Down So That The Silver Metal Ear Buckle Blocks The Memory. Strip
3. Select The Voltage Position, One Side Is Powered By Cr2032 Button Battery, And The Other Side Is Powered By Type-C External Power Supply (Need To Connect Type-C Data Cable)
4. Then Press And Hold The Black Button (Test Sw) The Test Card. If The Memory Module Is A Good Product, The Led Lights The Test Card Will All Light . If The Memory Module Is A Defective Product, The Corresponding Led Will Not Ligh
