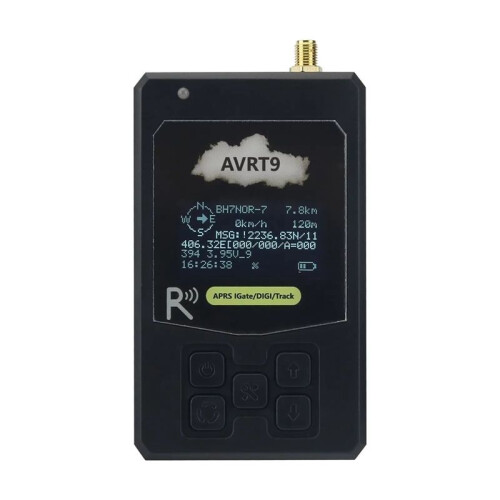

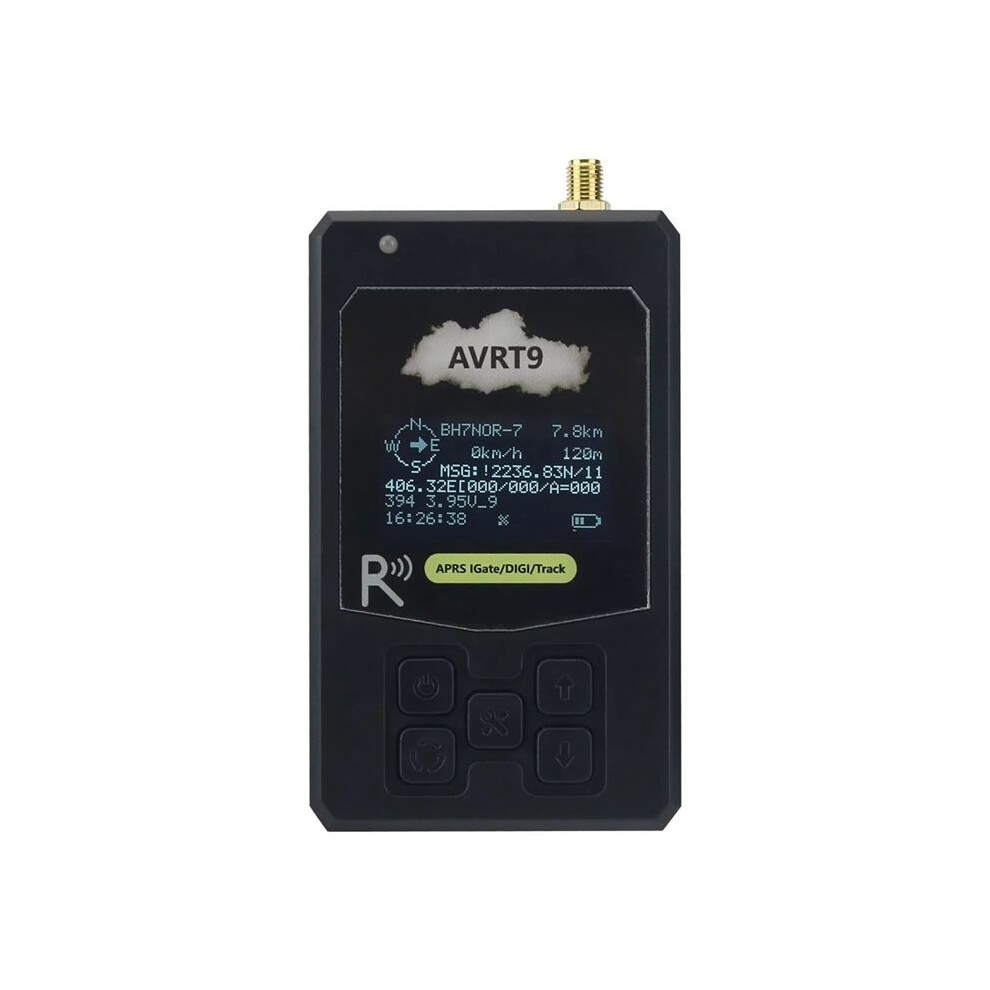

Latest AVRT9 APRS TNC Portable DIGI/TRACKER/IGATE GPS+WIFI+BT VHF Support UI/KISS/WPL Output

Latest AVRT9 APRS TNC Portable DIGI/TRACKER/IGATE GPS+WIFI+BT VHF Support UI/KISS/WPL Output Beskrivelse

AVRT9 is the latest APRS TNC launched (supports APRS tracking, DIGI, IGATE, Messages), which is operated and configured by 5 buttons and supports firmware upgrades.
Main interface: You can to display the current beacon, GPS satellite list, GPS speed, and after the test UI interface is turned , you can display the WIFI connection status.
Beacon list: AVRT9 will record the reception of each beacon, display 5 per screen, and scroll to record to 149 beacons. The beacon displays distance, direction, GPS coordinates, altitude, speed, heading, path and other information.
Beacons support intervals, distance intervals and beacons
Serial port supports output UI/KISS/WPL

1.54-inch OLED display, which can be clearly displayed even in direct sunlight outdoors.
Built-in VHF module (0.5/2W output adjustable), receiving and transmitting frequency range 136-174MHz.
Built-in independent APRS decoding chip, hard decoding protocol AX.25, rate 1200BPS.
Built-in GPS, receive satellite signals to obtain coordinates.
Built-in module, support aprsdroid.
Built-in WIFI module, can receive APRS data packets, decode and upload to the server, and also support uploading local GPS tracks directly to the server.
Built-in temperature sensor, can detect the temperature of the VHF module, can also be moved outdoors to detect the ambient temperature.
Built-in buzzer, can be set to output buzzer sound prompts when receiving decoding/transmitting.
Built-in lithium battery 3.7V/2500MAH (tested to turn GPS/BT and use beacons for 10 hours). Use USB-C to charge. 5V1A.
Color: Black
Material: ABS

Package Contents:
1 * AVRT9 Positioning Controller
