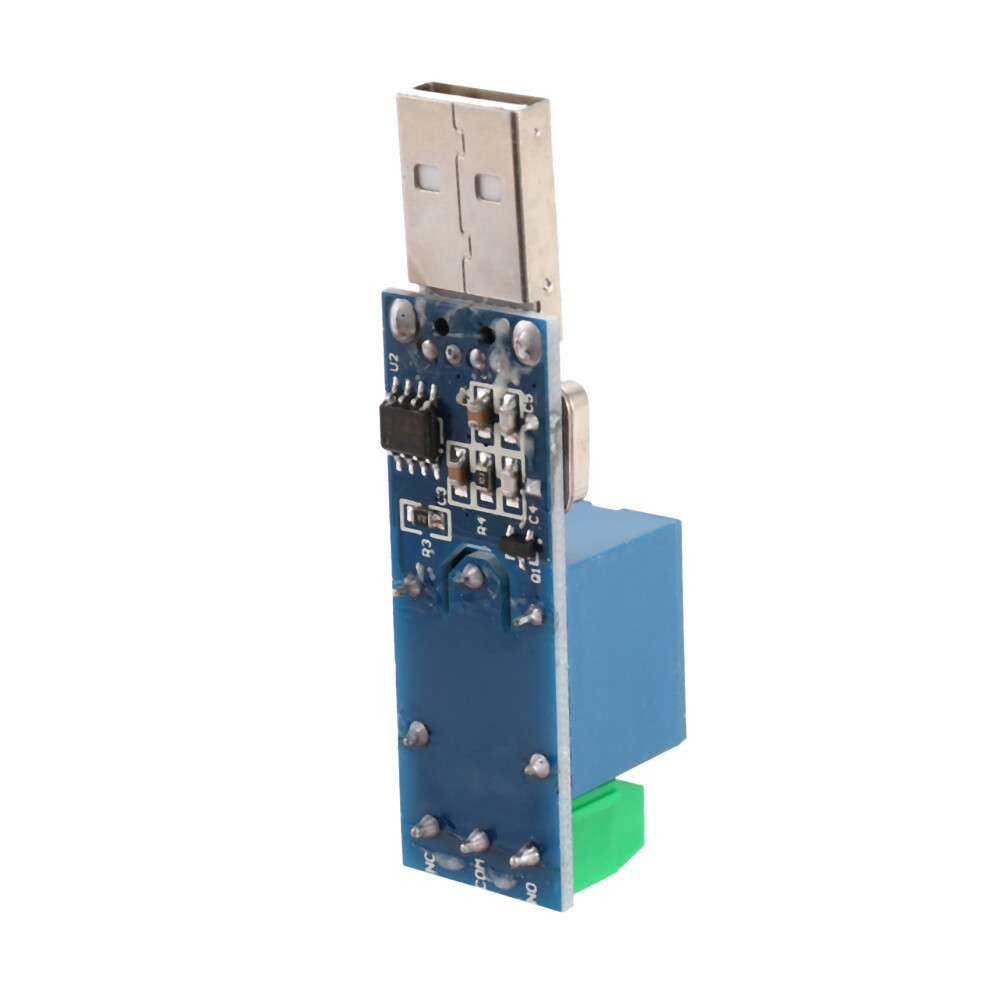

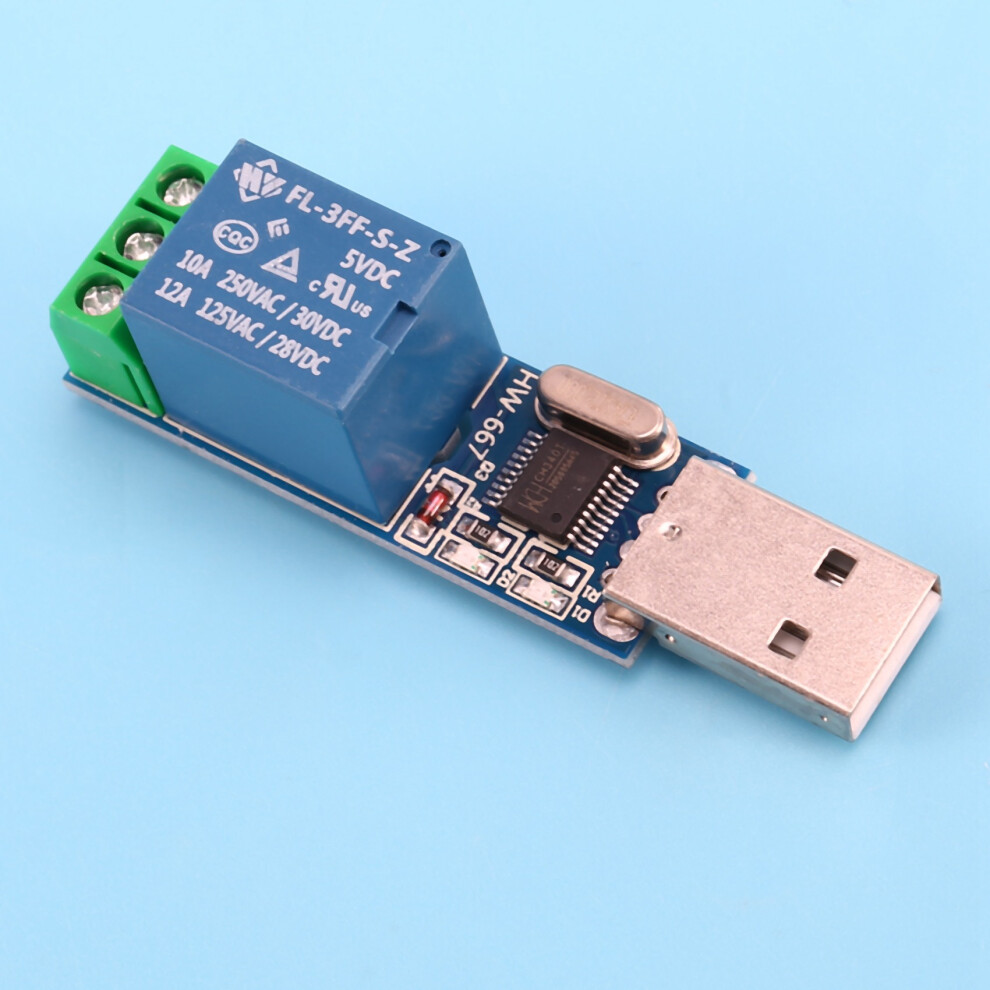

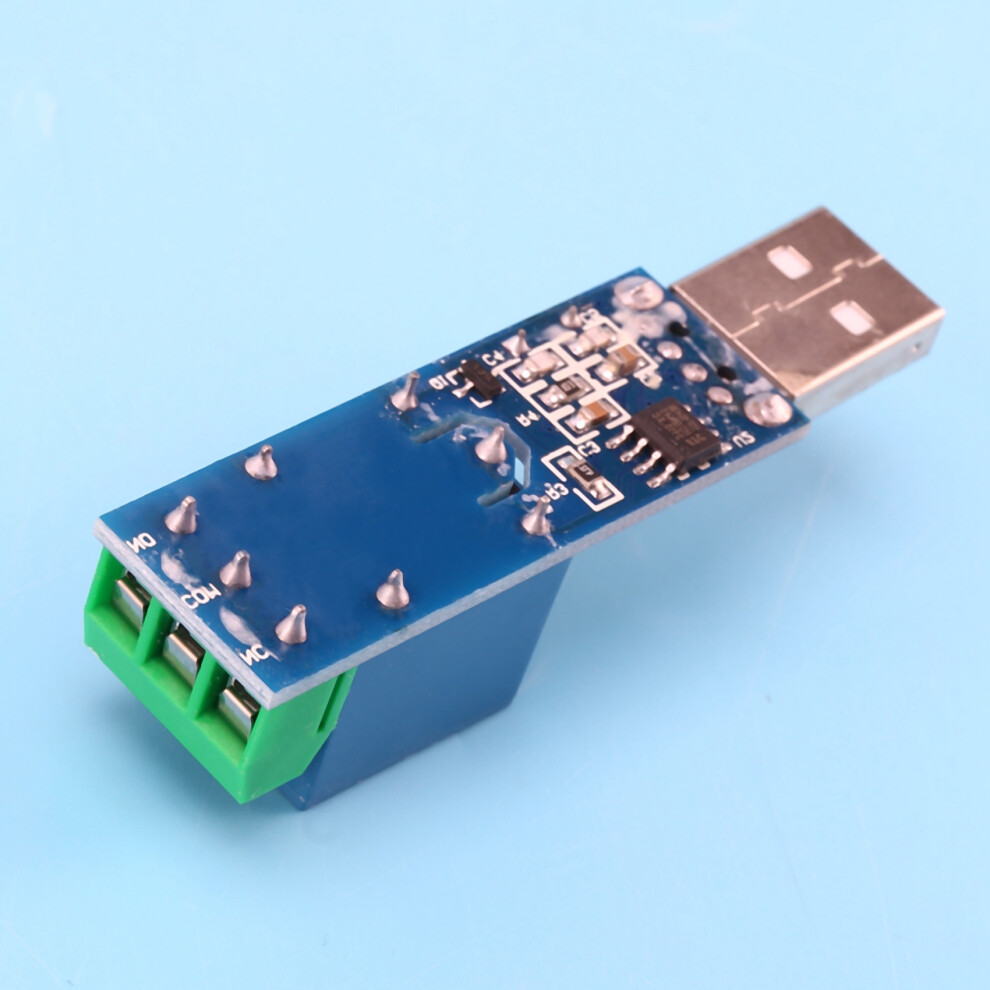

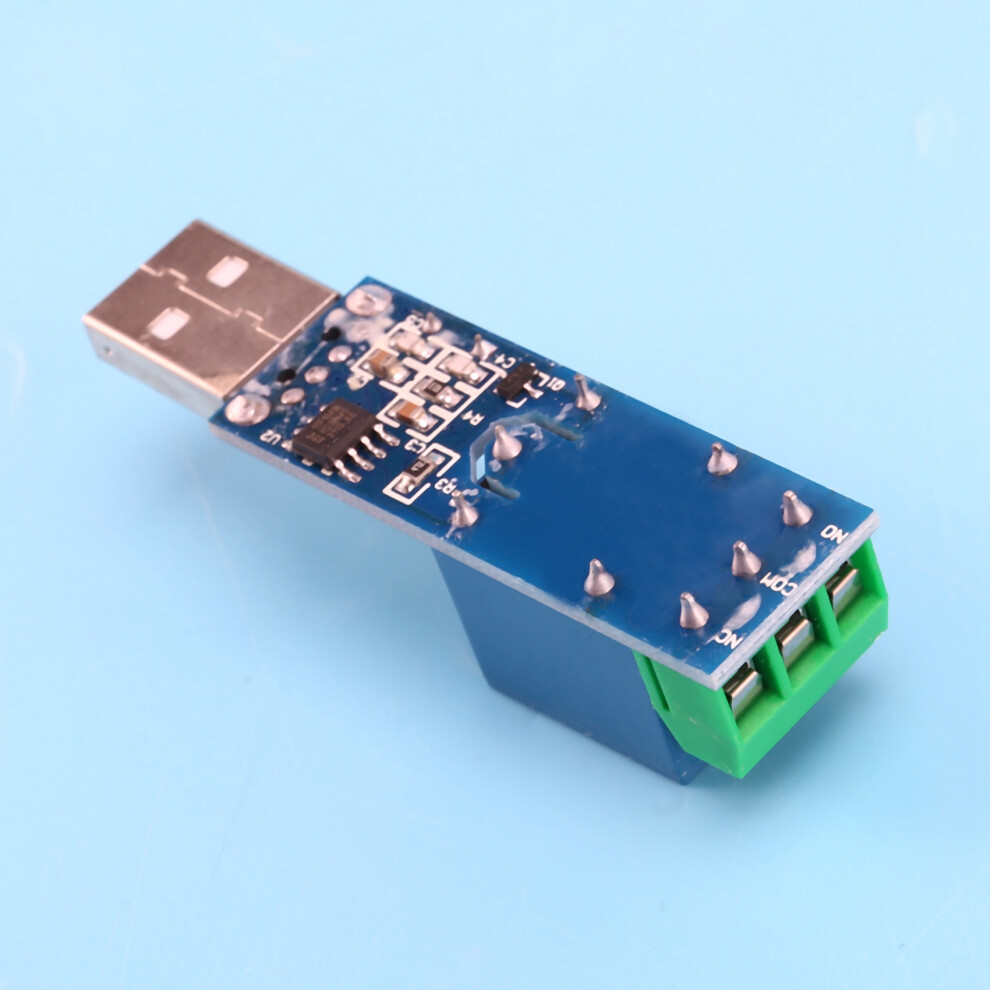

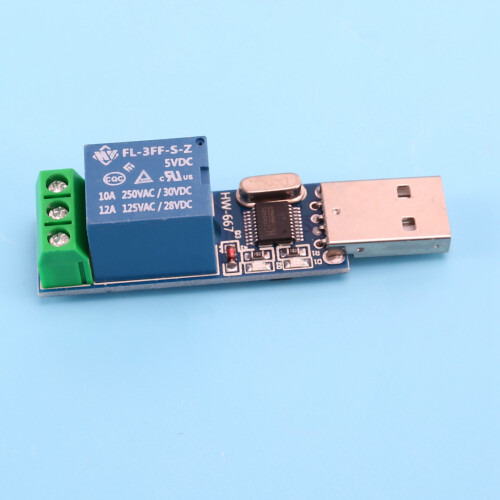

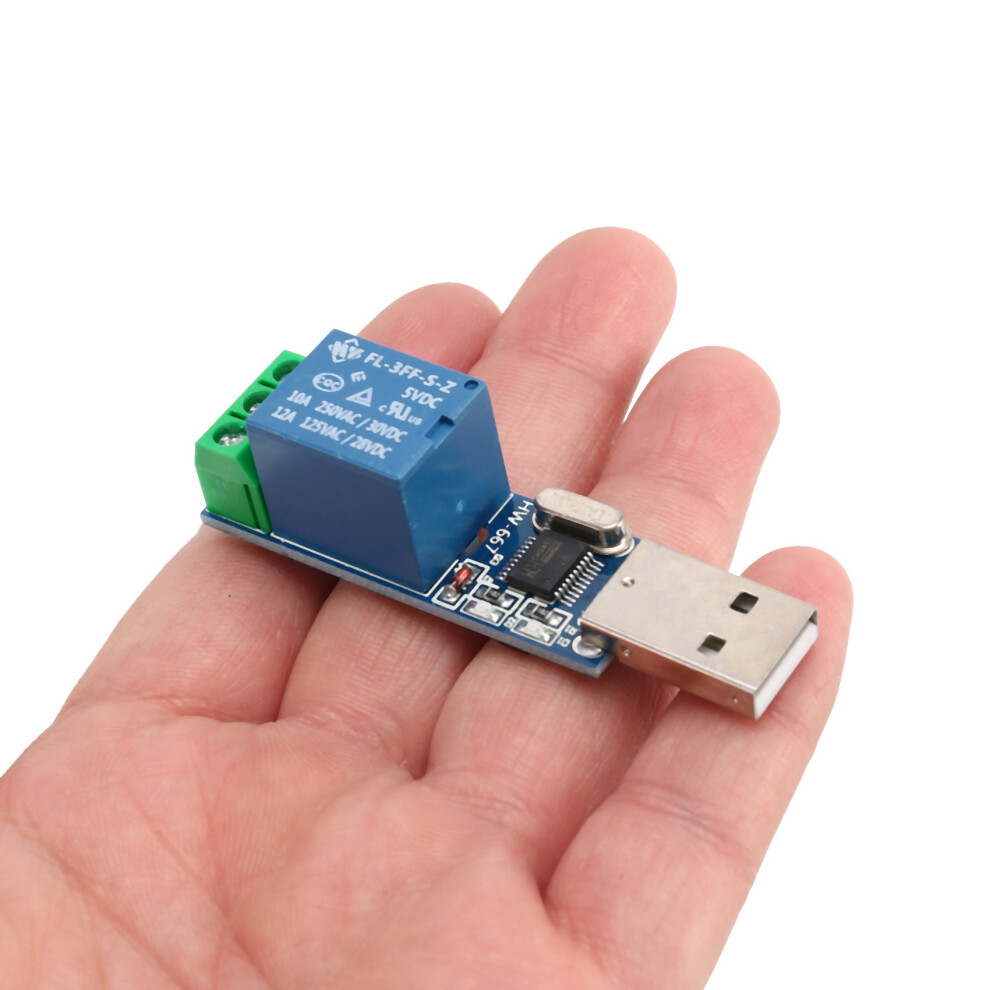

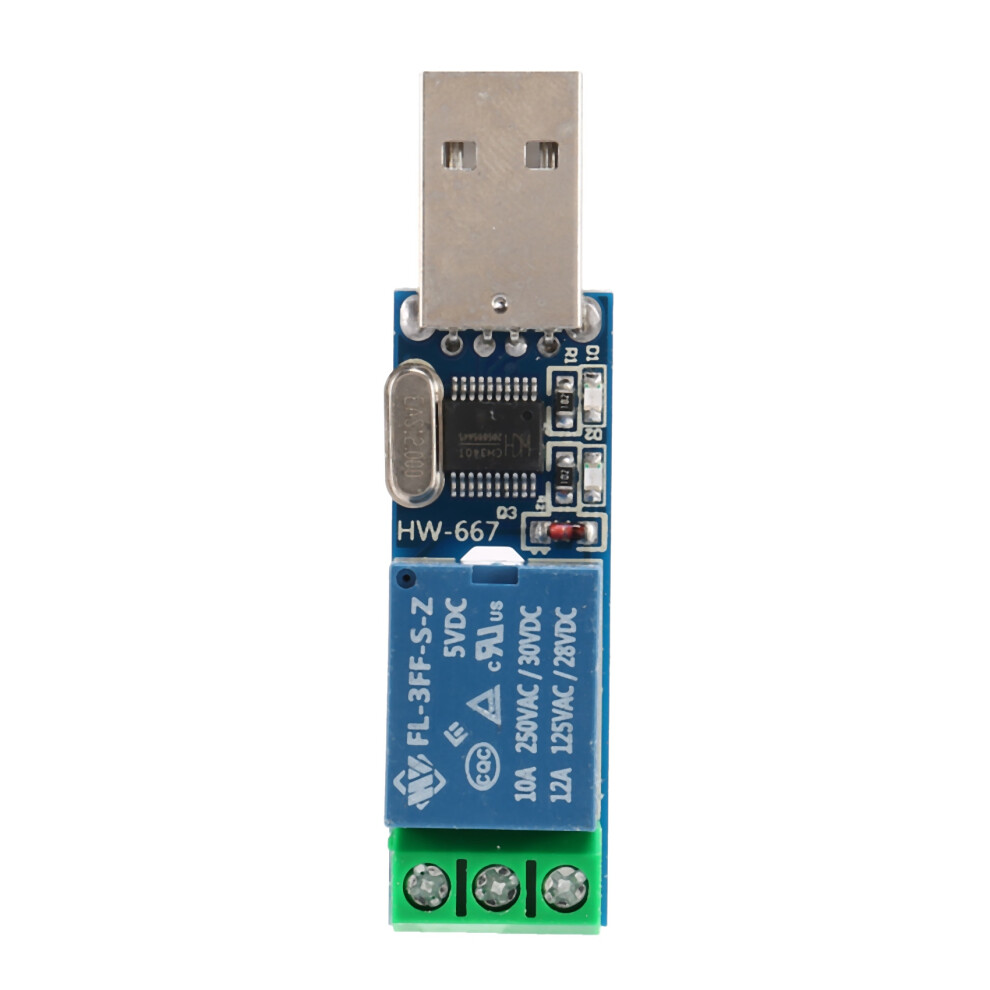

LCUS - type 1 USB relay module USB intelligent control

LCUS - type 1 USB relay module USB intelligent control Beskrivelse

Onboard high-performance micro-controller chips.
Onboard CH340 USB control chip.
Onboard LED power lights and relay status LED lights.

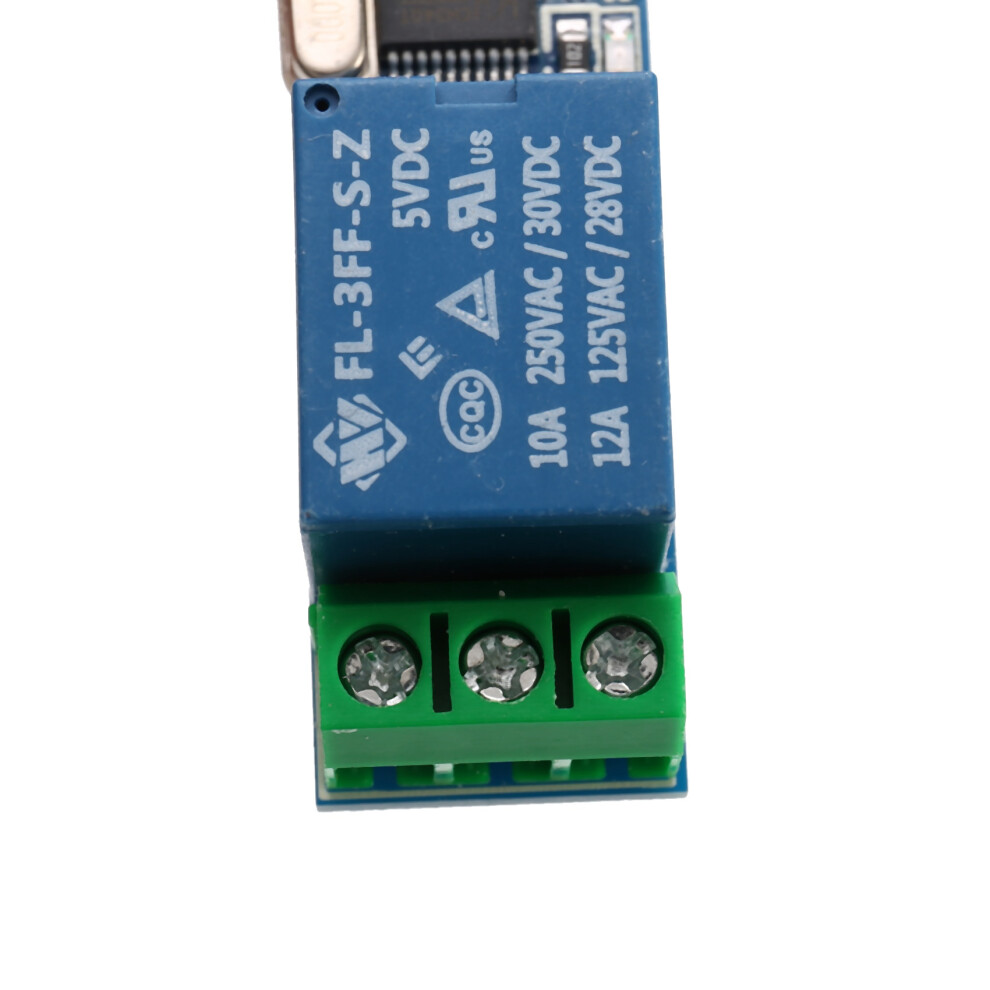

Onboard 5 v,10 A / 250 VAC,10 A / 30 VDC relays,relay's long life can absorb 100000 times in a row.
Module with over-current protection and relay diode current protection function.
Colour:
Material:metal
PCB size: 49.6 (mm) x16 (mm)
USB the default communication baud rate: 9600 BPS
USB communication protocol
Data (1) - startup logo (the default is 0 xA0)
Data (2) - address code (the default is 0 x01, identifies the first )
Data (3) - operation data (0 x00 to "off", 0 x01 to "")
Data (4) - check code
Package included:
1 x LCUS - type 1 USB relay module USB intelligent control
