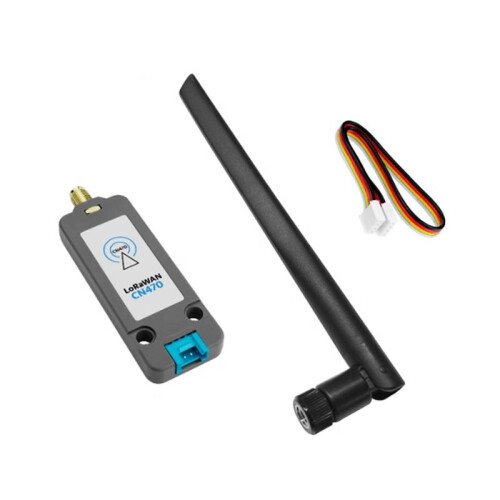

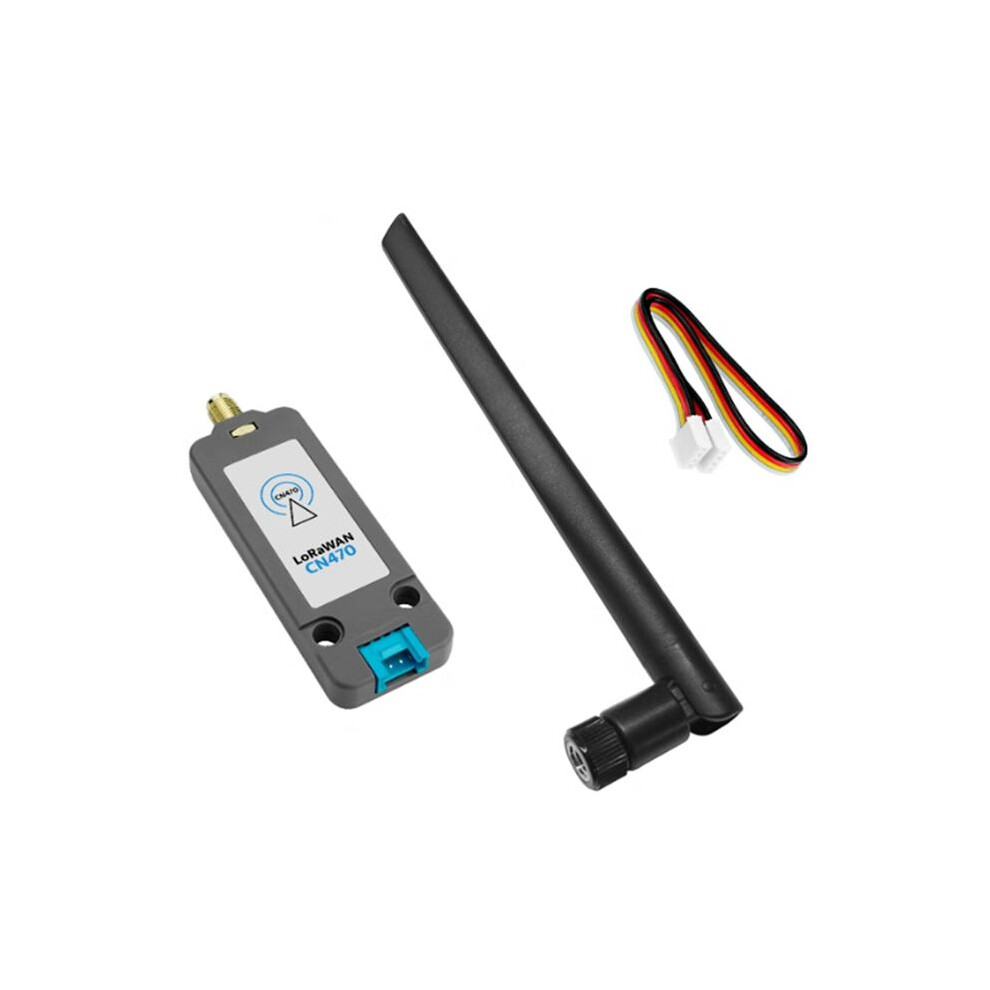

Unit LoRaWAN-CN470 is a LoRaWAN communication module based on LoRa technology, designed specifically for the CN470 frequency band and suitable for regions using the CN470 frequency band.
This module adopts the STM32WLE5 scheme, supports long-distance communication, and combines low power consumption and high sensitivity characteristics.
The module has a built-in LORaWAN protocol stack and supports three working mode configurations: Class A, Class B, and Class C. The module also supports peer-to-peer (P2P) communication mode and uses UART communication interface (controlled by AT instruction set) for flexible configuration.
In addition, the product adopts a high-performance rubber rod antenna with optimized antenna structure design, which can provide more stable signal coverage and longer communication distance, suitable for various complex environments.
This module can be used as a collection node to access the gateway for data collection and management, or to achieve direct communication between devices in scenarios without the need for a gateway. It is widely used in IoT communication scenarios such as smart agriculture, industrial monitoring, and environmental monitoring node deployment with long distance and low power consumption.

LoRaWAN CN470 Frequency Band Communication Module STM32WLE5 Support P2P Communication Beskrivelse

Unit LoRaWAN-CN470 is a LoRaWAN communication module based LoRa technology, designed specifically for the CN470 frequency band and suitable for regions using the CN470 frequency band.
This module adopts the STM32WLE5 scheme, supports long-distance communication, and combines low power consumption and high sensitivity characteristics.
The module has a built-in LORaWAN protocol stack and supports three working mode configurations: Class A, Class B, and Class C. The module also supports peer-to-peer (P2P) communication mode and uses UART communication interface (controlled by AT instruction set) for flexible configuration.
In addition, the product adopts a high-performance rubber rod antenna with optimized antenna structure design, which can provide more stable signal coverage and longer communication distance, suitable for various complex environments.
This module can be used as a collection node to access the gateway for data collection and management, or to achieve direct communication between devices in scenarios without the need for a gateway. It is widely used in IoT communication scenarios such as agriculture, industrial monitoring, and environmental monitoring node deployment with long distance and low power consumption.

Follow LoRaWAN 1.0.3 Protocol
Support CN470 frequency band
Support LoRa P2P (peer-to-peer) communication LoRaWAN activation mode: OTAA,ABP
Serial communication (AT command)
Adopting a high-sensitivity adhesive rod antenna
low power consumption
Compatible with for holes
Development platform: for UIFlow 1.0, for UlIFlow 2.0, for IDE
Application:
Agriculture
Industrial monitoring
Deployment of environmental monitoring nodes
The printing/appearance may vary from batch to batch, but it will not affect the use; the actual product may have color difference due to different light or display.
Colour:Photo Color
Material:plasti

Detaljer

OPC	PVCCS8J
Koder	4712668809043 (EAN)

Produktdata

Height	1cm
Width	9cm
Length	20cm
Weight	0.0355kg
Colour	Photo Color
Material	plastic
