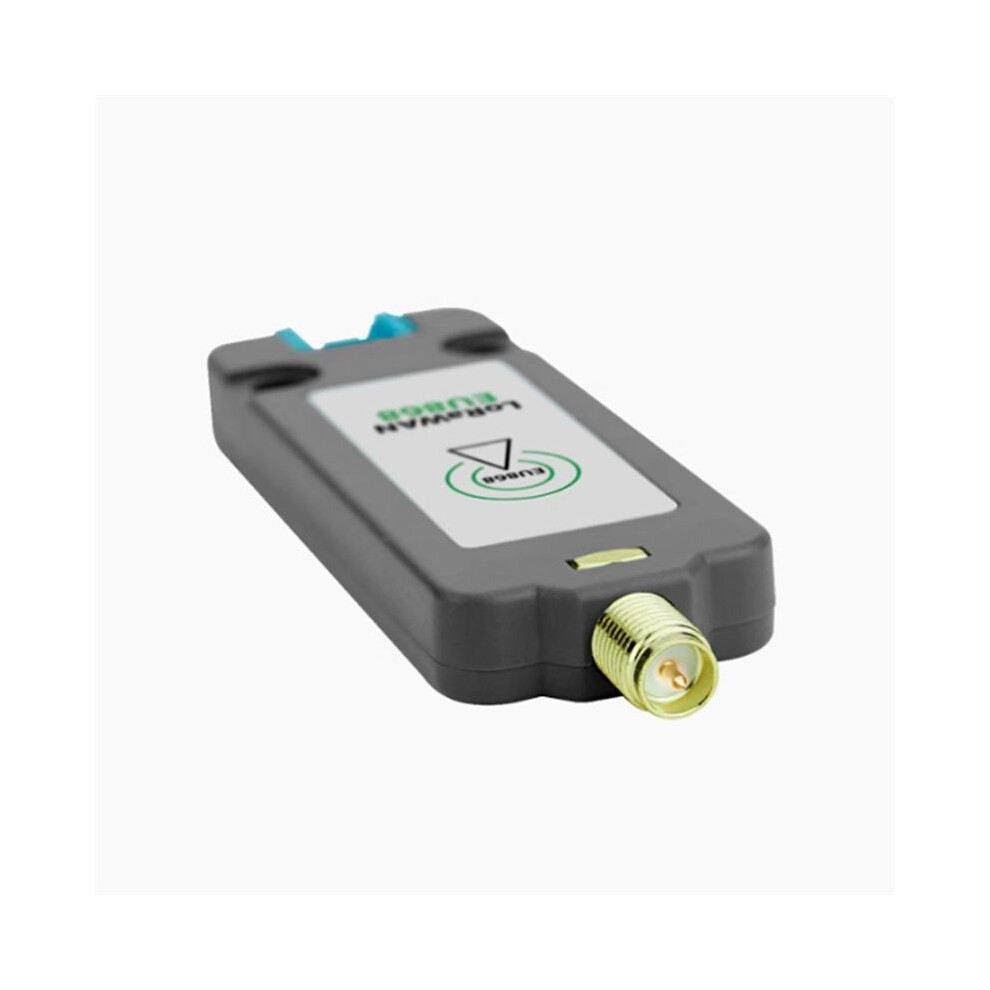

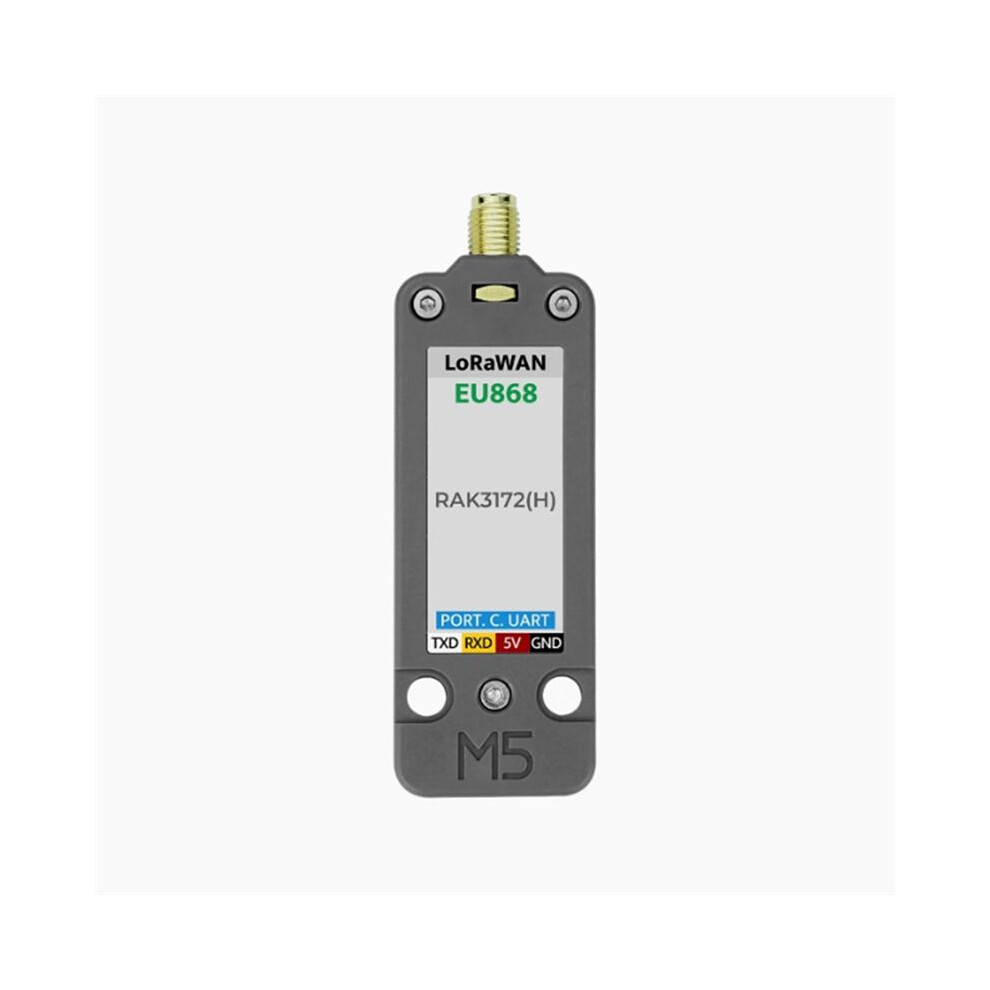

LoRaWAN Unit EU868 868-870MHz Frequency Band Communication Module P2P Communication STM32WLE5 with Antenna

LoRaWAN Unit EU868 868-870MHz Frequency Band Communication Module P2P Communication STM32WLE5 with Antenna Beskrivelse

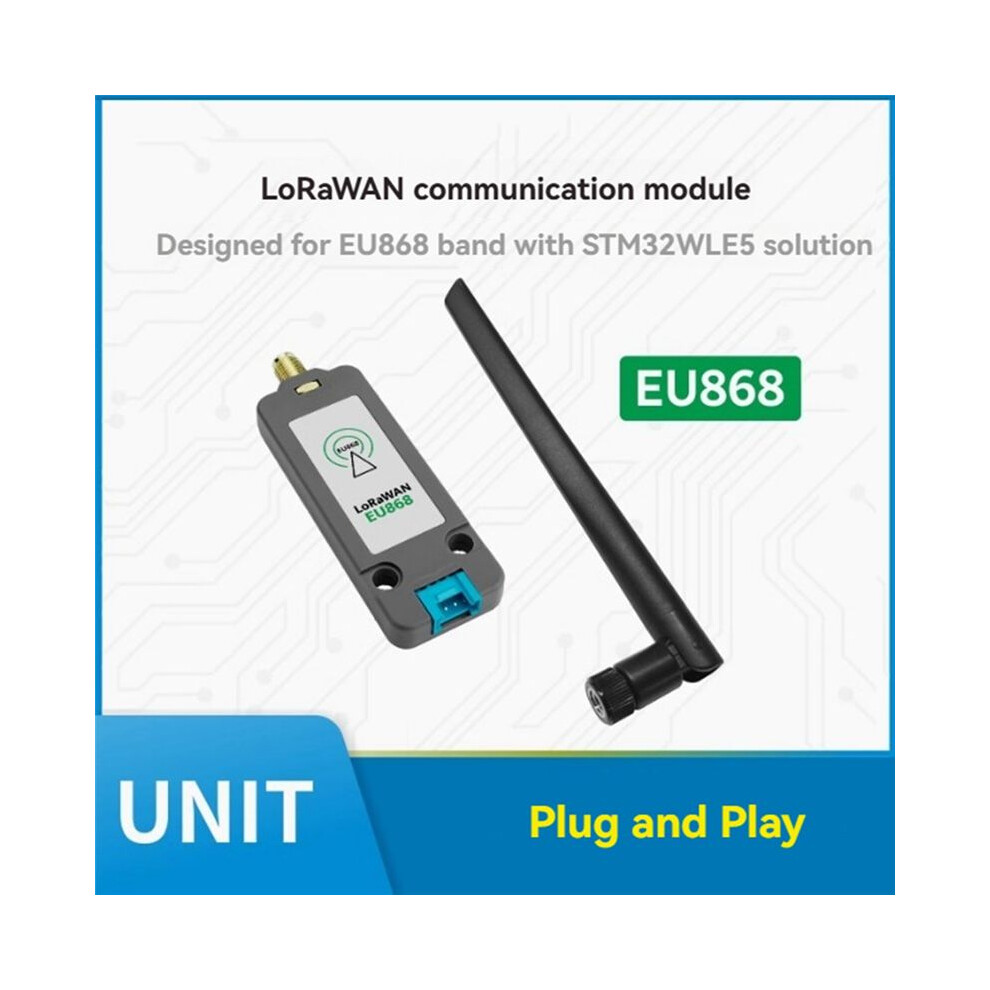

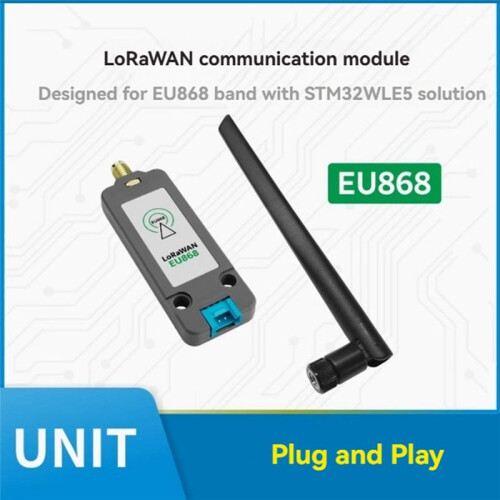

Unit LoRaWAN-EU868 is a LoRaWAN communication module based LoRa technology, specifically designed for the EU868 (868-870MHz) frequency band, suitable for Europe and other regions using the EU868 frequency band.
The module adopts the STM32WLE5 solution, supporting long-range communication with low power consumption and high sensitivity characteristics.
The module integrates the LoRaWAN protocol stack and supports three operating modes: Class A, Class B, and Class C. It also supports point-to-point (P2P) communication mode and uses a UART communication interface (controlled by the AT command set) for flexible configuration.
Additionally, the product features a high-performance rubber antenna, with an optimized antenna design that provides more stable signal coverage and longer communication distance, making it suitable for various complex environments. The module can be used as a data collection node to connect to a gateway for data collection and management, or it can enable direct communication between devices in scenarios where no gateway is needed.
It is widely used in long-range, low-power IoT communication scenarios, such as agriculture, industrial monitoring, and environmental monitoring node deployments.

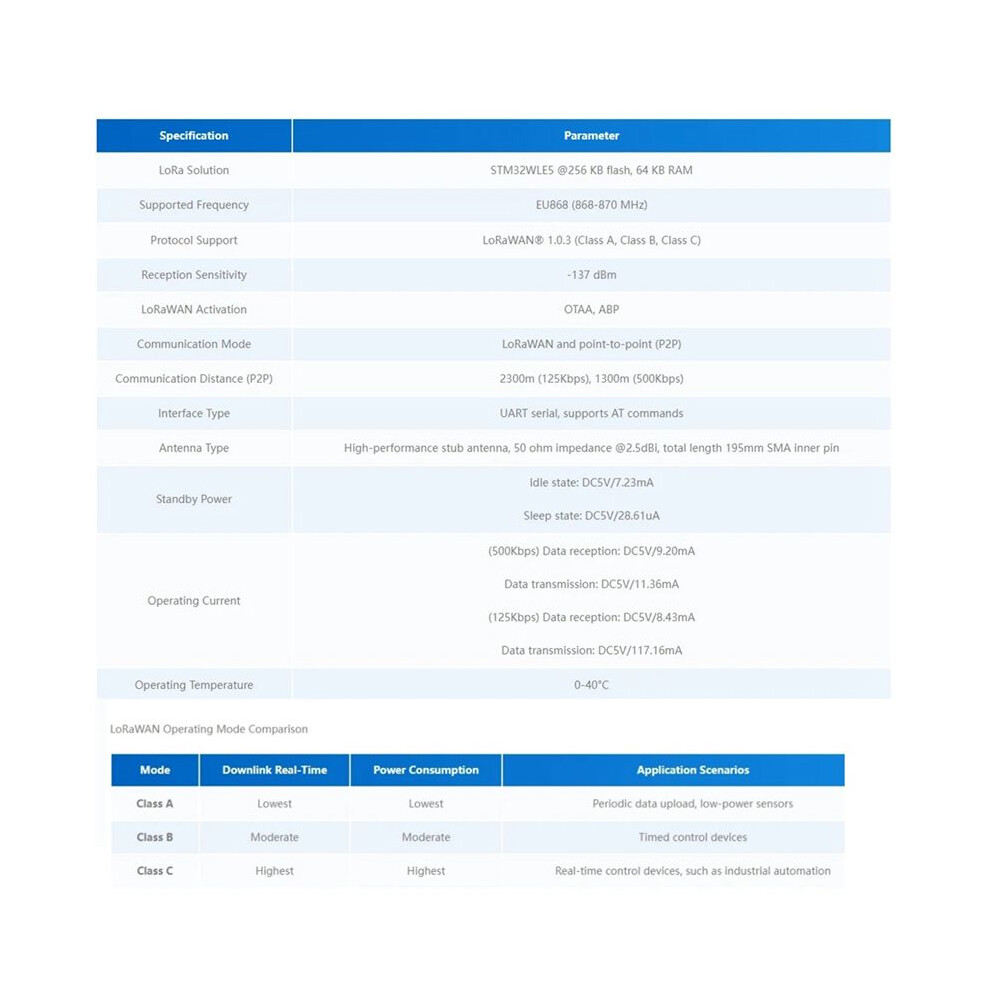

Follows LoRaWAN 1.0.3 protocol
Supports EU868 frequency band
Supports LoRa P2P (point-to-point) communication
LoRaWAN activation modes: OTAA, ABP

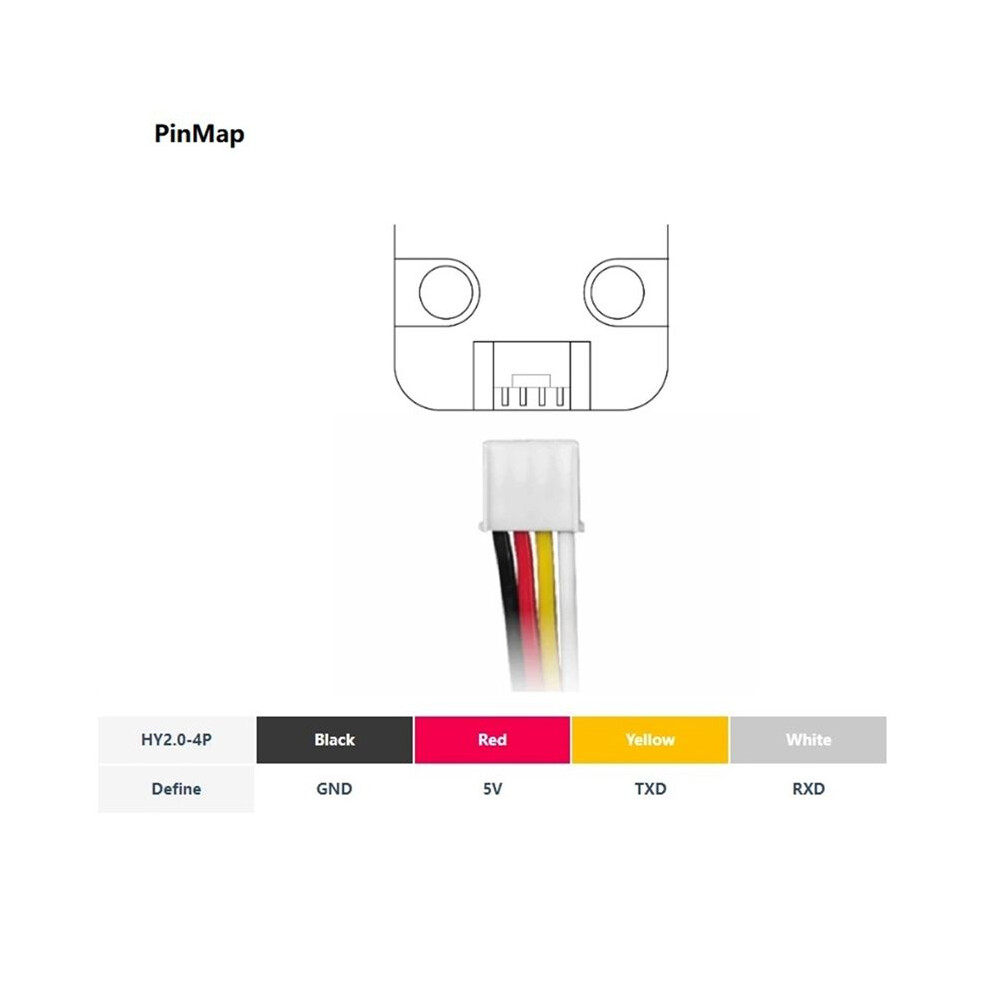

Serial communication (AT commands)
High-sensitivity stub antenna
Low power consumption
Compatible with for holes
Development platforms: for UIFlow 1.0, for UIFlow 2.0, for IDE
The printing/appearance may vary from batch to batch, but it will not affect the use; the actual product may have color difference due to different light or display.
Colour:Photo Color
Material:plastic

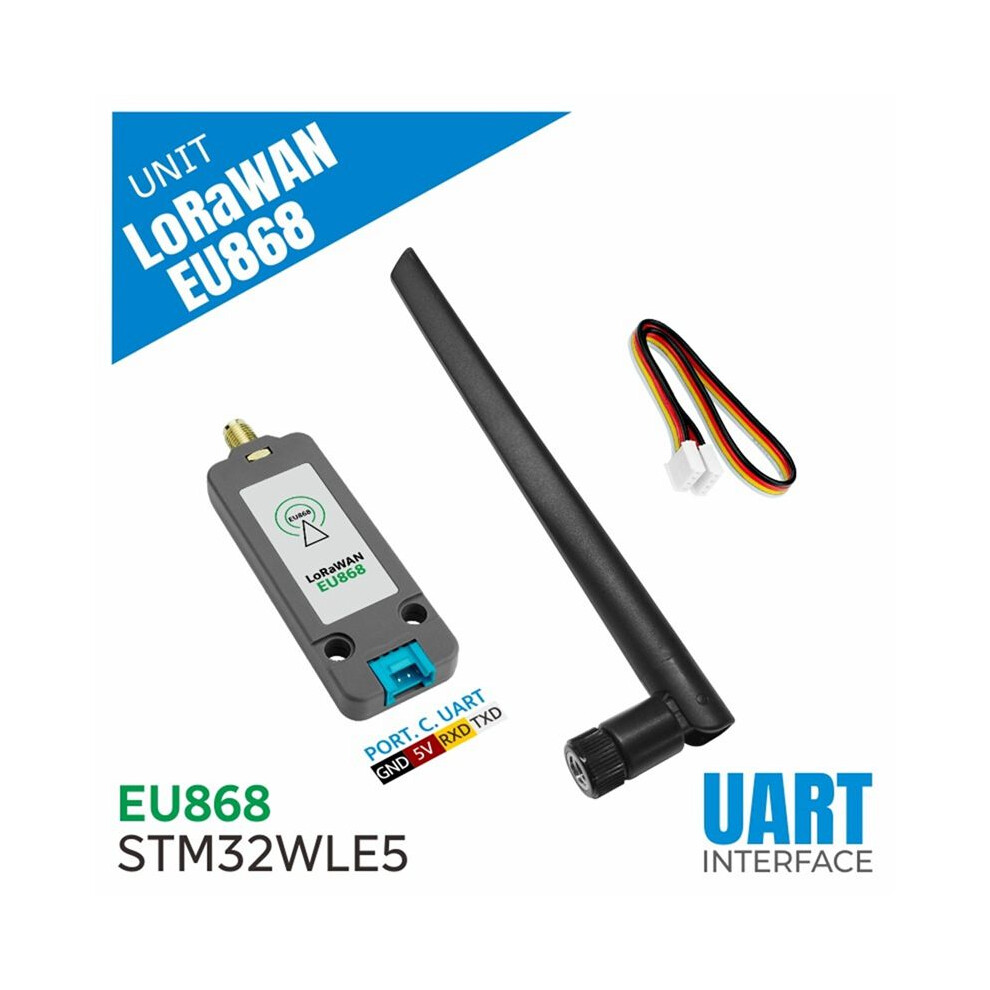

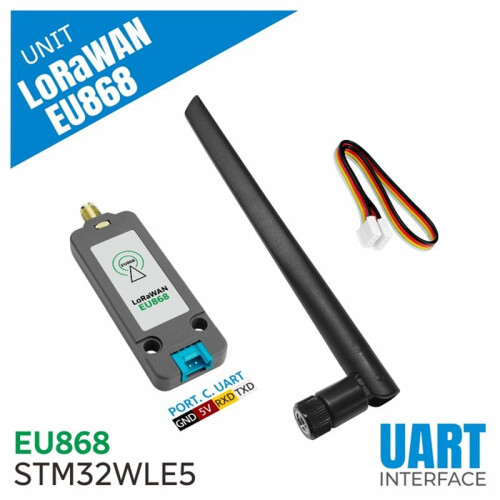

Package Contents:
1 x Unit LoRaWAN-EU868
1 x cable (cable color is random, specified color is not accepted)
1 x
