Low Cost USR-TCP232-T2 Serial TTL to Ethernet Module Supports Data Transferred over LAN Network T2-E8 New

Low Cost USR-TCP232-T2 Serial TTL to Ethernet Module Supports Data Transferred over LAN Network T2-E8 New Beskrivelse

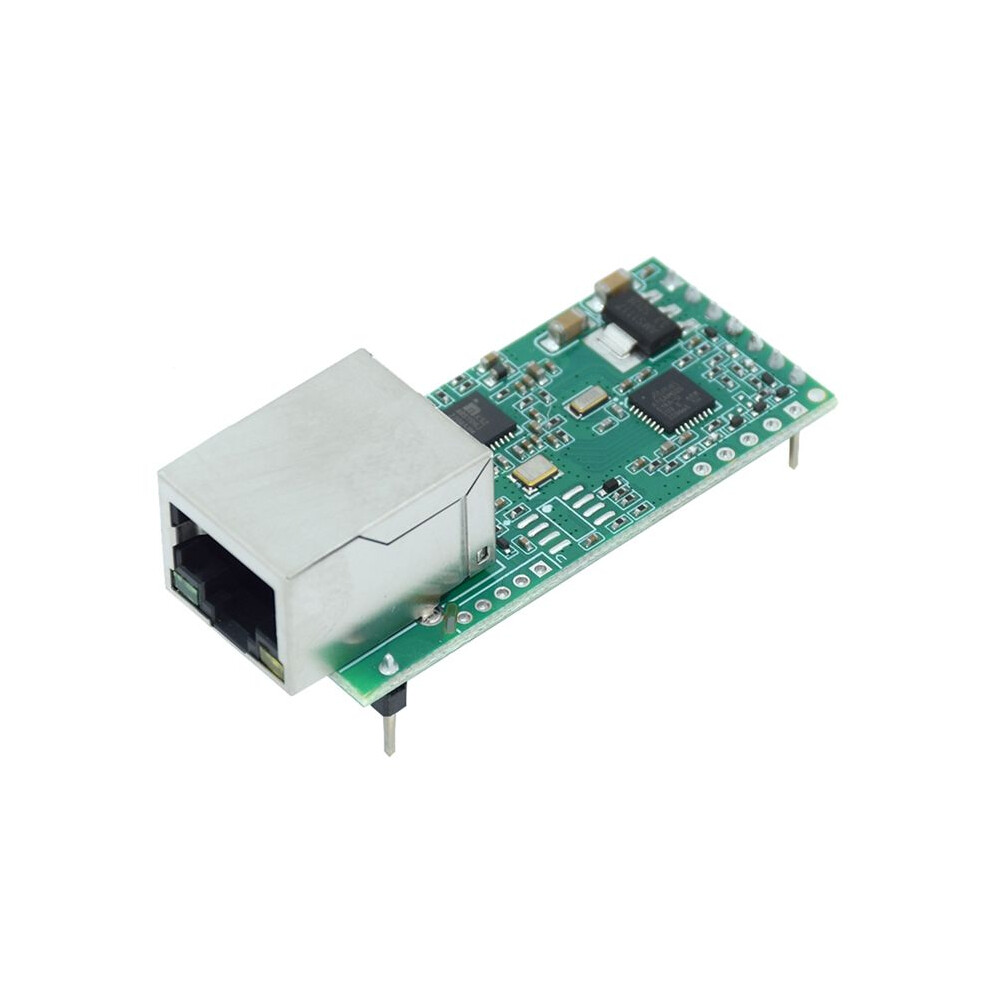

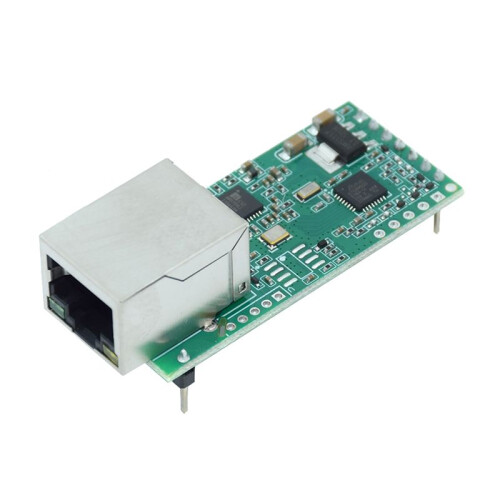

USR-TCP232-T2 is a tiny size serial Ethernet module which can realize data bidirectional transparent transmission between TTL and RJ45 Port. It can also be applied in RS232/ RS485 by level shift circuit.
USR-TCP232-T2 is based Cortex-M0 core. It has characters of low power, fast speed and high efficiency.

Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
Support DNS function
Set parameters through webpage and serial AT command
Upgrade firmware via network
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Support virtual serial port and provide corresponding software USR-VCOM
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
The global unique address bought from IEEE, user can define address
Restore factory default
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such as VB,C++,,Android and IOS
Colour:As Shown
Material:PC
style:T2-E8 New
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

Package Contents:
1 * Modules
