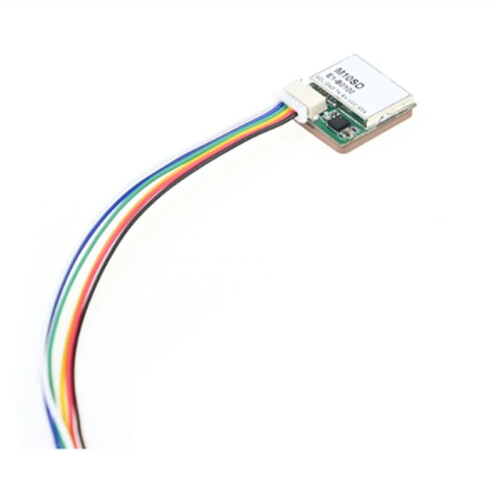

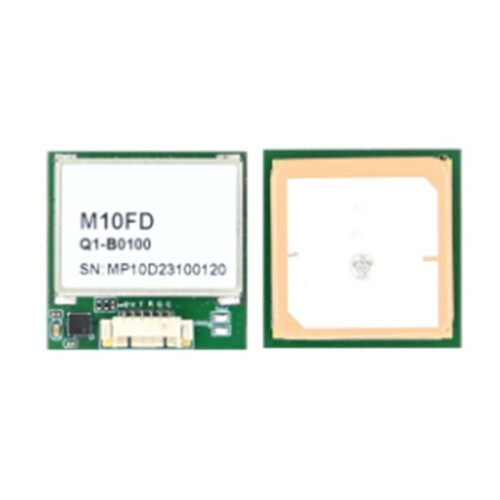

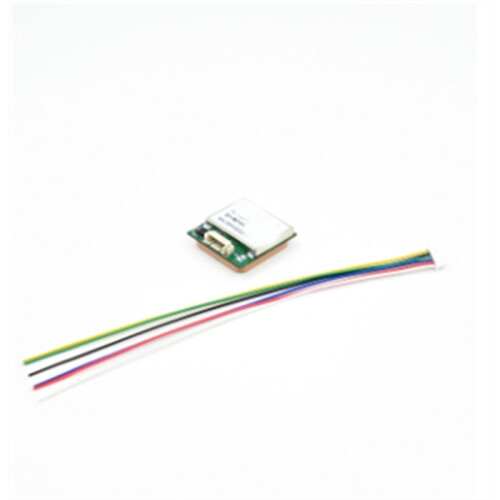

M10FD 10Hz FPV Drone M10 GPS GNSS Module with Compass Flight Controllers GPS GLONASS BeiDou UBX+NMEA Protocol

M10FD 10Hz FPV Drone M10 GPS GNSS Module with Compass Flight Controllers GPS GLONASS BeiDou UBX+NMEA Protocol Beskrivelse

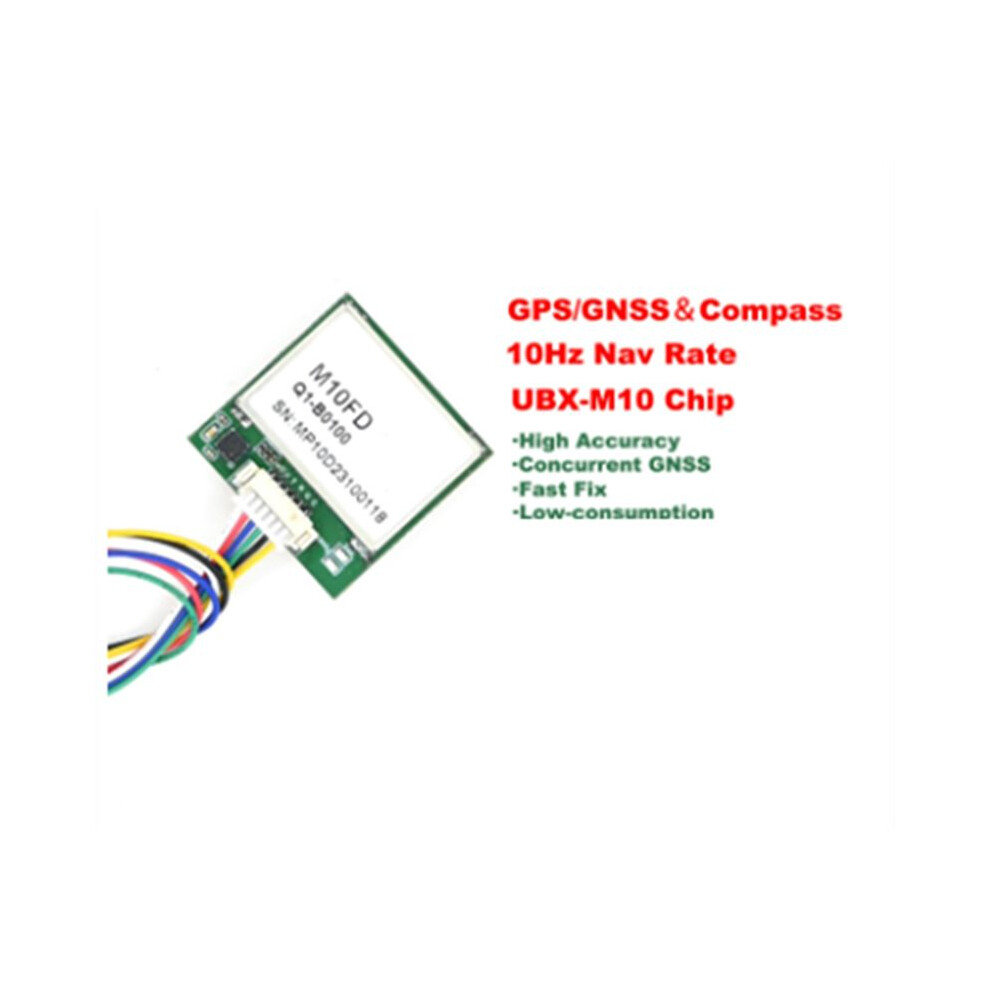

M10SD GNSS module is equipped with UBX M10 chip, which supports simultaneous reception of global navigation satellite systems (for GPS, for GLONASS, for Galileo, and for Beidou). A large number of visible satellites enable the receiver to select the optimal signal.
M10SD supports NMEA and UBX dual protocol outputs, with a positioning frequency of 10Hz and a maximum support of 25Hz. The high gain antenna provides the best performance for global navigation satellite system receivers. This module integrates an electronic compass and flash memory.

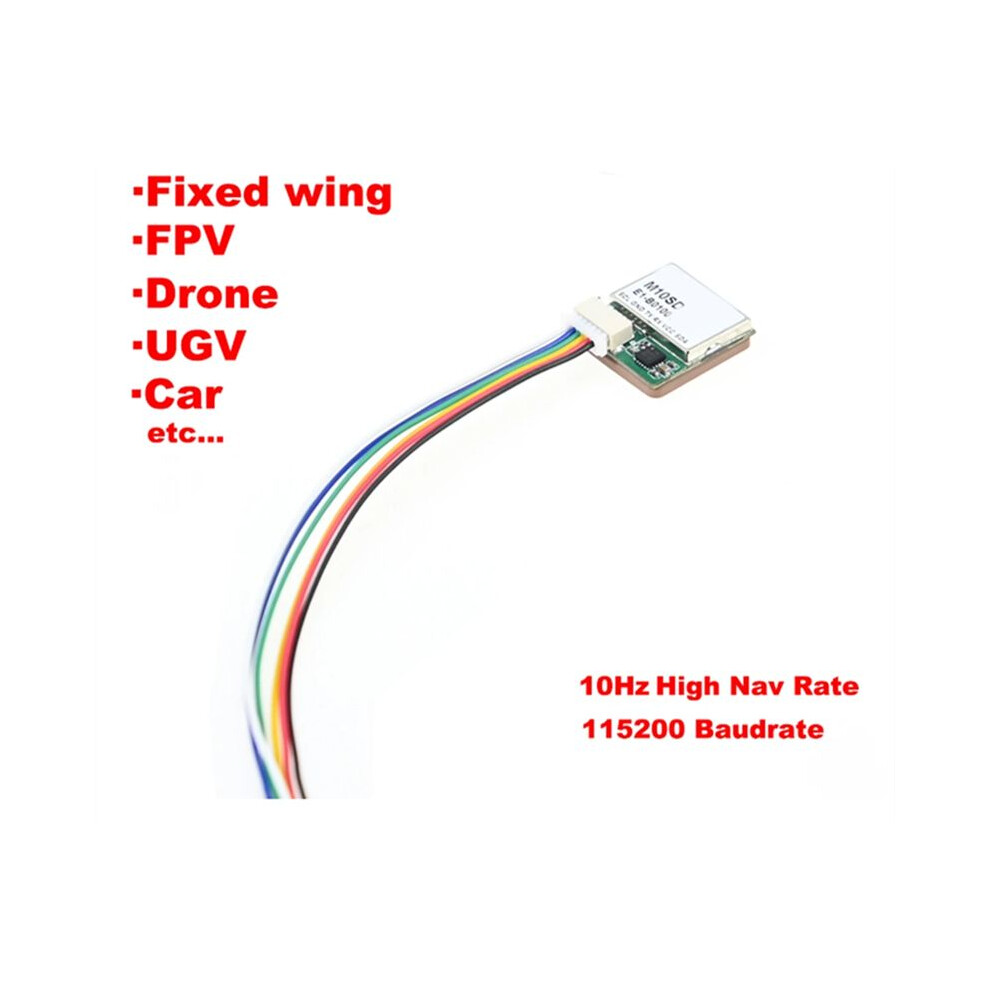

The extremely small size of the module makes it very suitable for FPV racing drones.This module is suitable for various flight controllers, such as Ardupilot INAV Betaflight Pixhawk APM, etc.
The UBX-M10050-KB chip features the ubx M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition times for all L1 GNSS signals.The extremely low power consumption in continuous tracking mode allows great power autonomy for all battery-operated devices, such as asset trackers, without compromising GNSS performance .
The UBX-M10050-KB supports concurrent reception of to four GNSS (for GPS, for GLONASS, for Galileo, and for BeiDou). to more than 50 satellites can be catched.The high number of visible satellites enables the receiver to select the best signals. This maximizes the position accuracy, in particular under challenging conditions such as in deep urban canyons.

UBX Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy with small antennas or in non--of-sight scenarios.
Color: As Shown
Material: PC+Plastic

Package Contents:

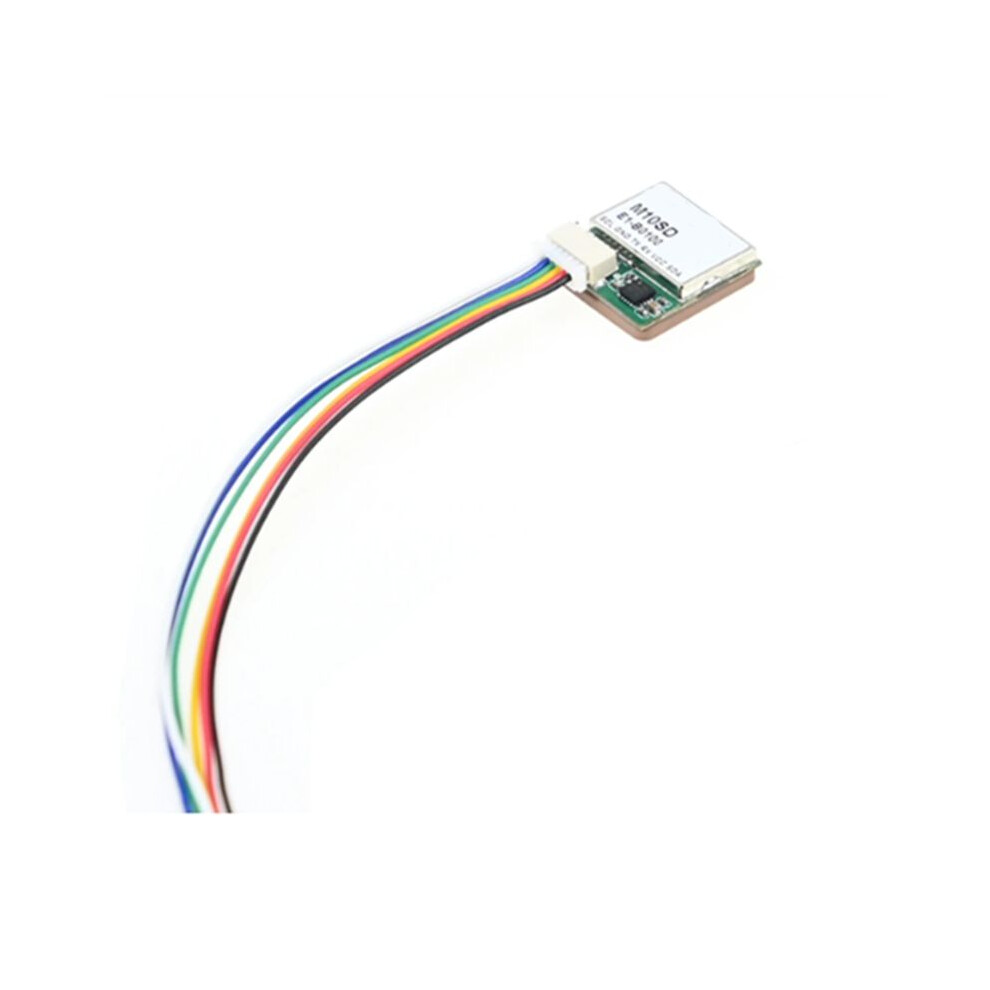

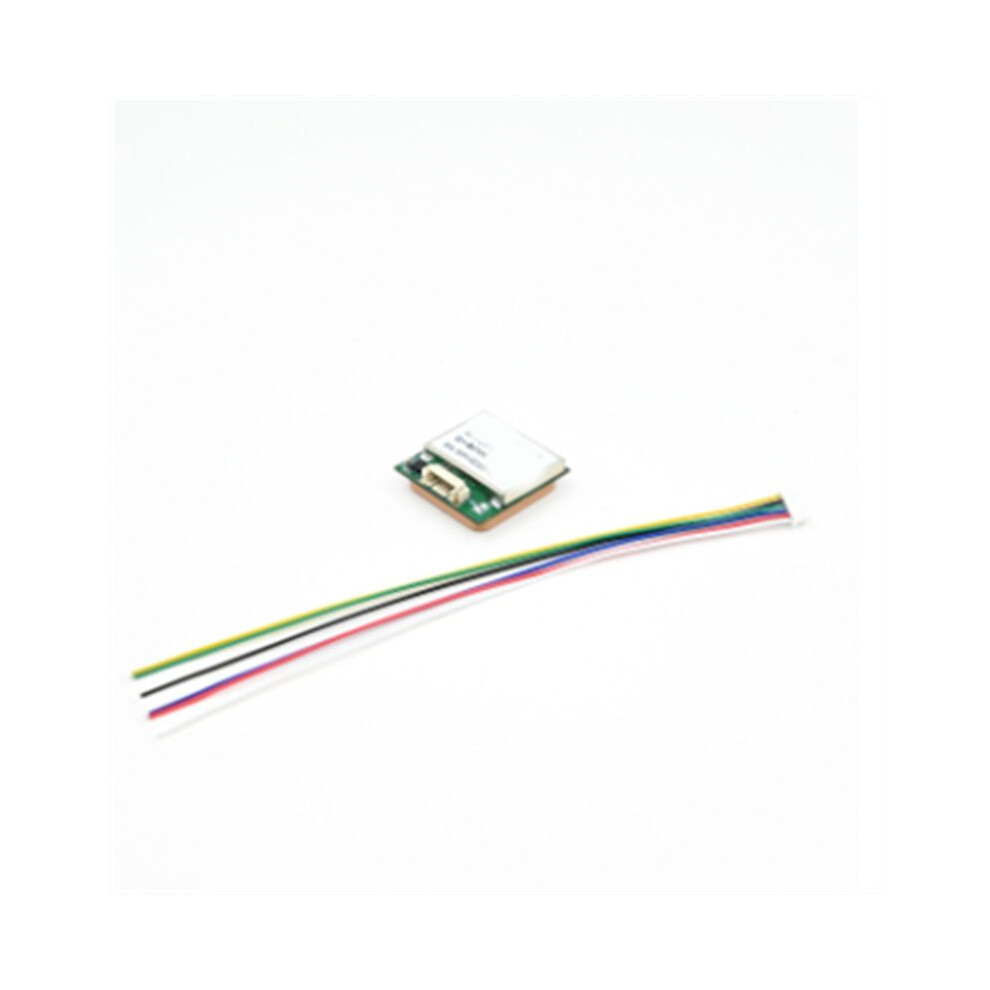

1 x M10SD FPV M10 GPS GNSS Module
