M181 Meter 18101K DIY Kit 100Hz 1KHz Test Frequency High-Precision Small Value Inductance Resistance and Capacitance

M181 Meter 18101K DIY Kit 100Hz 1KHz Test Frequency High-Precision Small Value Inductance Resistance and Capacitance Beskrivelse

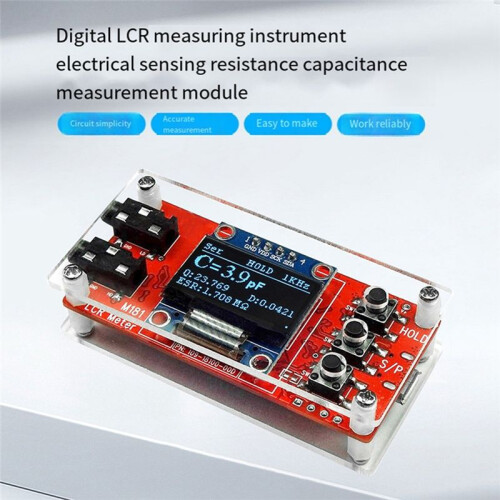

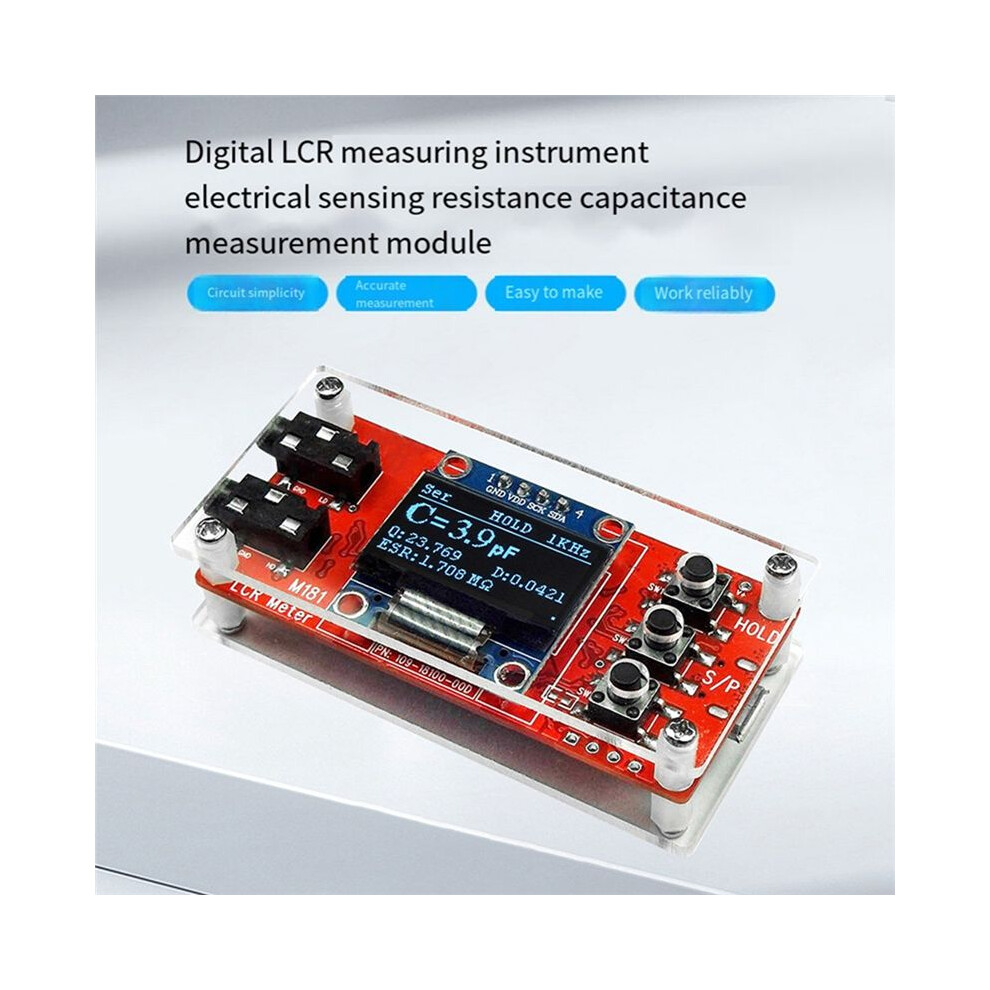

M181 meter is a practical kit for measuring the R, C, or L of either through-hole or surface-mount components. It features about 1% accuracy, which is adequate in most engineering scenarios.
Not only being very easy to build, it also includes a Self Test mode that helps users to verify the correctness of assembly. Compact in size and the capability of serial output make the meter a great choice for many embedded applications.
Built-in virtual USB comport for data output and firmware upgrade
Serial data output via USB comport or direct LVTTL

Highlights of M181 Meter:
Resistance range: 0.1ohm - 10M ohm
Capacitance range: 1pF - 10000uF
Inductance range: 1uH - 20H
Fully automatic ranging
Accuracy: about 1%
Measurement frequency: 1KHz/100Hz selectable
Measurement voltage: 0.6Vpp
Display HOLD function
USB (5V) powered
Easy to build, easy to use
Self test mode for verifying the correctnes of assembly
Acrylic panels included
Specifications:

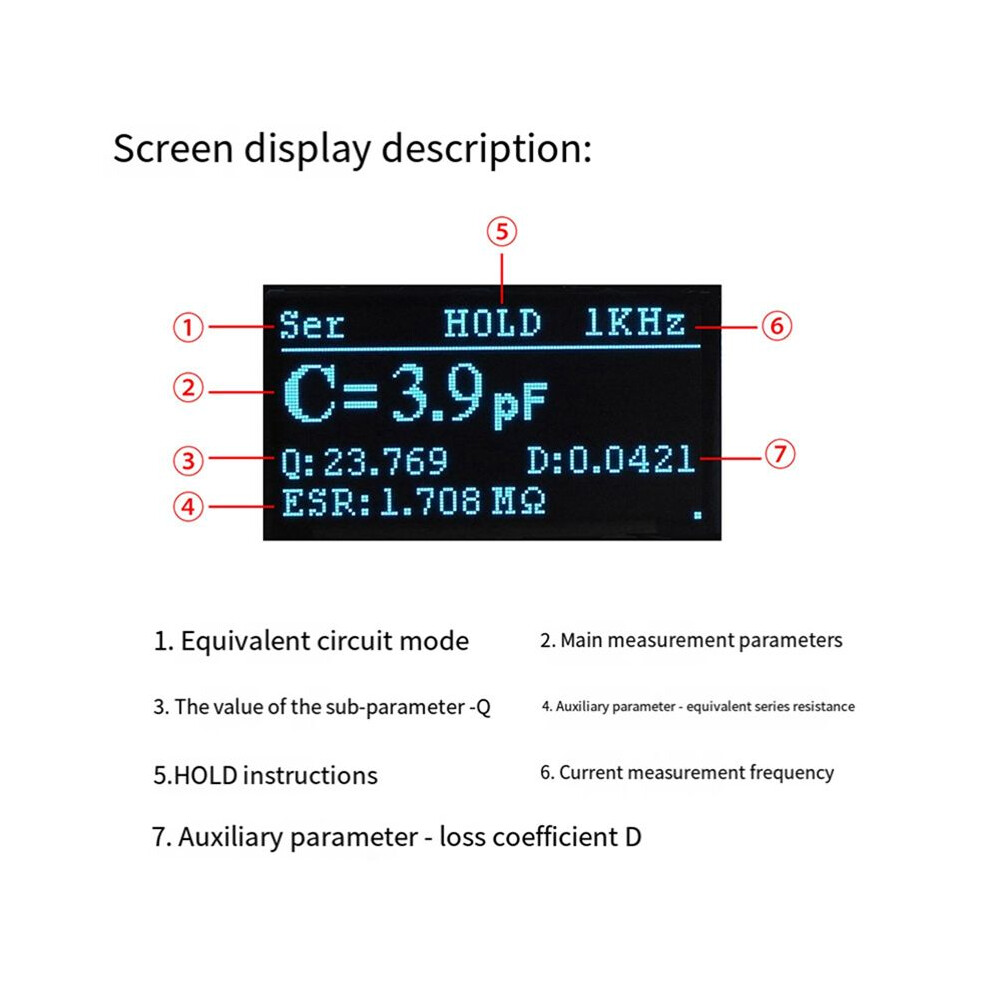

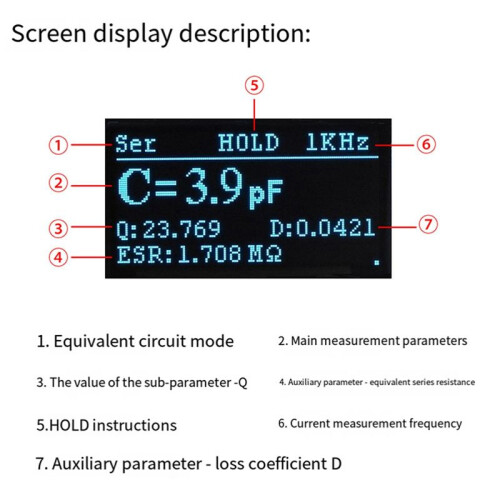

Display:
Primary: R, C, L
Secondary: Q, D, ESR
Equivalent Circuit Mode: Parallel or Serial
Measurement Range and Accuracy:
R, |Z|: 0.1Ω - 10MΩ
C: 1pF - 10000μF
L: 1μH - 20H
Q, D: 0 - 10000
Accuracy: About 1%
Measurement Conditions:
Test Frequency: 100Hz, 1KHz
Open Voltage: 0.6Vpp
Miscellaneous:
Measurement Connections: 4 Kelvin wires the test terminals
Ranging: Fully automatic
Compensations: Open, Short
Serial Data Output: Yes
Power Supply: USB
Power Consumption:Less than 100mA @ 5V
Dimensions:66 x 32x 19mm (2.60x1.26x0.75Inch)
Weight:23g (76g with probes)
Note:

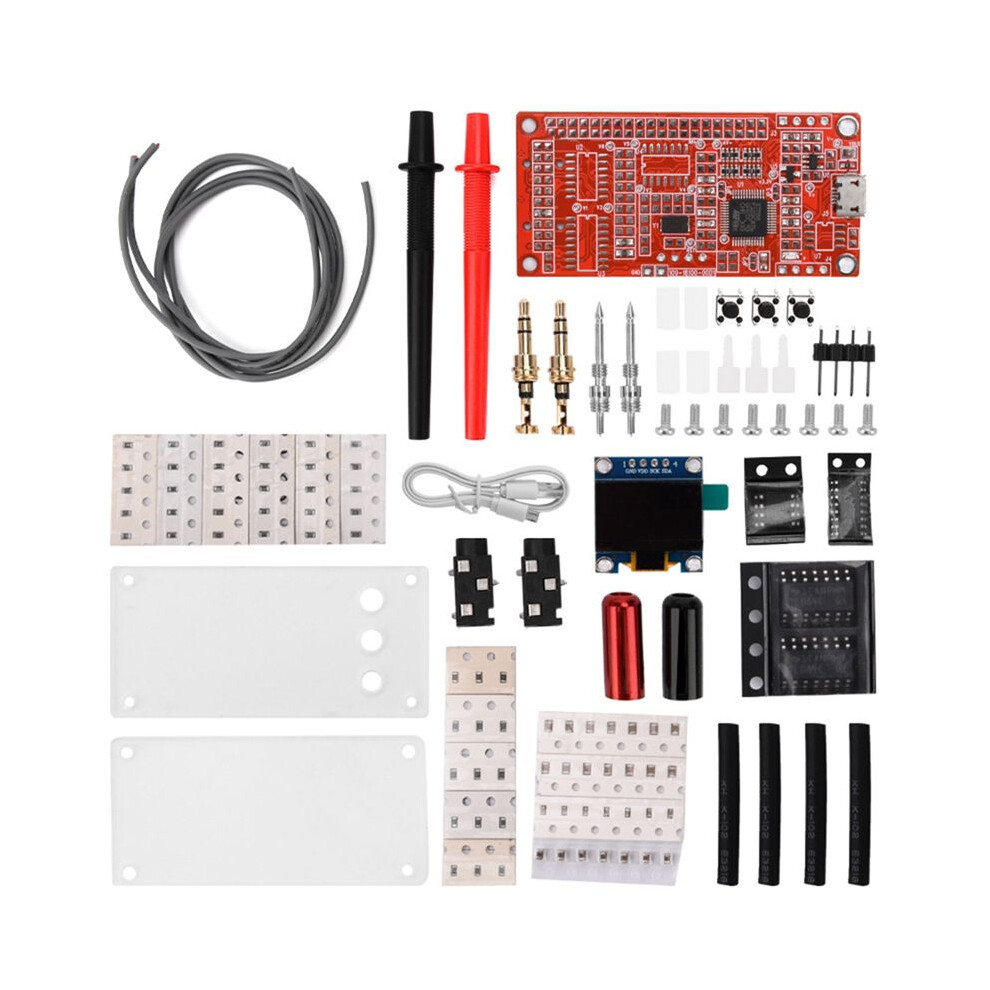

Due to different production batches, accessories may have random differences, which cannot be specified and will not affect use.
It's DIY kits, needs to fini
