M5Capsule Multi-Function Embedded IoT Development Board W/ M5StampS3 IOT BMI270 IMU Infrared Storage Clock Buzzer

M5Capsule Multi-Function Embedded IoT Development Board W/ M5StampS3 IOT BMI270 IMU Infrared Storage Clock Buzzer Beskrivelse

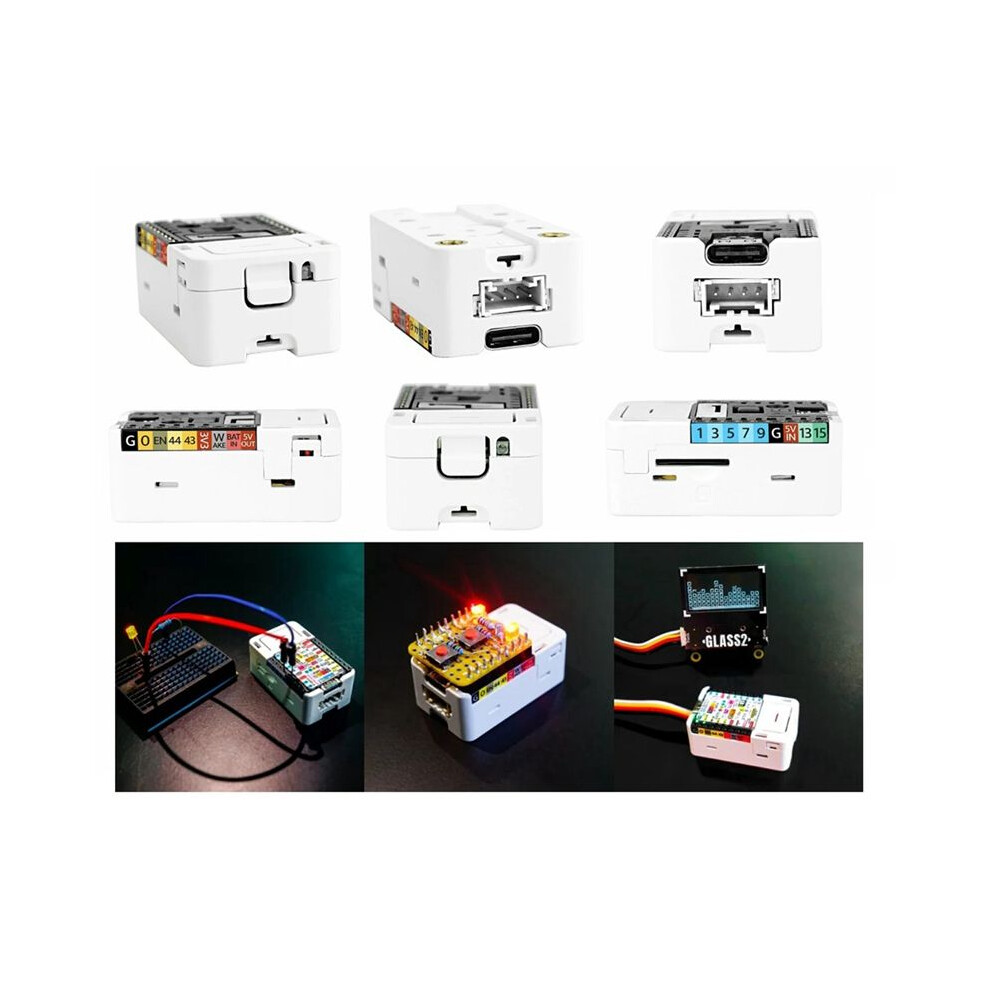

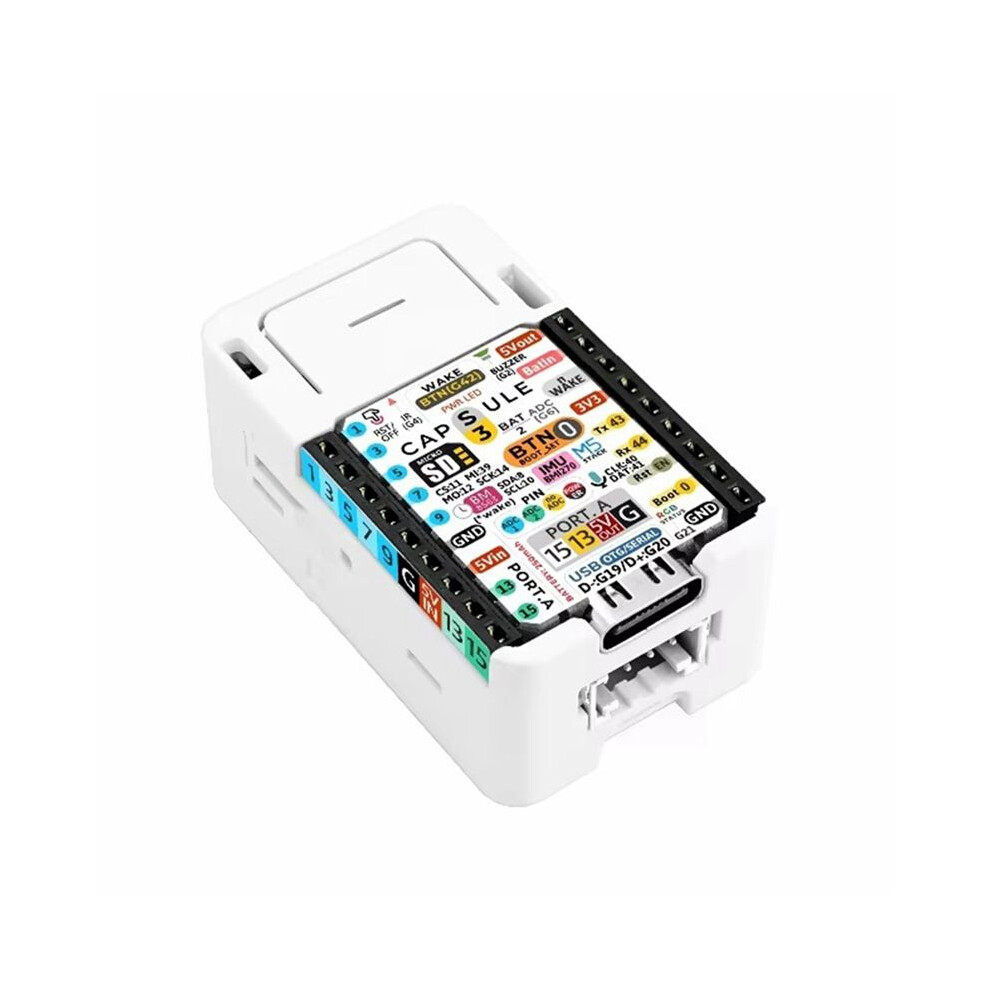

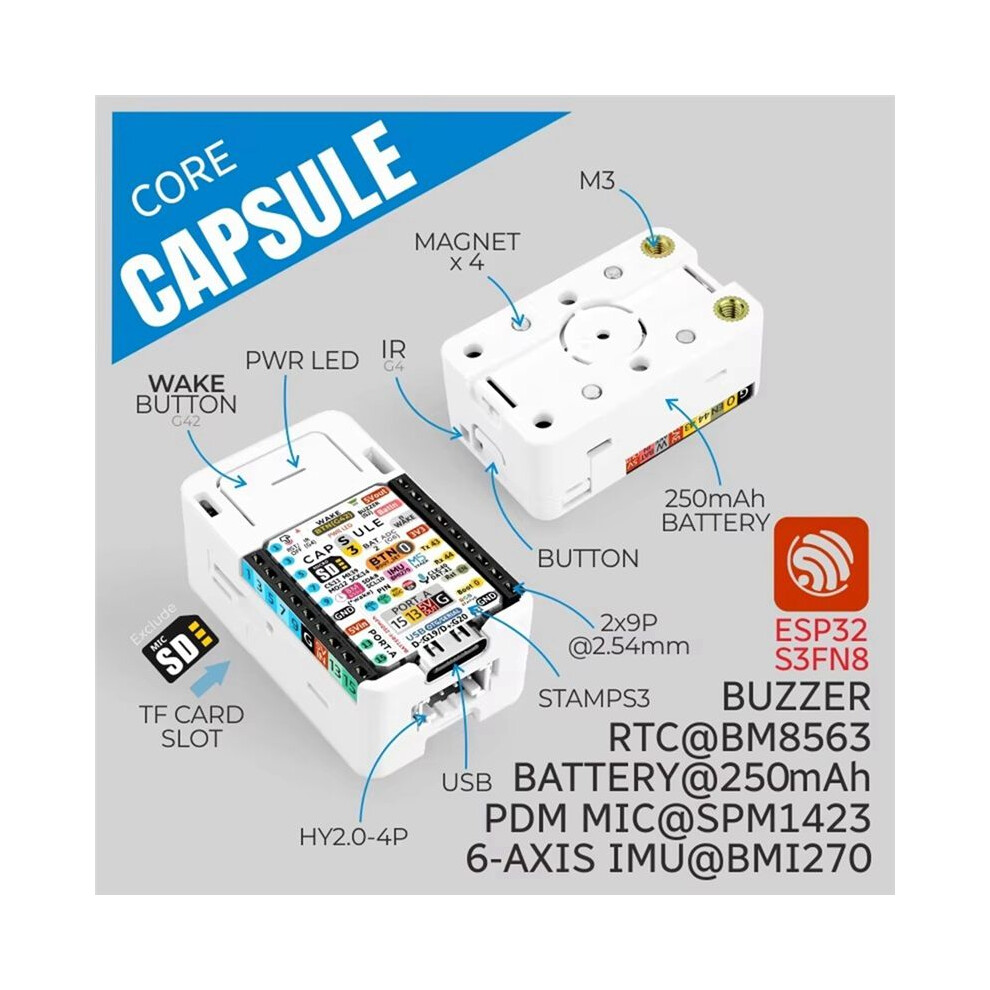

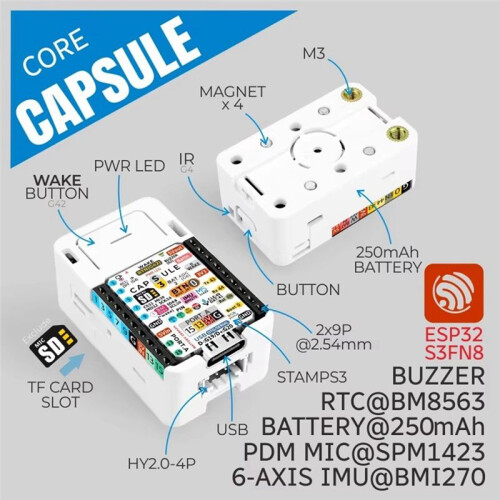

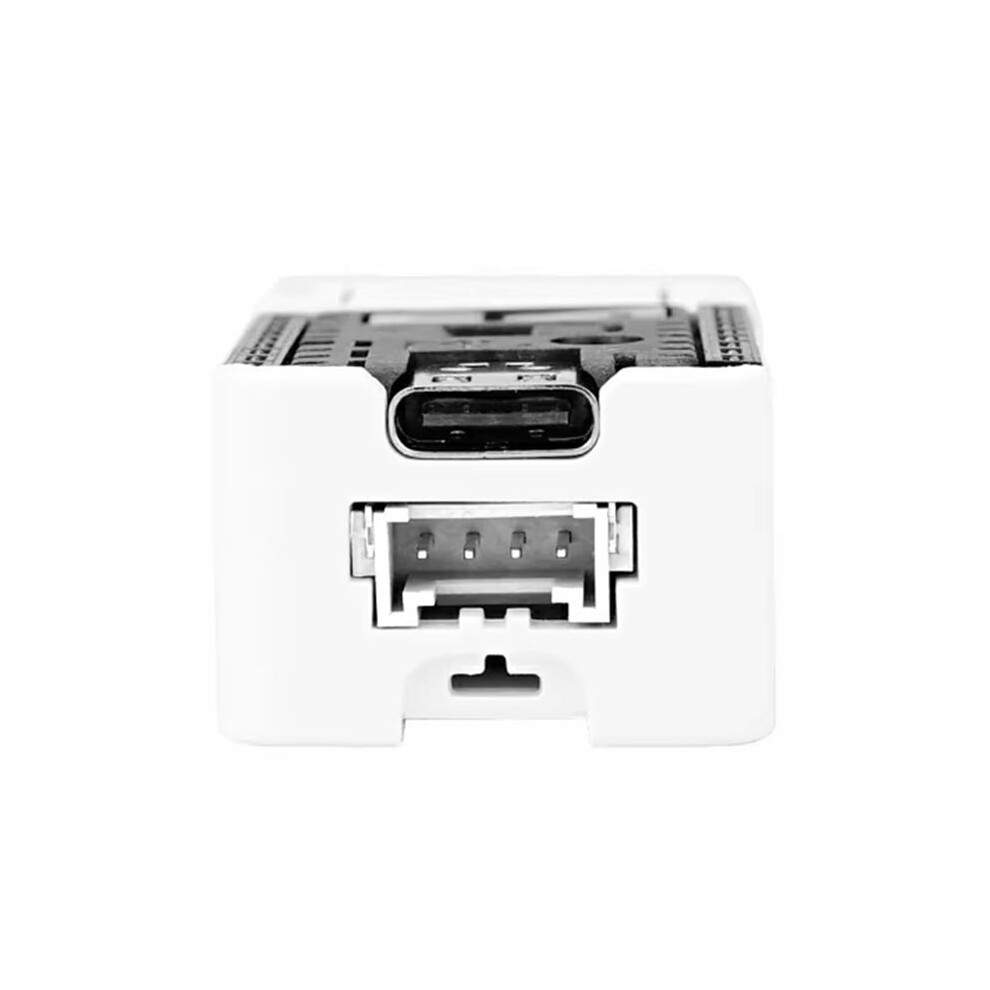

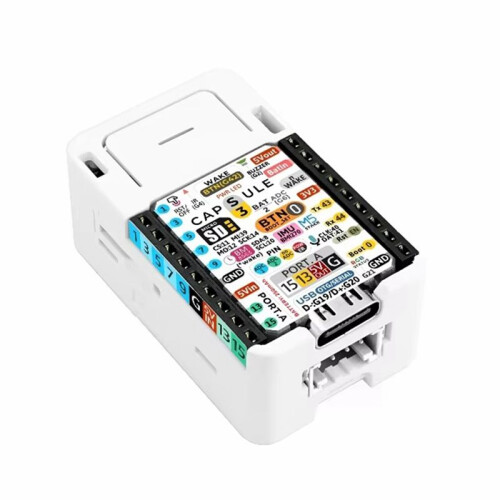

M5Capsule is a embedded development board powered by Stamps3. It combines essential functionalities such as sensors, power management, storage, and control, making it suitable for building IoT, embedded systems, sensor applications, and rapid prototyping and validation of device data acquisition systems.

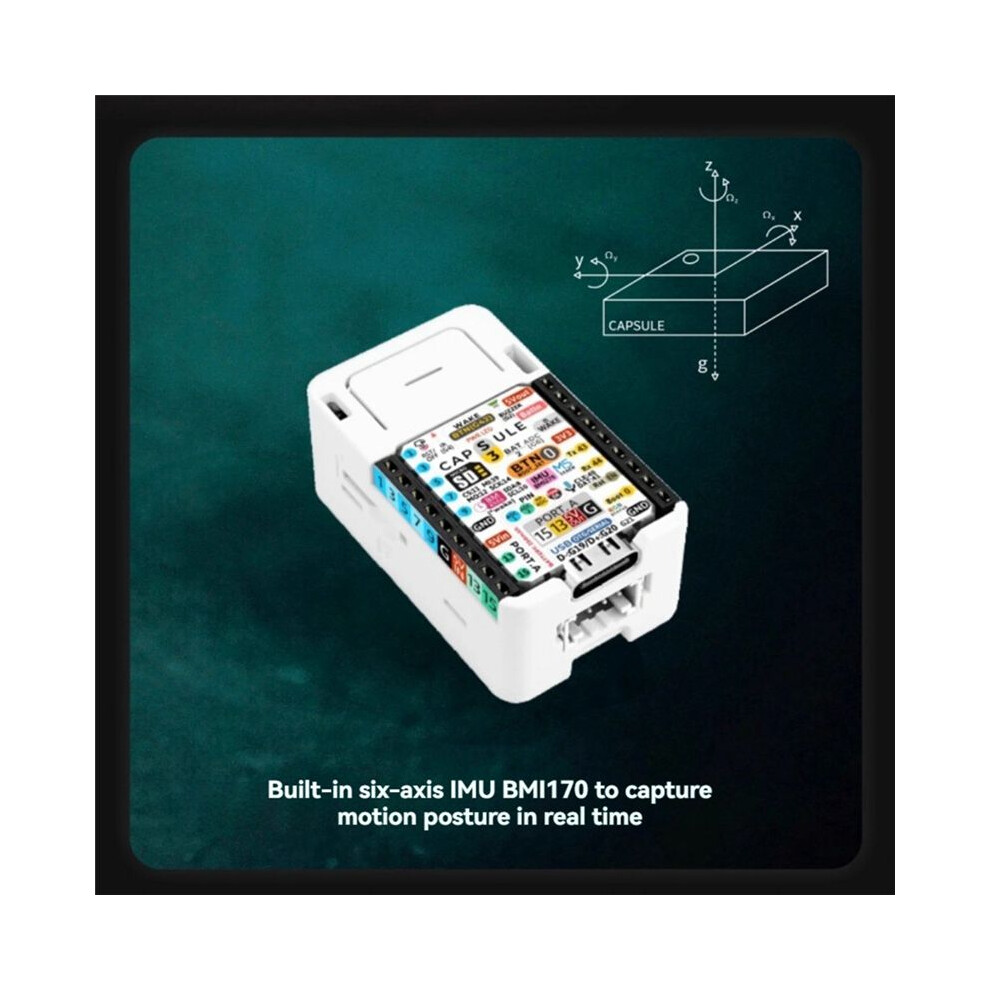

With its high-performance BMI270 IMU, enables precise motion tracking and attitude control. It also features the SPM1423 microphone sensor, supporting recording, sound recognition, and wake- functions. The integrated infrared sensor adds versatility for remote control, signal recognition, and home applications.
The built-in TF card slot allows for expandable storage capacity, facilitating data logging and media storage. Additionally, the built-in buzzer provides audio feedback, enhancing user interaction.

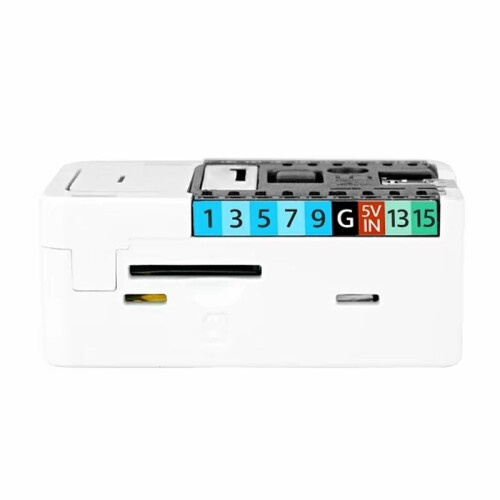

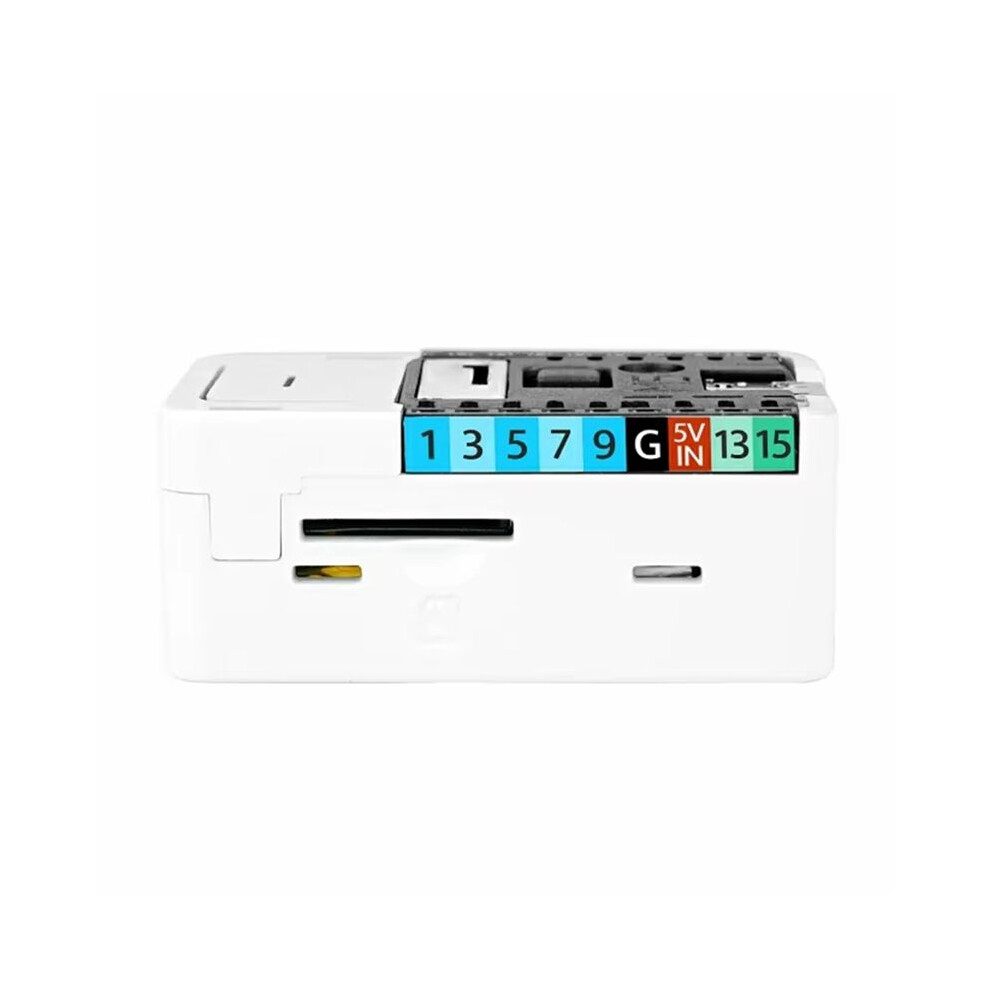

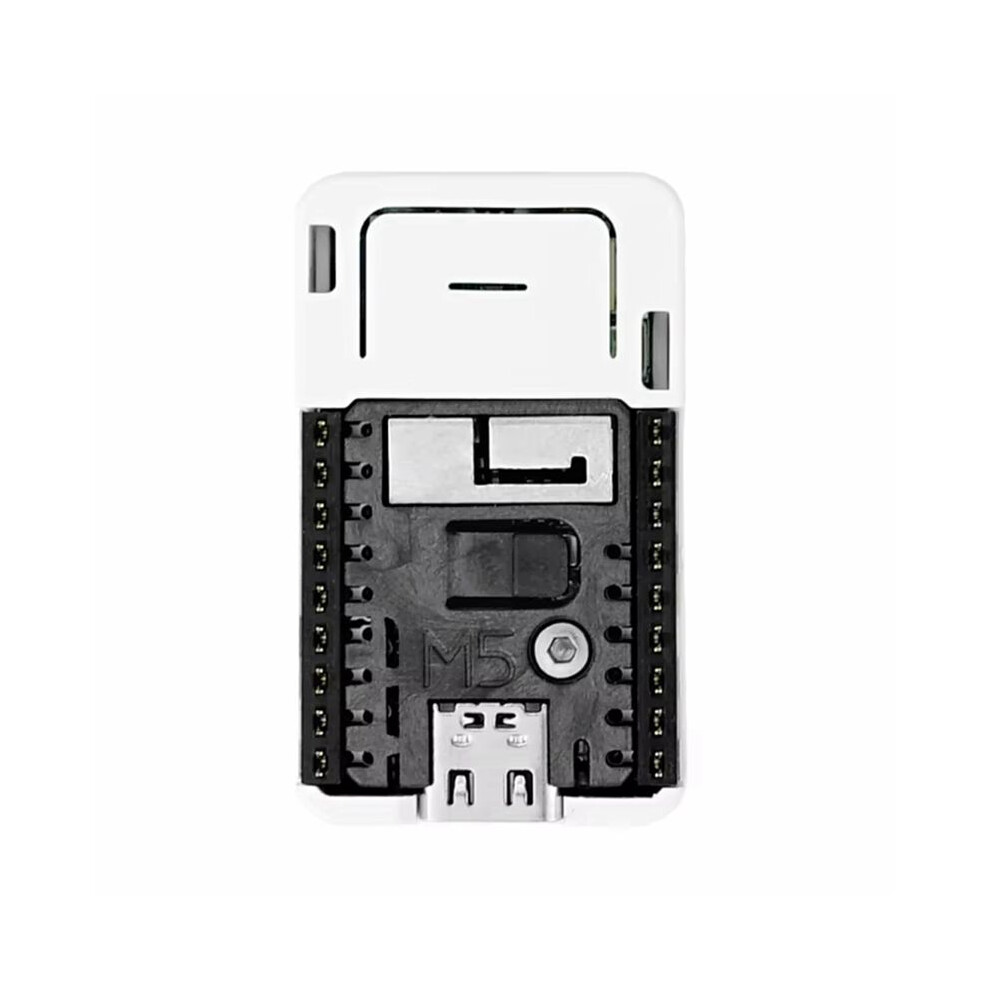

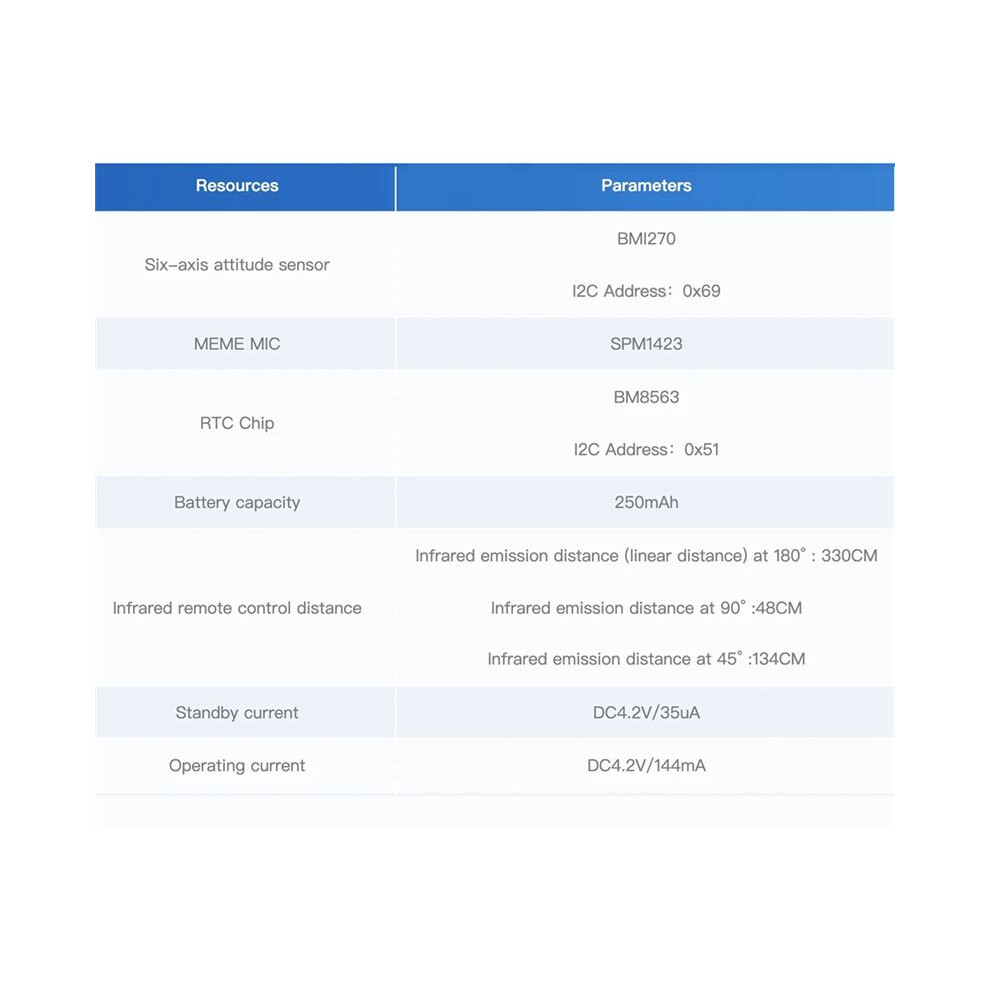

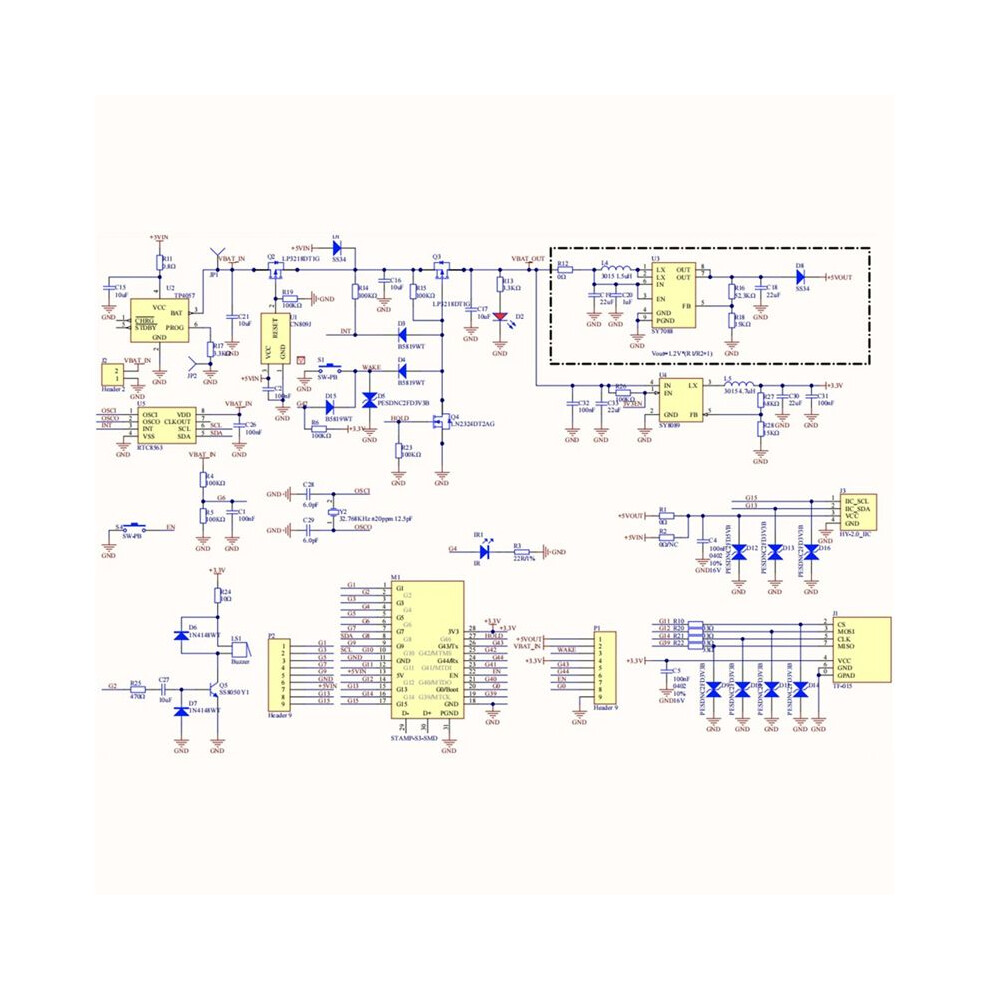

M5Capsule is designed with low power consumption in mind, featuring a power-efficient design with a standby leakage current as low as 35uA. It comes with a built-in 250mAh battery and supports external battery expansion for extended operation. The device also includes the RTC8563 real- clock module, providing high-precision and date information and supporting timed wake- functionality.

Power and off
Power : The device can be awakened and powered either by pressing the "WAKE" button or by the RTC-triggered IRQ signal. After the wake- signal is triggered, during program initialization, it is necessary to set the "hold" (GPIO46) pin to a high level (1) to maintain power. Otherwise, the device will return to sleep mode.
Power Off: When not externally powered via USB, the device can be turned off by pressing the RST button. Alternatively, during program execution, setting HOLD (GPIO46) to 0 will achieve a power cutoff shutdown.
Note:due to different production batches, the printing screen printing
