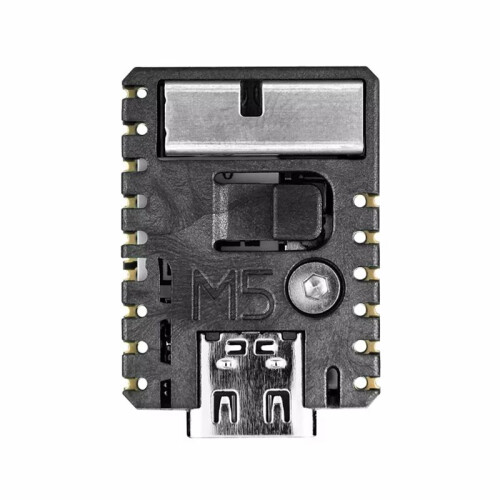

M5stamp ESP32S3A Module StampS3A ESP32-S3 Embedded Module IOT Core Board 8MB Flash 23xGPIO Antenna Enhancement

M5stamp ESP32S3A Module StampS3A ESP32-S3 Embedded Module IOT Core Board 8MB Flash 23xGPIO Antenna Enhancement Beskrivelse

ESP32-S3 embedded module, 8MB Flash, 23xGPIO antenna enhancement, low power optimization.
Plug and .

SoC: ESP32-S3FN8
-: MUN3CAD01-SC
Flash: 8MB
Input voltage: 5V
Human-computer interaction: Programmable physical button x1, programmable RGB LED (WS2812B-2020) x1
Antenna type: 2.4GHz 3D antenna
Module resource interface: touch sensor, /SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LEDPWM, UART, I2C, I2S, GPIO, pulse counter

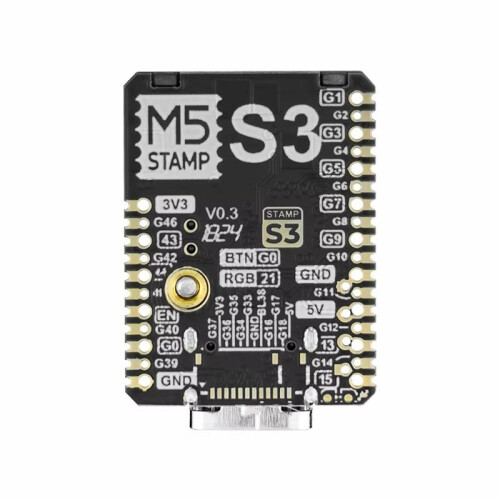

IO interface x23: G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46
IO interface spacing: 2.54mm and 1.27mm
LCD interface spacing: 0.5mm@12P or 8P
Operating temperature: 0-40
Color:Black
Material:Plastic+Metal

Package Contents:
1 * StampS3A ESP32S3A Module
1 * wrench
1 * HY2.0-4P terminal
2 * pin header

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
