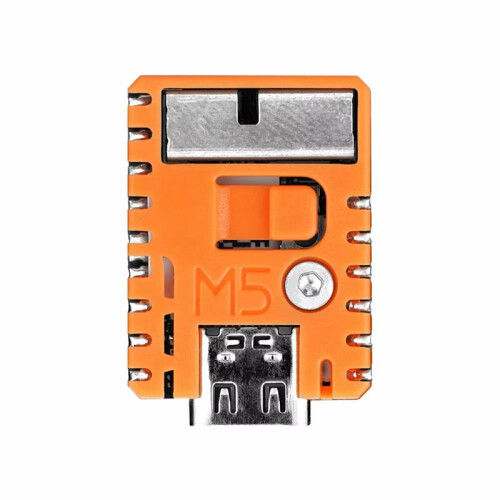

M5stampS3A StampS3A PIN1.27 ESP32-S3 Embedded IOT Module ESP32-S3FN8 Embedded IOT Module with 1.27 Header Pin

New

179,05 kr.

Lignende produkter, vi tror du vil kunne lide

Dockingstationer til computere

Would you like us to let you know when it's back?

Læg i kurv

Beskrivelse og detaljer

Oversigt

ESP32-S3 embedded module, 8MB Flash, 23xGPIO antenna enhancement, low power optimization.
1.27mm pitch, SMT interface.
RGBLED power and reserved screen FPC bus backlight multiplexing.
ESP32-S3 Embedded IOT Module
ESP32-S3FN8 embedded module

M5stampS3A StampS3A PIN1.27 ESP32-S3 Embedded IOT Module ESP32-S3FN8 Embedded IOT Module with 1.27 Header Pin Beskrivelse

ESP32-S3 embedded module, 8MB Flash, 23xGPIO antenna enhancement, low power optimization.
1.27mm pitch, SMT interface.
RGBLED power and reserved screen FPC bus backlight multiplexing.

Parameters:
SoC: ESP32-S3FN8
-: MUN3CAD01-SC
Flash: 8MB
Input voltage: 5V
Human-computer interaction: programmable physical button x1, programmable RGBLED (WS2812B-2020) x1
Antenna type: 2.4GHz 3D antenna
Module resource interface: touch sensor, /SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LEDPWM, UART, I2C, I2S, GPIO, pulse counter
IO interface x23: G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46
IO interface spacing: 1.27mm
LCD interface spacing: 0.5mm@12P or 8P
Operating temperature: 0-40
Color:Orange & Black
Material:Plastic+Metal

Package Contents:
1 * StampS3A PIN1.27 ESP32-S3 Embedded module
