Beskrivelse og detaljer
Oversigt

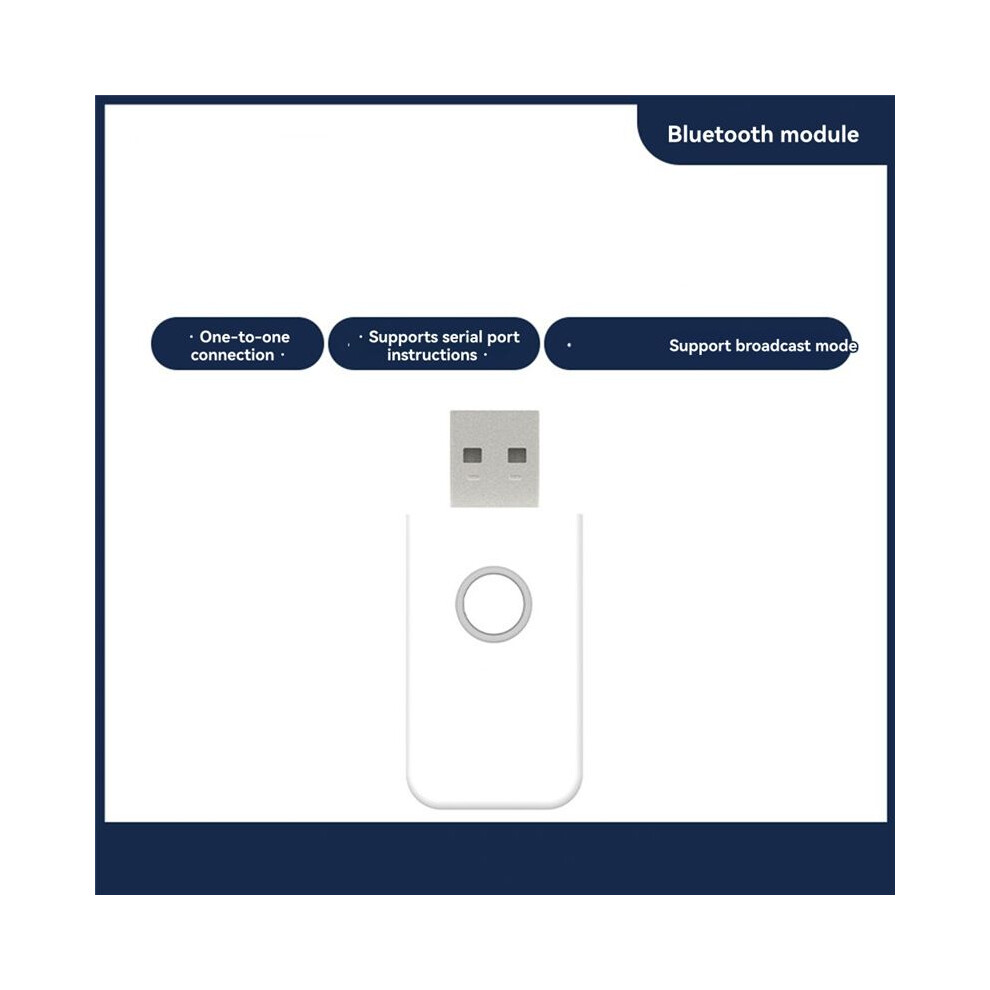

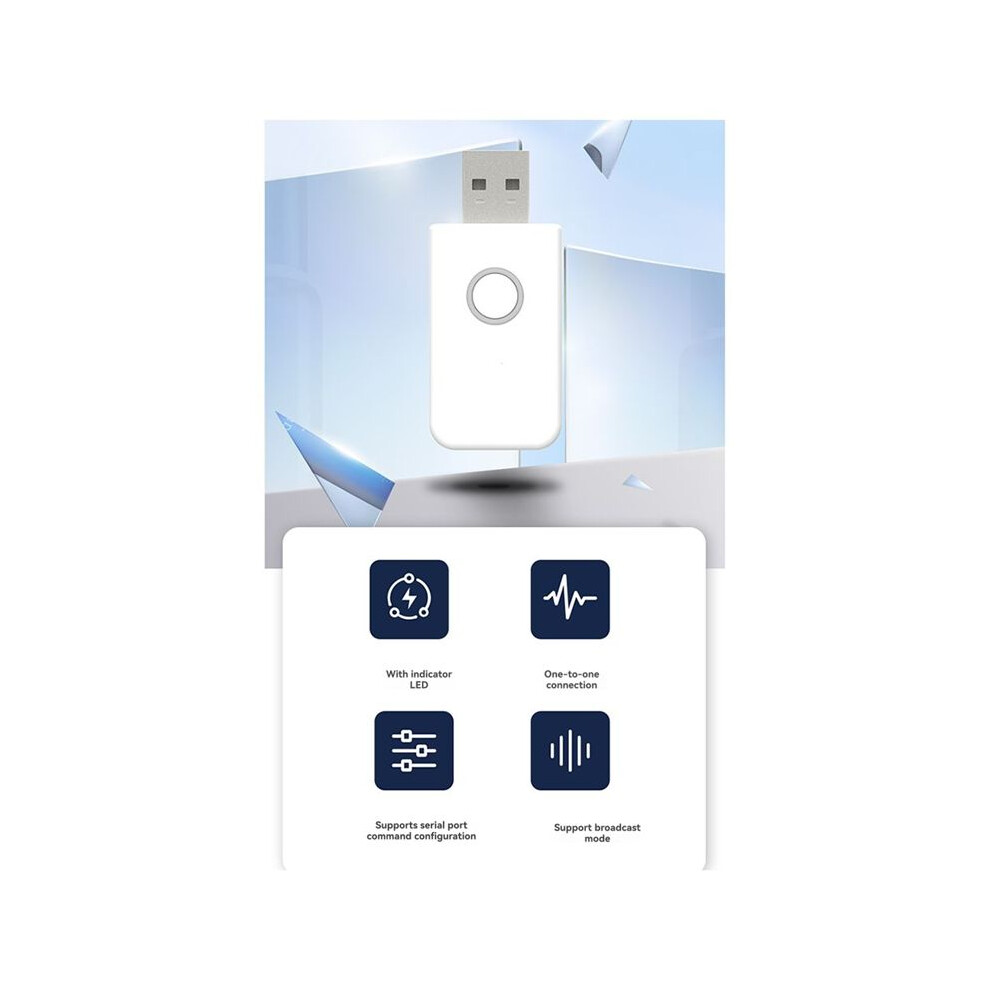

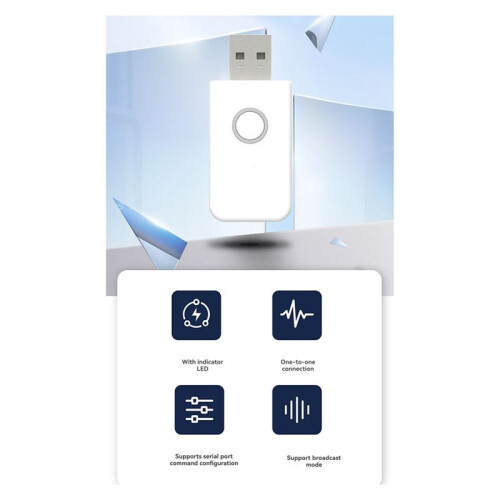

- The ME91BK01 is a Bluetooth adapter built using the MS50SFA-nRF52832 module. It can be switched between master and slave modes by pressing and holding the button for 2 seconds or using a command. Master and slave modes cannot operate simultaneously, and only one-to-one connections are possible. The device defaults to master mode. In master mode, commands can be used to scan and connect to devices. Scanning can filter by broadcast name and MAC address to identify relevant devices.
- Connections can only be initiated by specifying a MAC address. The device communicates with the MCU via the UART interface. In command mode, commands can be sent via the UART to modify the scan interval, scan timeout, connection interval, broadcast interval, custom broadcast data, baud rate, and more. It can be used for developing and testing Nordic-based wireless solutions.
- Model: ME91BK01
- Dimensions: 50 x 24 x 105mm
- Command iBeacon Adapter
ME91BK01 Adapter Master-Slave Supports Serial Port Command IBeacon Broadcast Mode Beskrivelse
The ME91BK01 is a adapter built using the MS50SFA-nRF52832 module. It can be switched between master and slave modes by pressing and holding the button for 2 seconds or using a command. Master and slave modes cannot operate simultaneously, and only one-to-one connections are possible. The device defaults to master mode. In master mode, commands can be used to scan and connect to devices. Scanning can filter by broadcast name and address to identify relevant devices.
Connections can only be initiated by specifying a address. The device communicates with the MCU via the UART interface. In command mode, commands can be sent via the UART to modify the scan interval, scan timeout, connection interval, broadcast interval, custom broadcast data, baud rate, and more. It can be used for developing and testing Nordic-based wireless solutions.
Model: ME91BK01
Dimensions: 50 x 24 x 105mm
Weight: 9.2g
Power Supply: USB (DC5V1A)
Installation: Connect via a computer's standard Type-A USB port
Operating Temperature: -20C to 55C
Color: White
Material: plastic
Package Contents:
1 * Adapter
Detaljer
| OPC | PTNRWRN |
|---|---|
| Mærke | kepptory |
| Koder | 4711839427161 (EAN) |
Produktdata
| Height | 5cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.06kg |
| Colour | White |
| Material | Plastic |
