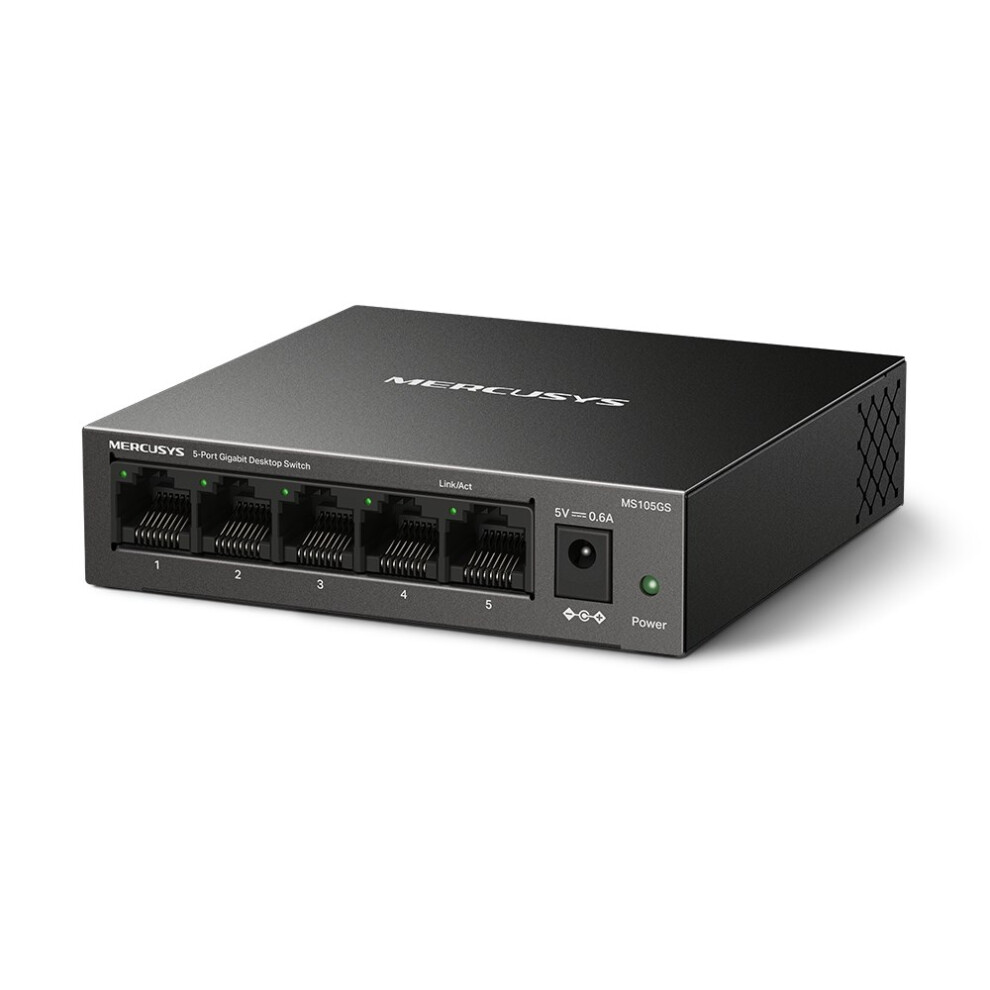

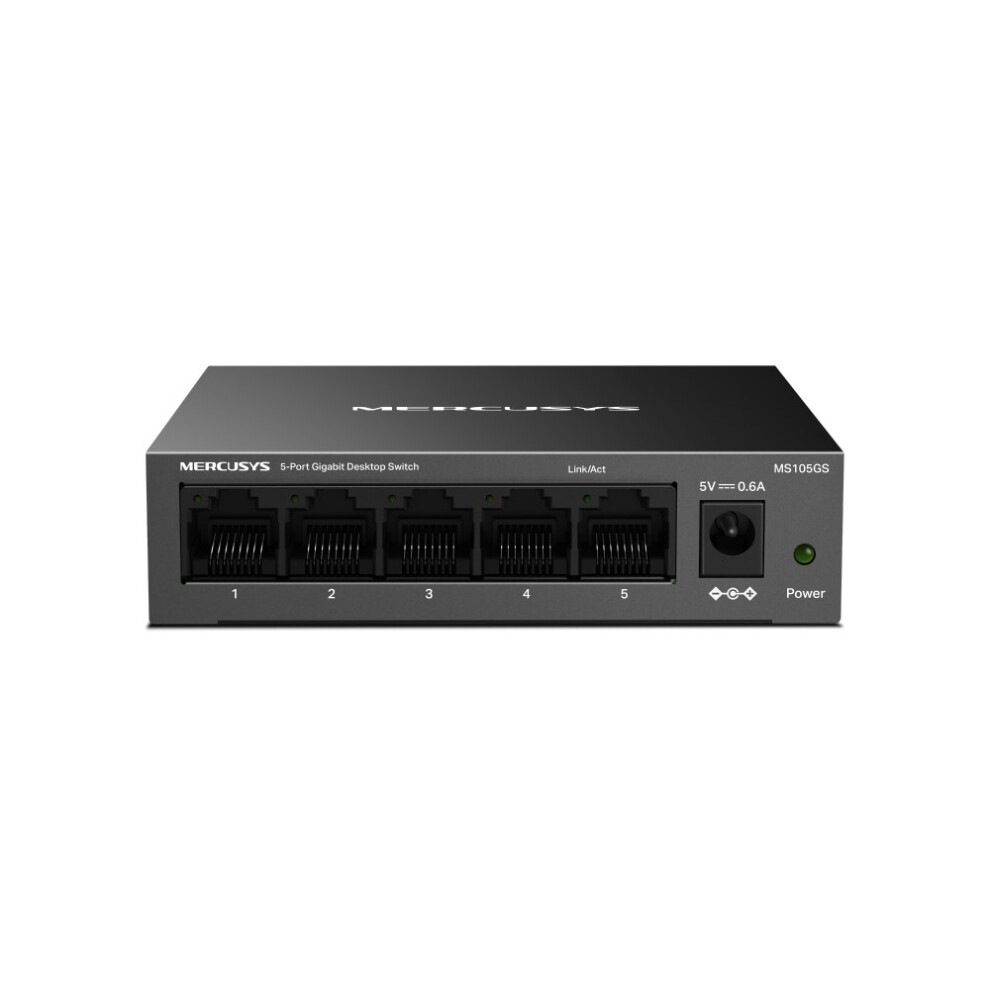

Mercusys MS105GS - Desktop switch, 5 Gigabit ports, black

Mercusys MS105GS - Desktop switch, 5 Gigabit ports, black Beskrivelse

Description Management features Switch type Unmanaged Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Power connector DC-in jack Network Networking standards IEEE 802.3IEEE 802.3abIEEE 802.3pIEEE 802.3uIEEE 802.3xExpandFold 10G support No Full duplex Yes Half duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Auto-negotiation Yes MAC address auto-learning supported Yes MAC address auto-aging supported Yes Optical fiber Transmission distance (max) 0.1 km Data transmission Switching capacity 10 Gbit/s MAC address table 2000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 9000 Packet buffer memory 0.125 MB Design Rack mounting No Stackable No Product colour Black Housing material Metal LED indicators Yes Wall mountable Yes Performance Fanless Yes Power Power source DC Power supply included Yes AC input voltage 220 V AC input frequency 50/60 Hz DC input voltage 5 V Input current 0.6 A Power consumption (max) 3.614 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 95% Heat dissipation 12.331 BTU/h Weight & dimensions Width 99.8 mm Depth 98 mm Height 25.1 mm Packaging content Cables included AC Quick start guide Yes Certificates Certification CE, RoHS Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
