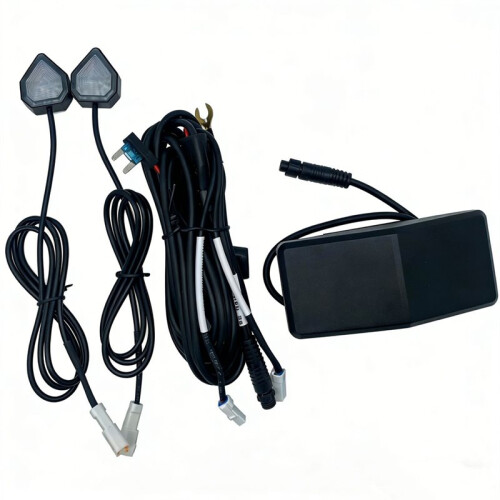

Motorcycle Blind Spot Detection System Wave 15M Motorcycle BSD Motorcycle Electronics Accessories

Motorcycle Blind Spot Detection System Wave 15M Motorcycle BSD Motorcycle Electronics Accessories Beskrivelse

This product can give early warning to dangerous targets in the left and right rear of motorcycle, 24Ghz microwave Its unique capacities of penetrating the , fog and dust can realize the all-weather and all- application
,It is able to detect the target as far as 15 meters(49.21ft) at maximum, and finally output the warning signals. The warning signals include the light always and light flashes.
Product Features Shielding the third is not available No warning for following at the same speed BSD blind spot monitoring (power startup) LCA change assist (power start) AOA overtaking warning not available.
Warning mode: When a target object with relative velocity enters the signal area, the warning light flashes until the target object leaves the monitoring area, and the warning is canceled.
Function warning: When a target object with a relatively faster speed enters the signal area, the warning light flashes, and the larger the object, the farther the warning distance

Specifications:
Name: Motorcycle 15 meter Blind Spot Monitoring
24Ghz Motorcycle BSD Parallel Assist (MT-03)
System parameter:
Working voltage 9-16V
Working temperature -40 -+85
Power consumption 2.5W
Waterproof rating IP67
Working frequency band 24GHz
length 2.3 meters
Single transmitter/receiver antenna
chip Infineon
MCU chip GD
Detection performance:
Warning range: horizontal -3 to +3 meters, vertical 0 to 15 meters
Warning speed range OKM/H-120KM/H
Horizontal signal angle 60
Distance measurement accuracy is better than 0.18m
Maximum detection distance of 15m
Note:
It is recommended that the installation be carried out by professionals.
The installation angle of will affect the detection distance and effect. P
