MT6701 Magnetic Encoder 14bit High Precision IIC+AB1024 Supports IIC/SSI/PWM/da Communication for Brushless Motor

MT6701 Magnetic Encoder 14bit High Precision IIC+AB1024 Supports IIC/SSI/PWM/da Communication for Brushless Motor Beskrivelse

The MT6701 is a new generation magnetic angle encoder based the differential Hall effect principle.
The MT6701 senses the magnetic field component perpendicular to the chip surface. As the radially magnetized magnet rotates the chip surface, the MT6701 outputs a corresponding angle signal from 0 to 360.
In addition to providing ABZ/UVW incremental output and Analog/PWM absolute angle output, the MT6701 also provides a 14-bit digital angle output via the I²C/SSI interface.
Besides rotational angle measurement, the MT6701 also provides a "push-button" output, enabling a single-chip rotary/push-button function.
Chip: MT6701CT

Accuracy: IIC/SSI: 14bit PWM: 12bit AB: 1-1024

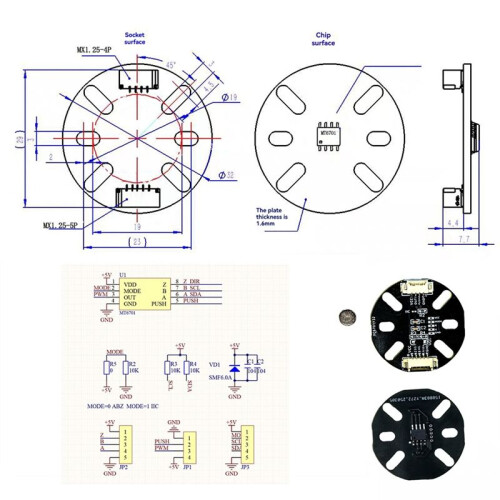

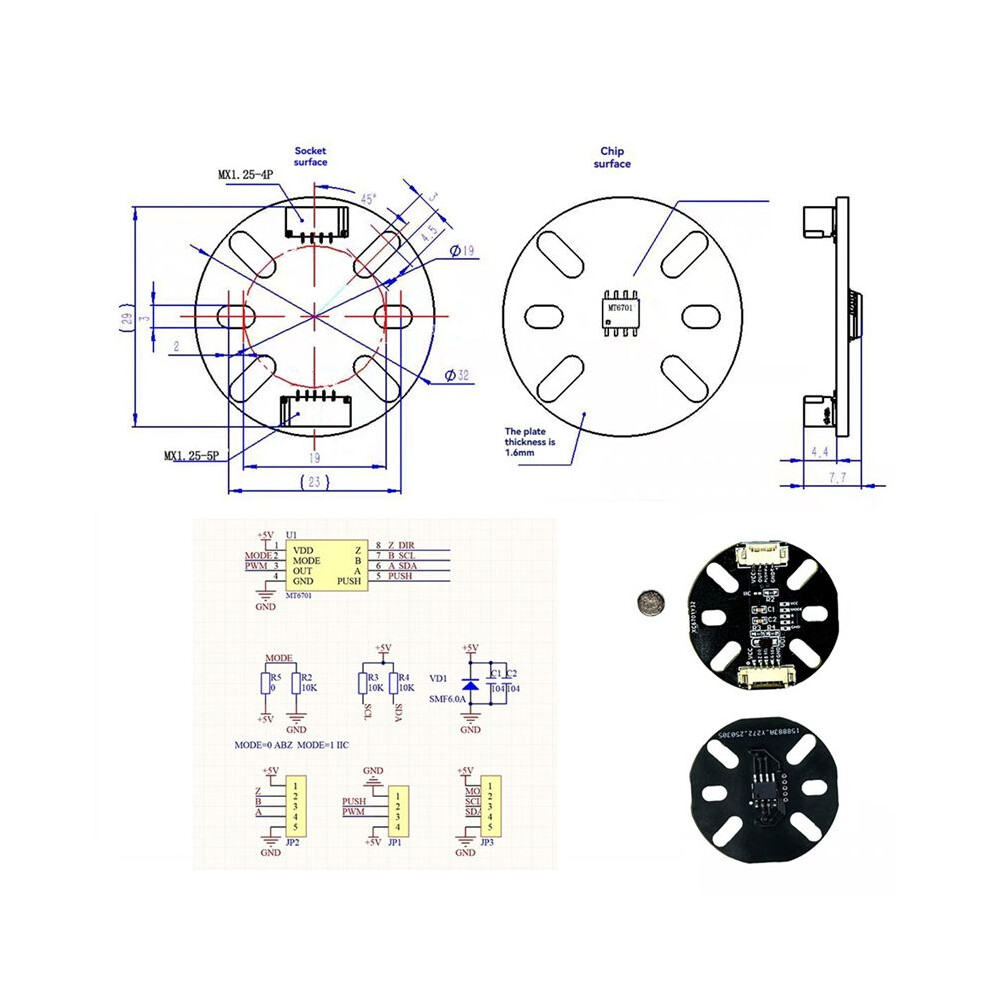

Connector type: MX1.25-4P/5P
Operating voltage (V): 3.3-5.0
Maximum rotational speed: Less than 55,000 RPM
PWM output: 12bit
Operating temperature (C): -40~125C
ABZ incremental output: 1~1024 lines, programmable
UVW incremental output: 1~16 poles, programmable
Absolute angle resolution: 14bit
System delay (constant speed): Less than 5us
Communication interface: I²C/SSI
Color: Black
Material: PCB

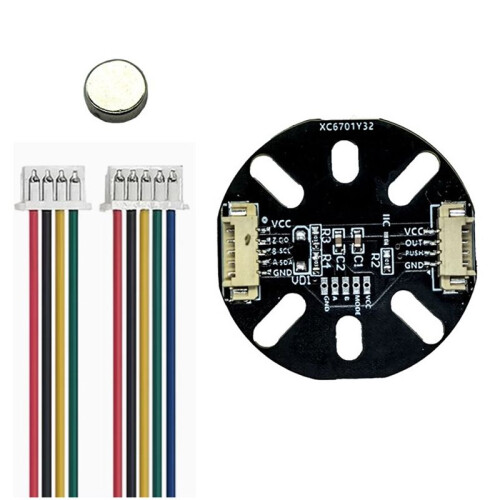

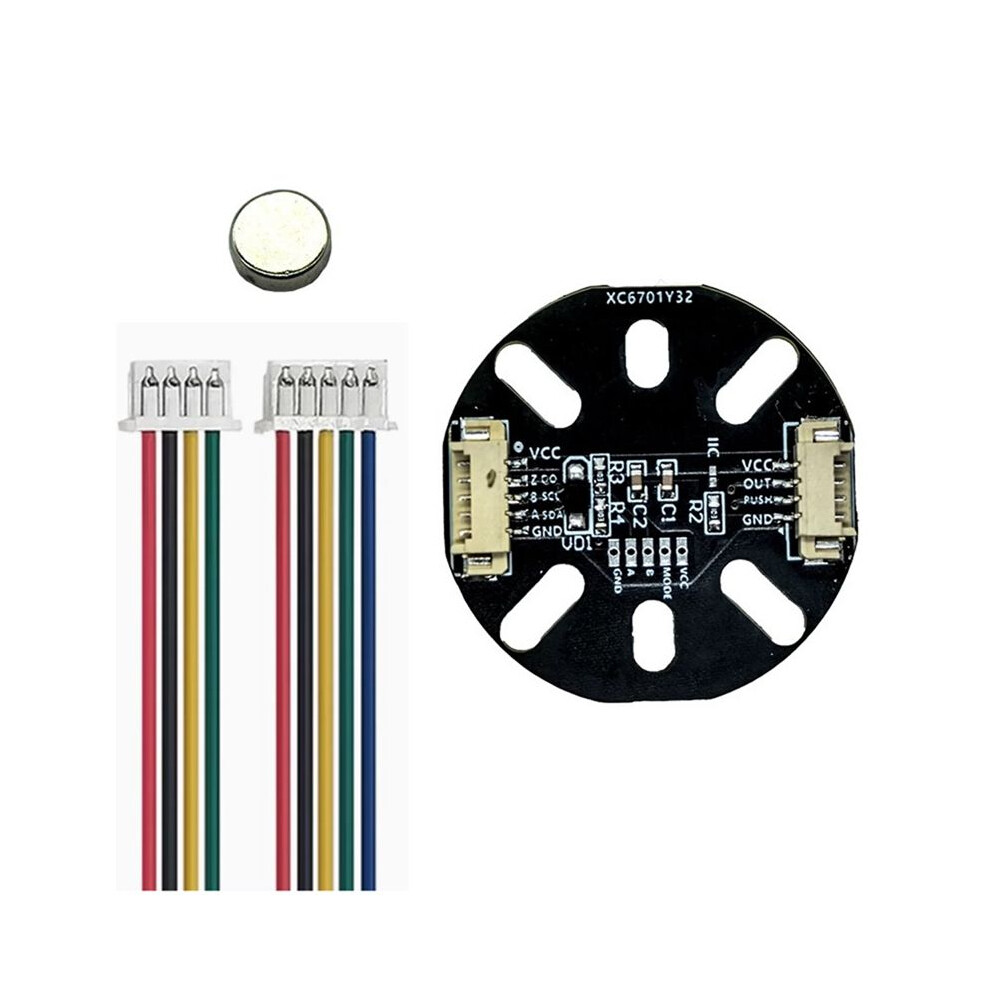

Package Contents:

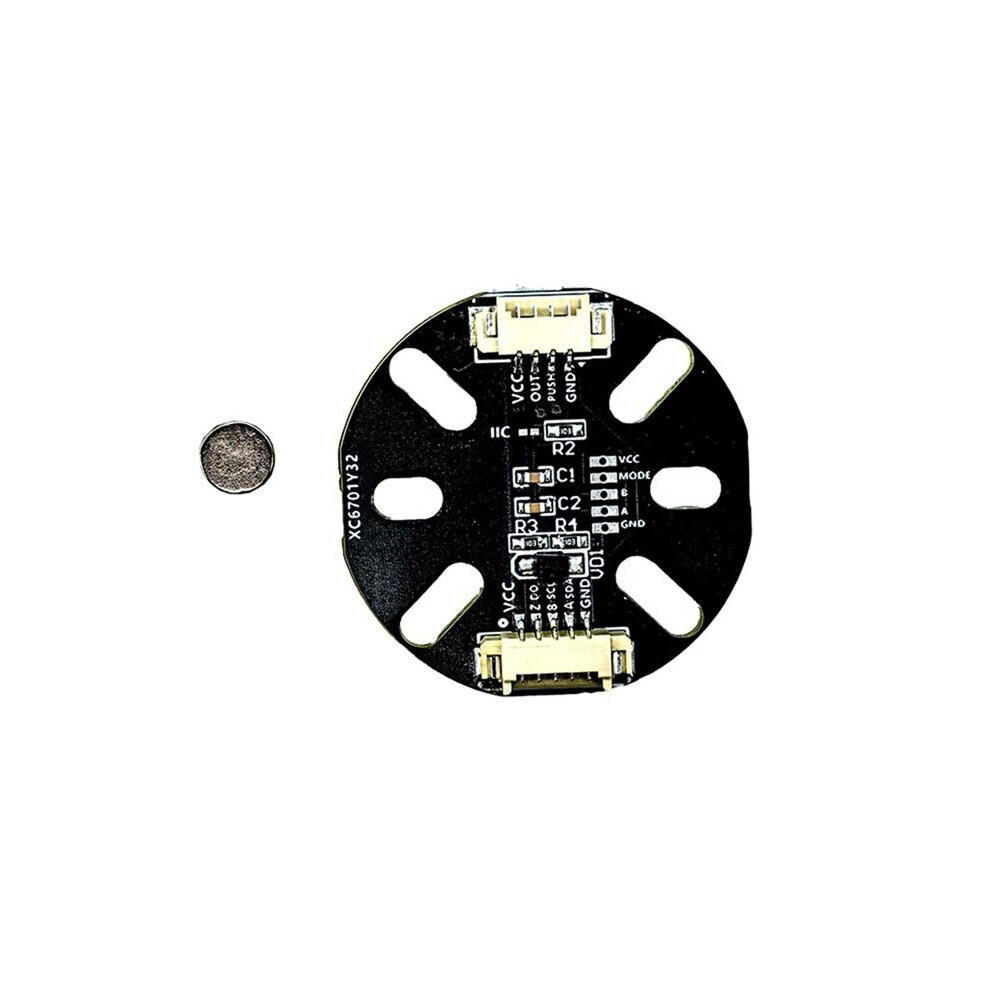

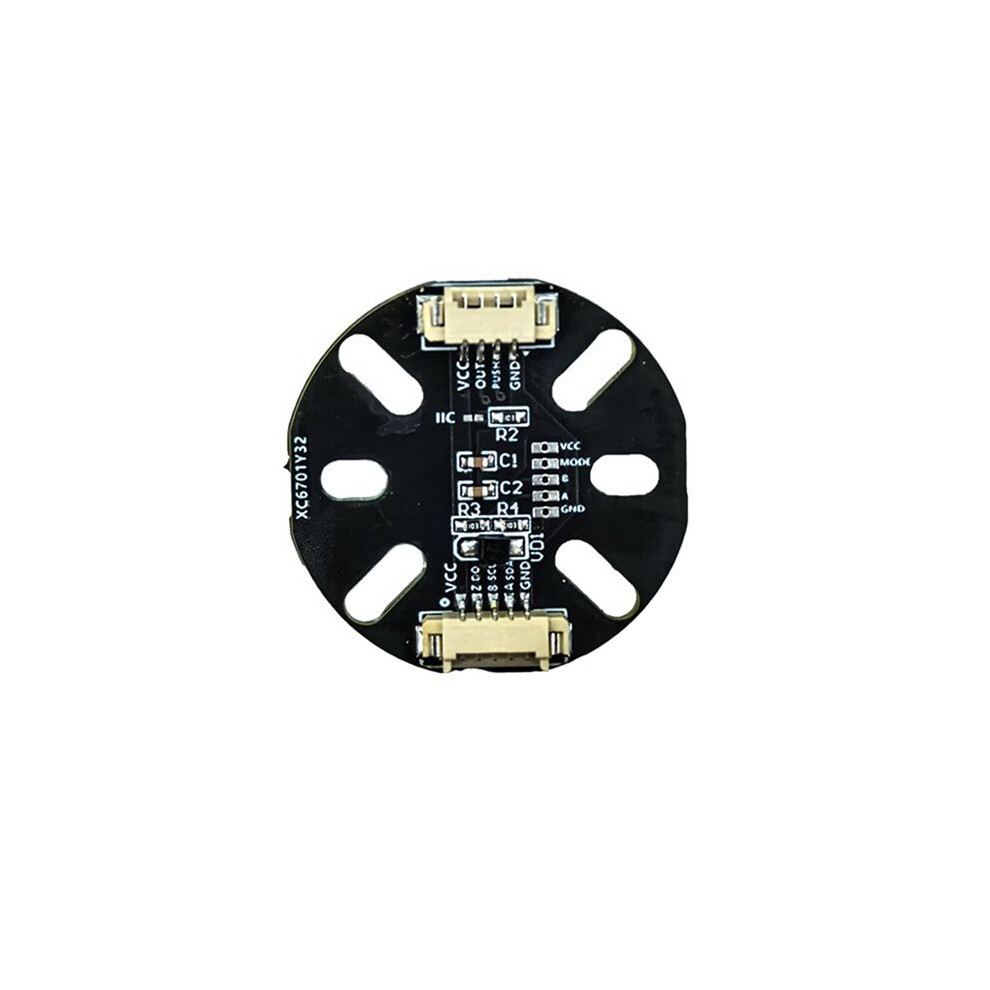

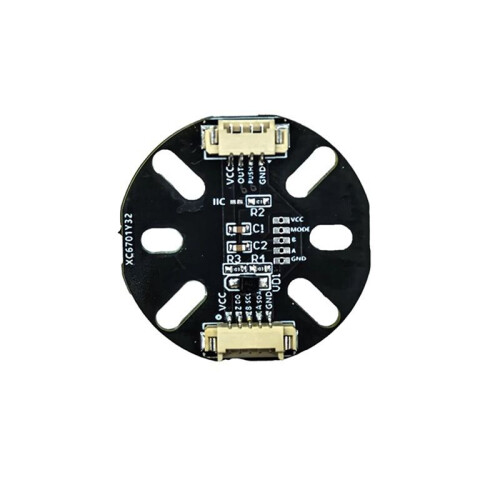

1 * Magnetic Encoder
1 * Magnet
2 * cable
