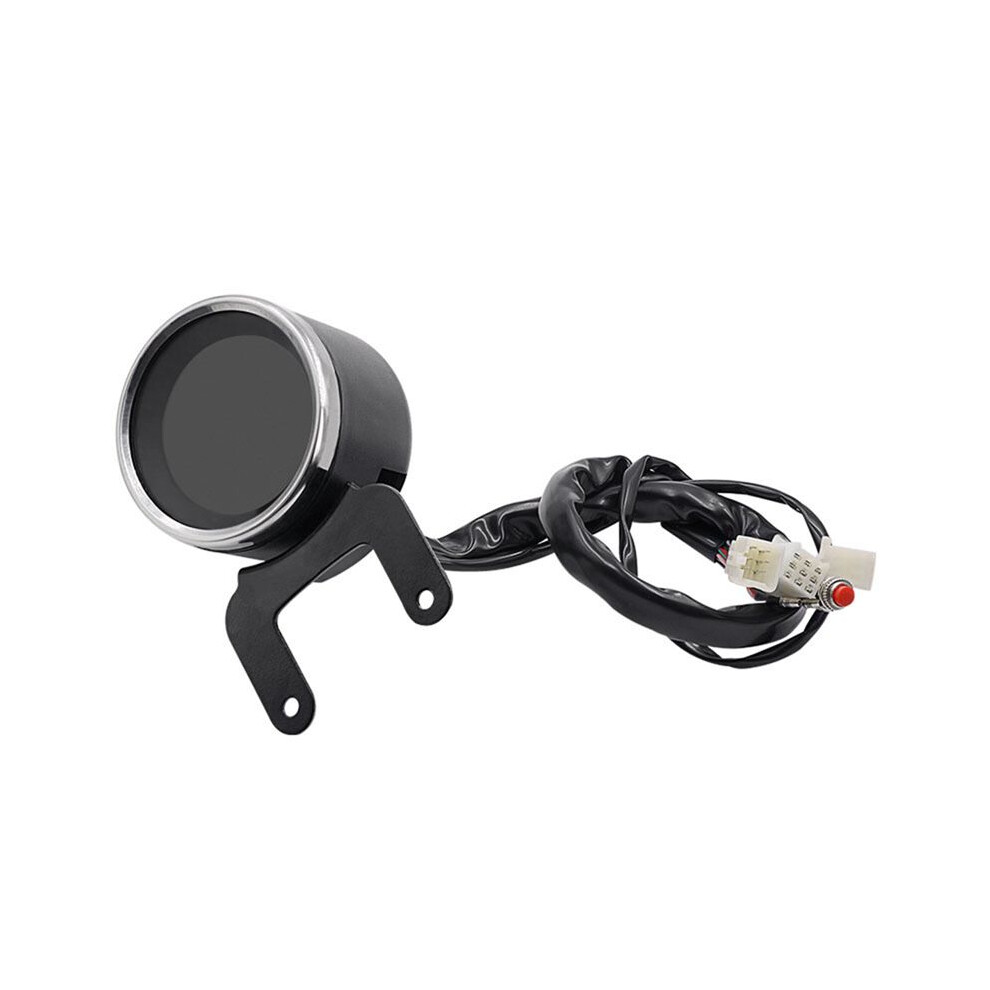

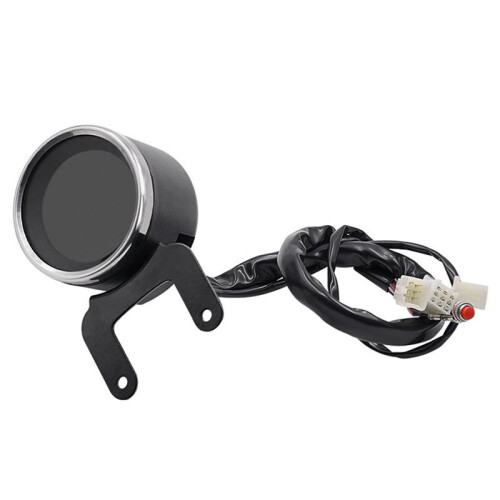

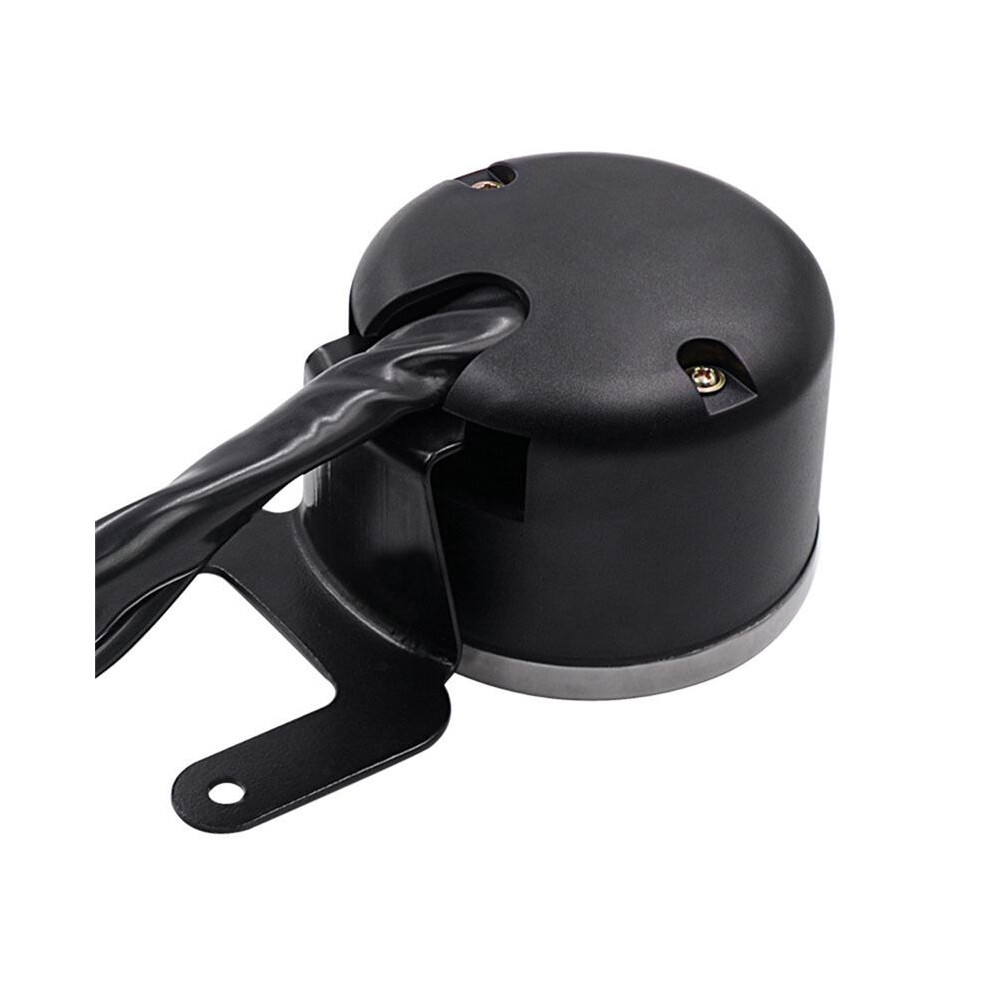

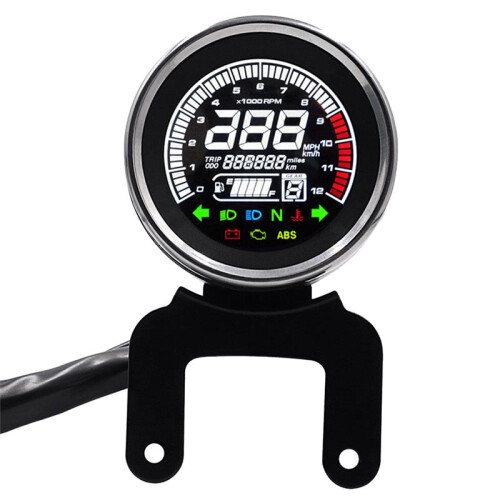

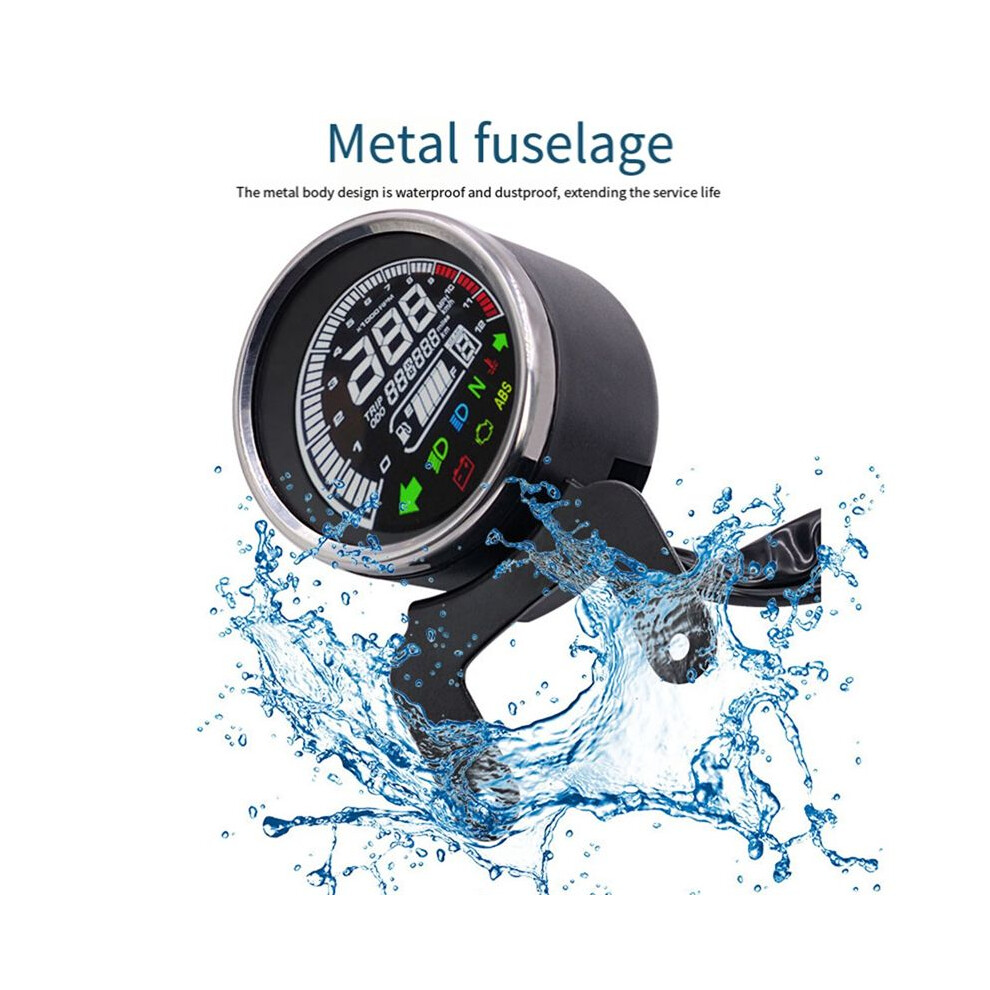

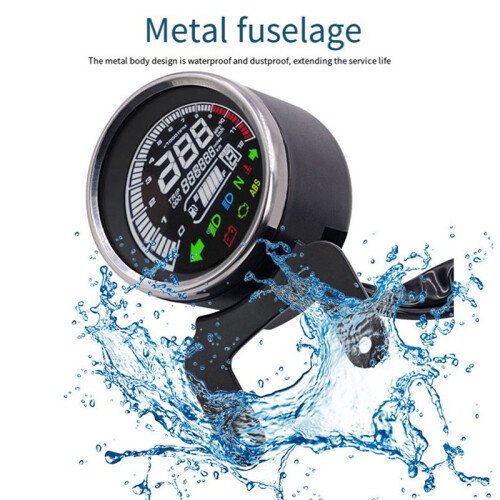

Multi-purpose Instrument Odometer LCD Screen Display Tachometer Motorcycle Supplies

Multi-purpose Instrument Odometer LCD Screen Display Tachometer Motorcycle Supplies Beskrivelse

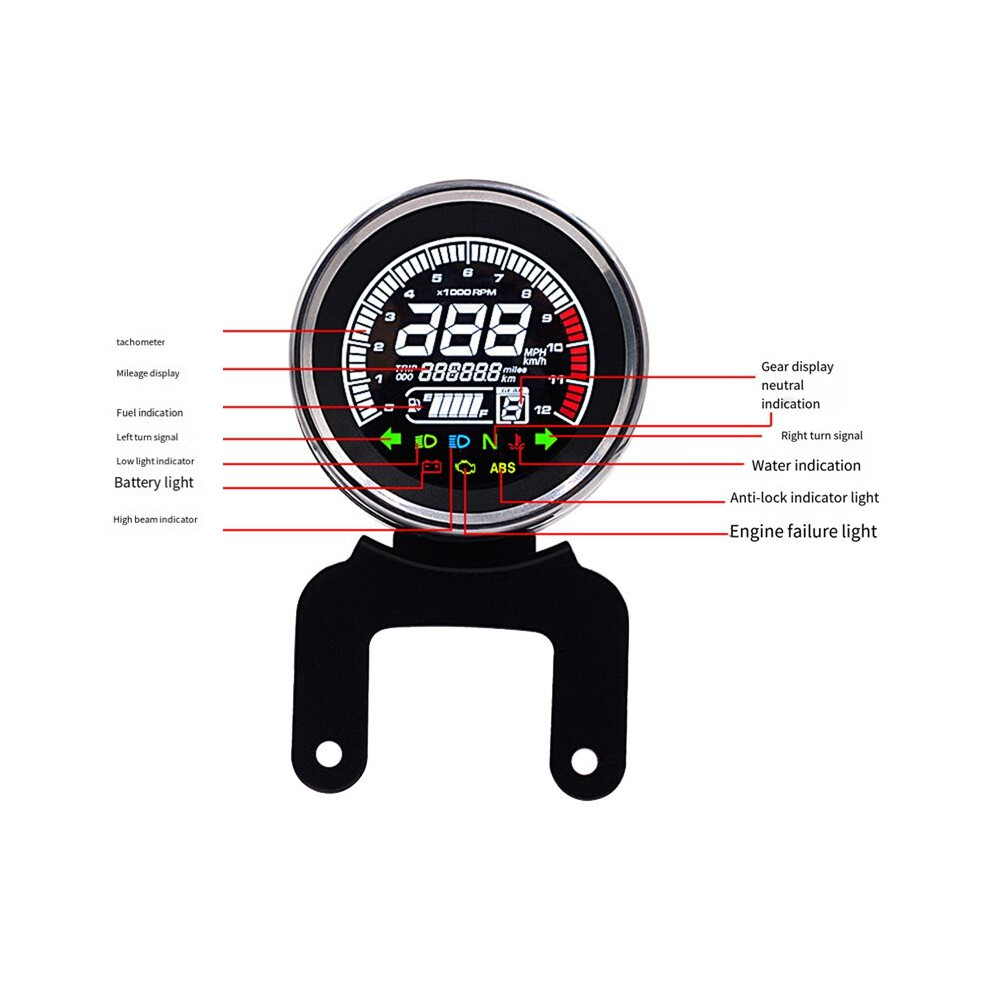

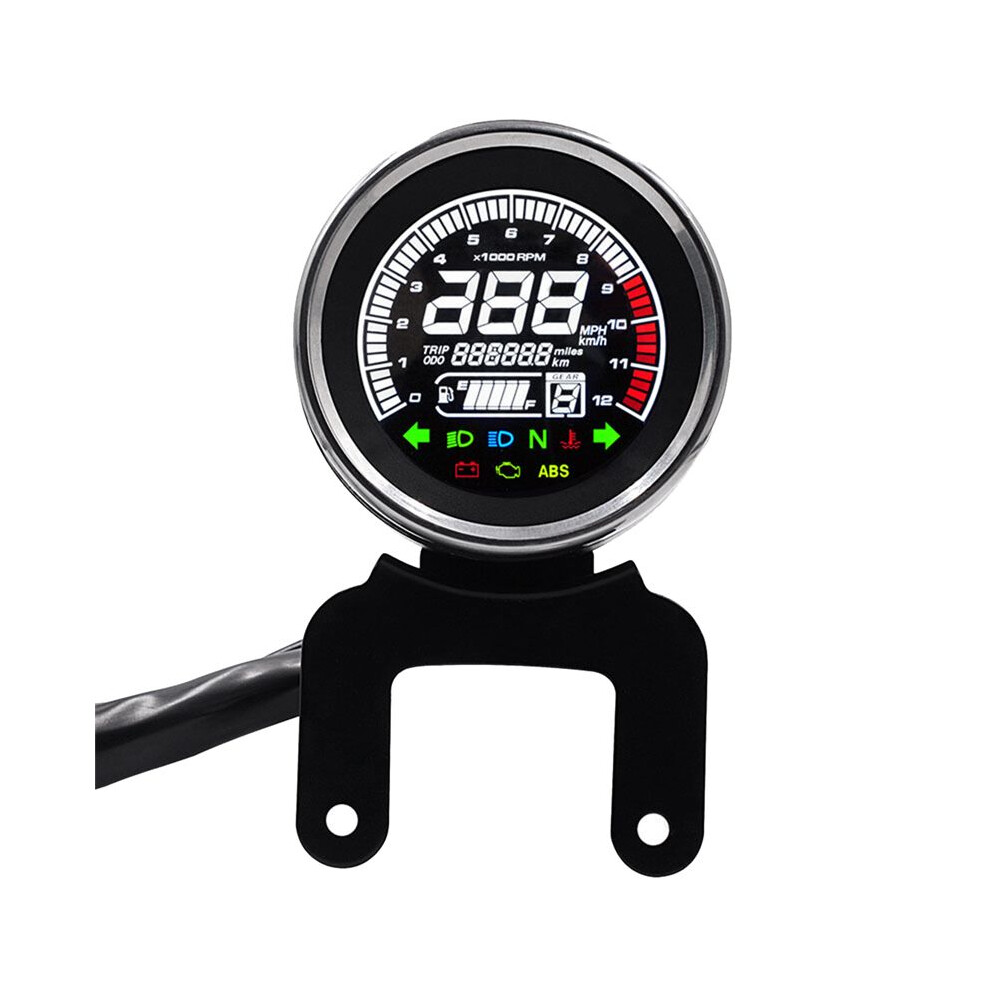

Features: 1. Complete functions: the function includes (speedometer, tachometer, fuel gauge, water temperature gauge), the LCD screen is very clear, the viewing angle is large and the soft vision, relieve eye fatigue.
2. Left and right turn signals: show where the vehicle's turn signals are located. Usually in the flameout state, when the owner lights the turn signal, the indicator will light in the corresponding direction.
3. Gear position (N, 1-6 gear position display function, and there is no need to add another gear positioner)
4. Oil quantity indicator: shows the amount of oil stored in the vehicle. When the electric door is opened and the meter performs self-test, the fuel gauge function prompts you whether you need to refuel.
5. : display the status of the vehicle , usually extinguished, when the owner turns the , the indicator light indicates that the vehicle is ; 6. / H to MPH (metric system display )

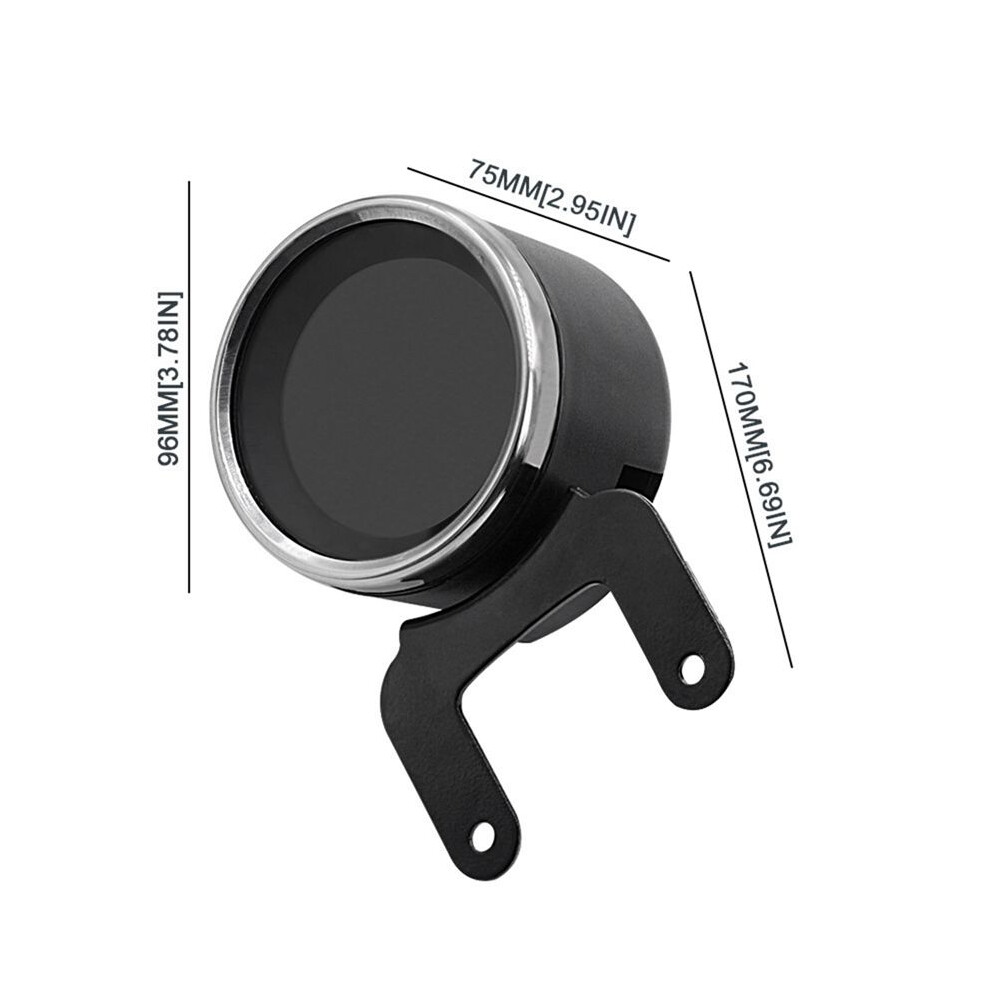

Specifications: Product size: surface diameter: 96mm/3.78inch; thickness: 75mm/2.95inch; height: 170mm/6.69inch
LED backlight: white light
Input voltage: 12V
Working voltage: 12V

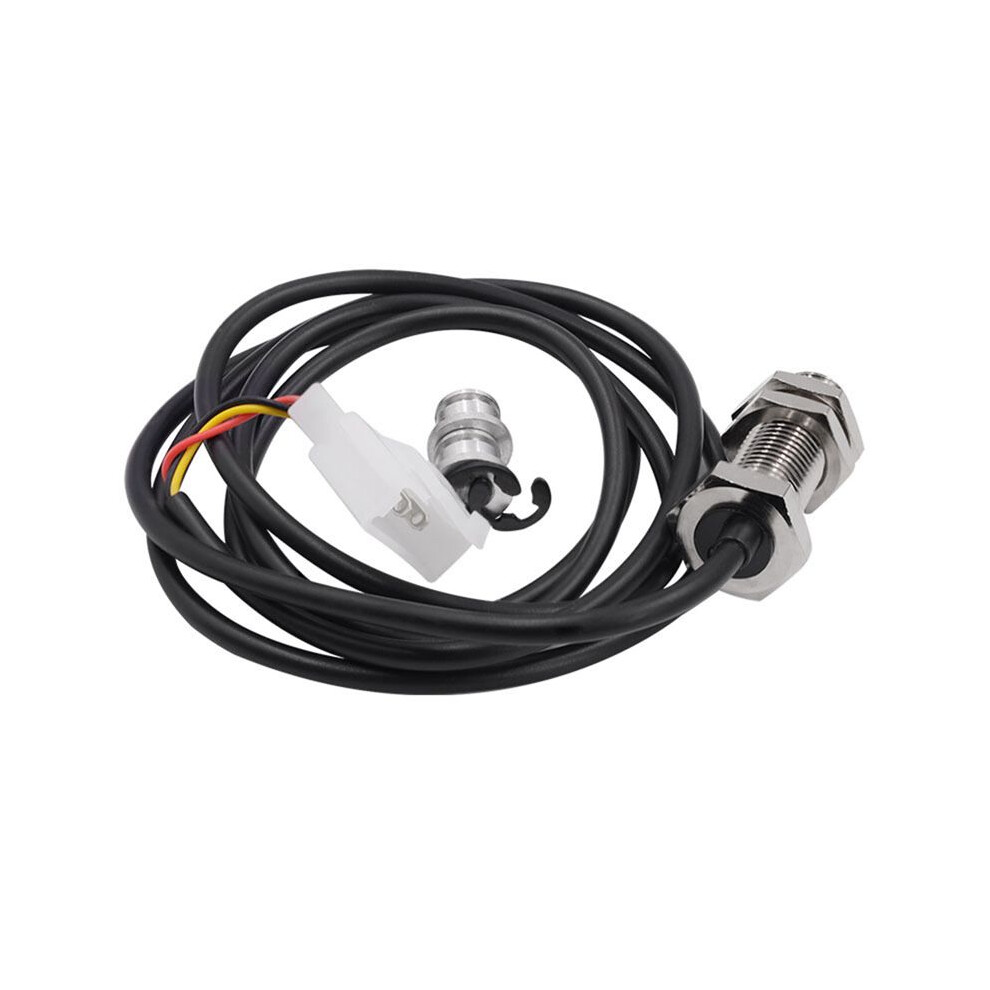

Speedometer: Tire model 120/80/17, 34Hz means 60KM/H. Speed 5%, 34Hz means 63KM/H
Fuel gauge: LCD display F point 8Ω-E point 98Ω
Water temperature below 165Ω, long indicator display
Main off, standby power consumption is less than 4mA
Button Function:
A. Short press the button to between total and subtotal.
B. In the total interface, press and hold the button for 4 seconds, the metric system switches, the default is in metric system; after switching, it can be saved even if it is completely powered off.
C. In the subtotal interface, press and hold the button for 4 seconds, and the subtotal is cleared.
Color: Black
