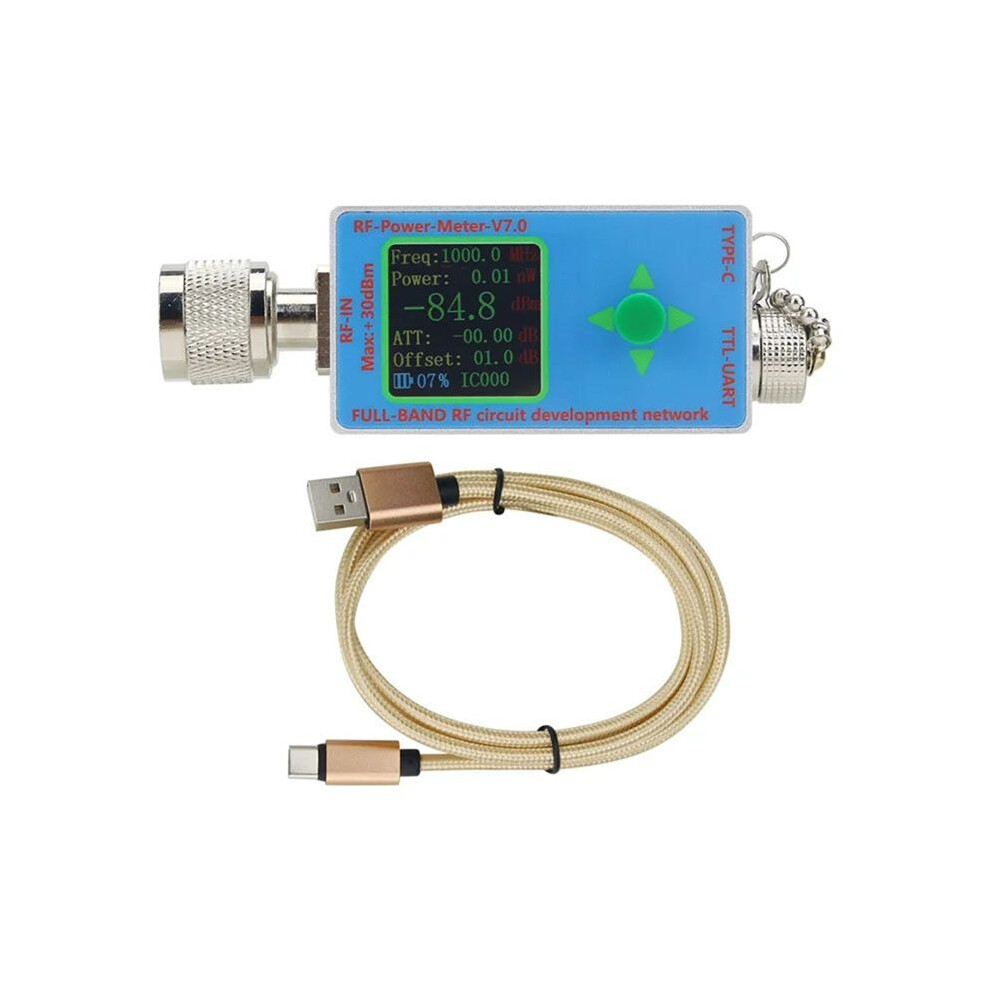

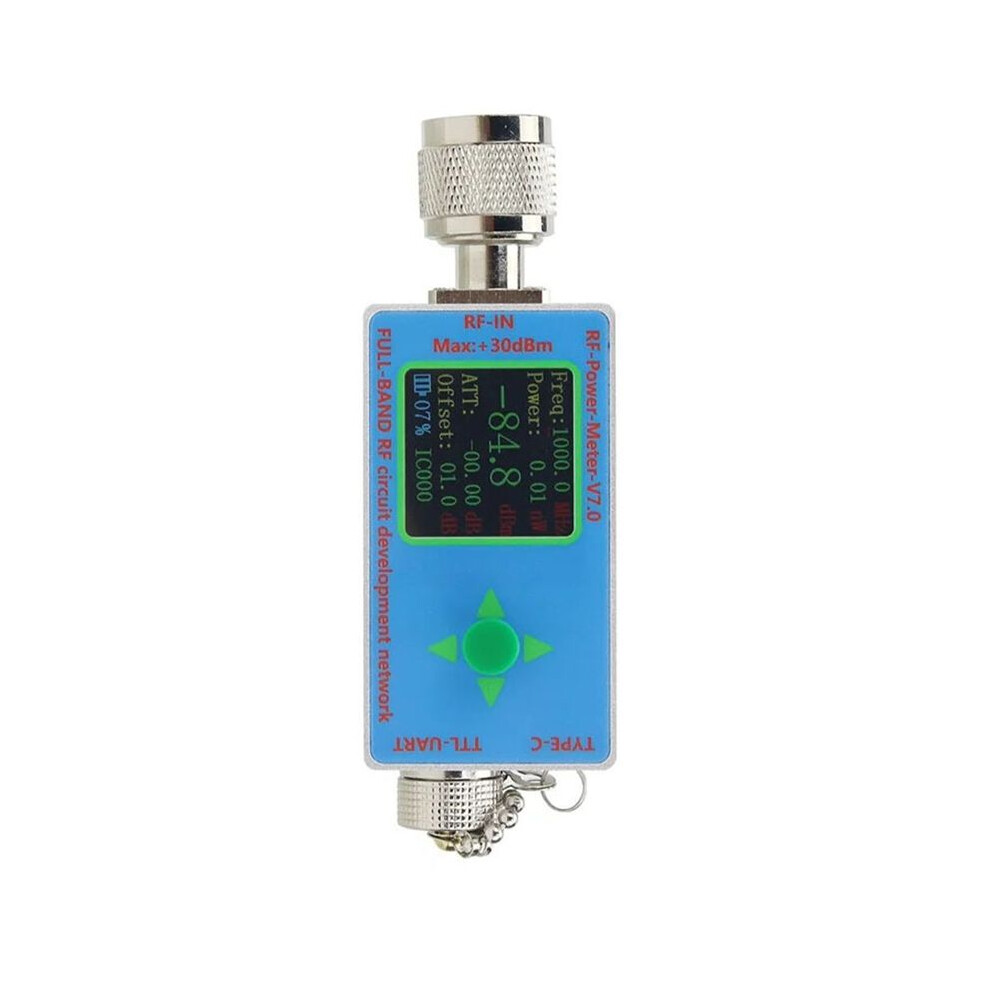

N-Type 100K-10Ghz V7.0 RF Power Meter TTL Software Communication TYPE-C USB Data Export Power Detector RF Attenuator

N-Type 100K-10Ghz V7.0 RF Power Meter TTL Software Communication TYPE-C USB Data Export Power Detector RF Attenuator Beskrivelse

The RF Power Meter V7.0 series is a high-performance low-cost portable TYPE-C simple RF power meter. Provide 5V power supply and high-speed data communication through TYPE-C. Simple to use, compact in size, convenient to carry, stable in performance, high in accuracy, preset bias, wide dynamic range, and fast in measurement. The software accompanying this power meter allows users to configure the power meter the PC side and makes it easy to record and share data.
Supports multiple high-speed dynamic acquisition, with a maximum of 500 kbps (2uS) of upper computer acquisition; Support to 10GHz RF signal acquisition function.
Built in digital programmable attenuator (0-31.75DB), with a digital attenuator, the maximum input power measured is 30dBm (1W), and the dynamic range is+30dBm to - 60dBm.
The power meter V7.0 comes with a 1.3 inch TFT LCD and built-in Li battery, which can be operated offline.
A 4-port aviation plug is used to provide TTL serial port reading and writing functions, providing a single and continuous data reading mode.

The upper computer has two MARK cursor functions to facilitate measurement of modulation pulse width; Automatic calculation of maximum and minimum values; Maximum storage depth 500 points; Support pause, data saving, and export functions.
RF input interface: N-type male connector.
Product Application:
1. Calibration of radio frequency instruments;
2. Inspection and maintenance of radio frequency equipment;
3. Measurement of the standing wave ratio of radio frequency circuits (adding a feedback bridge);
4. Measurement of RF circuit return loss;
5. Interference detection between wireless communication devices;
6. RSSI (received signal strength indication) and transmit power level detection;
7. Performance evaluation of stepping attenuators;
8. Measureme
