NC Emergency Stop NO Red Green Momentary Push Button Station 600V 10A

NC Emergency Stop NO Red Green Momentary Push Button Station 600V 10A Beskrivelse

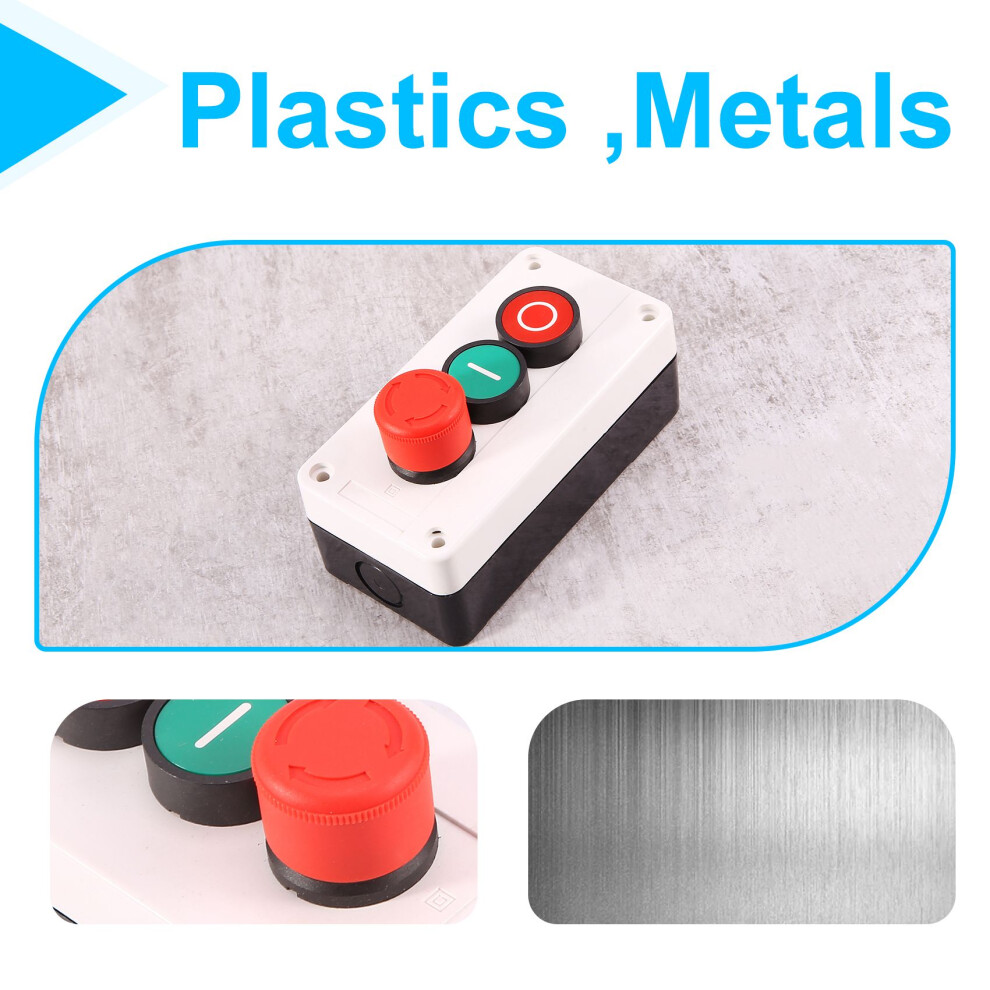

Product Name : Push Button Station;Material : Plastic, Metal;Action Type : Red Emergency Stop Button: Latching Black and White Push Button: Momentary
Contact Type : Red Emergency Stop Button: 1 NC Black Push Button: 1NO White Push Button: 1NO;Ith : 10A;Ui : 600V
AC-15 : 240V 3A;Uimp : 6kV;Terminal Number : 6

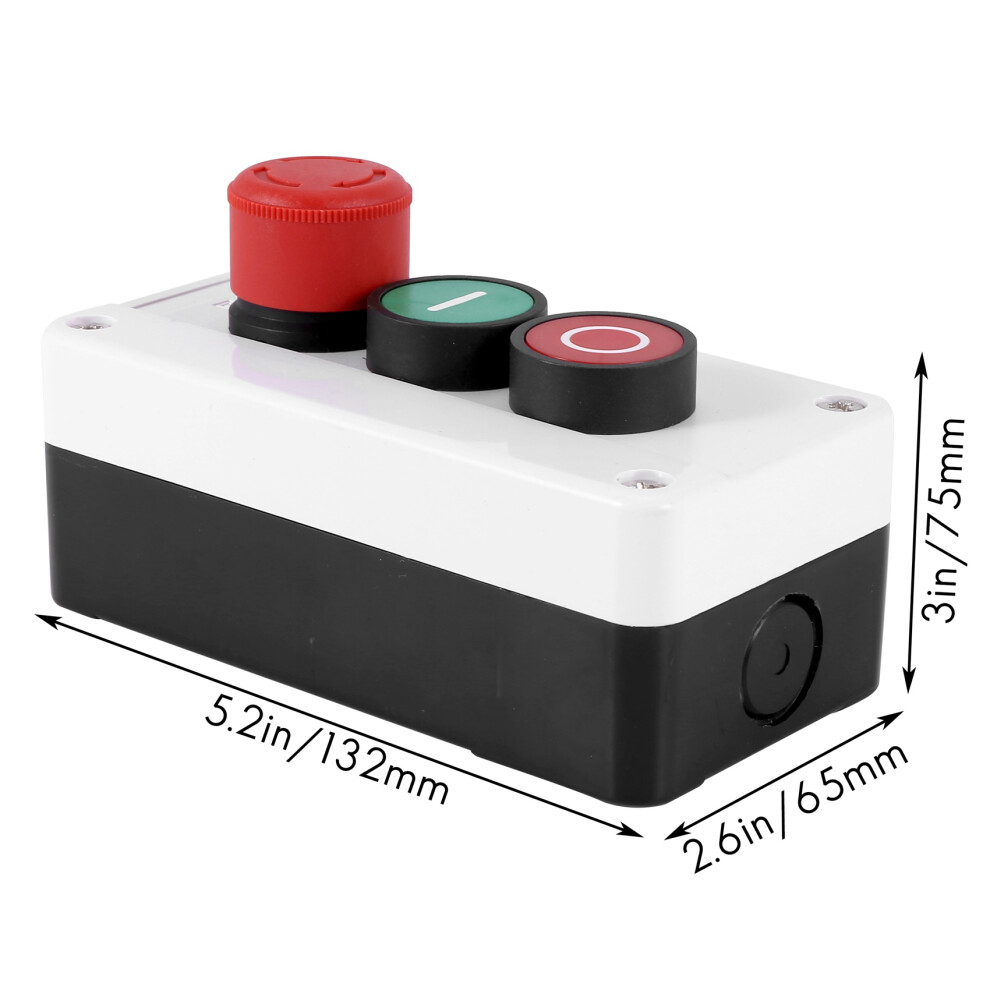

Mounting Hole Diameter : 8mm / 5/16";Hole Distance(center to center) : 118 x 51mm / 4.6" x 2"(L*W);Total Size (Approx.) : 132 x 65 x 75m / 5.2" x 2.6" x 3" (L*W*T)
Button Color : Red, Green;Weight : 227g;
The push button station consists of three separate switches, one is a 1 NC emergency stop red push button , one is a 1 NO momentary red push button and one is a 1 NO momentary green flat push button .

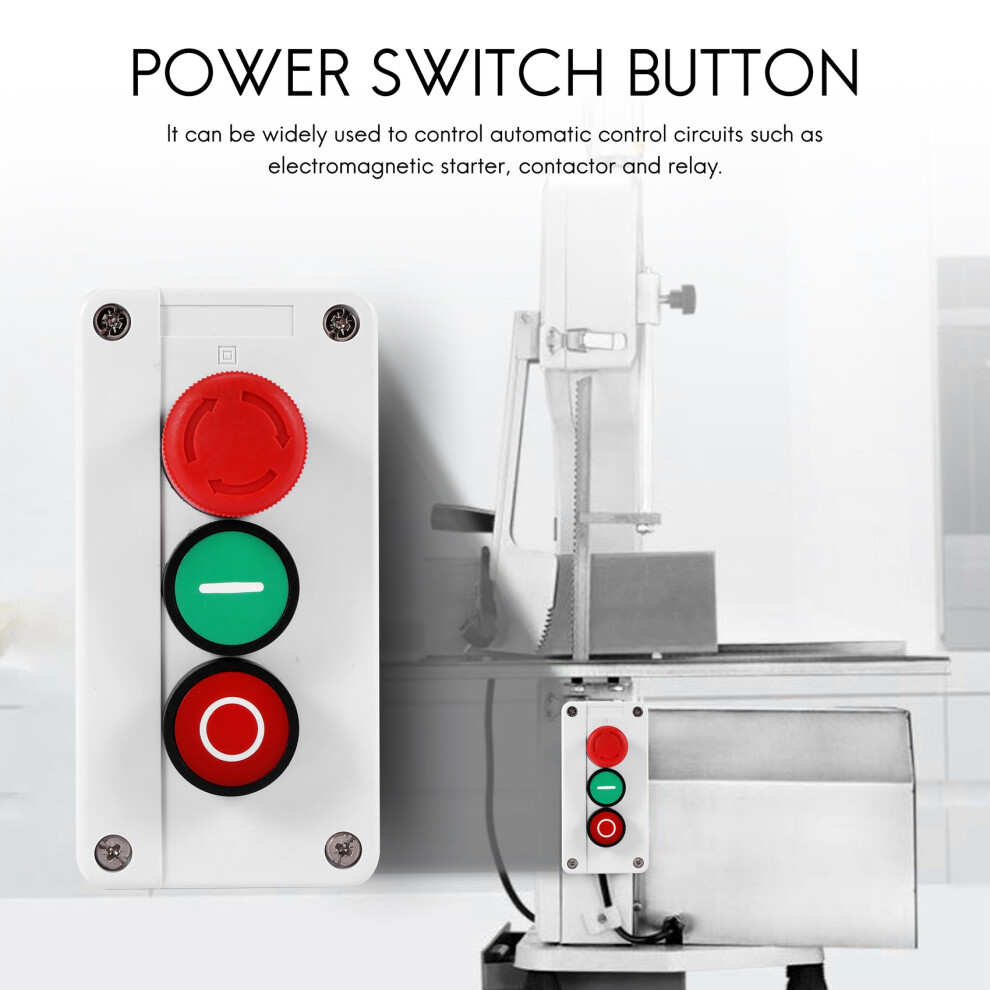

Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.

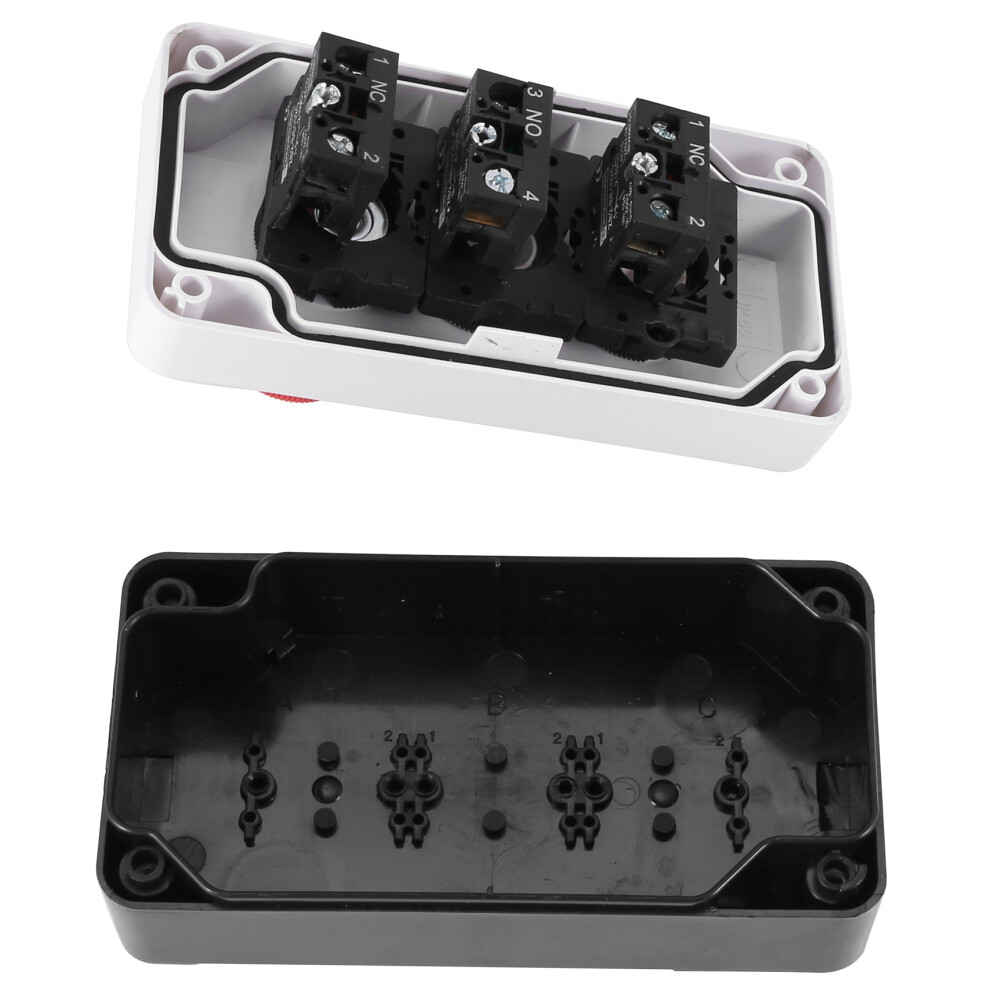

Comes with quick connect terminals to allow for fast connections.
Package Content : 1 x Push Button Station
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
