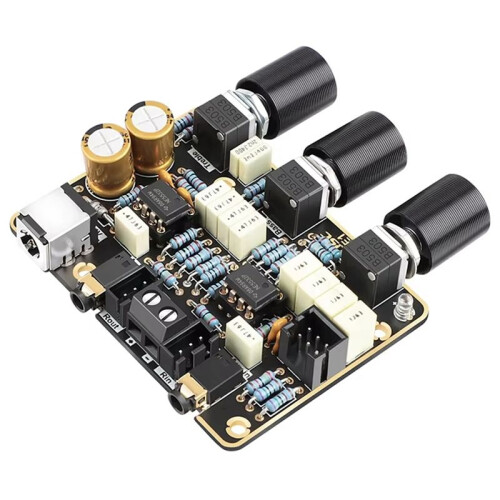

NE5532 Preamlifier Tone Board Active Filter Amplifier Preamp with Adjustment Volume Control for Home Theater
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 134,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (28,00 kr.) | tir. 29. sep. - man. 5. okt.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- Product name:NE5532 preamp tone board
- Using NE5532 chip, it can replace 0P275, AD828, NJM4558, TL072 and other general-purpose dual operational amplifiers.
- Working voltage: DC9-24V (5.0x2.1 MM core input, 2P seat input)
- Output power: rated power 2x770mW stereo (24V/32 ohm)
- Can be connected to loads above 32 ohms
NE5532 Preamlifier Tone Board Active Filter Amplifier Preamp with Adjustment Volume Control for Home Theater Beskrivelse
Product name:NE5532 preamp tone board
Using NE5532 chip, it can replace 0P275, AD828, NJM4558, TL072 and other general-purpose dual operational amplifiers.
Working voltage: DC9-24V (5.0x2.1 MM core input, 2P input)
Output power: rated power 2x770mW stereo (24V/32 ohm)
Can be connected to loads above 32 ohms
Output mode:3.5mm audio terminal
Input mode:3.5mm audio terminal, 3P_2. 54mm terminal block, 6P_2. 5mm
Signal to noise ratio:98db
Total harmonic distortion noise:Less than 0.01%
Frequency response:20-20khz
Low quiescent current/noise suppression
Bass:100hz/8db gain
Treble:10khz/8db gain
PCB:72x53mm
Color:As Shown
Material:Acrylic + electronic components
Package Contents:
1 * tuning board module
1set * acrylic shell accessories
1 * Instruction Manual in Chinese and English
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Detaljer
| OPC | PVZS5G5 |
|---|---|
| Koder | 6031427219694 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 6cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.165kg |
| Colour | As Shown |
| Material | Acrylic + Electronic Components |
