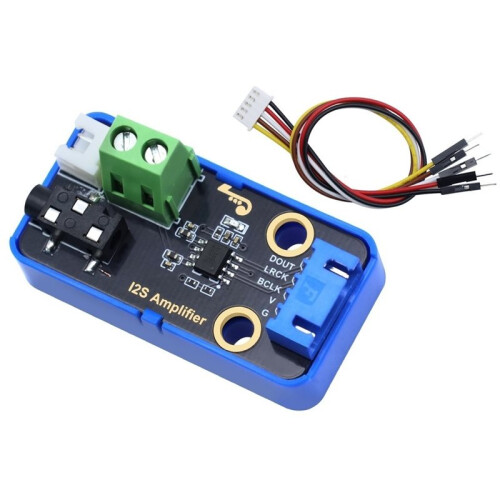

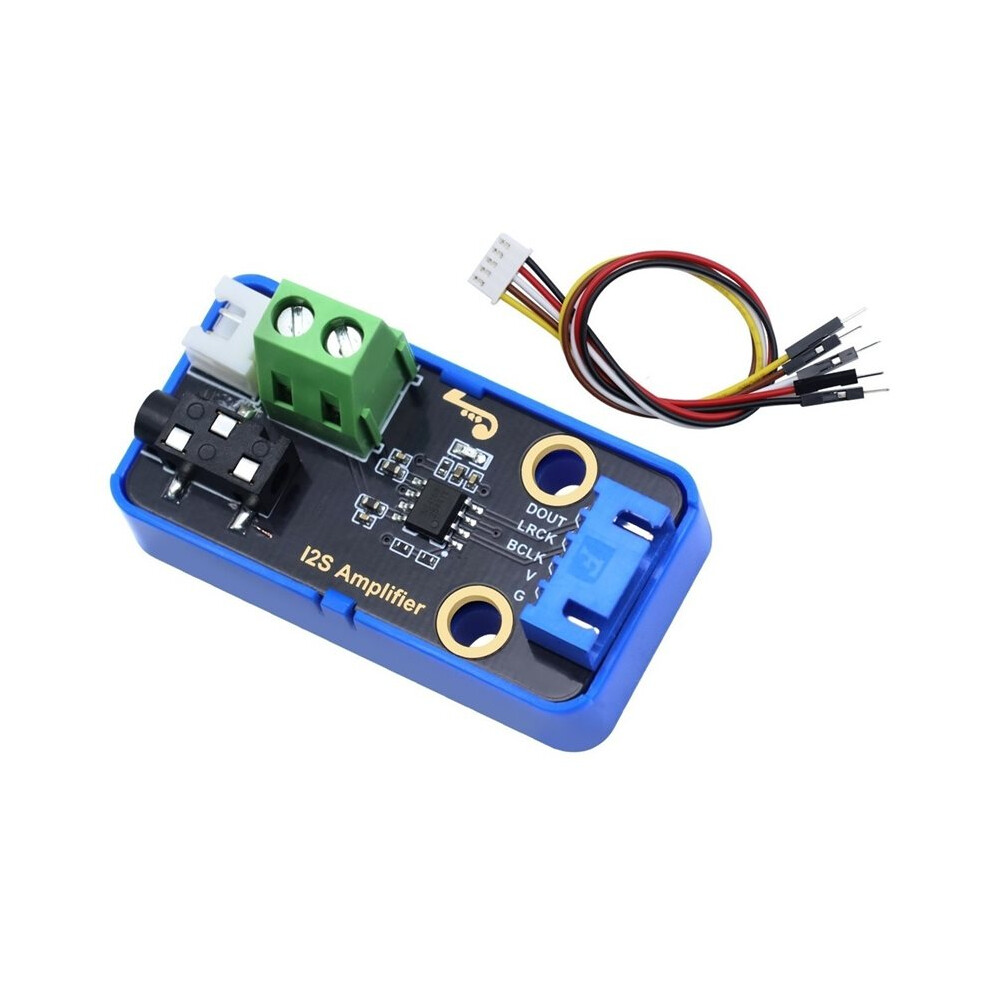

NS4168 I2S Audio Power Amplifier Module DIY Class D Audio Amplifier Board with Headphone Jack with Case

NS4168 I2S Audio Power Amplifier Module DIY Class D Audio Amplifier Board with Headphone Jack with Case Beskrivelse

NS4168 Highly Integrated Class D Audio Amplifier Chip: Features a filter-less Class D architecture; delivers a output of 2.5W (at 5V with a 4Ω load) with to 80% conversion efficiency.
Supports I2S digital audio processing and NCN (anti-distortion) functionality. Automatically detects and adapts to sampling rates across the full 8kHz-96kHz range; equipped with a programmable digital high-pass filter to suit various acoustic configurations.
Includes over-current, over-temperature, and under-voltage protection; safeguards the amplifier chip and prevents damage to connected headphones or speakers, making it suitable for long-term, continuous operation.
Dual-mode audio output (Headphones or Speakers): Supports both headphone monitoring and external speaker playback; allows for free selection between the two modes.

Parameters:
I2S serial digital audio input interface
Supports wide-range sampling rates: 8kHz to 96kHz
Automatic sampling rate detection, self-adaption
Built-in digital high-pass filter, a single pulse sets its turning point
Optional left and right channels can be set by pressing CTRL to the pin level
Anti-distortion NCN function
Class D amplifier without filter
Output power: 2.5W(VDD=5V, RL=4Ω)
Operating voltage range: 3.0V to 5.5V
0.2% THD (VDD=5V, RL=4Ω, Po=1W)
80% efficiency (VDD=5V, RL=4Ω, Po=2.5W)
Excellent noise suppression for "power- and power-off"
Overcurrent protection, overheat protection, under-voltage protection
eSOP8 packaging

NOTE: Not included Headphones and Speakers.
Color: Black &
Material: PCB

Package Contents:
1 * I2S Audio Power Amplifier Module
1 * 5P Cable
