OCXO Constant Temperature Crystal Oscillator Clock Upgrade Board 22/24/25MHz Multi-Channel Frequency PLL Output

OCXO Constant Temperature Crystal Oscillator Clock Upgrade Board 22/24/25MHz Multi-Channel Frequency PLL Output Beskrivelse

Color: As shown in the picture
Material: PC + Metal

Description
report

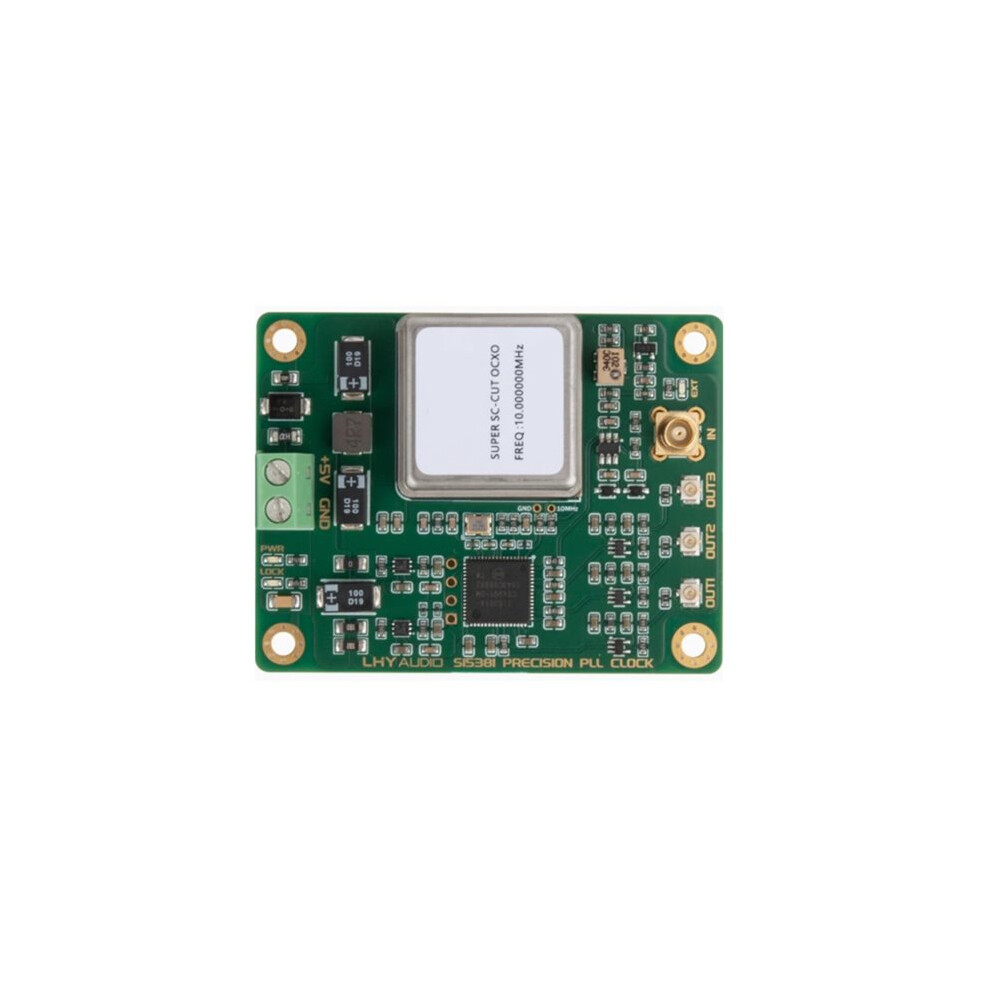

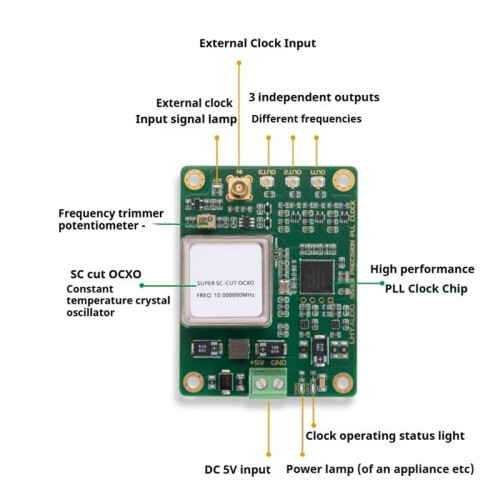

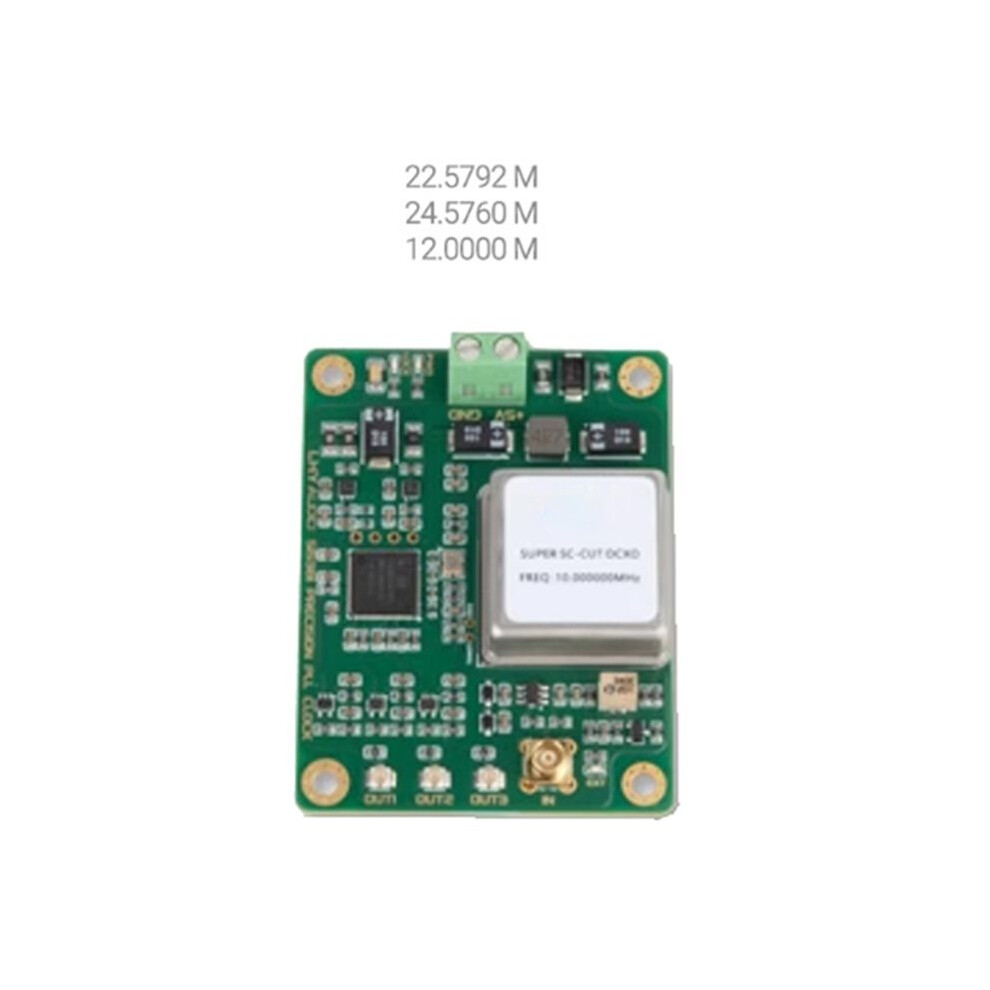

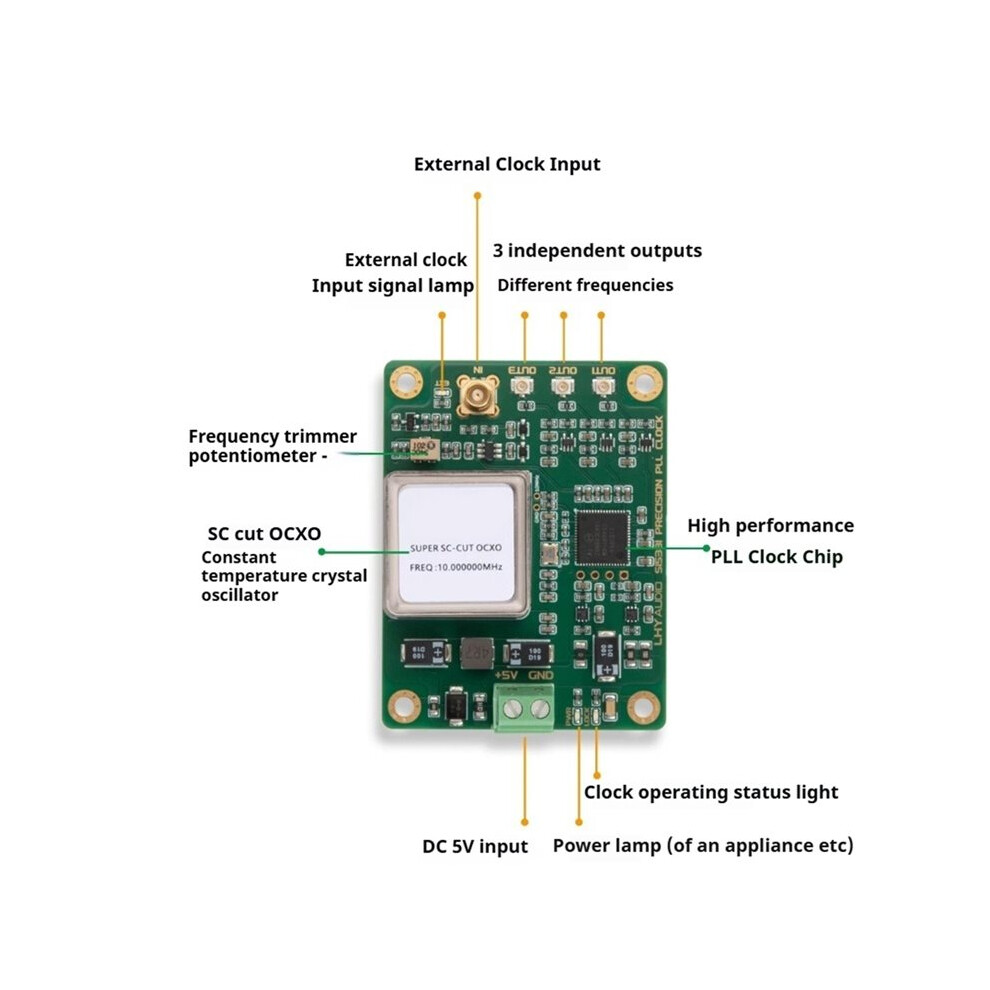

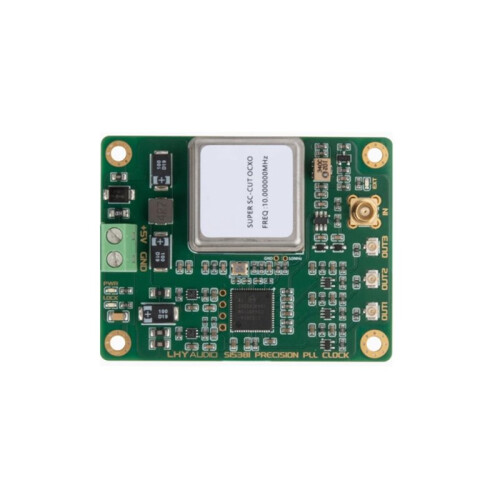

The clock board uses a 10 MHz SC cut OCXO constant temperature crystal oscillator as the reference clock signal, combined with a clock output circuit or PL phase-locked loop chip for frequency conversion, to achieve output of common audio frequency points such as/22.5792MHz/24.5760MHz, used for clock upgrades of audio devices such as optical drives, network cards, switches, routers, CD players, decoders, digital interfaces, etc. Its output frequency points are synchronized with the same source, the quality of frequency division waveform synchronization is good, there is no phase difference, and the phase noise is small. It is particularly suitable for circuits with multiple channels and phase synchronization requirements, and can reduce crosstalk between different frequency points using multiple different crystal oscillators. The quality of ordinary crystal oscillator clock signals is generally low, while Sc cut ocXo constant temperature crystal oscillator clock signals have high precision and stability. Upgrading the clock effectively improves the clock quality, and after upgrading, the sound at both ends is extended and strengthened, transparent and clean, with clear details.
Color: As Shown
Material: PC+Metal

Package Contents:
1*OCXO Constant Temperature Crystal Oscillator
