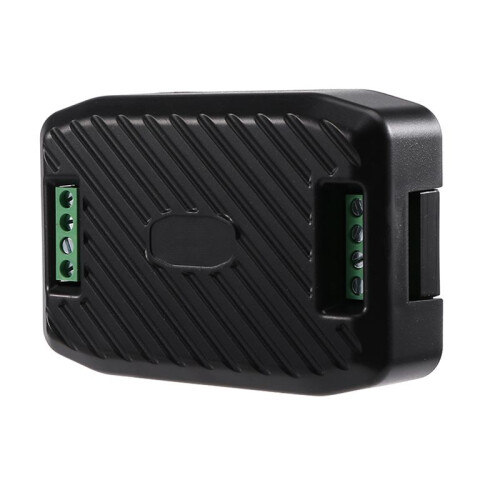

Peacefair AC Single Phase Watt Meter RS485 Modbus 220V 100A Voltage Current Frequency Power Factor Kwh Meter with Split CT&USB
Brand Exogio
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 129,000 anmeldelser med vurderingen “Fremragende”
180,39 kr.
286,80 kr.
Spar 37%!
+31,63 kr. levering
1%
Tjen 1,80 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (31,63 kr.) | ons. 29. jul. - man. 3. aug.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Skilte med åbningstider
Populær
Beskrivelse og detaljer
Oversigt
- AC Single Phase Watt Energy Meter RS485 Modbus 220V 100A Voltage Current Frequency Power factor Kwh Meter With Split CT&USB, This module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the RS485 interface.
- Display Format:When the data is less than 10kWh, the display unit is Wh (1kWh = 1000Wh), for example: 9999Wh ,When the data is greater than equal 10kWh, the display unit is kWh, for example: 9999.99kWh
- Power:The AC voltage passes through the switching power supply to provide two isolated outputs. One way is to provide 3.3V to the measurement system, and the other way is to provide 5V for the 485 communication circuit and external circuits.
- Display Format:When the data is less than 1000W, one decimal place is displayed, for example: 999.9W ,When the data is greater than equal 1000W, only integers are displayed, for example: 1000W
- Voltage: Measurement range: 80 ~ 260V, Resolution: 0.1V , Measurement accuracy: 0.5% , Current, Measuring range: 0 ~ 100A , Initial measurement current: 0.02A, Resolution: 0.001A, Measurement accuracy: 0.5%, Active power, Measuring range: 0 ~ 23kW, Initial measurement power: 0.4W, resolution: 0.1W
Peacefair AC Single Phase Watt Meter RS485 Modbus 220V 100A Voltage Current Frequency Power Factor Kwh Meter with Split CT&USB Beskrivelse
AC Single Phase Watt Meter RS485 Modbus 220V 100A Voltage Current Frequency Power factor Kwh Meter With Split CT&USB, This module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active , the module is without display function, the data is read through the RS485 interface.
Display Format:When the data is less than 10kWh, the display unit is Wh (1kWh = 1000Wh), for example: 9999Wh ,When the data is greater than equal 10kWh, the display unit is kWh, for example: 9999.99kWh
Power:The AC voltage passes through the switching power supply to provide two isolated outputs. One way is to provide 3.3V to the measurement system, and the other way is to provide 5V for the 485 communication circuit and external circuits.
Display Format:When the data is less than 1000W, one decimal place is displayed, for example: 999.9W ,When the data is greater than equal 1000W, only integers are displayed, for example: 1000W
Voltage: Measurement range: 80 ~ 260V, Resolution: 0.1V , Measurement accuracy: 0.5% , Current, Measuring range: 0 ~ 100A , Initial measurement current: 0.02A, Resolution: 0.001A, Measurement accuracy: 0.5%, Active power, Measuring range: 0 ~ 23kW, Initial measurement power: 0.4W, resolution: 0.1W
1.3.5 Measurement accuracy: 0.5%
1.4 Power factor
1.4.1 Measurement range: 0.00 ~ 1.00
1.4.2 Resolution: 0.01
1.4.3 Measurement accuracy: 1%
1.5 frequency
1.5.1 Measurement range: 45Hz ~ 65Hz
1.5.2 Resolution: 0.1Hz
1.5.3 Measurement accuracy: 0.5%
1.6 Active
1.6.1 Measuring range: 0 ~ 9999.99kWh
1.6.2 Resolution: 1Wh
1.6.3 Measurement accuracy: 0.5%
1.6.5 Reset : Use software to reset.
Power failure alarm:Can set the active power threshold, when the measured active power exceeds the threshold, you can alarm
communication interface:RS485 interface.2 other instructions
communication interface power suppl
Detaljer
| OPC | PPBFXVV |
|---|---|
| Mærke | Exogio |
| Koder | 6031463273230 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3.5cm |
|---|---|
| Width | 9.5cm |
| Length | 13cm |
| Weight | 0.1635kg |
| Colour | black |
| Material | plastic |
