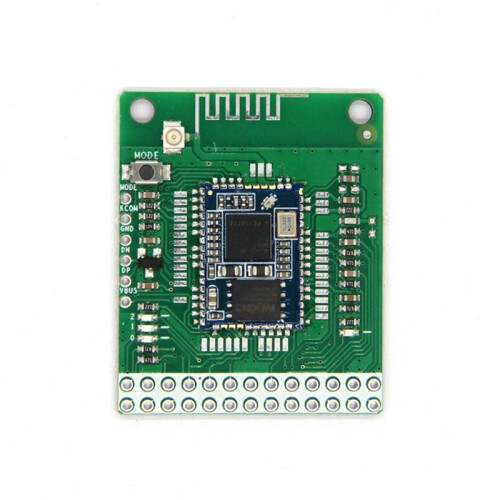

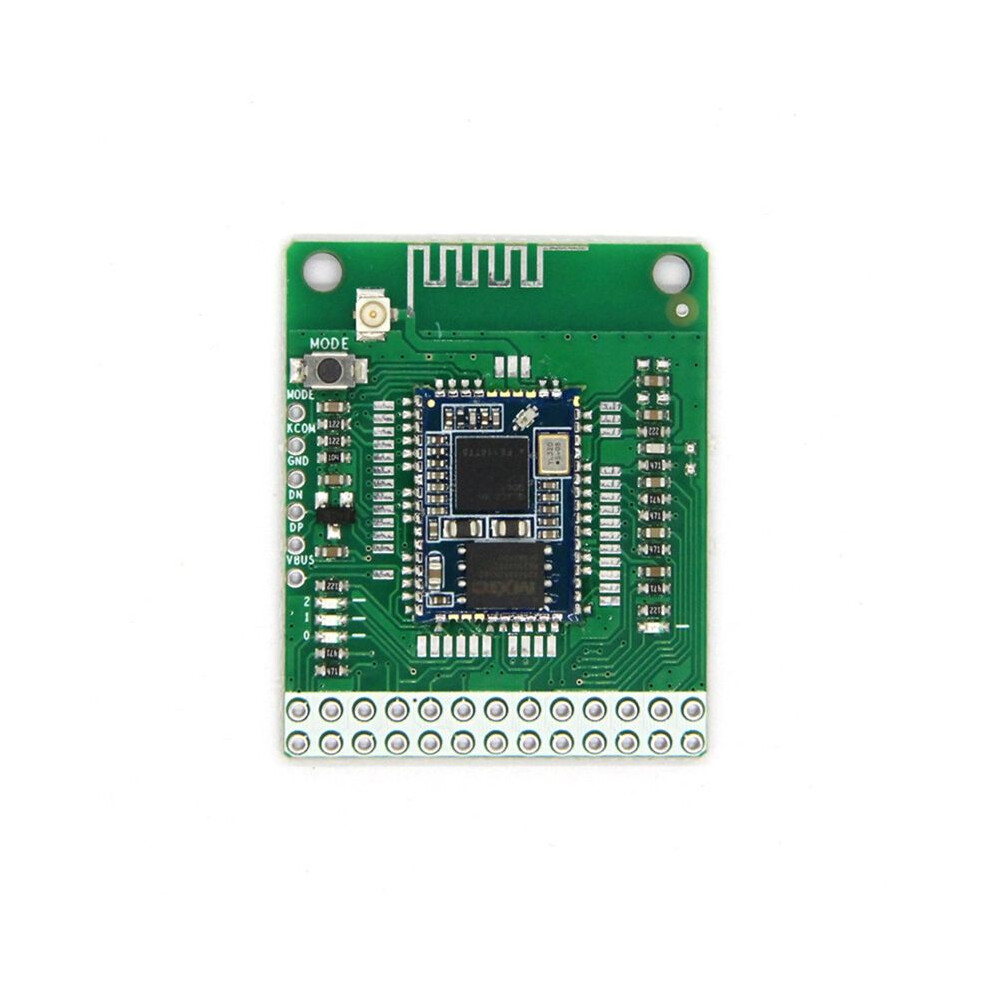

QCC5125 5.1 Stereo Audio Module 3.6-5.5V LDAC Lossless Analog Output APTX/APTXLL/APTXHD Module No Call

QCC5125 5.1 Stereo Audio Module 3.6-5.5V LDAC Lossless Analog Output APTX/APTXLL/APTXHD Module No Call Beskrivelse

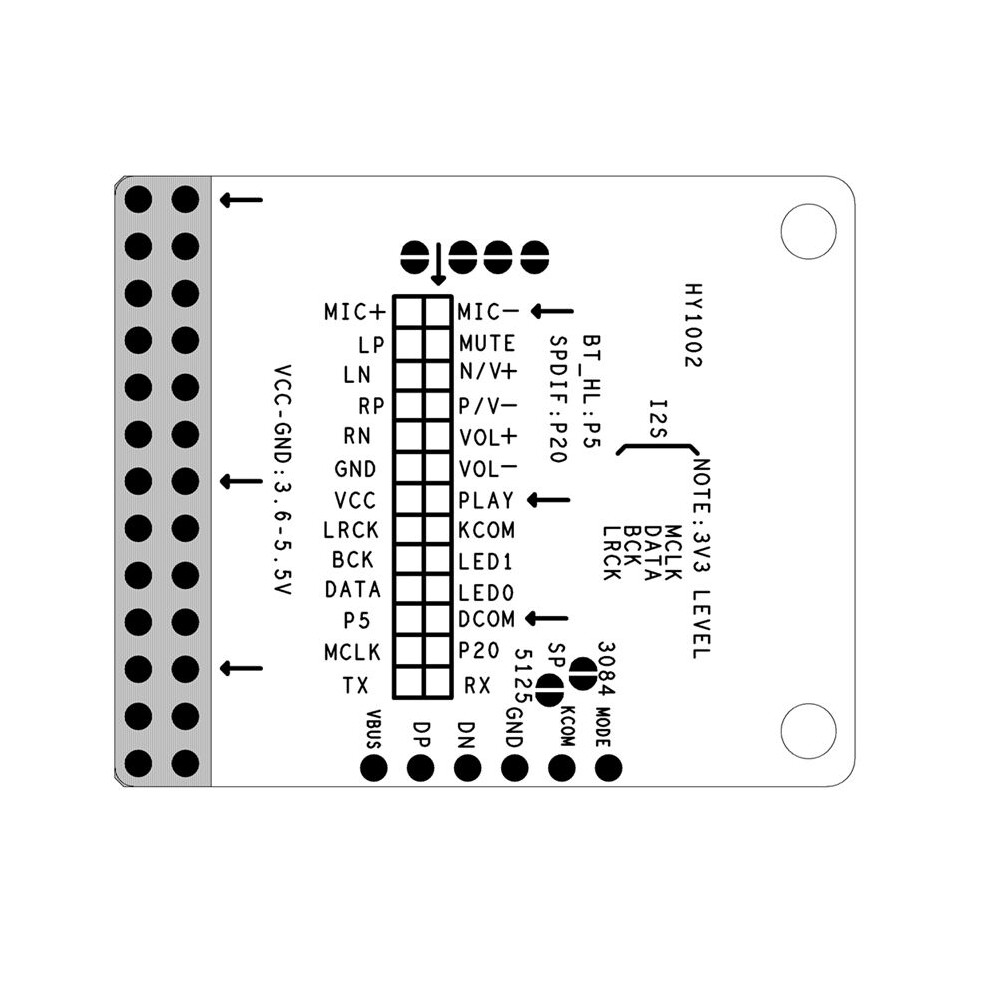

Analog differential output (RP, RN, LP, LN)

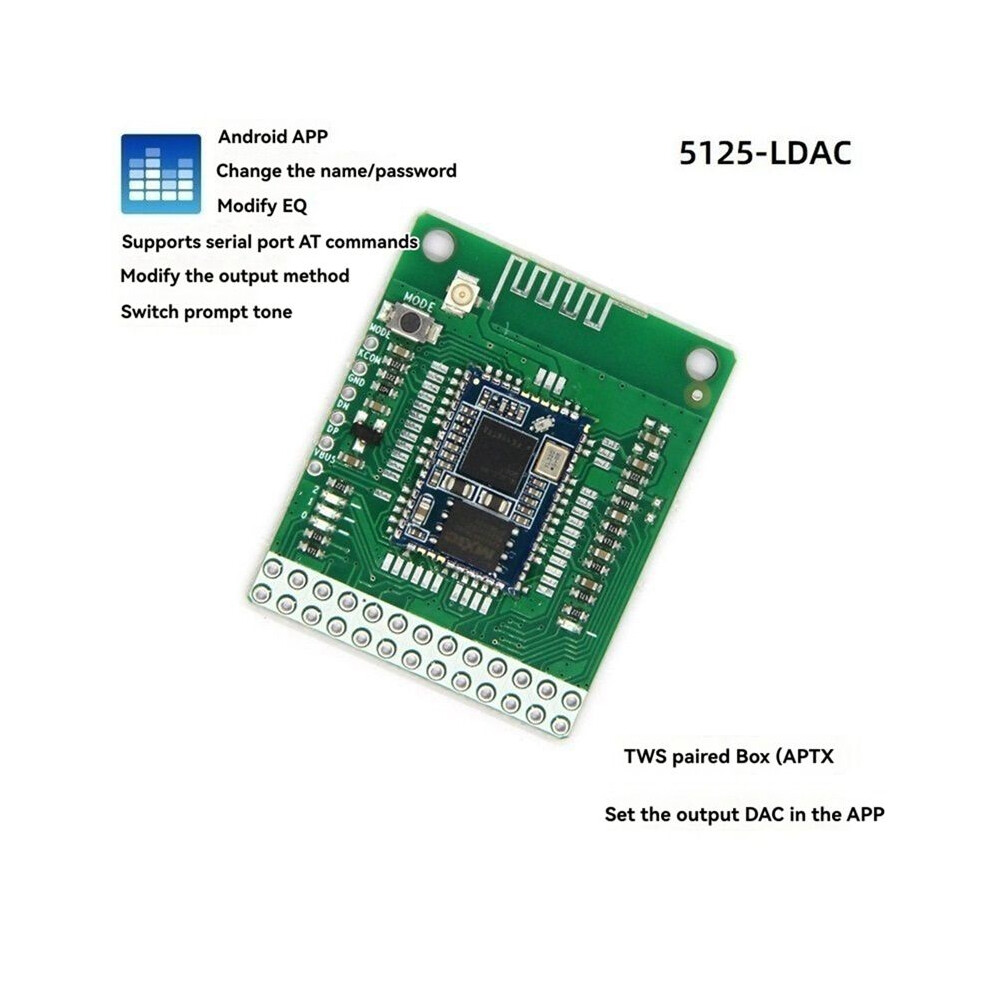

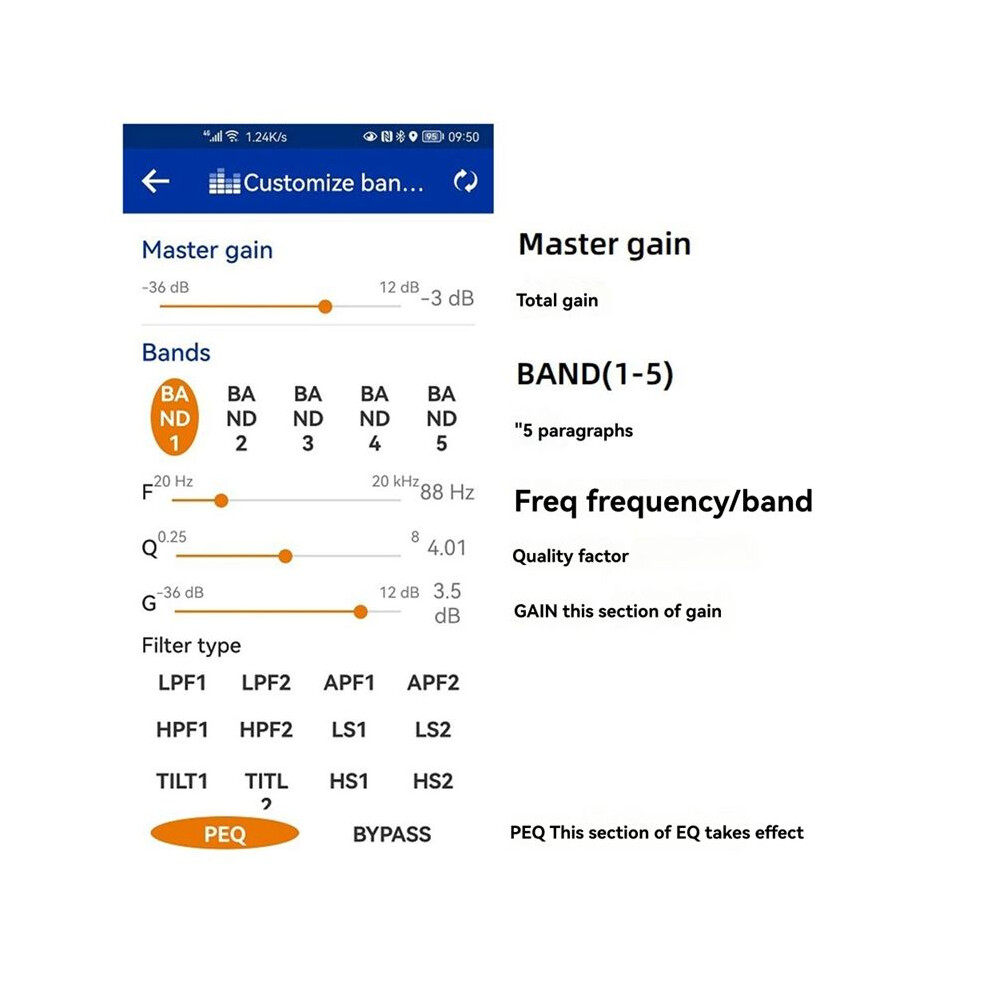

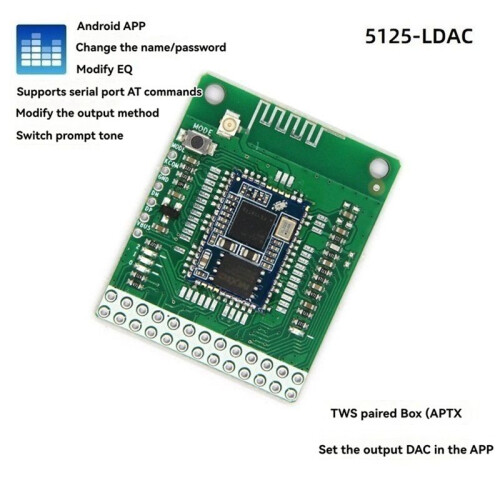

When TWS is used with a box: the highest protocol APTX Clear TWS pairing information: the highest protocol LDAC (5125 default). Support serial port AT commands, 115200, N, 8, 1 Support Android APP to modify name (support any language), pairing password, custom EQ, prompt tone.
5125 supports SBC, AAC, APTX, APTXLL, APTXHD, LDAC,Function keys: KCOM, , VOL+, VOL-, P/V-, N/V+, MODE, high level 3V3 is valid.
connection status output foot BT_HL ( connected: output high 3V3, disconnected: output 0V).

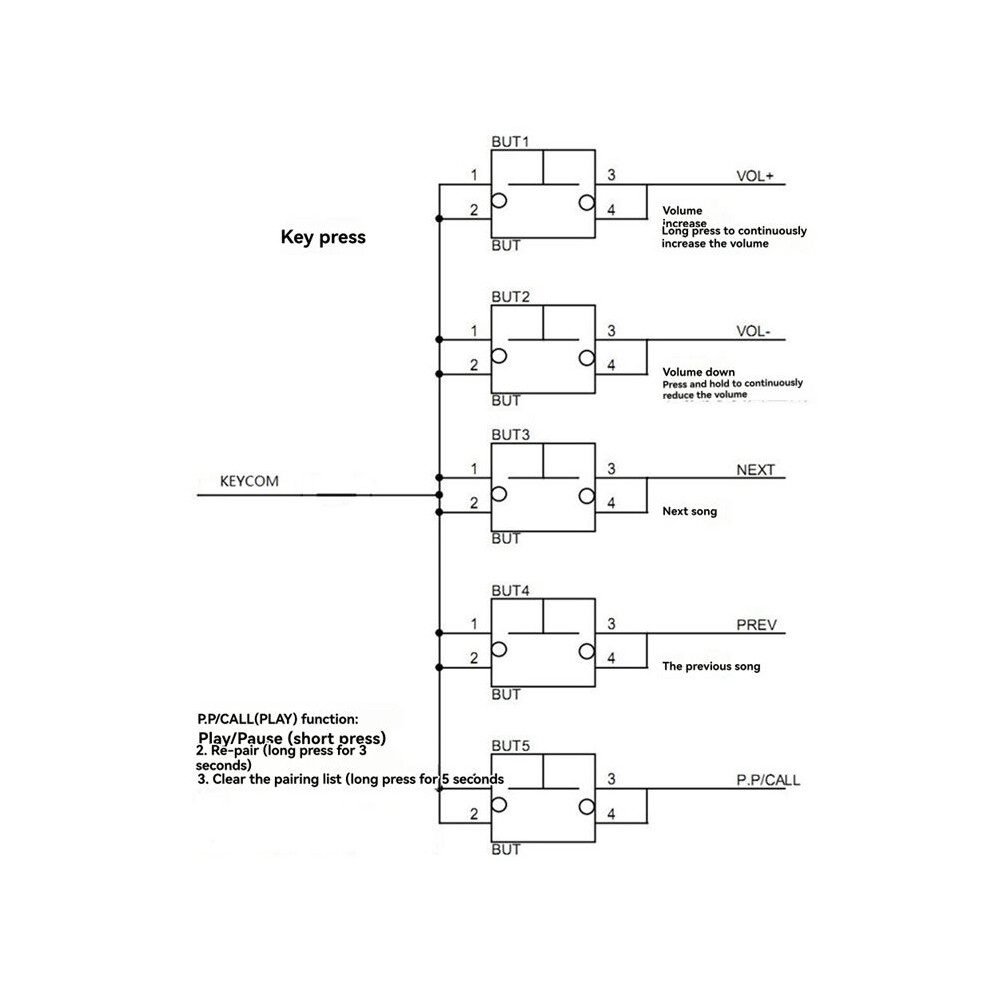

Button Description: "VOL+": short press to increase volume, long press to increase volume, "VOL-": short press to decrease volume, long press to decrease volume, "N/V+": short press to next song, long press to increase volume, "P/V-": short press to previous song, long press to decrease volume, "": short press to /pause/answer/hang , long press to reject

"": long press for 3 seconds and release to force pairing mode,long press for 6 seconds and release to clear pairing list
"" + "VOL+": long press for 1 second at the same to enter host mode and search TWS
"" + "VOL-": Press and hold for 1 second to enter slave mode and TWS is searched
"VOL+" + "VOL-": Press and hold for 1 second to disconnect TWS
"N/V+" + "P/V-": Press and hold for 6 seconds and release at the same to clear TWS pairing information and pairing password, and reset
MODE/TWS key:
is not connected to the mobile phone:
Short press, host mode search TWS (with prompt sound)
Double click, slave mode TWS is searched(with prompt sound)
Press and hold for 6 seconds and release,clear TWS pairing information,clear pairing password,and reset(with prompt sound).
After is connected to the mobile
