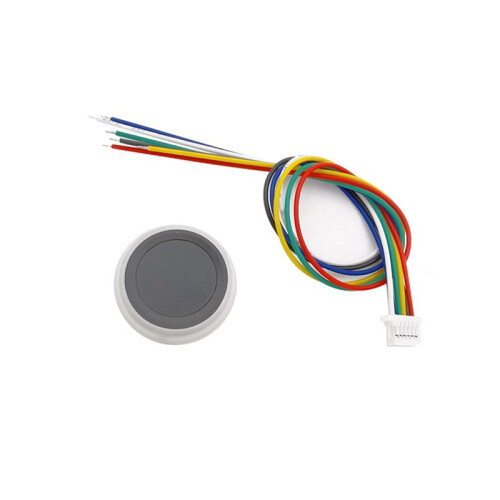

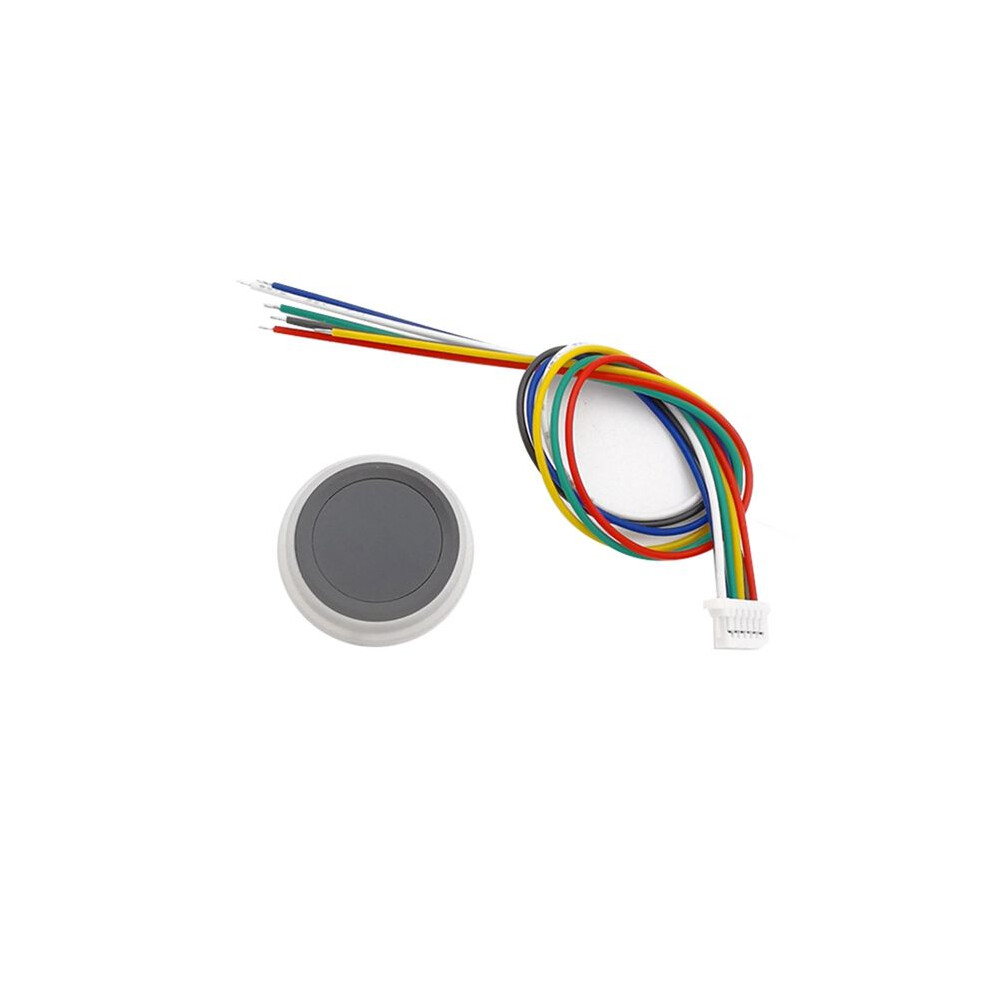

R558S Capacitive Fingerprint Acquisition Module Access Control Security Equipment Fingerprint Recognition Module

R558S Capacitive Fingerprint Acquisition Module Access Control Security Equipment Fingerprint Recognition Module Beskrivelse

Note: + 3.3V is used in R558S power supply design.
Power input is not allowed until the R558S is connected.
If the cable is plugged or unplugged (with hot plug), the electronic components of the R558S will be damaged. make sure that the power is cut off during cable plugging.
Poor power connection, too short interval power off and operation, or too large voltage drop pulse may cause the R558S not to be in a stable and normal working state, so it is necessary to keep the power input stable.
After turning off the power input, it is necessary to turn the power input again at an interval of more than 2 seconds.

Parameter:
Image pixels: 112*88
Resolution (dpi): 508
Sensor wear resistance: Greater than 200,000 times
Storage capacity: 100 fingerprints
Matching method: 1:1, 1:N
Whether there is self-learning: Yes
Whether there are lights: colorful lights
Fingerprint image collection : Less than 180ms
Algorithm search : Less than 100ms(50)
Overall recognition : Less than 0.6s (50 pieces)
Startup : Less than 50ms
False recognition rate (FAR): Less than 0.001%
True rejection rate (FRR): Less than 1%
Communication interface: UART (3.3V)
Communication baud rate (UART): 57600 (default)
Supply voltage: 3.30.3(V)
Maximum current: Less than 40(mA)/VDD
Shutdown current: Less than 12(uA)/ VADD
Operating temperature: -30C to 70C
Storage temperature: -40C to 85C
Relative humidity: 20% to 85% (non-condensing)
Antistatic capability (ESD): contact discharge 8KV, non-contact discharge 15KV
Working vibration: 10-150HZ, 0.5G, 3 axial directions, 1min/oct, 1 /axial direction
Drop: can withstand a 1.2-meter drop to the concrete floor
IP rating: Front waterproof IP54
Colour:Photo Color
Material:pla
