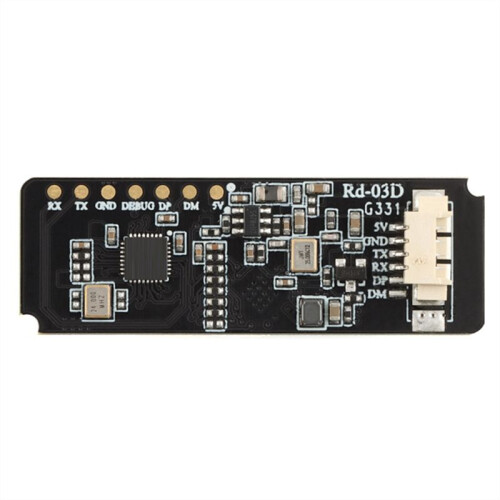

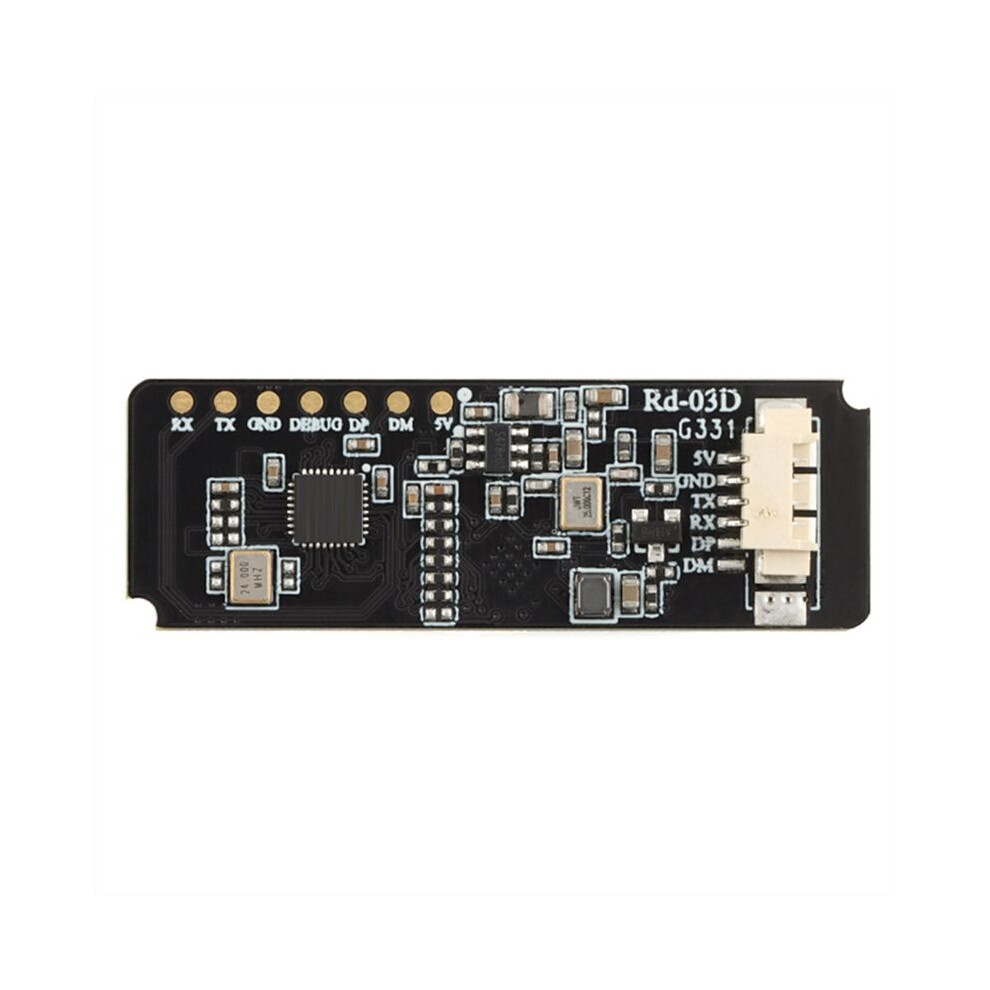

Rd-03D 24G Multi-Target Human Motion Trajectory Localization and Tracking Module -Board PCB

Rd-03D 24G Multi-Target Human Motion Trajectory Localization and Tracking Module -Board PCB Beskrivelse

Rd-03D is a module equipped with Silicon Microelectronics' S5KM312CL chip. S5KM312CL is an integrated microcontroller millimeter wave sensor SoC based FMCW transceiver technology. It operates in the 24 GHz K-band with a maximum sweep bandwidth of 0.25GHz.
This module uses FMCW waveform and S5 series chip's proprietary advanced signal processing technology, combined with MCU's proprietary signal processing and built-in intelligent positioning and tracking algorithm, to detect multiple targets in a designated area and report the results in real . Users can quickly Develop corresponding targeting tracking products.
The Rd-03D module accurately senses the motion status of the human body and the area.
It is equipped with an intelligent algorithm to realize motion trajectory recognition and tracking, and can measure the speed and distance of targets in the area.
The recognition speed is faster and the power consumption is lower. The module can be quickly configured and is suitable for various publicity facilities.

It can intelligently distinguish the human body in motion, micro-motion and stillness, and control the of the equipment. This module has good resistance to external interference and is not affected by wireless signals such as WIFI.
Size: 15.0 x 44.0(0.2)mm
Antenna: -board PCB antenna
Frequency: 24G -24.25GHz
Working temperature: -40 - 85
Storage temperature: -40 - 125, Less than 90%RH
Power supply: Support voltage 5V, supply current greater than equal 200mA
Interface UART: UART rate Default 256000 bps
Due to different product batches, the appearance may vary, which does not affect the use.
Colour:As Shown
Material:PC

Package Contents:
1 x Human Motion Trajectory Localization and Tracking Module
