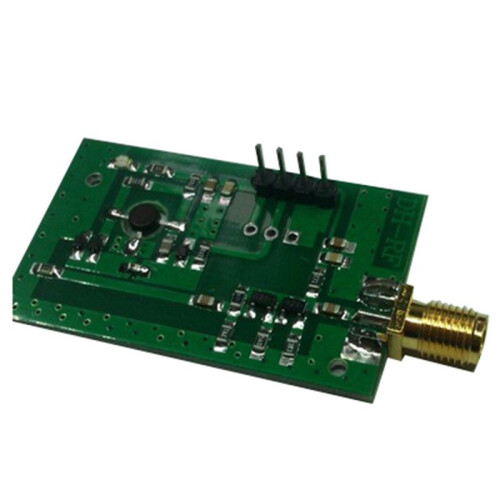

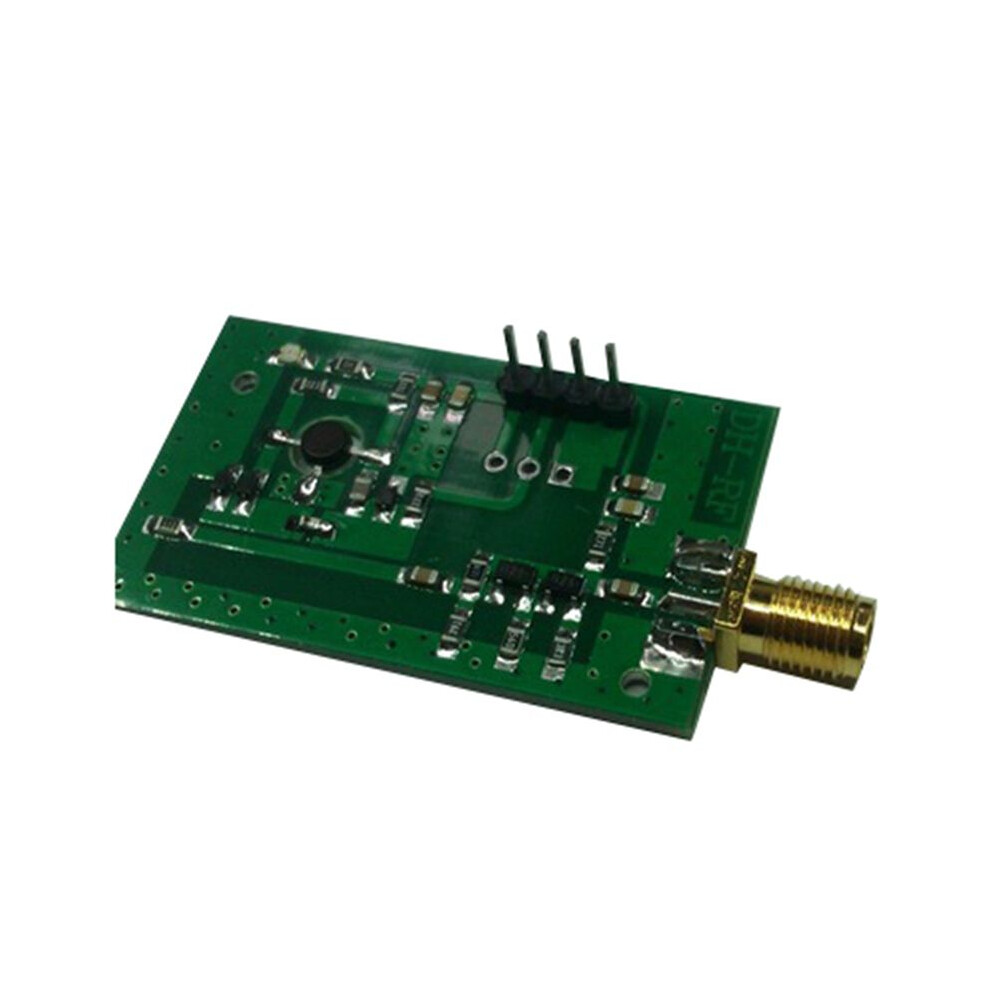

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 127,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | ons. 1. - man. 6. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Radio-oscillatorer
Oversigt
- Microwave broadband transistor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
- Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate DC --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
- RF indicators are as follows:
- Frequency range: 515MHZ-1150MHZ
- Output power: 7dBm, which is 5 milliwatts.
Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz Beskrivelse
Microwave broadband transistor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
RF indicators are as follows:
Frequency range: 515MHZ-1150MHZ
Output power: 7dBm, which is 5 milliwatts.
Output harmonics: -22dBc
Supply voltage: 12V, current 50 mA
Frequency regulation voltage range: 0-12V
Output RF interface: SMA female
Material: PCB
Color as shown
Package Contents:
1 x Rf Voltage Controlled Oscillator
Detaljer
| OPC | PVBDK5S |
|---|---|
| Mærke | Torribaly |
| Koder | 6031137995123 (EAN) |
Produktdata
| Height | 2cm |
|---|---|
| Width | 8cm |
| Length | 11cm |
| Weight | 0.008kg |
| Colour | as shown |
| Material | PCB |
