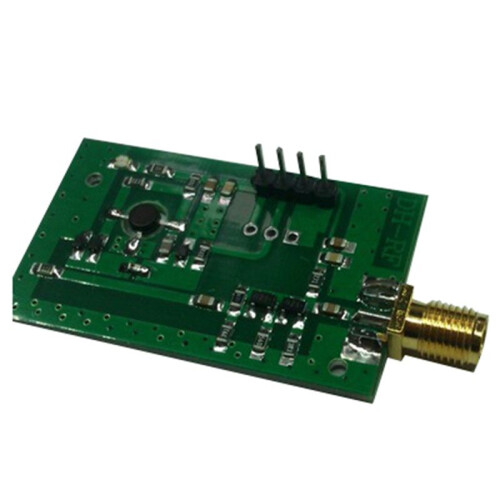

Name: Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz
Brand: ISTOVO
SKU: PVM8FPG
Price: 176.55 DKK
Availability: InStock

Brand ISTOVO

På lager

Derfor vil du elske at handle hos OnBuy:

Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
Gratis levering – på millioner af varer på siden
Kunder elsker os – 129,000 anmeldelser med vurderingen “Fremragende”

Se fuld produktbeskrivelse og detaljer

Antal

176,55 kr.

262,91 kr. Spar 33%!

+31,63 kr. levering

1% Tjen 1,77 kr. med det samme Læs mere

Læg i kurv

Priserne for varer, der sælges af OnBuy, inkluderer moms.

Rentefrie betalingsmuligheder

Solgt af Ferdinand

Professionel sælger

Besøg butik

1.5k+ ordrer

Se fuld produktbeskrivelse og detaljer

Levering: Standard (31,63 kr.) | fre. 31. jul. - ons. 5. aug.

Returnering: 30 dage

180 dages betalingsbeskyttelse

Læg i kurv

Mest populære i Reservedele til barnevogne

Reservedele til barnevogne

Beskrivelse og detaljer

Oversigt

Microwave broadband transistor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate DC --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
RF indicators are as follows:
Frequency range: 515MHZ-1150MHZ
Output power: 7dBm, which is 5 milliwatts.

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz Beskrivelse

Microwave broadband transistor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
RF indicators are as follows:
Frequency range: 515MHZ-1150MHZ
Output power: 7dBm, which is 5 milliwatts.

Output harmonics: -22dBc

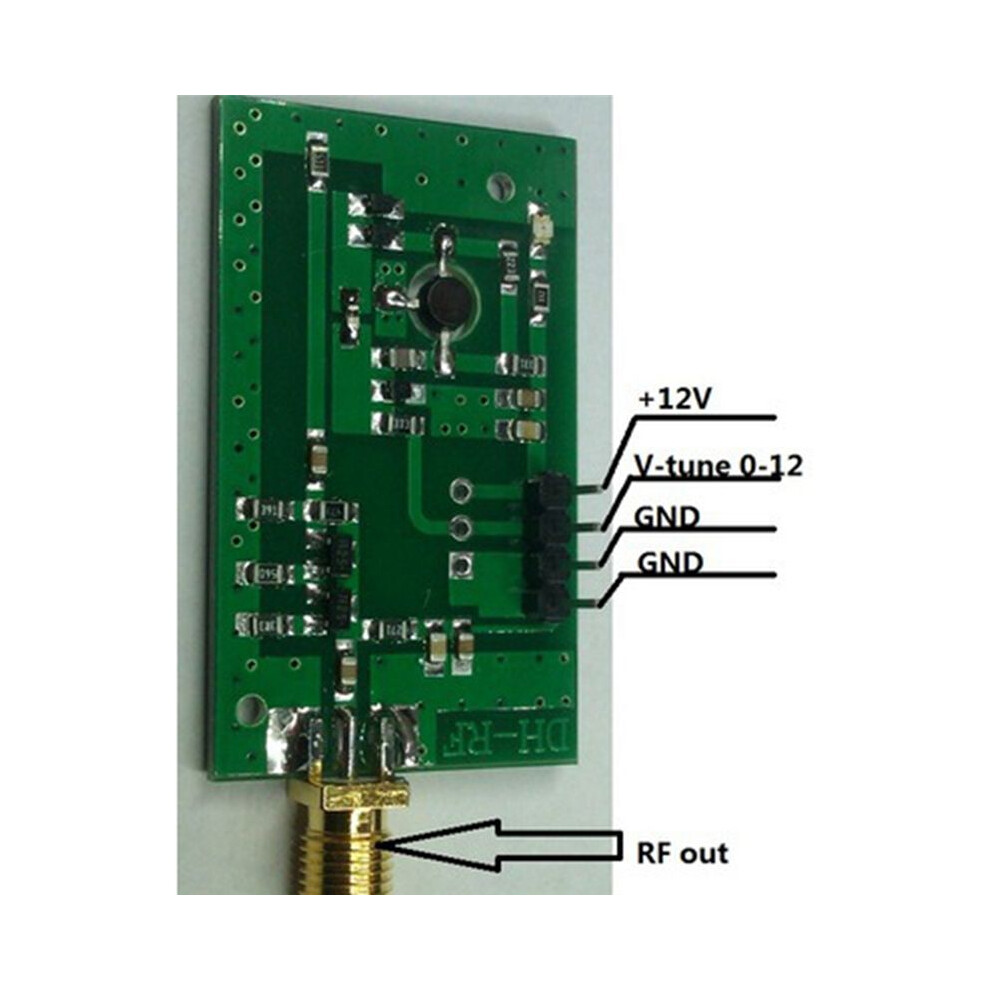

Supply voltage: 12V, current 50 mA
Frequency regulation voltage range: 0-12V
Output RF interface: SMA female
Material: PCB
Color as shown

Package Contents:
1 x Rf Voltage Controlled Oscillator

Detaljer

OPC	PVM8FPG
Mærke	ISTOVO
Koder	6033327644088 (EAN)
	Produkt- og sikkerhedsoplysninger

Produktbilleder

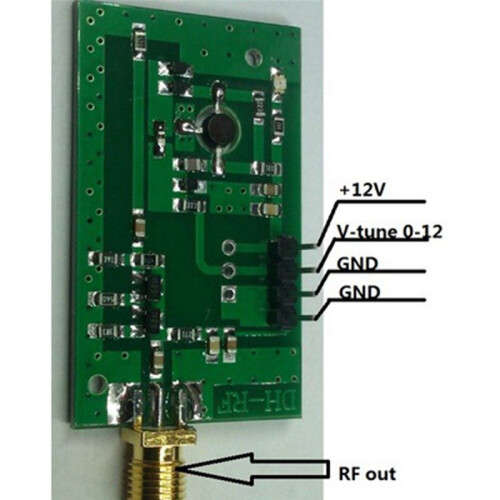

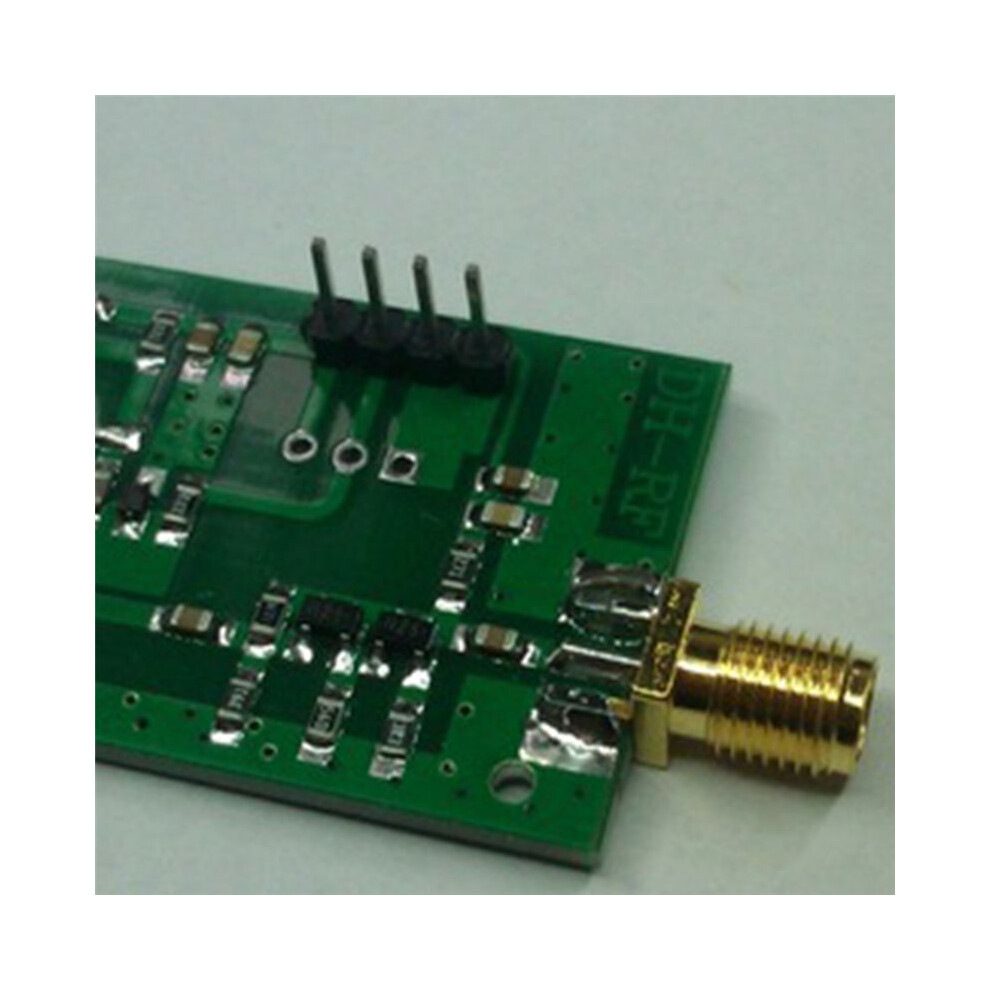

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz 1

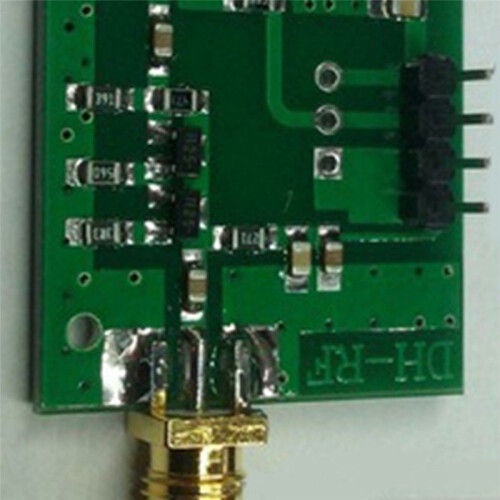

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz 2

Produktdata

Height	2cm
Width	8cm
Length	11cm
Weight	0.008kg
Colour	as shown
Material	PCB
