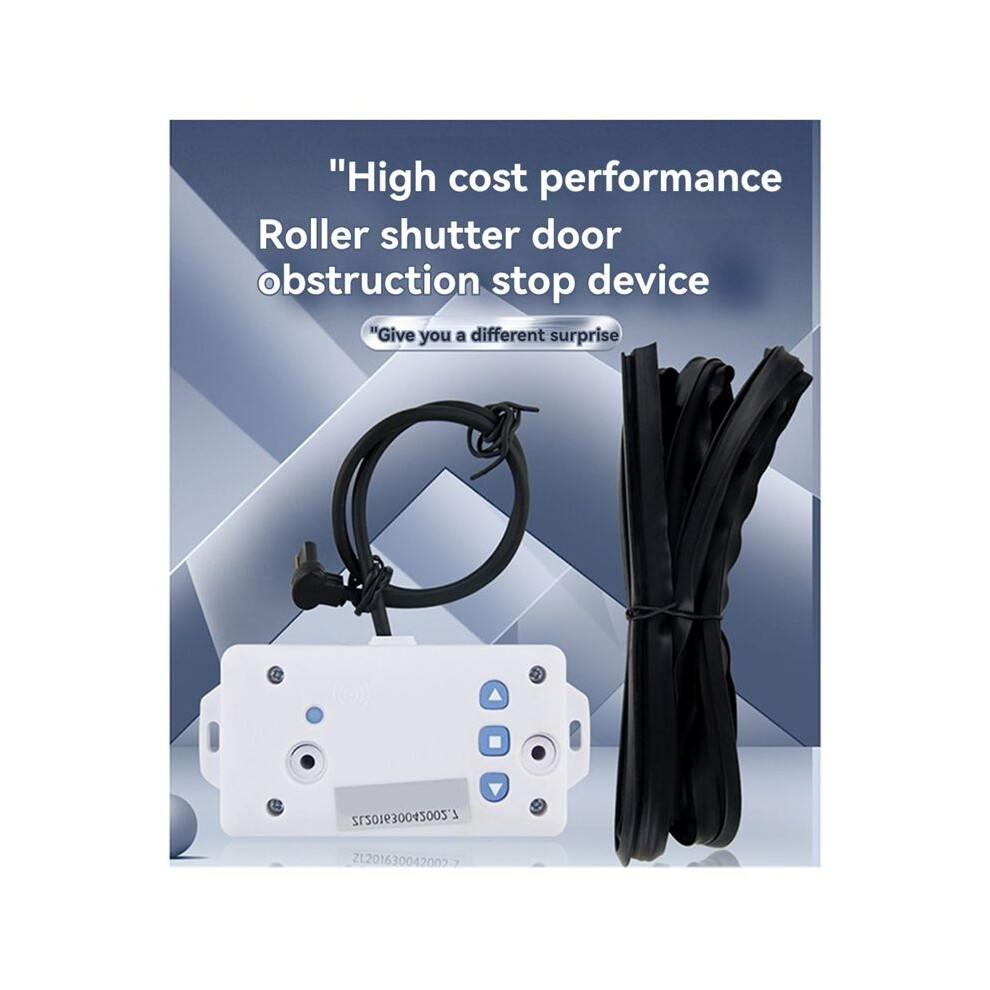

Rolling Shutter Door Stop External Motor Tubular Motor 433 Stop When Encountering Resistance Stop Including 1 Meter Wire

Rolling Shutter Door Stop External Motor Tubular Motor 433 Stop When Encountering Resistance Stop Including 1 Meter Wire Beskrivelse

Built-in function, Stop when encountering resistance

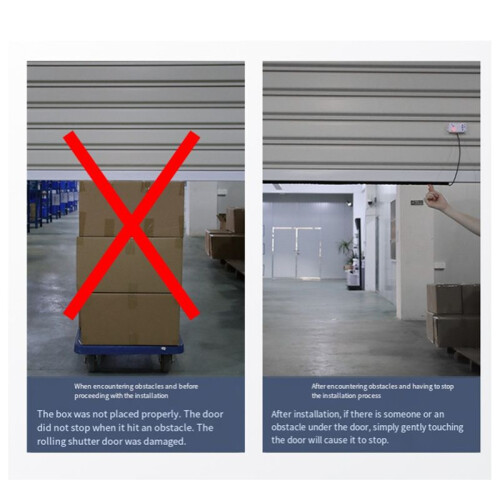

The conductive rubber strip is hollow, with conductive metal wires the top and bottom. The normal state is disconnected. When encountering resistance, the top and bottom are closed to conduct electricity. The controller sends a stop command to protect the door or the items under the door.

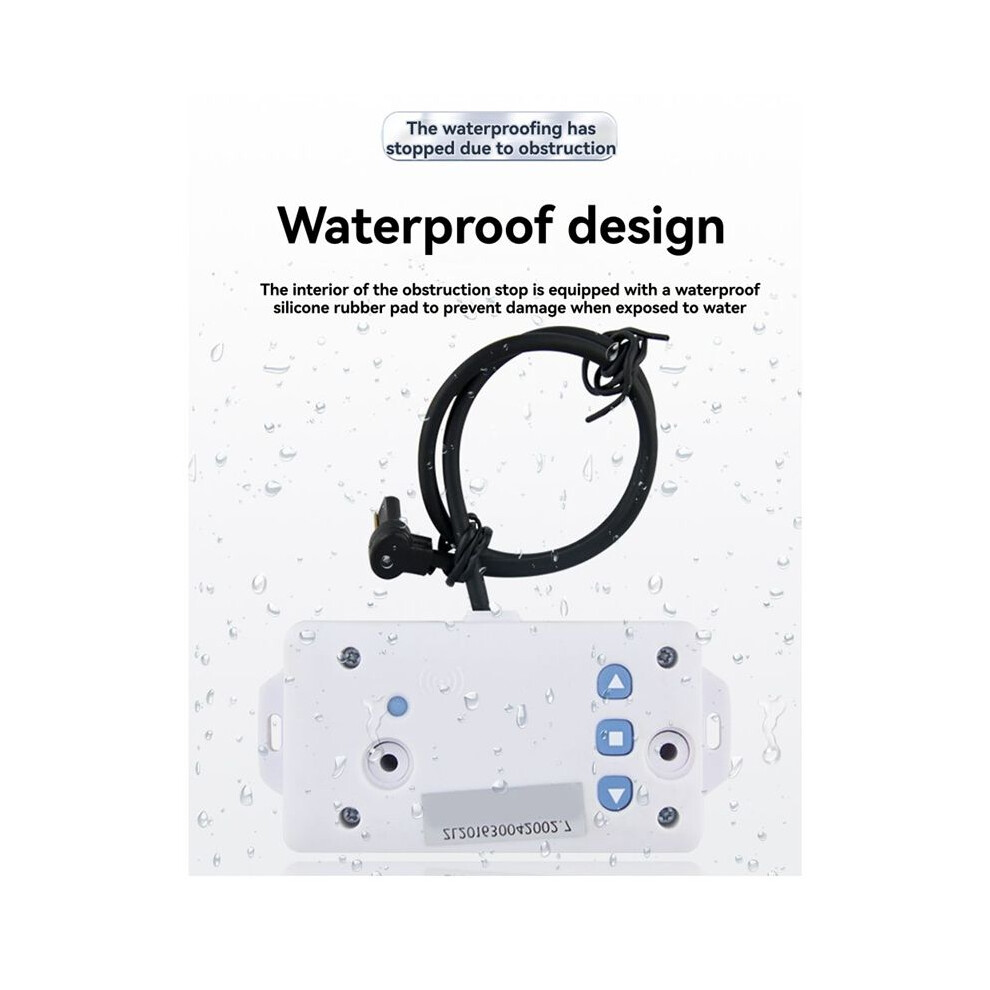

Waterproof when blocked, The inside of the stopper is equipped with a waterproof silicone pad to prevent water damage

Installation:

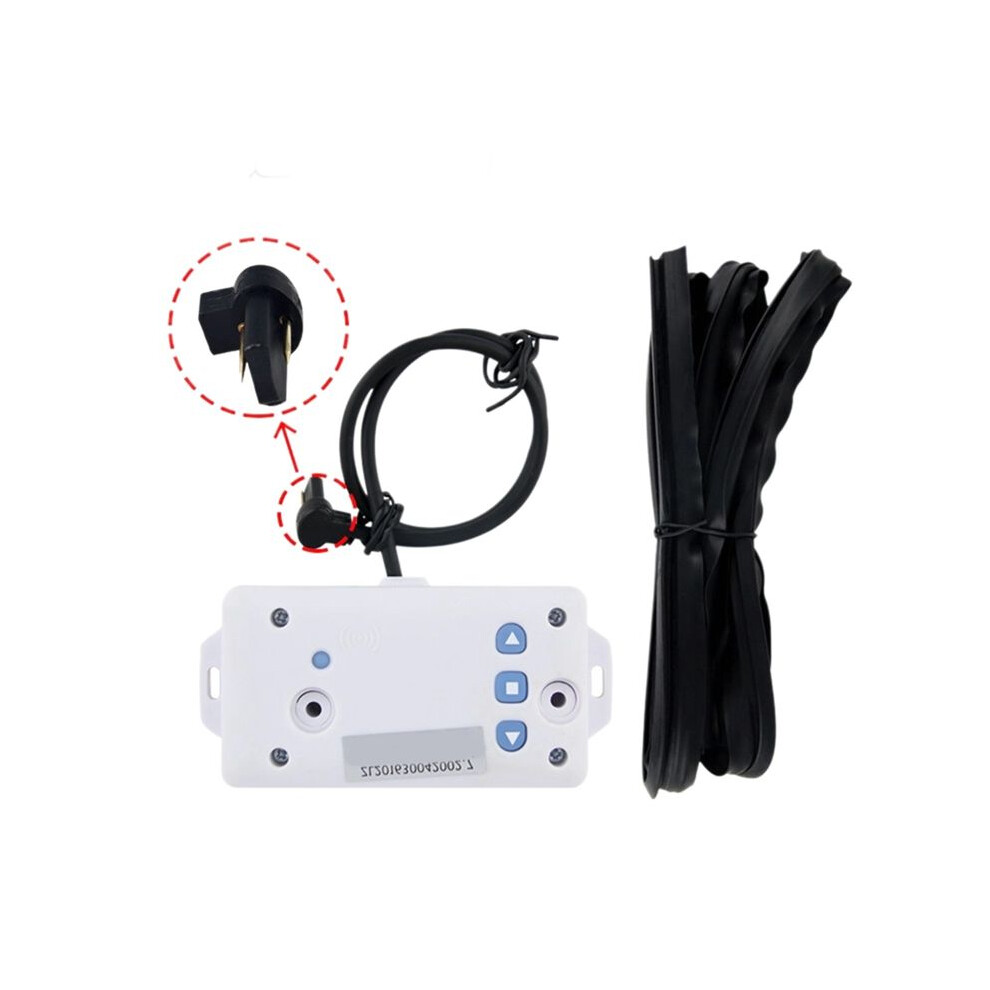

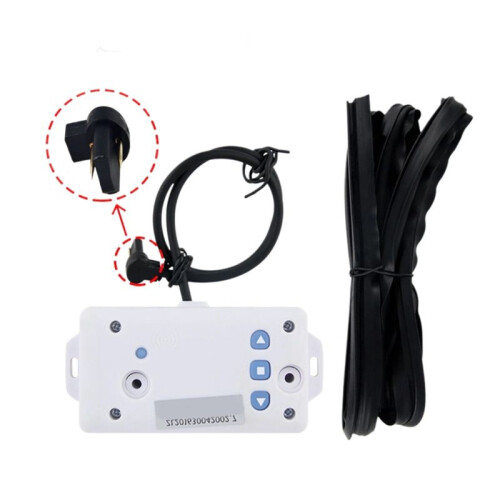

The whole set of products includes: D Host with sealing pin 2 conductive rubber strips 3 sealing pins
The host seals the machine by inserting one end of the rubber strip tightly, and the other end also uses the matching
The sealing pin can be inserted tightly (note that the sealing pin is aligned with the card slot and sealed tightly)
When installing the rolling door, use strong glue to fix it
Leave a 2.5 cm between the two ends of the rubber strip and the track opening
Buyers need to purchase strong glue by themselves
Step 1:
New stop code clear code: Press the stop code (must be synchronized) and V at the same , press and hold for 3 seconds (do not release in the middle), then the stop code indicator will flash 5 times, then go out, this it means that the data is cleared.
Note! Do not perform this operation the old remote control
Step 2:
Stop code copy, hold the old remote control in your left hand and the new stop code in your right hand, try to get them close together and press the corresponding button without letting go. When the stop code indicator is always (no longer flashing), the copy is successful, and the other buttons are analogous.
Method: Get as close as possible and press the door opening button at the same
Color:As Shown
Material:plastic

Package Contents:
