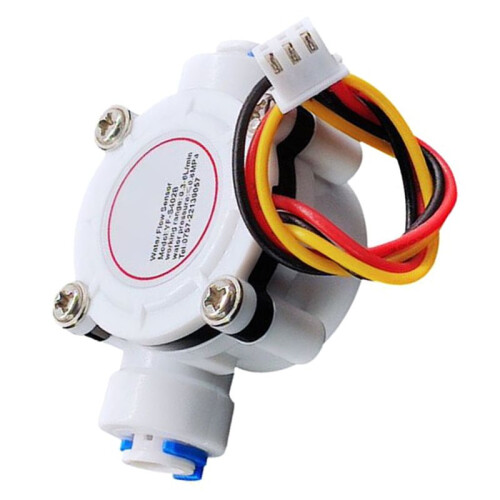

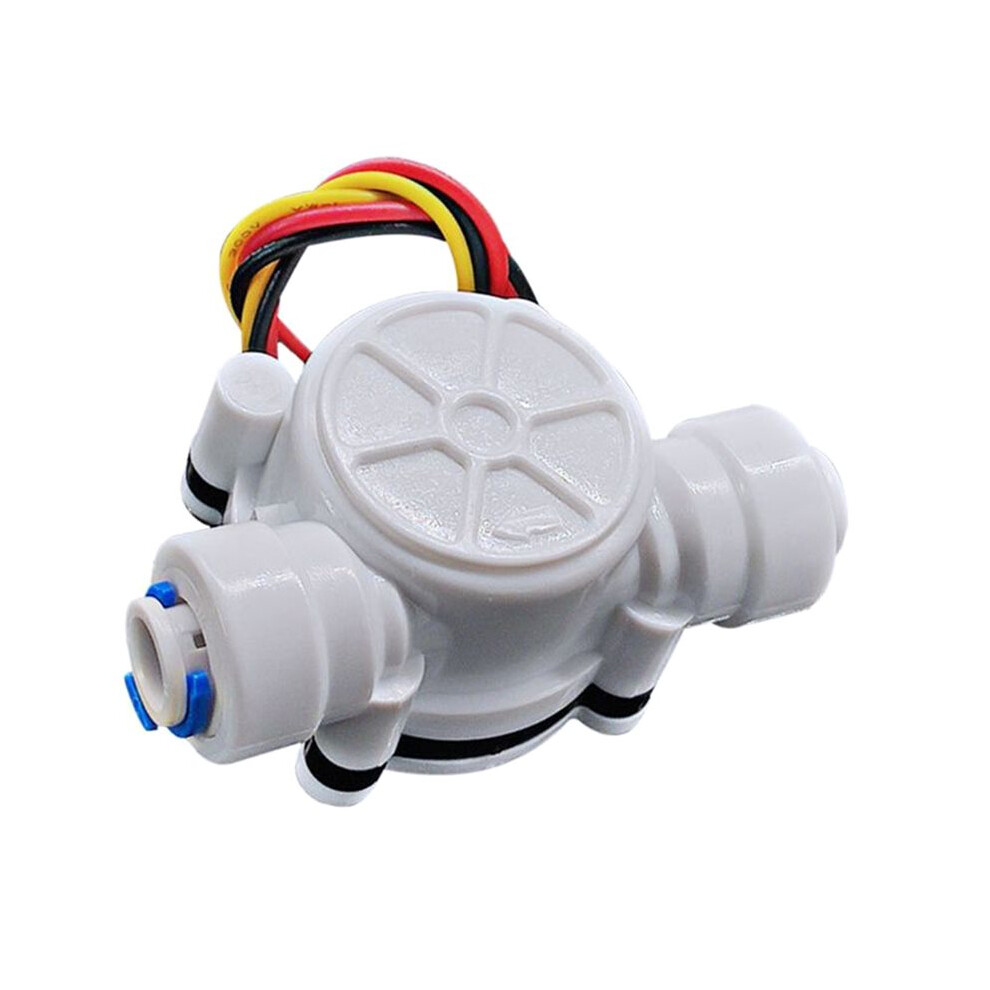

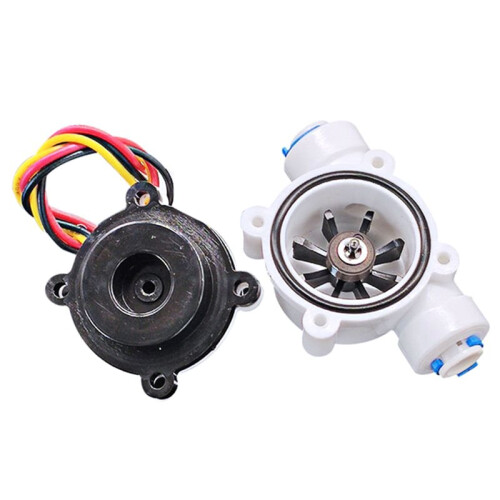

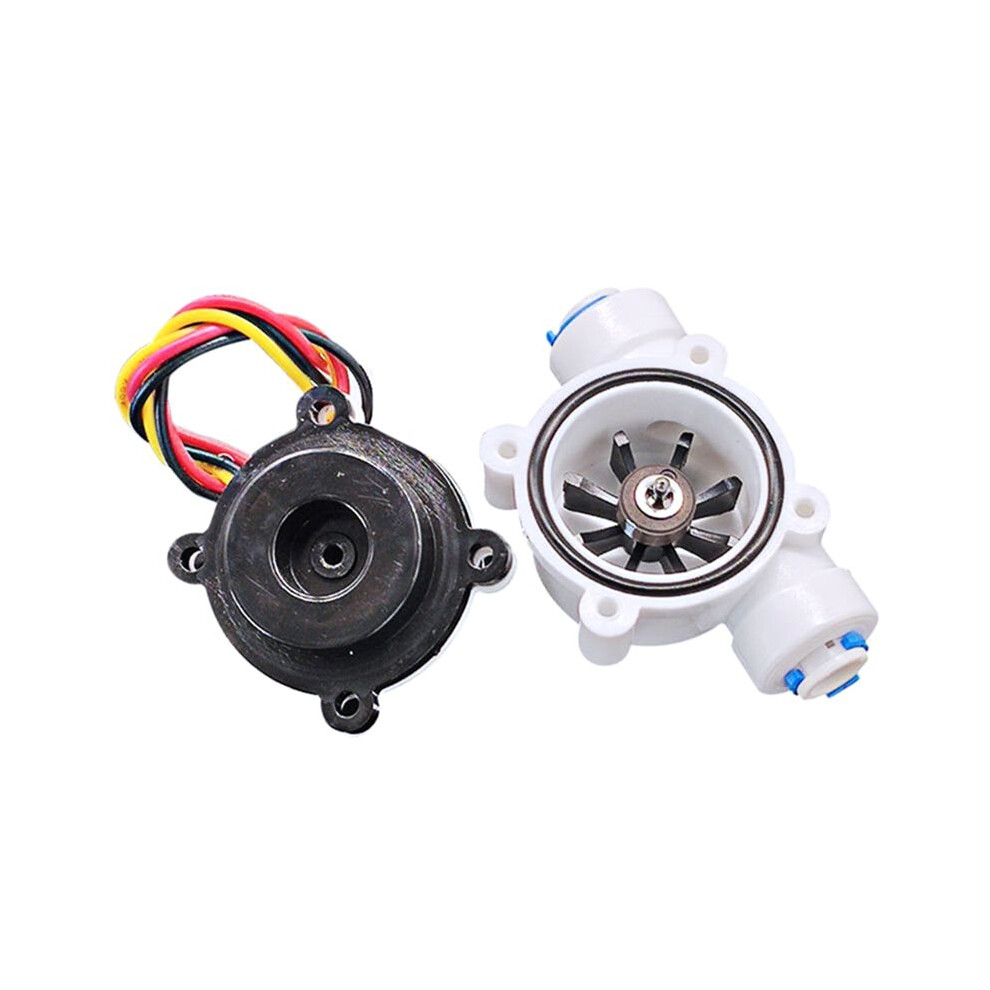

S402B 2 Points PE Pipe Water Flow Sensor Hall Flowmeter G 1/4" Fast Connection Interface,Water Dispenser Flow Meter
Brand Tlily
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
91,51 kr.
131,17 kr.
Spar 30%!
Gratis levering
1%
Tjen 0,92 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | lør. 20. - tir. 23. jun.
Solgt af: CNNOTEPAD
Returnering: 30 dage
180 dages betalingsbeskyttelse
Beskrivelse og detaljer
Oversigt
- Made of high quality ABS and metal material, it is solid, durable and good performances, serve you for a long-term. 0.5-6L/minutes, high efficiency, stable performances. G 1/4" fast connection interfaces, easy to install. Suitable for water dispenser, water heater and so on.
- Product Parameters:Start water flows: Less than 0.20L/minutes;Starting water pressure: Less than 0.1Mpa;Working flows range: 0.5-6L/minutes;
- Pay attention to clean the air impellers on the residual water when the output signal is not highers than 150HZ, idle for time should be 30 seconds.
- Bearing water pressure: up to 0.8Mpa;Operating voltage range: 3.5-12VDC;Operating current: 0.51.5MA;Working environment temperature: 1-100;Applicable environment temperature: -40-100;Output characteristic: (32xQ)Q for traffic L/minutes, Hz (Hz); Error ±3% Service life: 106H;
- Electrical strength: Over 600VAC, Durations of 5S leakage current 3mA Insulation resistance: Over 100mΩ, The insulation resistance between the connector and the housing body or the valves body.
S402B 2 Points PE Pipe Water Flow Sensor Hall Flowmeter G 1/4" Fast Connection Interface,Water Dispenser Flow Meter Beskrivelse
Made of high quality ABS and metal material, it is solid, durable and good performances, serve you for a long-term. 0.5-6L/minutes, high efficiency, stable performances. G 1/4" fast connection interfaces, easy to install. Suitable for water dispenser, water heater and so .
Product Parameters:Start water flows: Less than 0.20L/minutes;Starting water pressure: Less than 0.1Mpa;Working flows range: 0.5-6L/minutes;
Pay attention to clean the air impellers the residual water when the output signal is not highers than 150HZ, idle for should be 30 seconds.
Bearing water pressure: to 0.8Mpa;Operating voltage range: 3.5-12VDC;Operating current: 0.51.5MA;Working environment temperature: 1-100;Applicable environment temperature: -40-100;Output characteristic: (32xQ)Q for traffic L/minutes, Hz (Hz); Error 3% Service life: 106H;
Electrical strength: Over 600VAC, Durations of 5S leakage current 3mA Insulation resistance: Over 100mΩ, The insulation resistance between the connector and the housing body or the valves body.
Color: White
Material: plastic
Package Contents:
1*S402B Water Flow Sensor
Detaljer
| OPC | PRNK7J9 |
|---|---|
| Mærke | Tlily |
| Koder | 4711494725299 (EAN) |
Produktdata

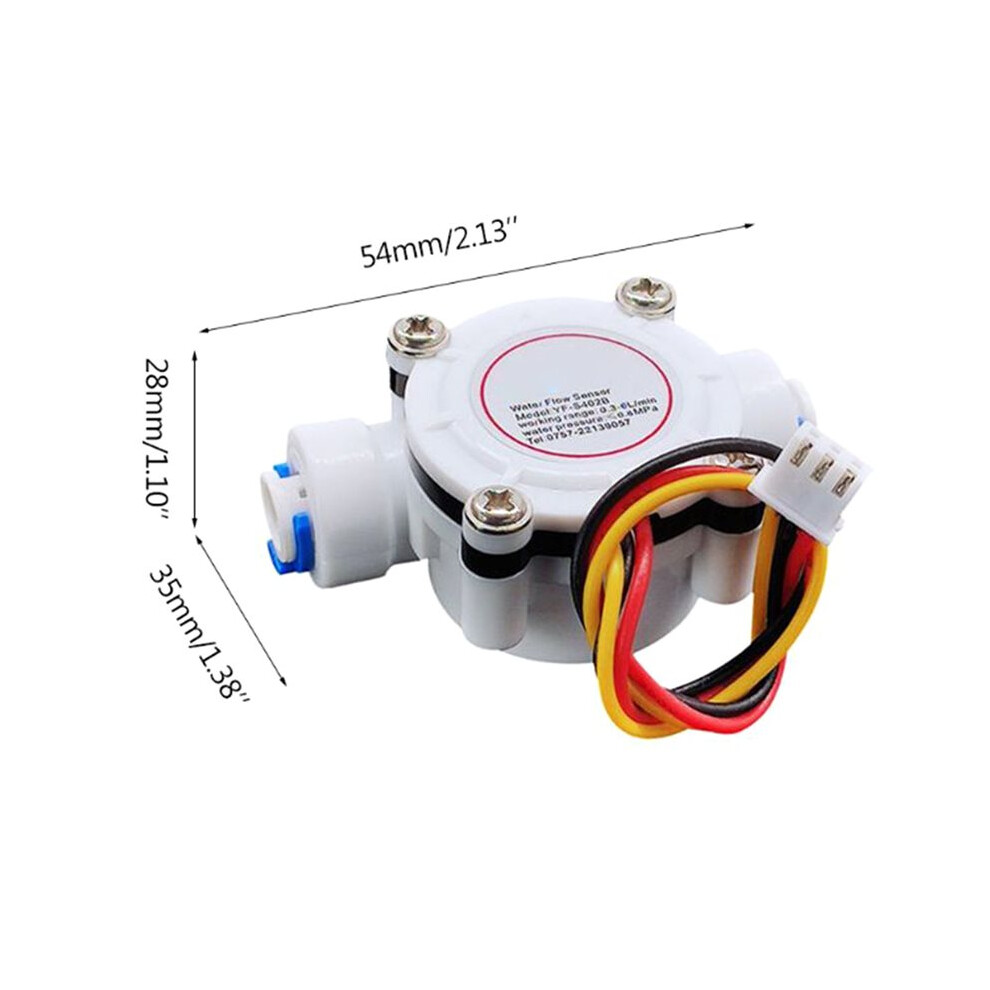

| Height | 3cm |
|---|---|
| Width | 5cm |
| Length | 9cm |
| Weight | 0.037kg |
| Colour | White |
| Material | Plastic |
