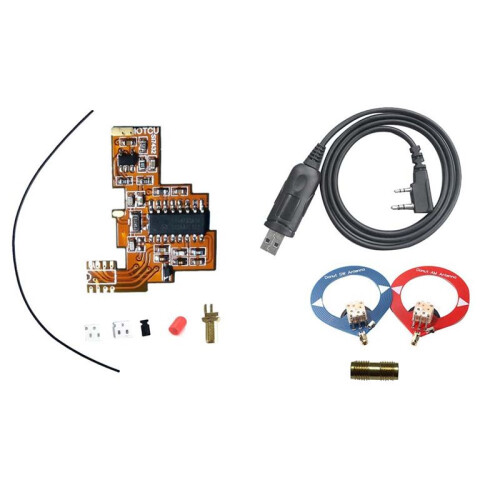

SI4732 FPC Modification Module+Antenna+Programming Cable for Quansheng K5K6 Shortwave Reception/Dual Antenna Solution
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tor. 18. - tir. 23. jun.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Oversigt
- 1. Add an audio amplifier to solve the problem of extremely low volume of SSB single sideband, and the effect is obvious. Redesign FM and HF bandpass filters,
- 2. An ESD tube is added to the input terminal for electrostatic protection and strong signal protection when transmitting in the UV section of dual antennas.
- 3. Use FPC soft board, the board thickness is 0.12mm, safe and reliable without short circuit, and the installation does not support the speaker.
- 4. Use high-quality high-frequency wire-wound chip inductors with high Q value, small internal resistance, and strong filtering selectivity.
- 5. In the dual-antenna solution, an additional level of band-pass filtering is added to the antenna input end, and a feeder and SMA head are used to an HF independent antenna from the LED, which does not affect the UV performance of the machine. The FPC soft board uses a double-sided disk, which is easier to connect to the machine.
SI4732 FPC Modification Module+Antenna+Programming Cable for Quansheng K5K6 Shortwave Reception/Dual Antenna Solution Beskrivelse
1. Add an audio amplifier to solve the problem of extremely low volume of SSB single sideband, and the effect is obvious. Redesign FM and bandpass filters,
2. An ESD tube is added to the input terminal for electrostatic protection and strong signal protection when transmitting in the UV section of dual antennas.
3. Use FPC soft board, the board thickness is 0.12mm, safe and reliable without short circuit, and the installation does not support the speaker.
4. Use high-quality high-frequency wire-wound chip inductors with high Q value, small internal resistance, and strong filtering selectivity.
5. In the dual-antenna solution, an additional level of band-pass filtering is added to the antenna input end, and a feeder and SMA are used to an independent antenna from the LED, which does not affect the UV performance of the machine. The FPC soft board uses a double-sided disk, which is easier to connect to the machine.
It is suitable for Quansheng K5/Quansheng K6 to install S14732 soft board FPC and modify Shortwave full-band reception/single sideband reception. It is Suitable for single antenna and dual Antenna.
Applicable models:For Quansheng uv k5/k6
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use
Colour:Orange Yellow
Material:PCB

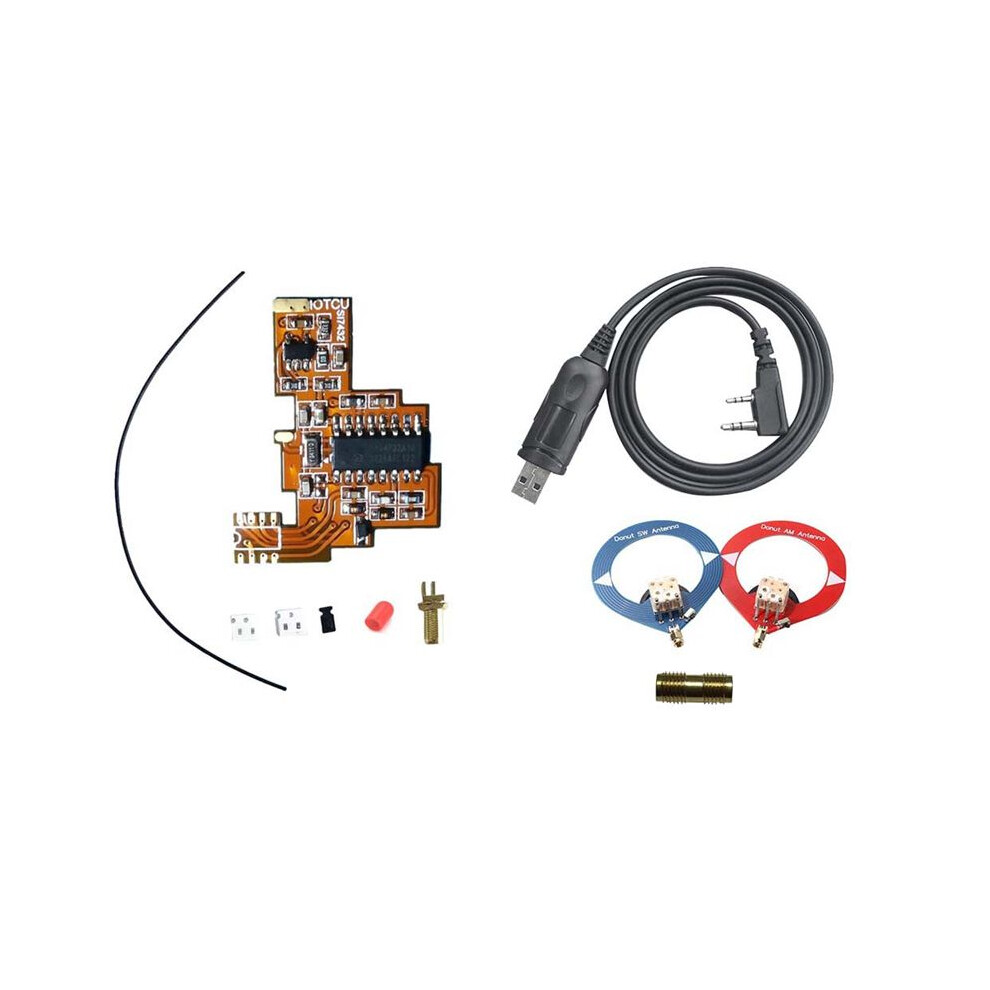

Package Contents:
1 set x Kit
1x USB Programming Cable
2x Donut Antenna
1x Adapter
Detaljer
| OPC | PVB6R2Z |
|---|---|
| Mærke | Exogio |
| Koder | 4711852816164 (EAN) |
Produktdata
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.106kg |
| Colour | Orange Yellow |
| Material | PCB |
